VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-119

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM3757E

DI-120

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

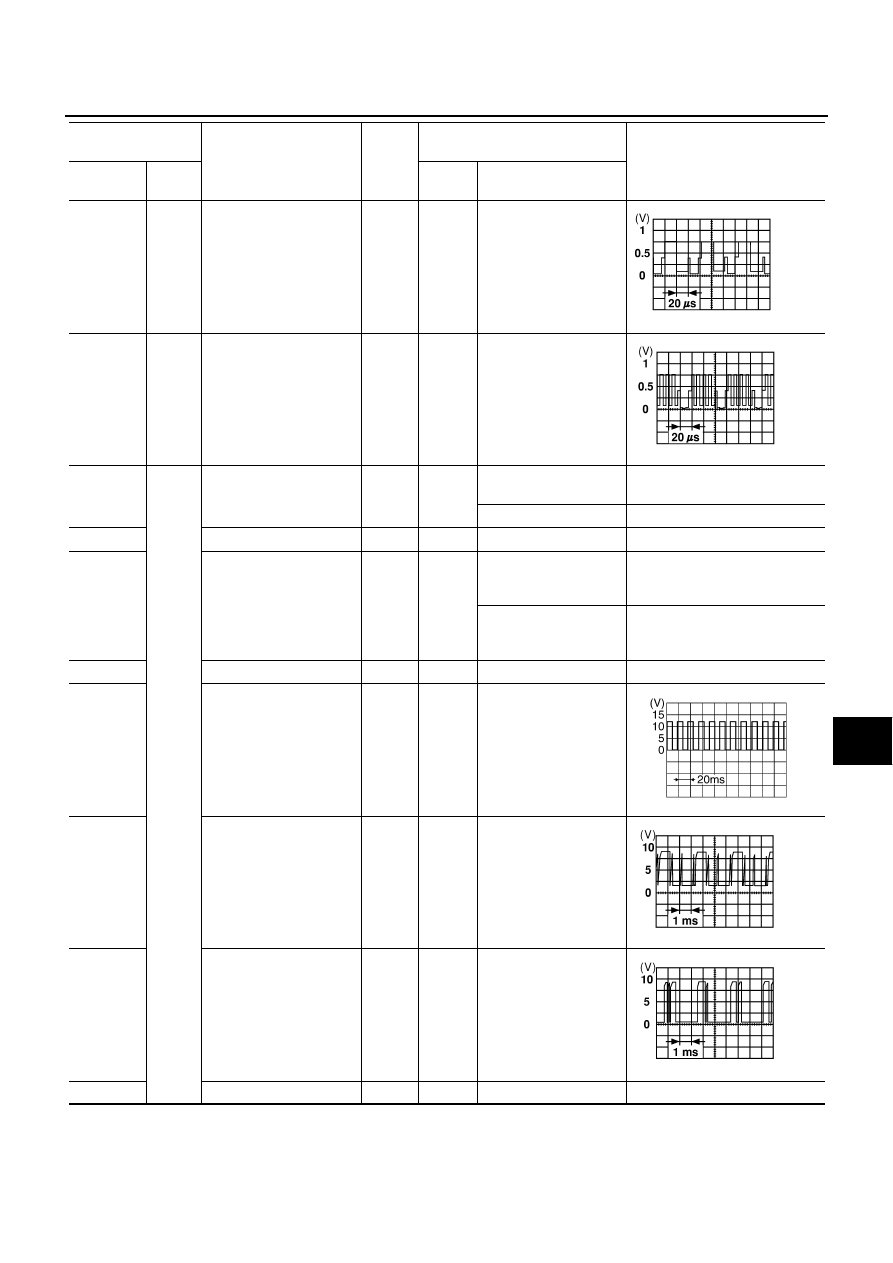

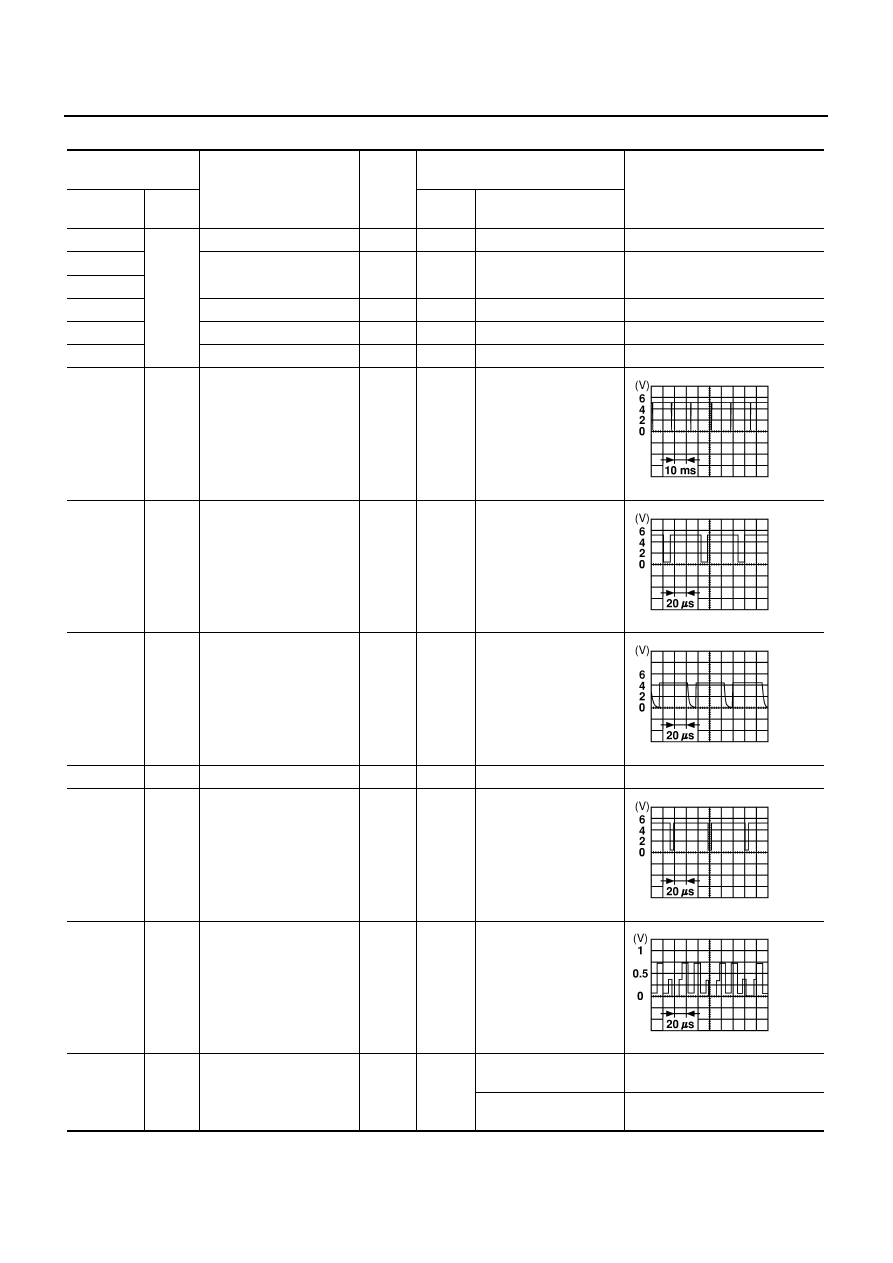

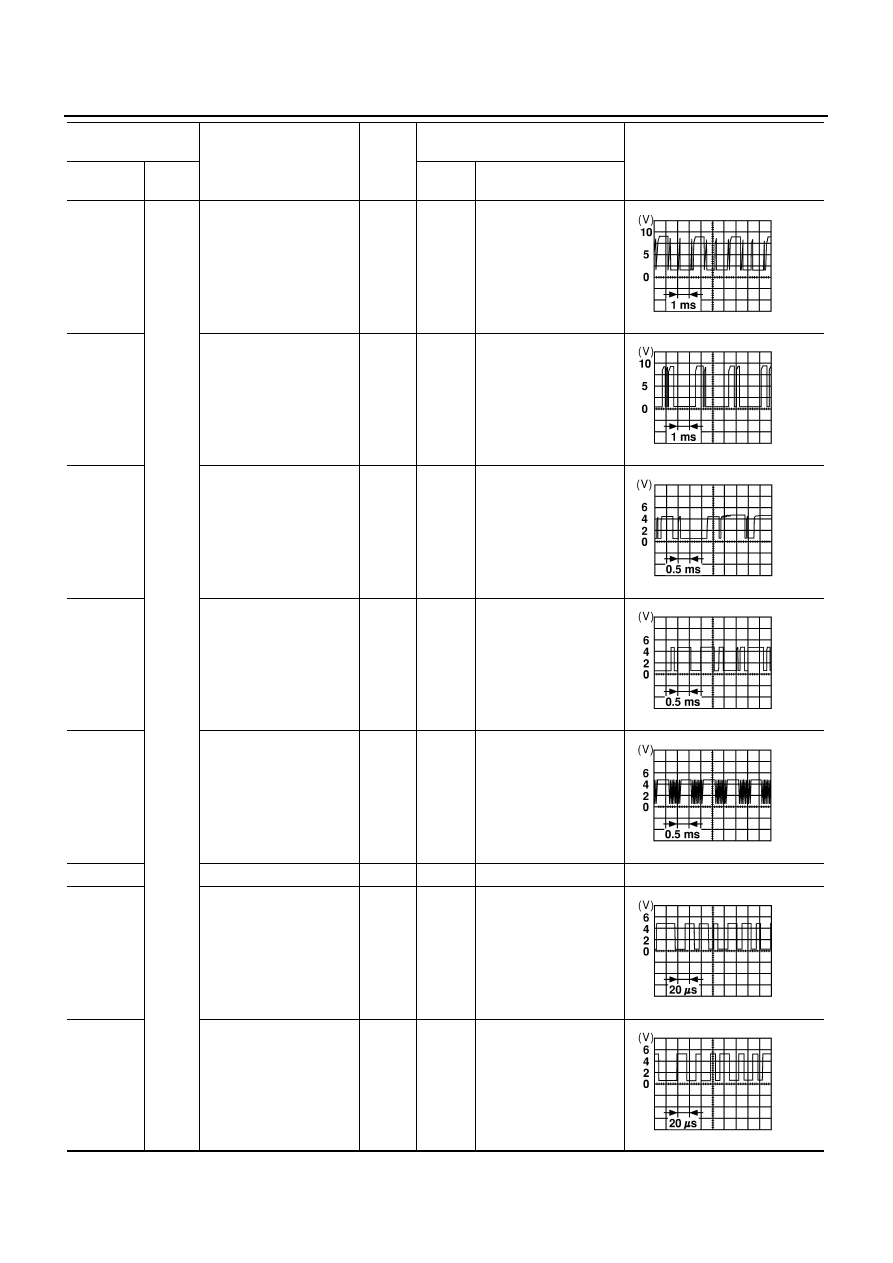

Terminals and Reference Value for AV Control Unit

NKS001CM

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

(+)

(

−

)

Ignition

switch

Operation

1 (B)

Ground

Ground

—

ON

—

 0 V

2 (PU/W)

Battery power supply

Input

OFF

—

Battery voltage

3 (PU/W)

4 (B)

Ground

—

ON

—

0 V

6 (L/OR)

ACC power supply

Input

ACC

—

Battery voltage

10

Shield

—

ON

—

0 V

11 (OR)

10

Vertical synchronizing sig-
nal

Input

ON

Select “Rearview” in
“Confirmation/Adjust-
ment” mode and display
the rearview image on
the screen.

12 (LG)

10

RGB area signal

Output

ON

Press the “INFO”
switch.

13 (L/Y)

10

Horizontal synchronizing
signal

Input

ON

Select “Rearview” in
“Confirmation/Adjust-
ment” mode and display
the rearview image on
the screen.

14

Ground

RGB ground

—

ON

—

0 V

15 (L/R)

10

RGB synchronizing signal

Output

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Con-
firmation/Adjustment
mode function.

18 (W/G)

14

RGB signal (R: red)

Output

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Con-
firmation/Adjustment
mode function.

19 (R/B)

Ground

Reverse signal

Input

ON

A/T selector lever in “R”
position

12 V

A/T selector lever not in
“R” position

0 V

SKIA0161E

SKIA0162E

SKIA0163E

SKIA0164E

SKIA0165E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-121

C

D

E

F

G

H

I

J

L

M

A

B

DI

21 (W/L)

14

RGB signal (G: green)

Output

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Con-
firmation/Adjustment
mode function.

24 (G)

14

RGB signal (B: blue)

Output

ON

Select “Display Color
Spectrum Bar” of “Dis-
play Diagnosis” in Con-
firmation/Adjustment
mode function.

25 (L/Y)

Ground

Illumination control signal

Input

ON

Lighting switch ON (1st
position)

12 V

Lighting switch OFF

0 V

27 (BR/W)

Ignition switch (ON) signal

Input

ON

—

Battery voltage

29 (W)

Rear view camera recog-
nition signal

input

ON

Connect rear view cam-
era control unit connec-
tor.

0 V

Disconnect rear view
camera control unit con-
nector.

5 V

31

Shield

—

ON

—

0 V

33 (OR/L)

Vehicle speed signal
 (8-pulse)

Input

ON

When vehicle speed is
approx. 40 km/h (25
MPH)

34 (LG)

Communication signal
(AV - ME)

Output

ON

Perform various set-
tings on the “Vehicle
Electric Systems”
screen.

35 (PU)

Communication signal
(ME - AV)

Input

ON

Perform various set-
tings on the “Vehicle
Electric Systems”
screen.

40

Shield

—

ON

—

Approx. 0

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

(+)

(

−

)

Ignition

switch

Operation

SKIA0166E

SKIA0167E

PKIA1935E

SKIA0169E

SKIA0170E

DI-122

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

41 (G/B)

Ground

CONSULT-II communica-
tion signal (AV - CN)

Output

ON

Perform CONSULT-II.

42 (BR/Y)

CONSULT-II communica-
tion signal (CN - AV)

Input

ON

Perform CONSULT-II.

43 (R)

A/C communication signal
(AV-AC)

Output

ON

—

44 (W)

A/C communication signal
(AC-AV)

Input

ON

—

45 (B)

A/C clock signal

Input

ON

—

46

Shield

—

ON

—

0 V

47 (Y)

Communication signal (+)

Input/

output

ON

—

48 (R/L)

Communication signal (

−

)

Input/

output

ON

—

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

(+)

(

−

)

Ignition

switch

Operation

SKIA0169E

SKIA0170E

SKIA0172E

SKIA0173E

SKIA0174E

SKIA0175E

SKIA0176E
