VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-111

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM1564E

DI-112

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

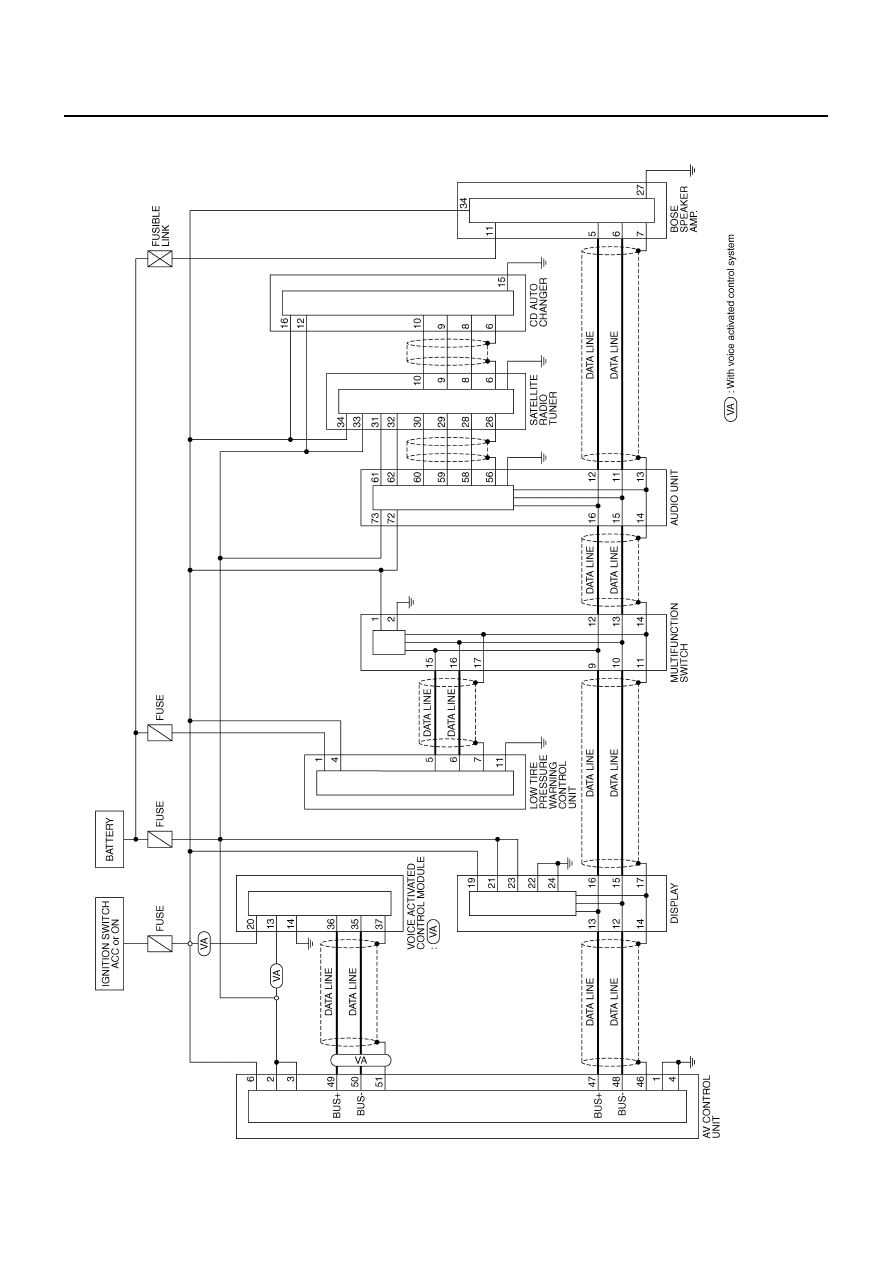

Schematic — COMM —

NKS001CK

WITH SATELLITE RADIO SYSTEM

TKWM3750E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-113

C

D

E

F

G

H

I

J

L

M

A

B

DI

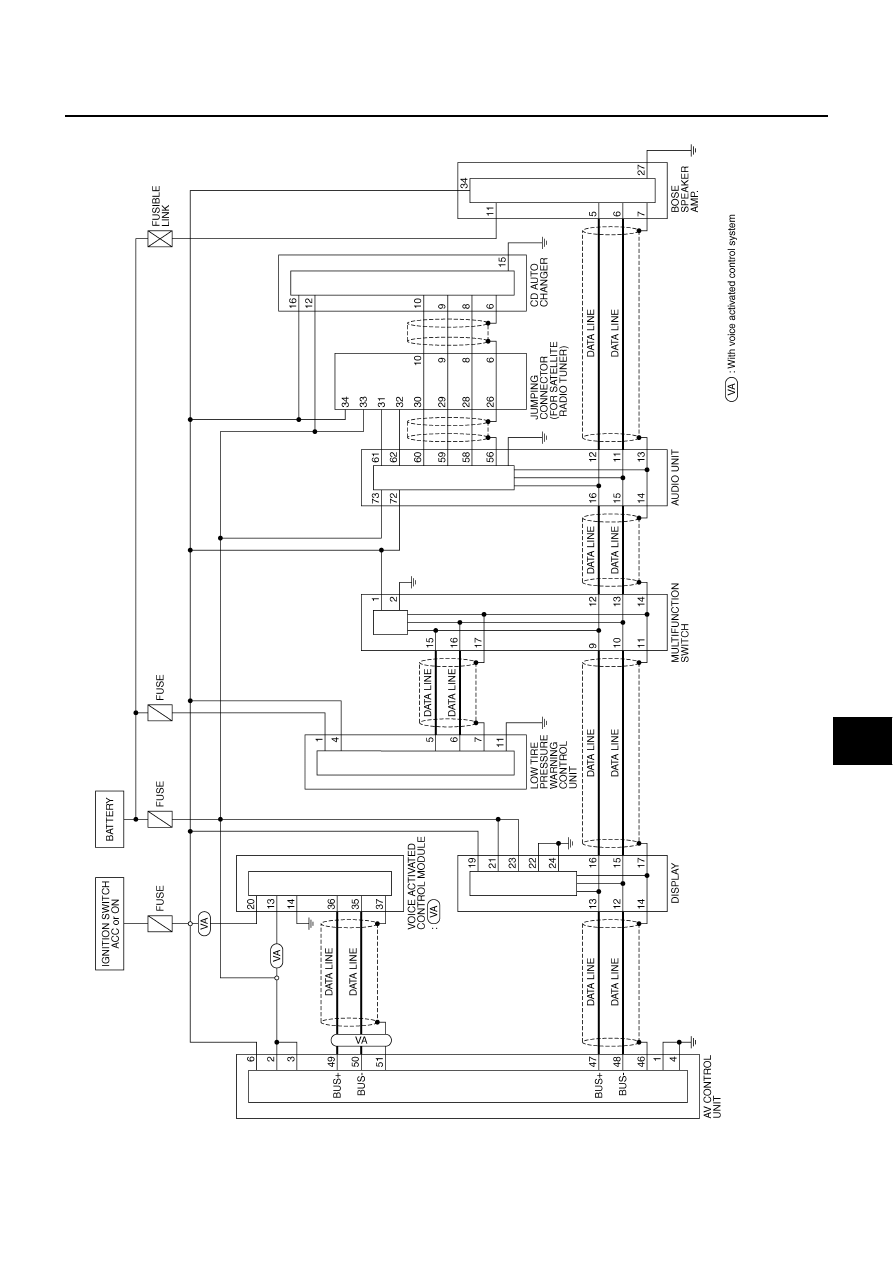

WITHOUT SATELLITE RADIO SYSTEM

TKWM3751E

DI-114

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

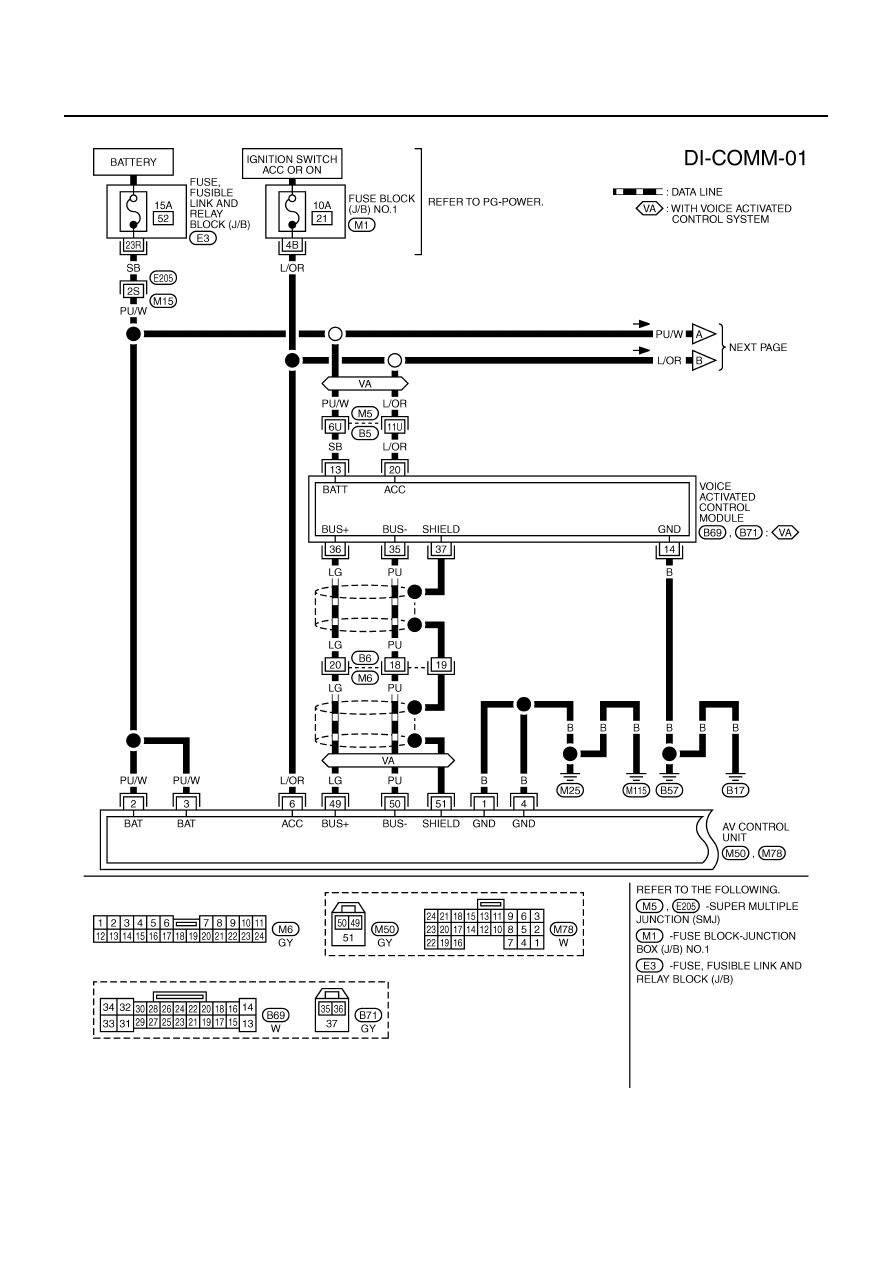

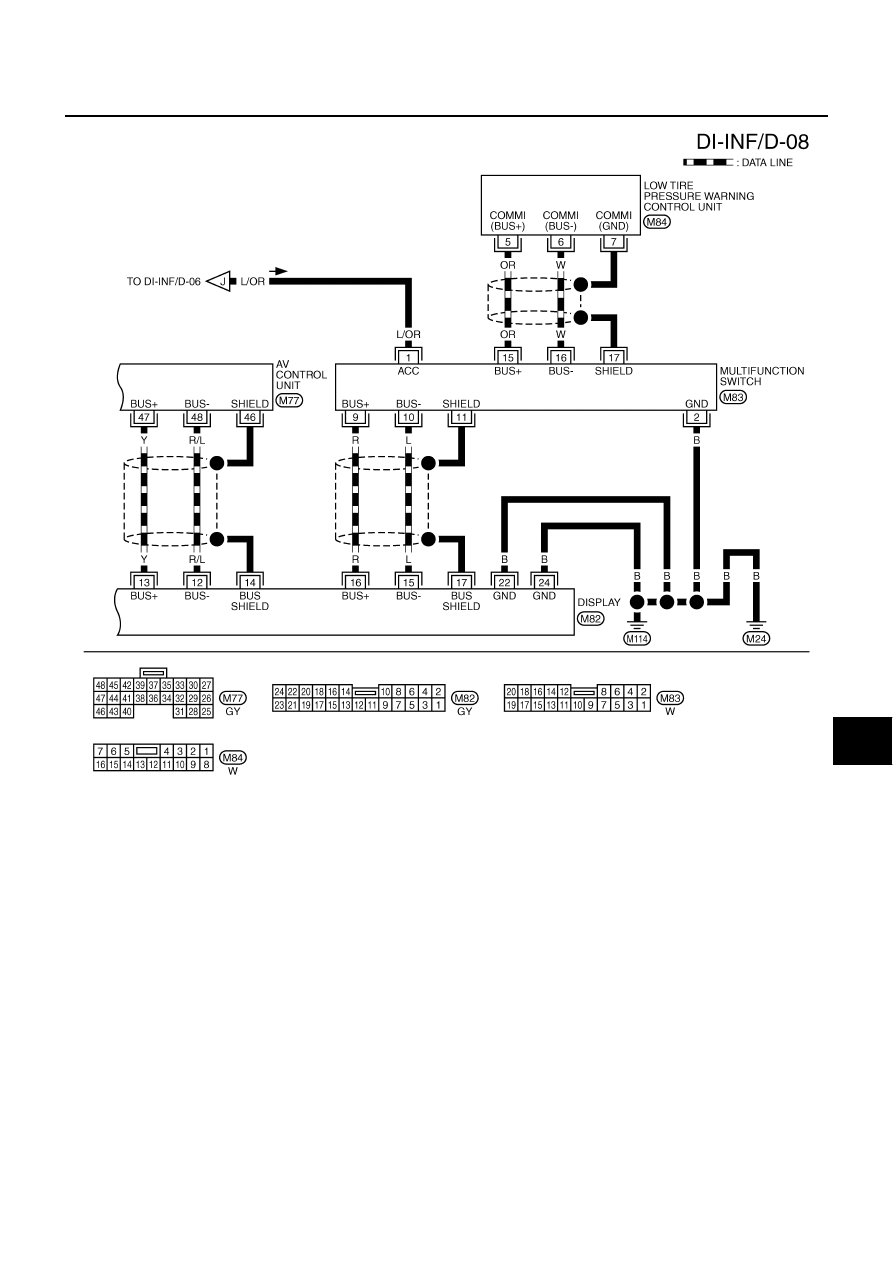

Wiring Diagram — COMM —

NKS001CL

TKWM3752E
