VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-103

C

D

E

F

G

H

I

J

L

M

A

B

DI

Schematic — INF/D —

NKS001CI

TKWM1556E

DI-104

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

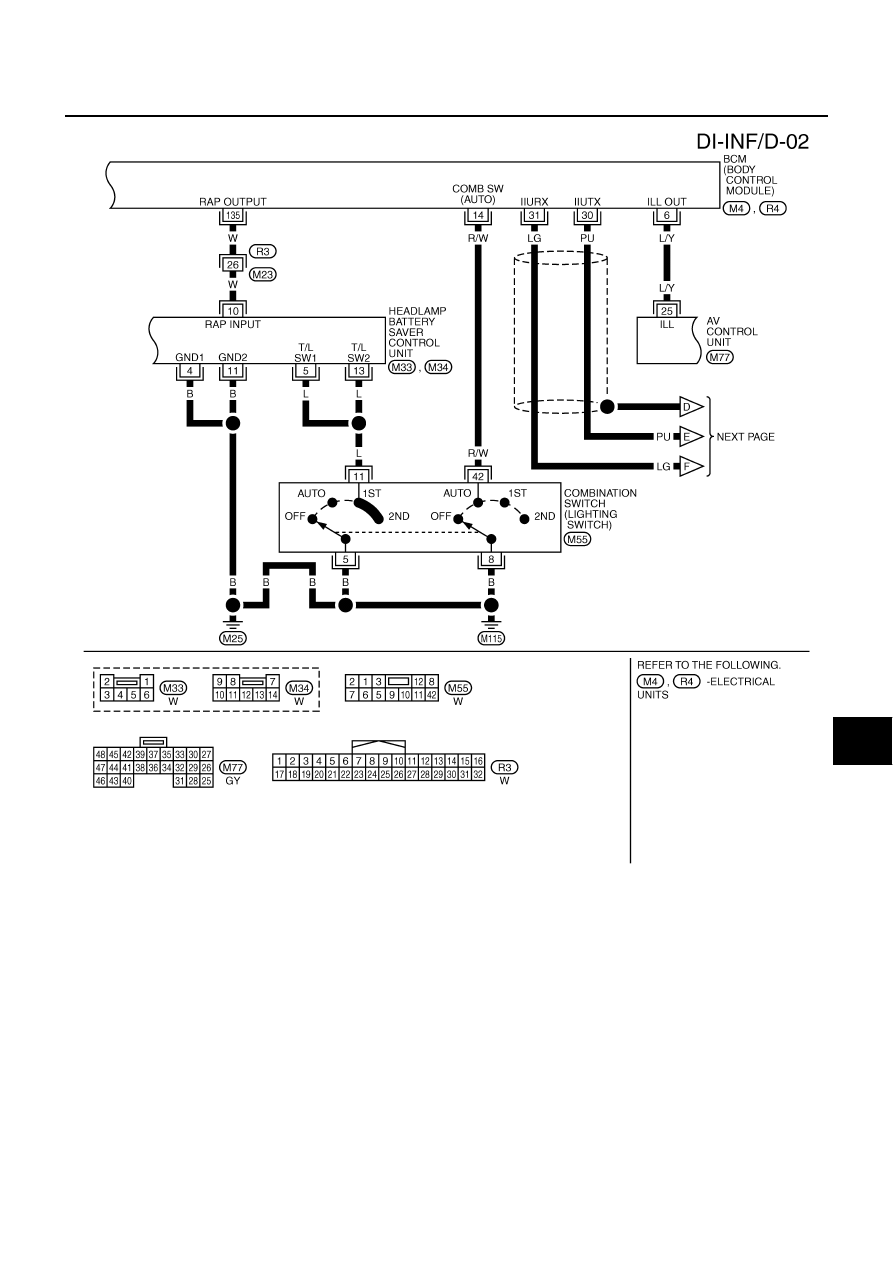

Wiring Diagram — INF/D —

NKS001CJ

TKWM3740E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

DI-105

C

D

E

F

G

H

I

J

L

M

A

B

DI

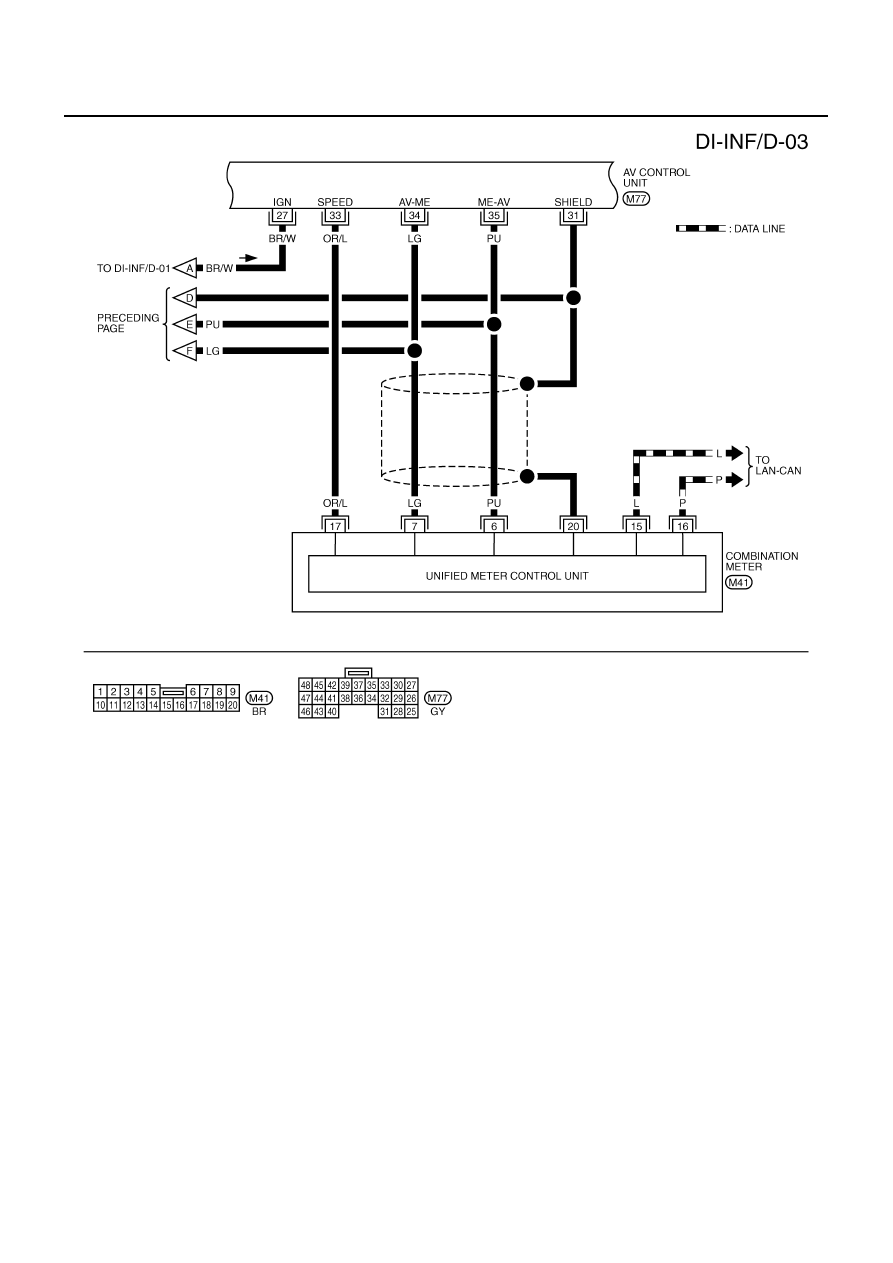

TKWM3741E

DI-106

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITHOUT

NAVIGATION SYSTEM

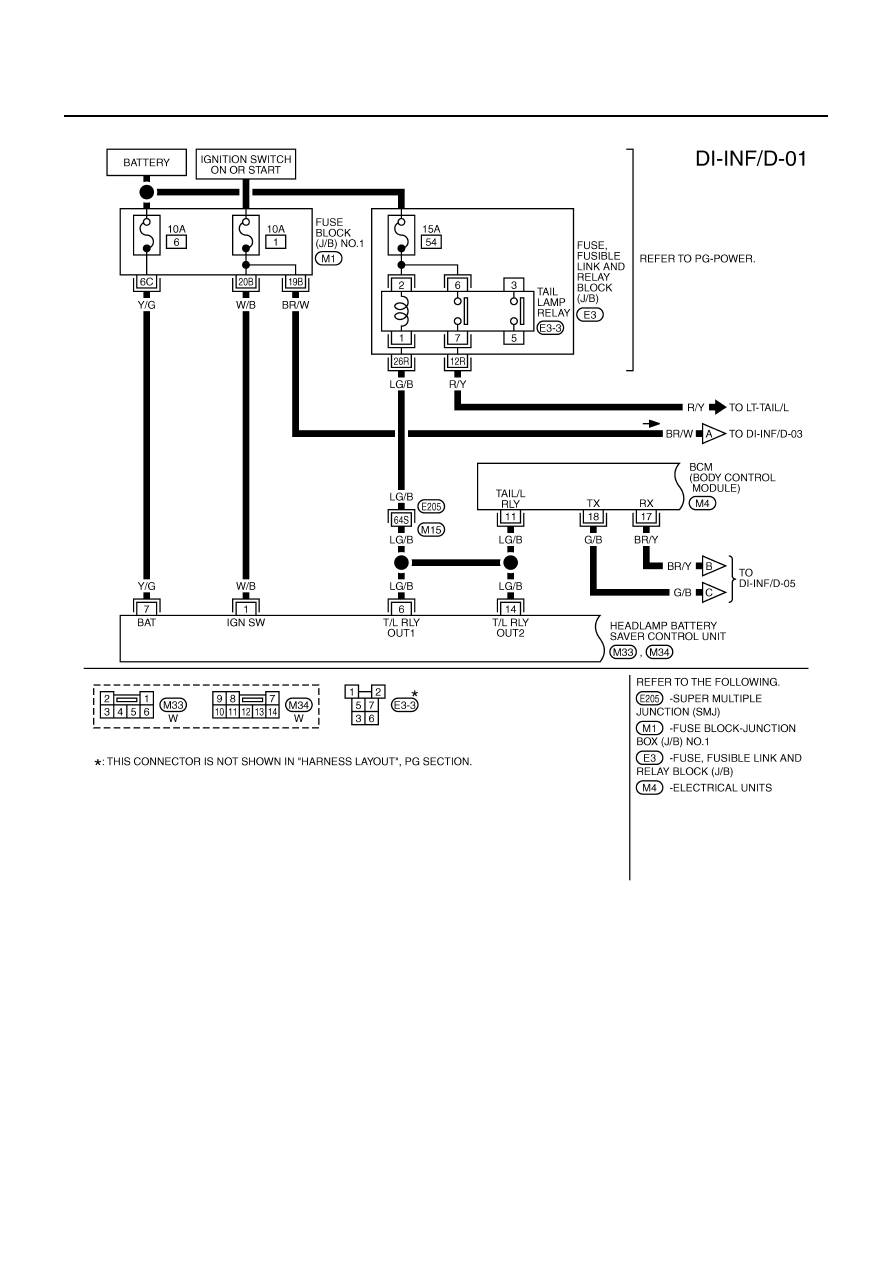

TKWM1559E
