AUTO TRUNK SYSTEM

PFP:98841

Outline of System

NIS000W5

Operating trunk button (on electronic key) or trunk lid opener switch (under the driver door armrest) allows
trunk lid auto OPEN operation. Also, operating trunk lid close switch (inside the trunk lid) allows trunk lid
auto CLOSE operation.

If any pinched foreign material is detected during auto CLOSE operation, the anti-pinch mechanism stops
trunk lid from closing and shifts the operation to manual.

The buzzer sounds when trunk lid auto operation starts (operation start buzzer).

The buzzer sounds during trunk lid auto CLOSE operation (warning buzzer).

OPERATING CONDITION

Any of the following operations during trunk lid auto operation stops the auto operation and shifts the operation
to manual. Moving trunk lid manually to a position just before fully closed position activates the auto closure
mechanism to close trunk lid completely.

When trunk lid opener switch is operated.

When trunk lid close switch is operated.

When trunk button on electronic key is operated (at least 0.5 seconds).

When selector lever is shifted to a position other than “P” position (detention switch: ON).

When vehicle speed becomes 7 km/h or higher.

When auto operation does not end after 10 seconds since the start.

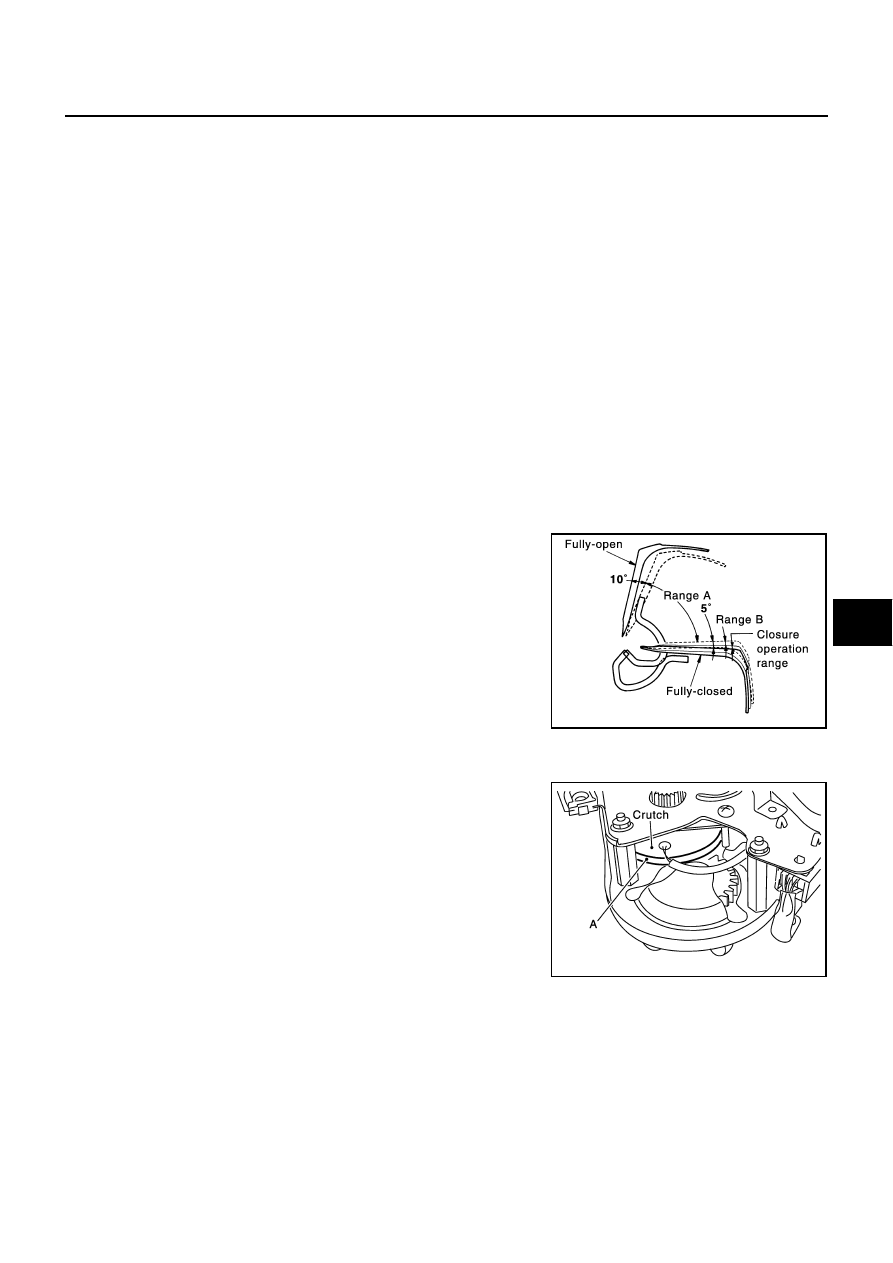

With trunk lid position falls within ranges A and B in the figure,
when trunk lid stops auto operation forcefully or because of
pinched foreign material.

Removal and Installation

NIS000W6

PRECAUTIONS FOR WORK

During removal and installation, be careful not to allow any
grease to adhere to the solenoid clutch joint (A in the figure).

If grease adheres to the solenoid clutch joint (A in the figure),
clutch becomes slippery and generates a transmission loss
resulting in inactive auto operation.

PIIA0510E

SIIA0759E

BL-134

AUTO TRUNK SYSTEM

REMOVAL

1.

Open trunk lid.

2.

Remove rear parcel shelf finisher. Refer to

EI-48, "REAR PARCEL SHELF FINISHER"

 .

3.

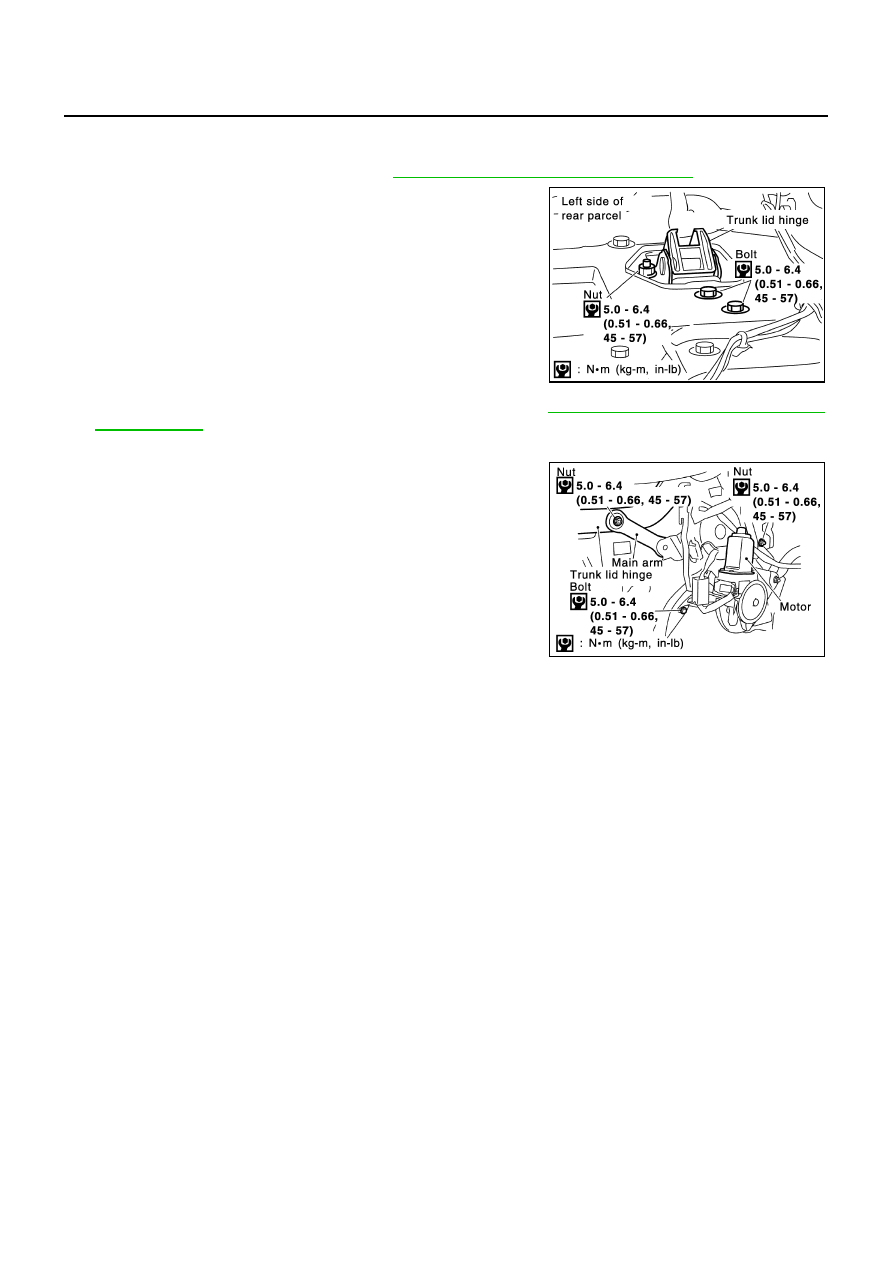

Remove trunk motor assembly mounting bolts and nut.

4.

Remove trunk front finisher and trunk side finisher (LH). Refer to

EI-60, "TRUNK ROOM TRIM & TRUNK

LID FINISHER"

 .

5.

Disconnect trunk motor connector.

6.

Remove main arm mounting nut on trunk lid hinge.

7.

Remove mounting bolt and nut, and remove trunk motor assem-
bly.

INSTALLATION

Install in reverse order of removal.

CAUTION:

Be careful not to pinch the harnesses. Be sure to check operation after installation is completed.

PIIA0130E

PIIA0131E

AUTO TRUNK SYSTEM

BL-135

C

D

E

F

G

H

J

K

L

M

A

B

BL

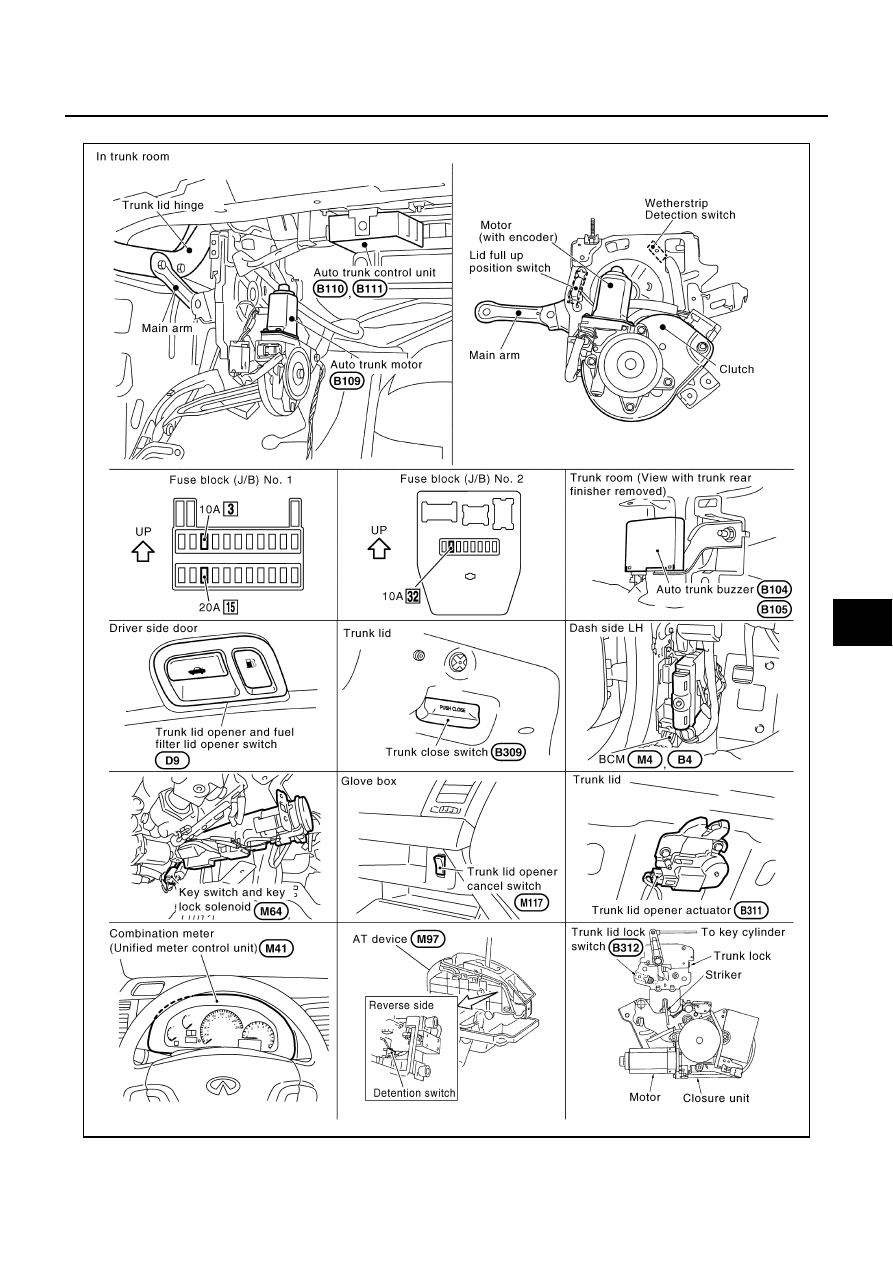

Component Installation Location

NIS000W7

PIIB7921E

BL-136

AUTO TRUNK SYSTEM

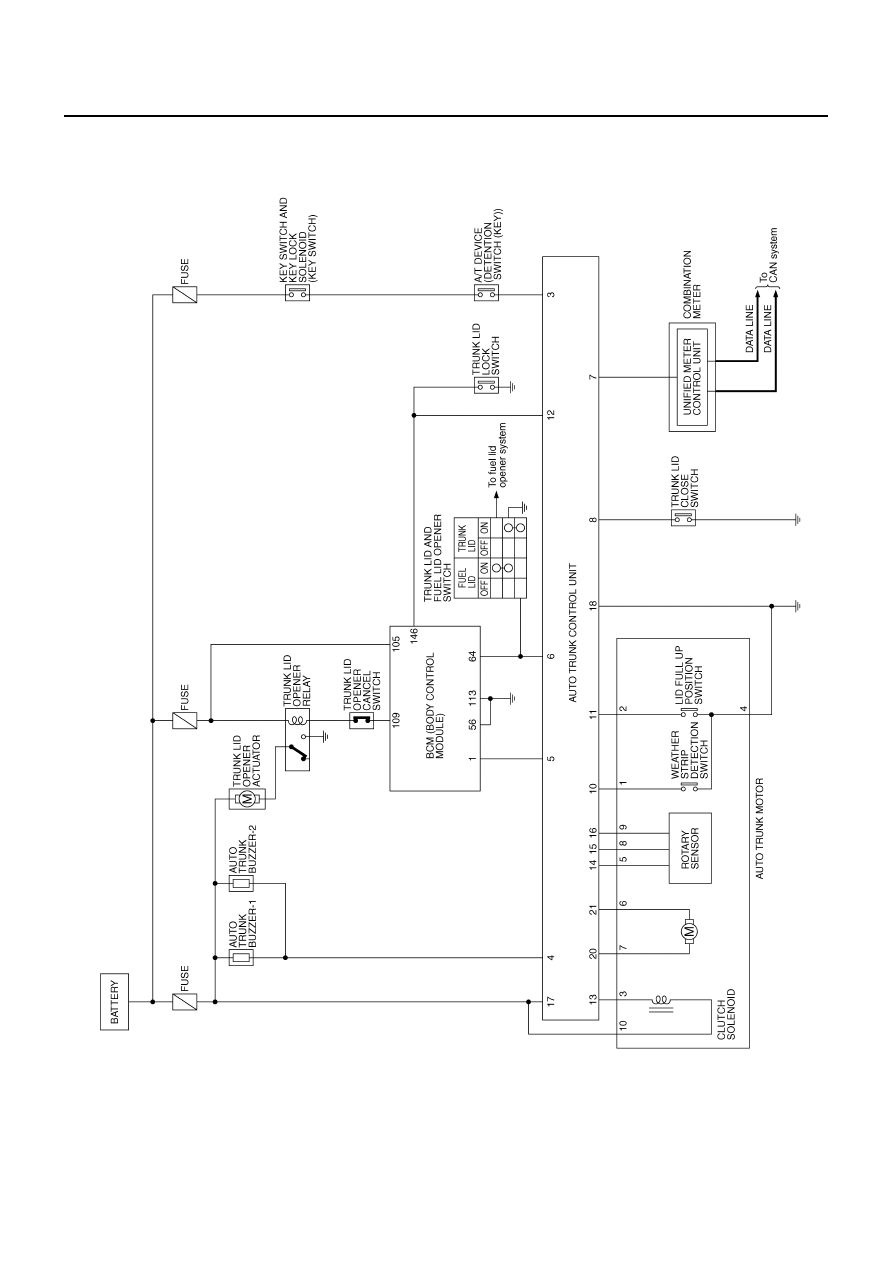

Schematic

NIS000W8

TIWM0406E
