TRUNK LID AND FUEL FILLER LID OPENER

BL-125

C

D

E

F

G

H

J

K

L

M

A

B

BL

Terminals and Reference Value for BCM

NIS000VT

NOTE:
For Trouble diagnosis of trunk lid opener, refer to

BL-53, "REMOTE KEYLESS ENTRY SYSTEM"

 .

Terminal

Wire color

Item

Signal

Input/Out-

put

Condition

Voltage (V)

(Approx.)

56

B

Ground

0

64

Y/R

Trunk lid opener switch

Input

Trunk lid opener switch OFF

ON

 0

105

Y/L

Power source (Fuse)

Input

Battery voltage

109

LG

Trunk lid opener relay

Input

Trunk lid opener switch OFF

ON

Battery voltage

 0

113

B

Ground

0

BL-126

TRUNK CLOSURE SYSTEM

TRUNK CLOSURE SYSTEM

PFP:84622

System Description

NIS000VU

When the trunk lid lock latch engaged with striker, striker is lowered by means of a motor the trunk lid fully
closed.

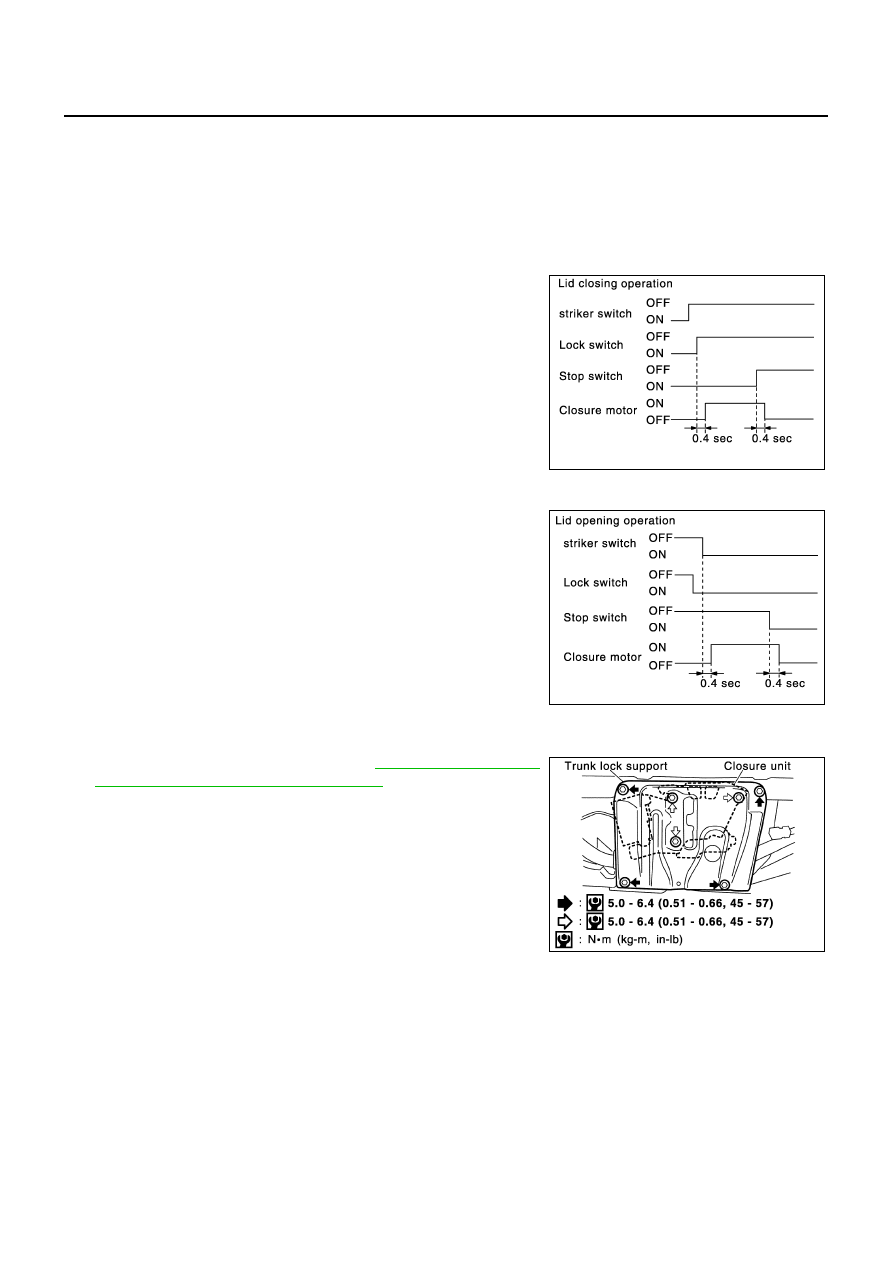

Operation Description

NIS000VV

Trunk lid closing operation.

With the striker switch: OFF (trunk lock pressed the striker
switch), when the Lid lock switch is operated: ON

OFF (trunk

lock is engaged with the striker).

Trunk lid opening operation

With the locking switch: ON (trunk lock is not engaged with the
striker), when the striker switch is operated: OFF

ON (the trunk

lock releases the striker switch).

Removal and Installation of Auto Closure Unit

NIS000VW

REMOVAL

1.

Remove trunk rear finisher. Refer to

BL-119, "Removal and

Installation of Trunk Closure Control Unit"

 .

2.

Disconnect the harness connector.

3.

Remove the mounting bolt, and remove auto closure unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing the auto closure unit, be careful not to pinch nearby wiring harnesses.

PIIA0517E

PIIA0518E

PIIA0128E

TRUNK CLOSURE SYSTEM

BL-127

C

D

E

F

G

H

J

K

L

M

A

B

BL

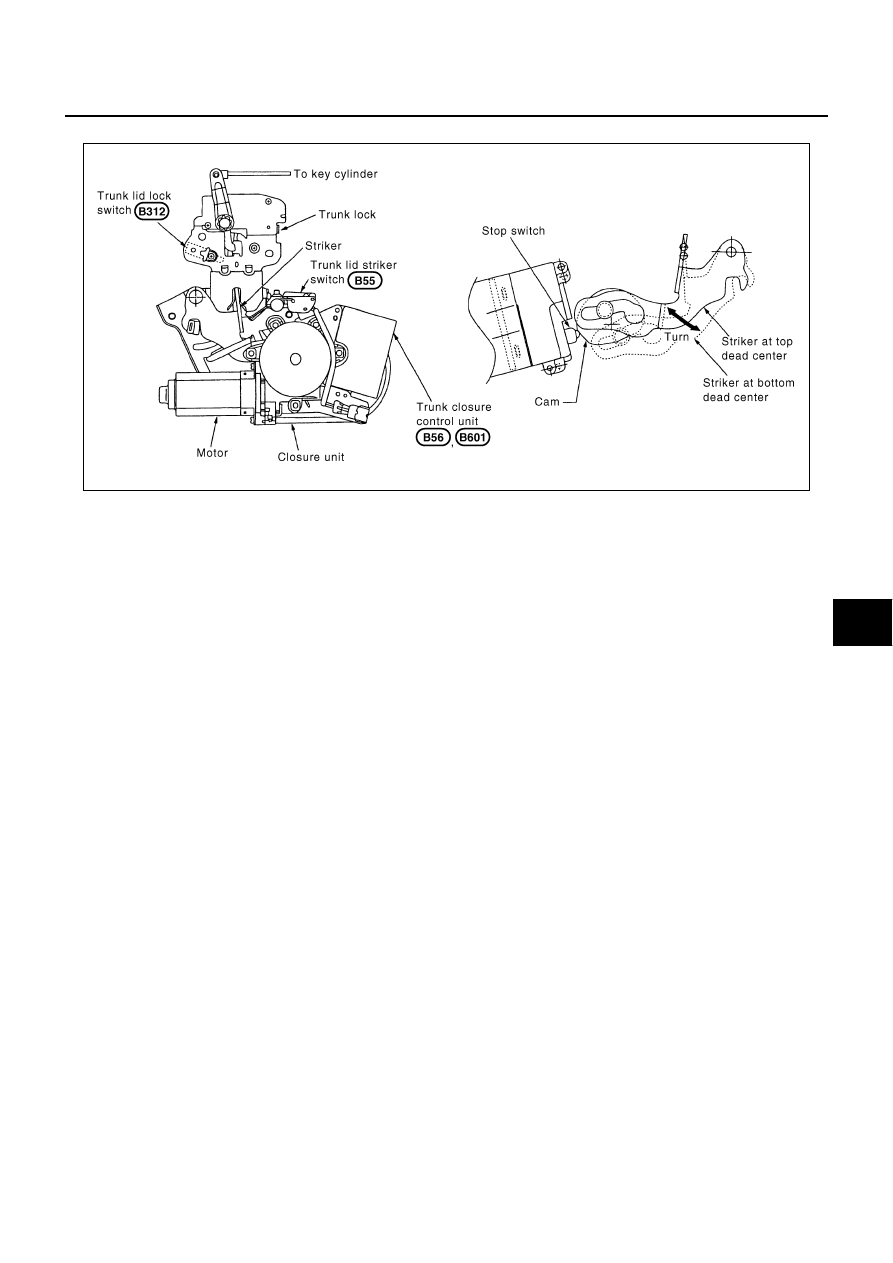

Component Installation Location

NIS000VX

PIIB2131E

BL-128

TRUNK CLOSURE SYSTEM

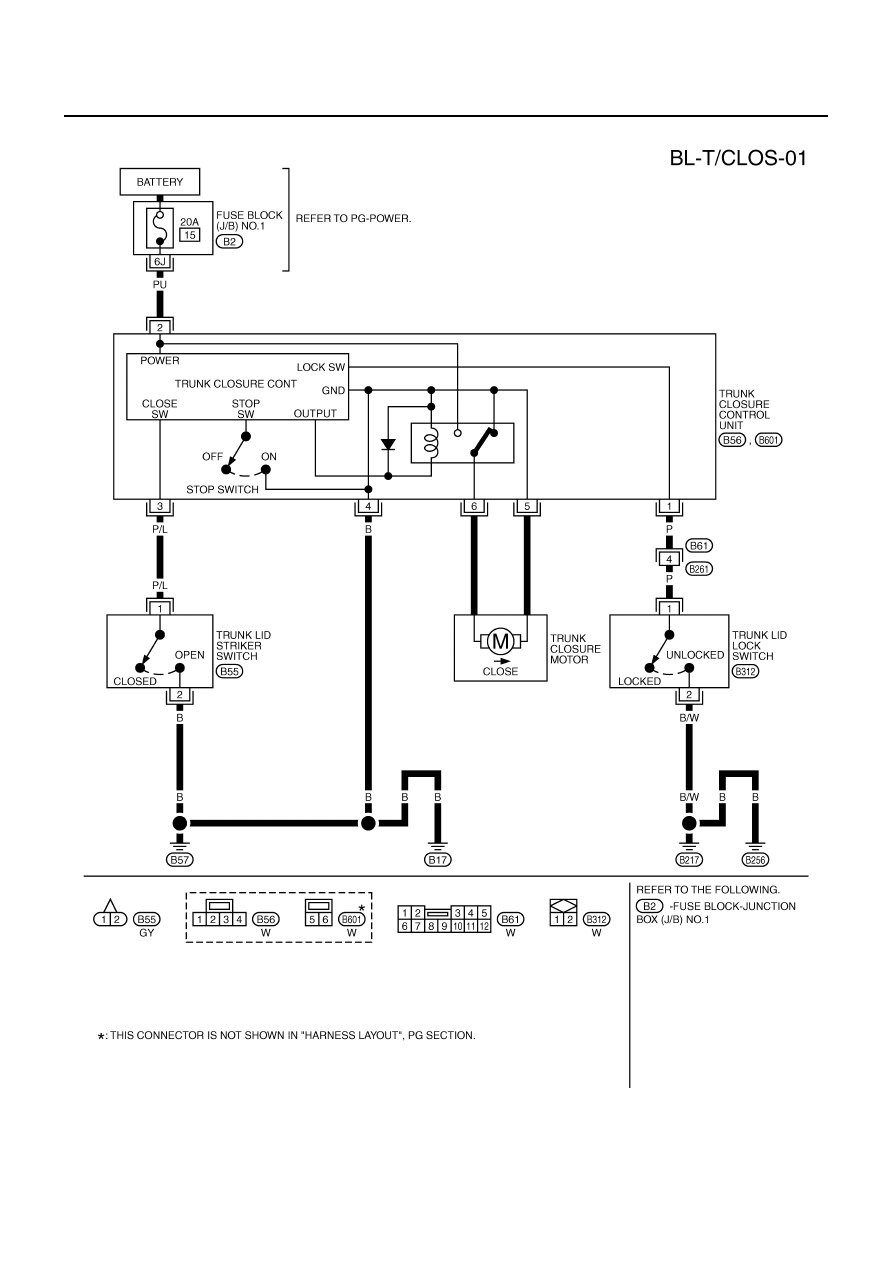

Wiring Diagram — T/CLOS —

NIS000VY

TIWM1388E
