TRUNK LID

BL-121

C

D

E

F

G

H

J

K

L

M

A

B

BL

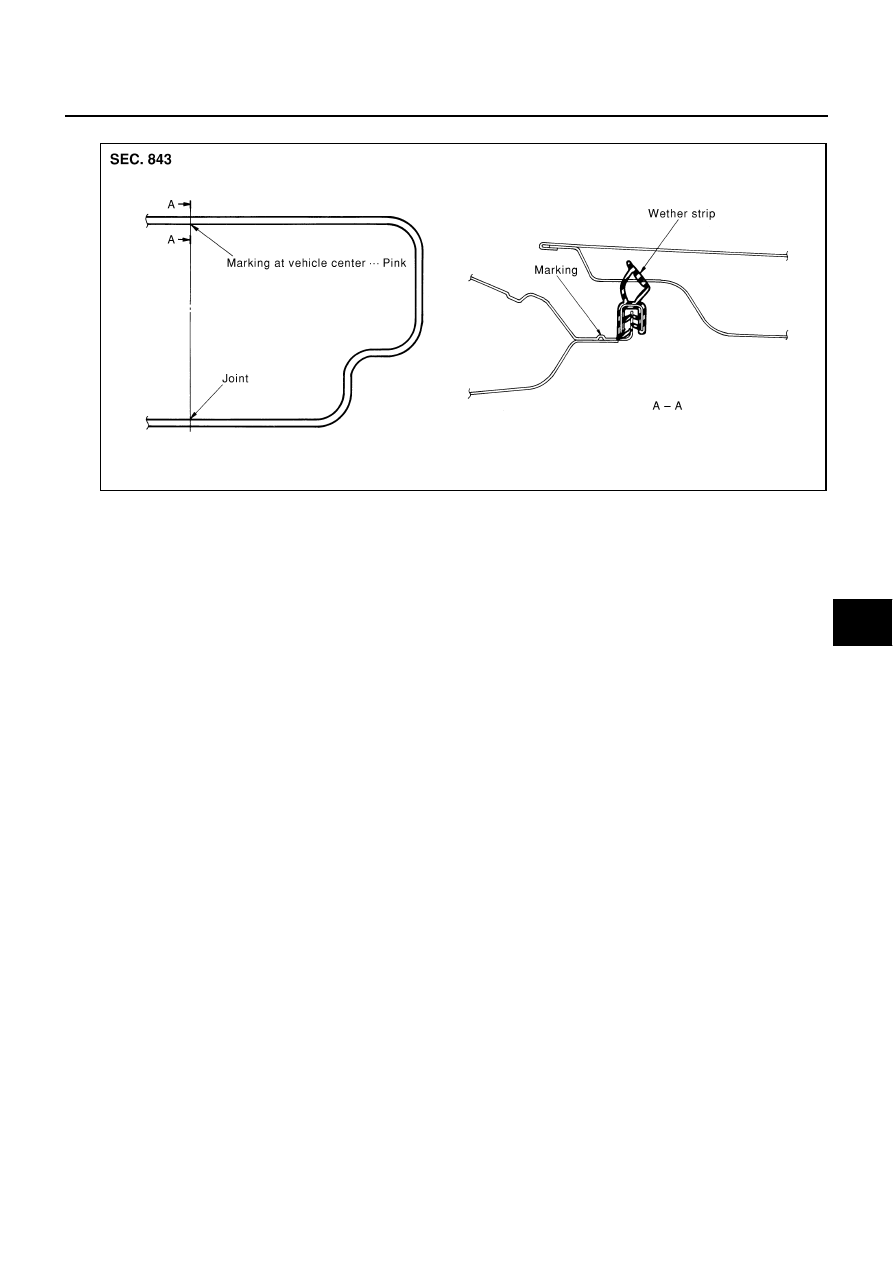

Removal and Installation of Trunk Lid Weatherstrip

NIS000VQ

REMOVAL

1.

Pull up and remove engagement with body from weatherstrip joint.

CAUTION:

After removal, do not pull strongly on the weatherstrip.

INSTALLATION

1.

Working from the upper section, align weatherstrip mark with vehicle center position mark and install
weatherstrip onto the vehicle.

2.

For the lower section, align the weatherstrip seam with center of the striker.

3.

After installation, pull the weatherstrip gently to ensure that there is no loose section.

SIIA0180E

BL-122

TRUNK LID AND FUEL FILLER LID OPENER

TRUNK LID AND FUEL FILLER LID OPENER

PFP:84640

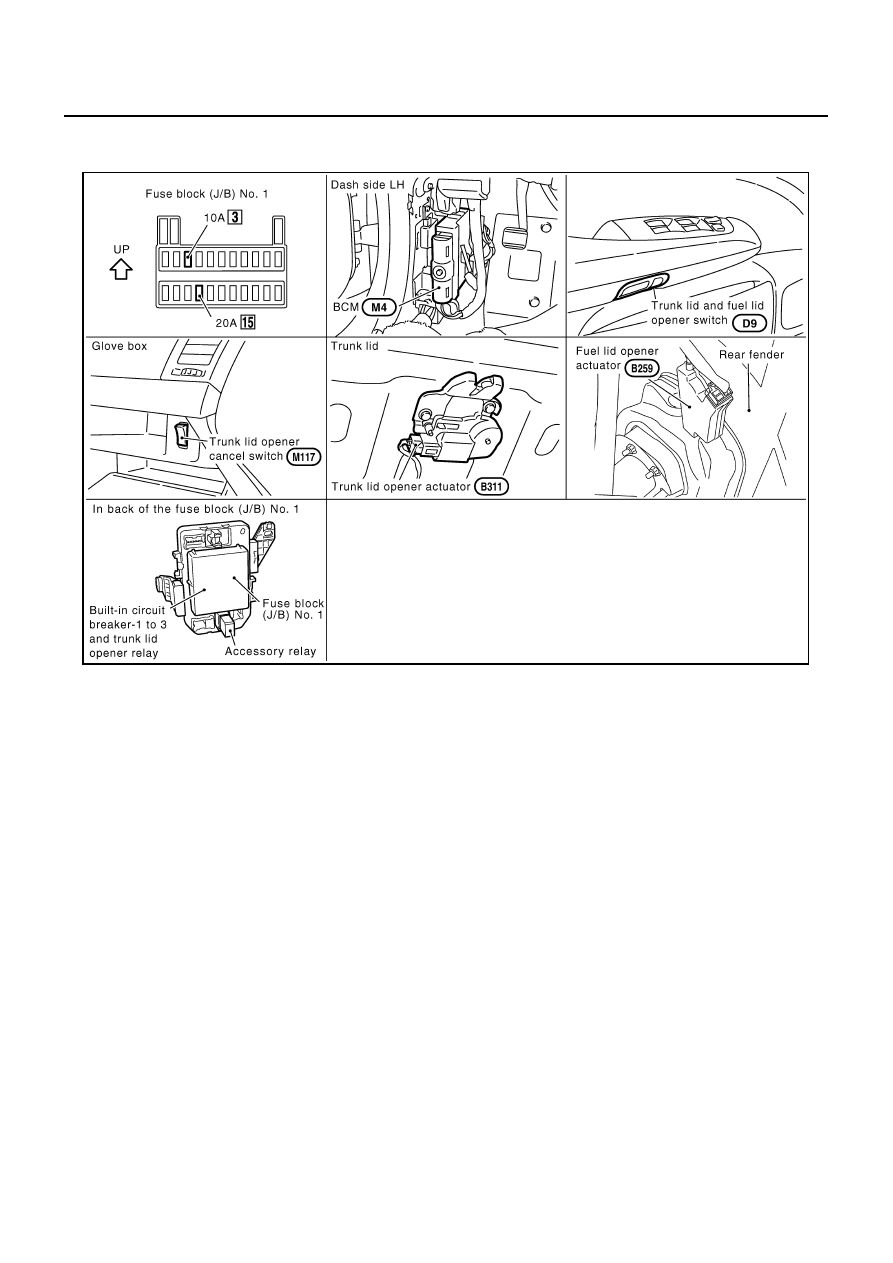

Component Part and Harness Connector Location

NIS000VR

PIIB7757E

TRUNK LID AND FUEL FILLER LID OPENER

BL-123

C

D

E

F

G

H

J

K

L

M

A

B

BL

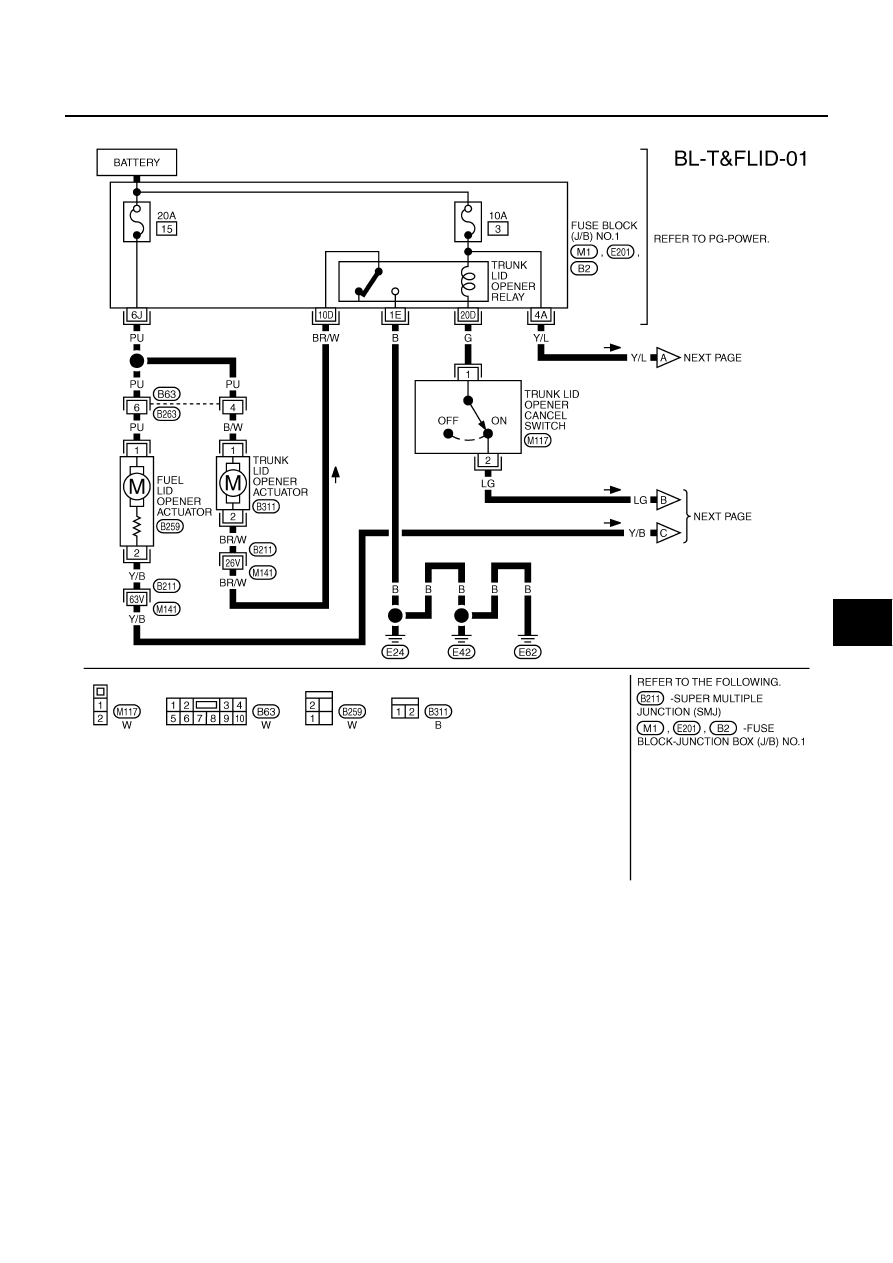

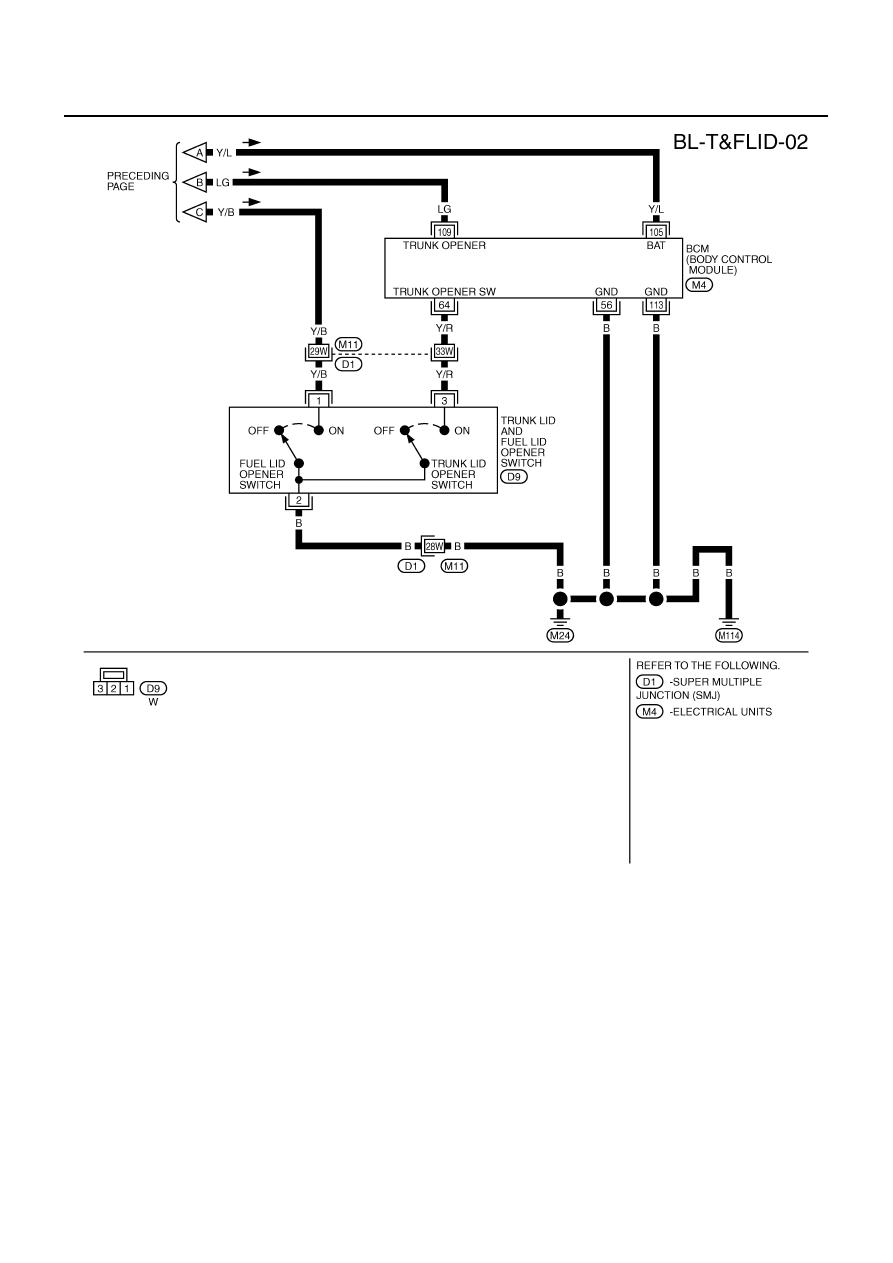

Wiring Diagram — T&FLID —

NIS000VS

TIWM1389E

BL-124

TRUNK LID AND FUEL FILLER LID OPENER

TIWM0681E
