TROUBLE DIAGNOSIS

ATC-47

C

D

E

F

G

H

I

K

L

M

A

B

ATC

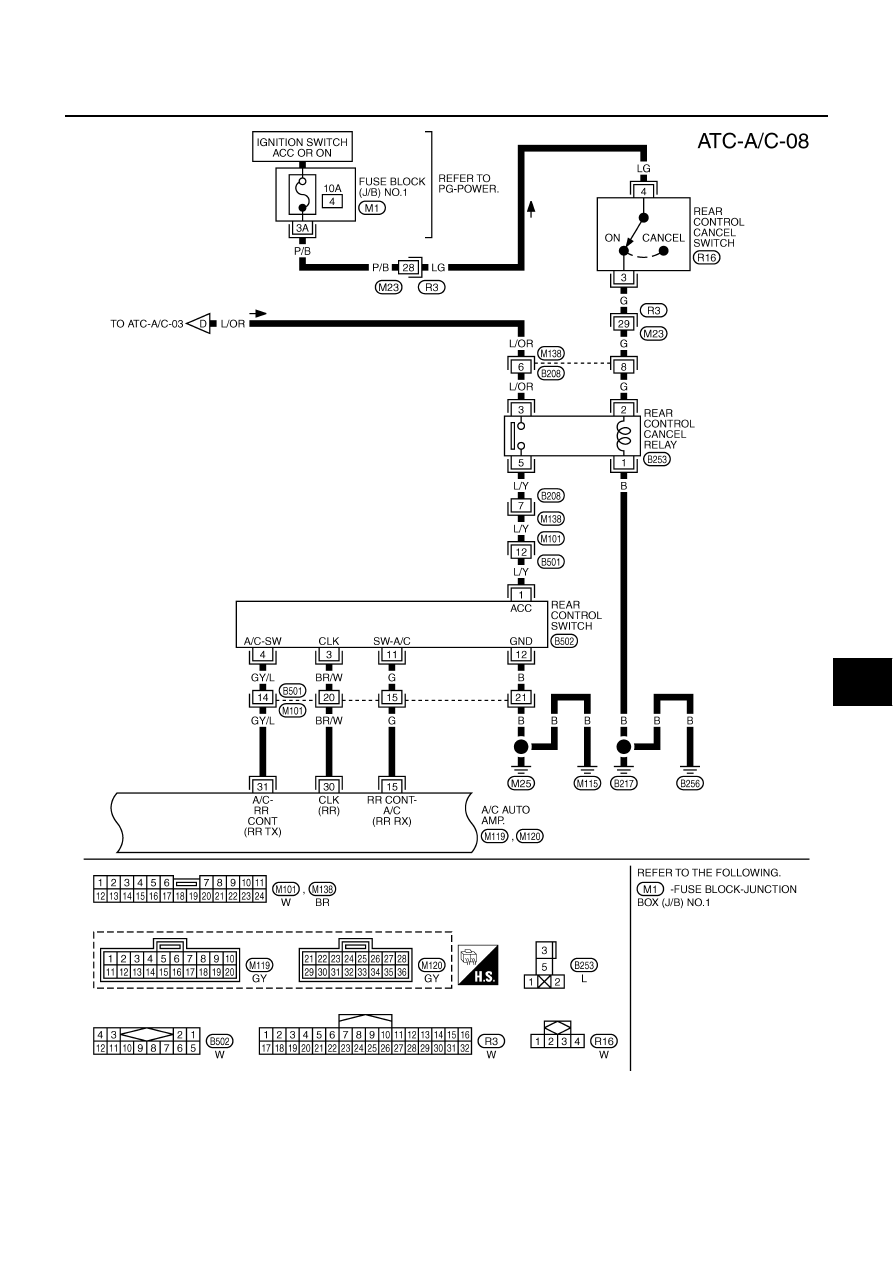

TJWM0228E

ATC-48

TROUBLE DIAGNOSIS

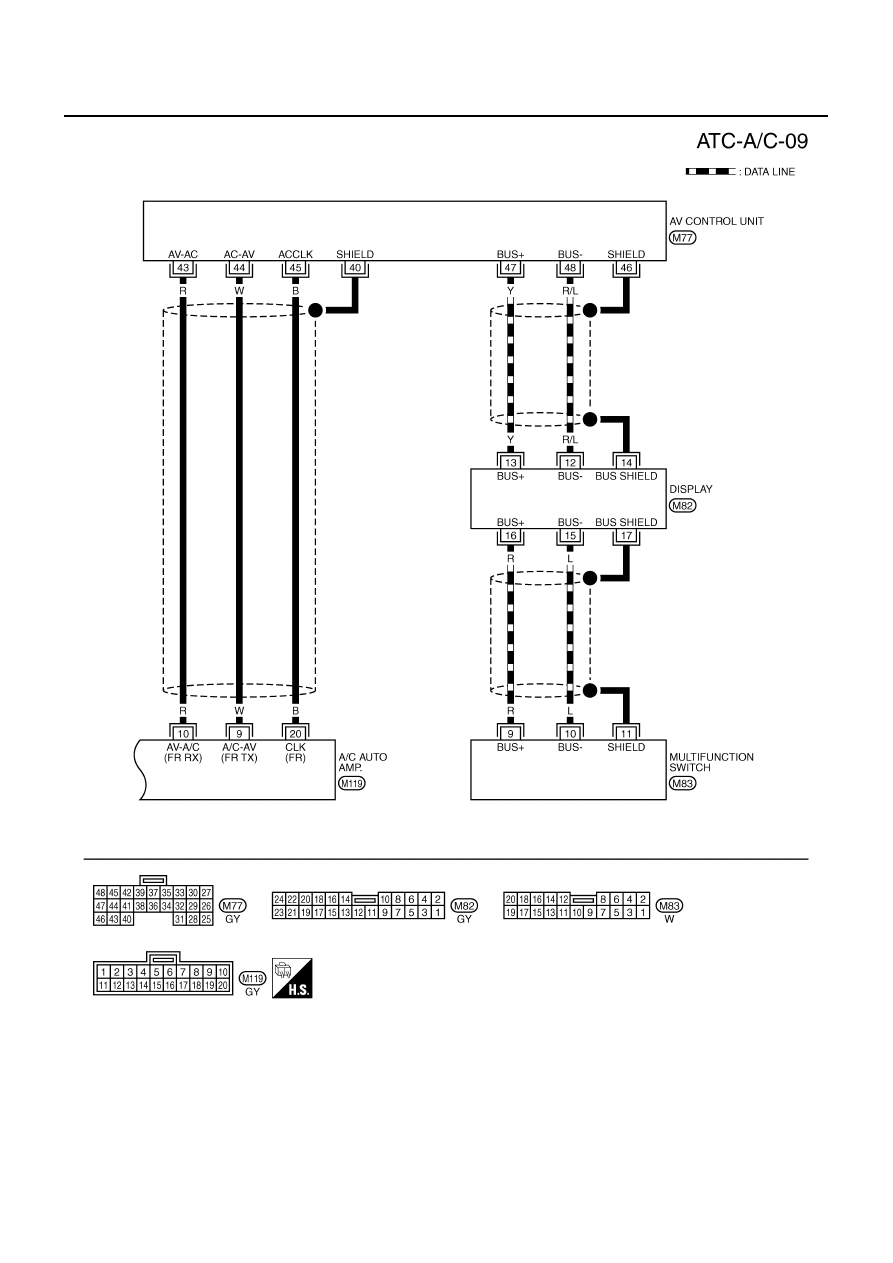

TJWM0229E

TROUBLE DIAGNOSIS

ATC-49

C

D

E

F

G

H

I

K

L

M

A

B

ATC

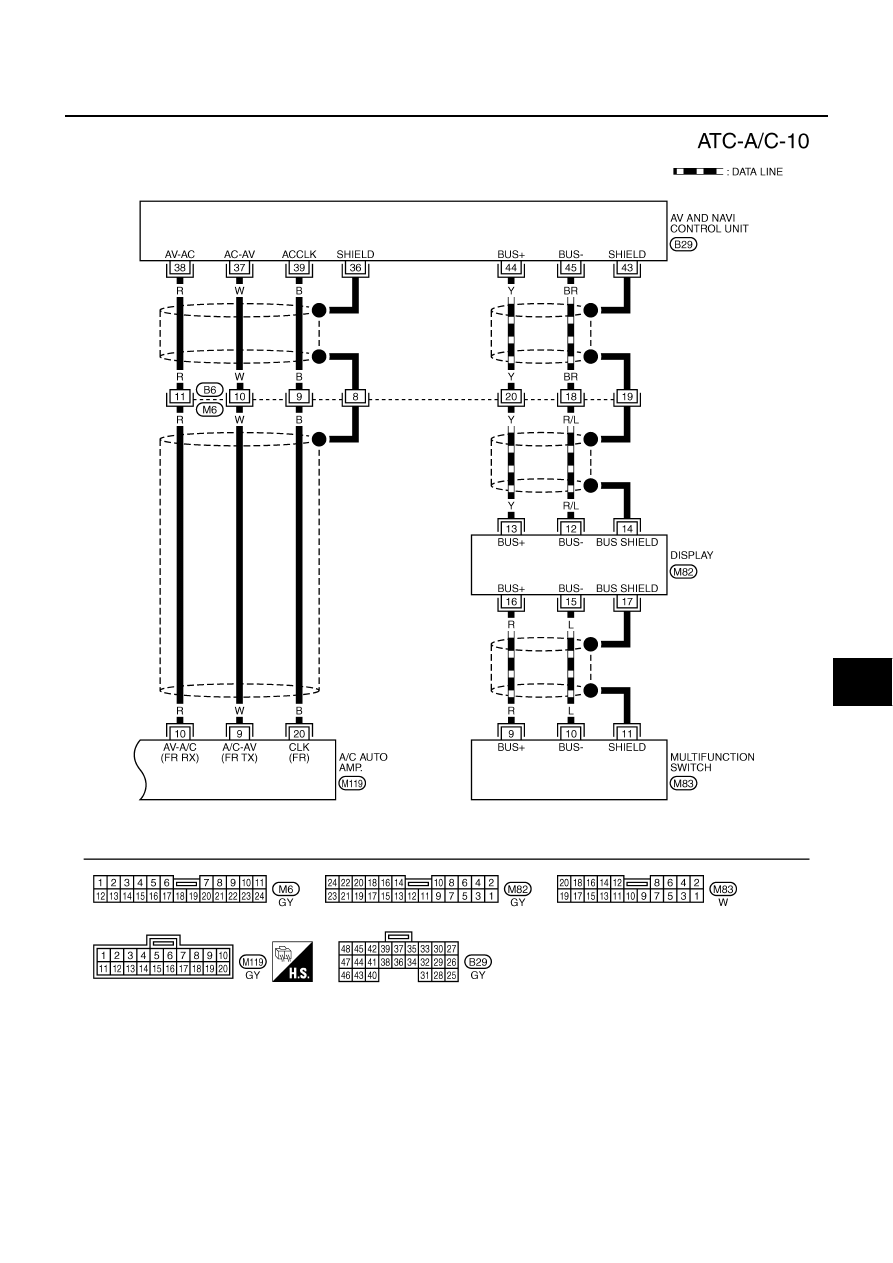

TJWM0230E

ATC-50

TROUBLE DIAGNOSIS

Auto Amp. Terminals and Reference Value

NJS0008A

Measure voltage between each terminal and ground by referring ter-
minals and reference value for auto amp.

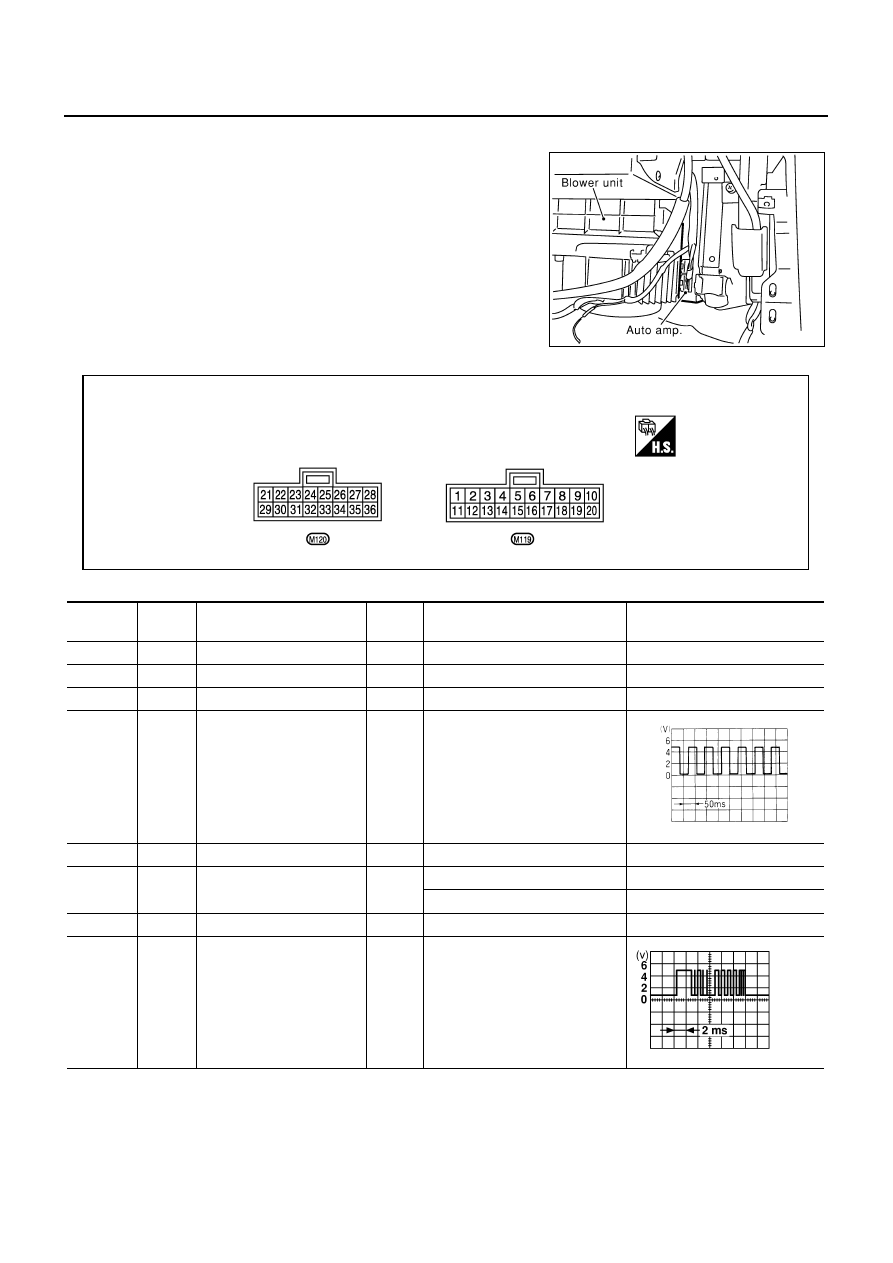

PIN CONNECTOR TERMINAL LAYOUT

TERMINALS AND REFERENCE VALUE FOR AUTO AMP.

RJIA0210E

RJIA0211E

Terminal

No.

Wire

color

Item

Ignition

switch

Condition

Voltage

(V)

1

G/OR

Intake sensor

—

—

—

2

G/R

Ambient sensor

—

—

—

3

LG/B

In-vehicle sensor

—

—

—

4

PL

Vehicle speed signal

ON

Speedometer operated
[When vehicle speed is approx.
40 km/h (25 MPH)]

5

G/Y

A/C LAN signal

ON

—

Approx. 5

6

LG

Power supply for rear vent
door motor

ON

Rear vent SW: Open

Approx. 0

Rear vent SW: Close

Approx. 12

7

GY/L

Power supply for ACC

ON

—

Battery voltage

9

W

Multiplex communication
signal (Fr TX)

ON

—

ELF1080D

RJIA0212E
