Infiniti M45 (Y34). Manual - part 781

TROUBLE DIAGNOSIS

SRS-11

C

D

E

F

G

I

J

K

L

M

A

B

SRS

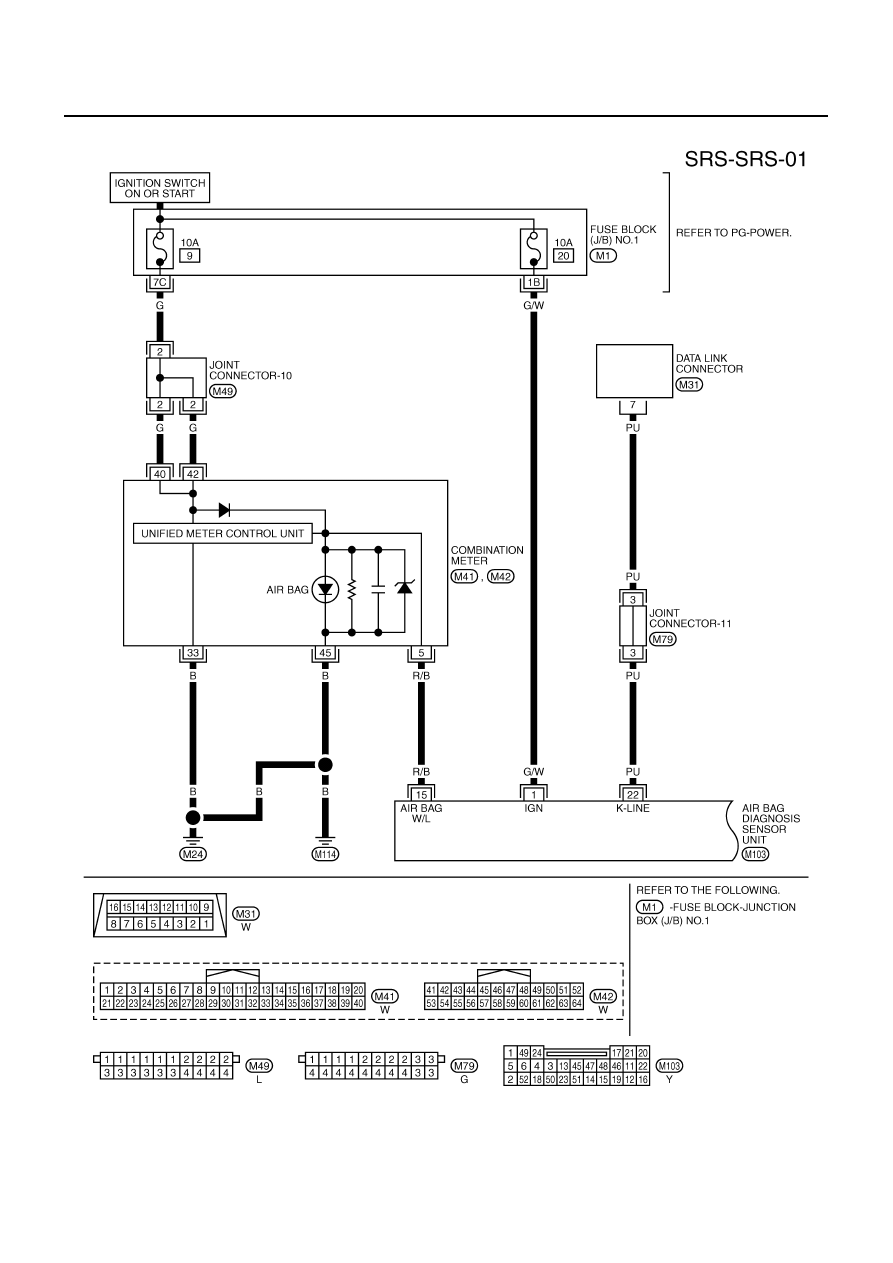

Schematic

AHS0008L

THWA0014E

SRS-12

TROUBLE DIAGNOSIS

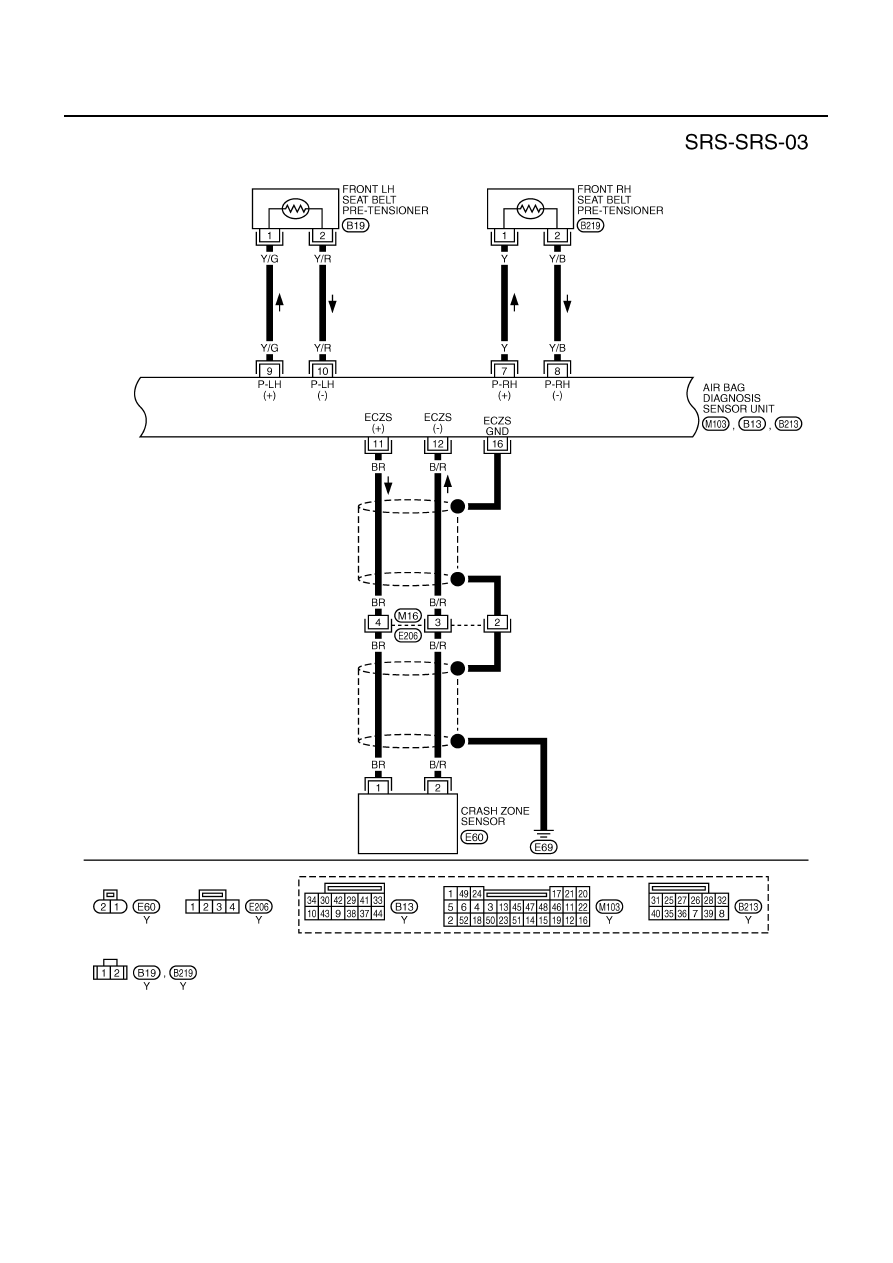

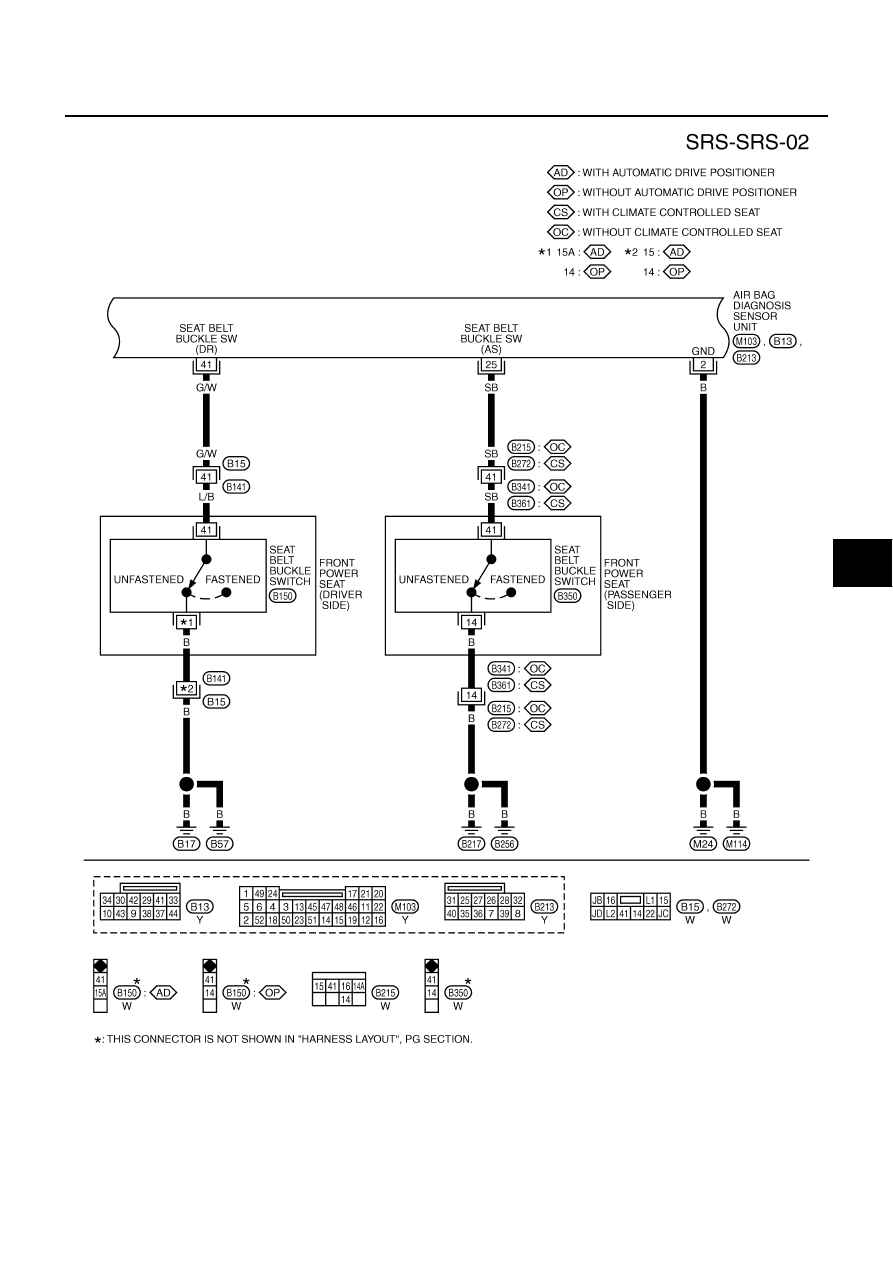

Wiring Diagram — SRS —

AHS0008M

THWA0015E

TROUBLE DIAGNOSIS

SRS-13

C

D

E

F

G

I

J

K

L

M

A

B

SRS

THWA0016E

SRS-14

TROUBLE DIAGNOSIS

THWA0017E
