PRECAUTIONS

SB-3

C

D

E

F

G

I

J

K

L

M

A

B

SB

●

The front seat belt pre-tensioner should be replaced even if the seat belts are not in use during the colli-
sion in which the air bags are deployed.

SB-4

SEAT BELTS

SEAT BELTS

PFP:86884

System Description

AHS0009G

SEAT BELT WARNING CHIME

●

With ignition switch turned ON and seat belt unfastened (seat belt switch ON), warning chime will sound
for approximately 6 seconds.

●

If warning chime does not sound, refer to

DI-62, "Seat Belt Buckle Switch Inspection"

 .

SEAT BELT WARNING LAMP

●

Fasten driver's seat belt.

●

The seat belt warning lamp should go out.

●

If the seat belt warning lamp does not go out, refer to

DI-29, "Wiring Diagram — WARN —"

 .

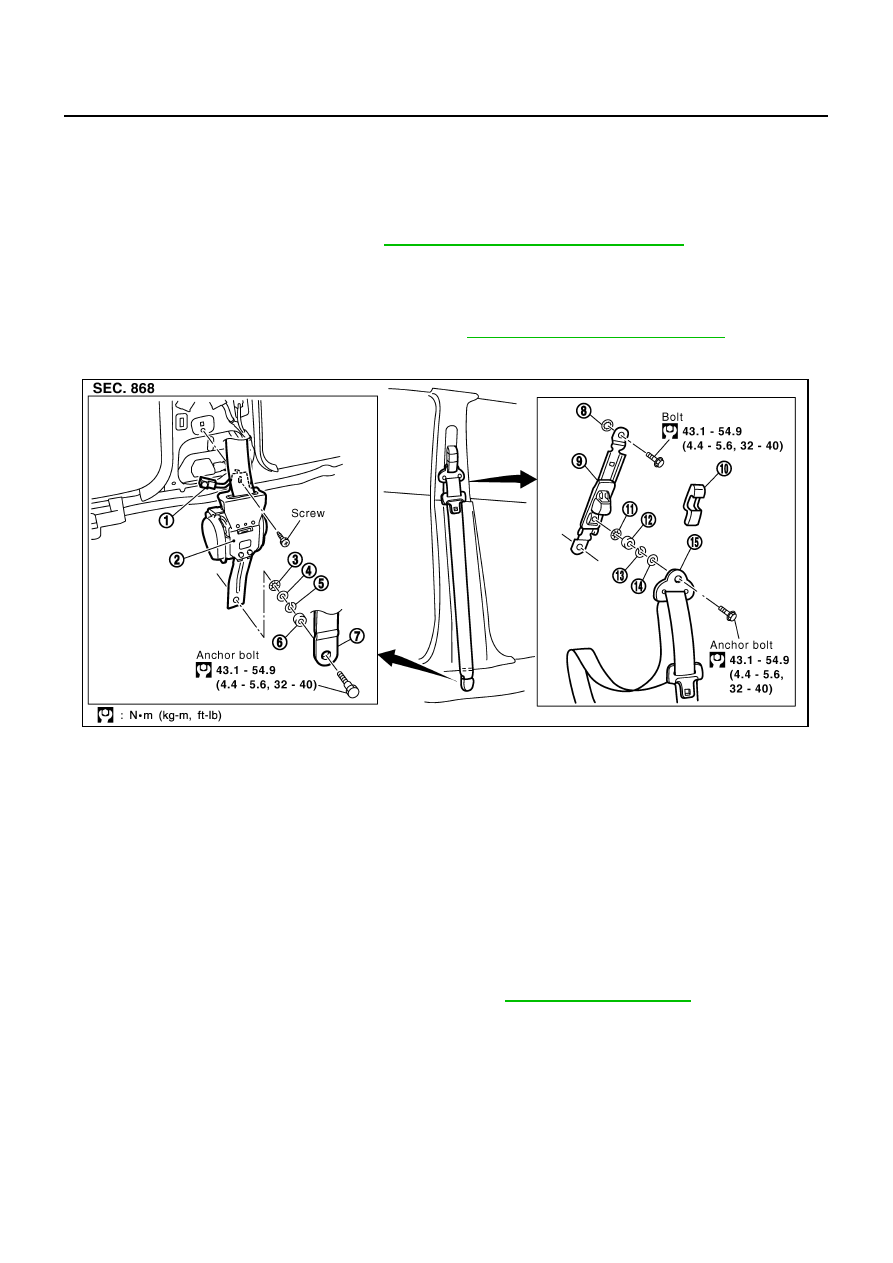

Removal and Installation of Front Seat Belt

AHS0009H

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.

REMOVAL OF SEAT BELT RETRACTOR

1.

Remove the adjuster cover on the seat belt shoulder anchor.

2.

Remove the shoulder anchor bolt.

3.

Slide up outer anchor cover, and remove the anchor bolt.

4.

Remove the center pillar upper and lower finisher. Refer to

EI-34, "BODY SIDE TRIM"

 .

1.

Seat belt pre-tensioner connector

2.

Retractor

3.

Fiber washer

4.

Plain washer

5.

Plastic washer

6.

Spring washer

7.

Outer anchor

8.

Fiber washer

9.

Seat belt adjuster

10. Adjuster cover

11.

Retaining washer

12. Spacer

13. Spring washer

14. Plain washer

15. Shoulder anchor

PHIA0692E

SEAT BELTS

SB-5

C

D

E

F

G

I

J

K

L

M

A

B

SB

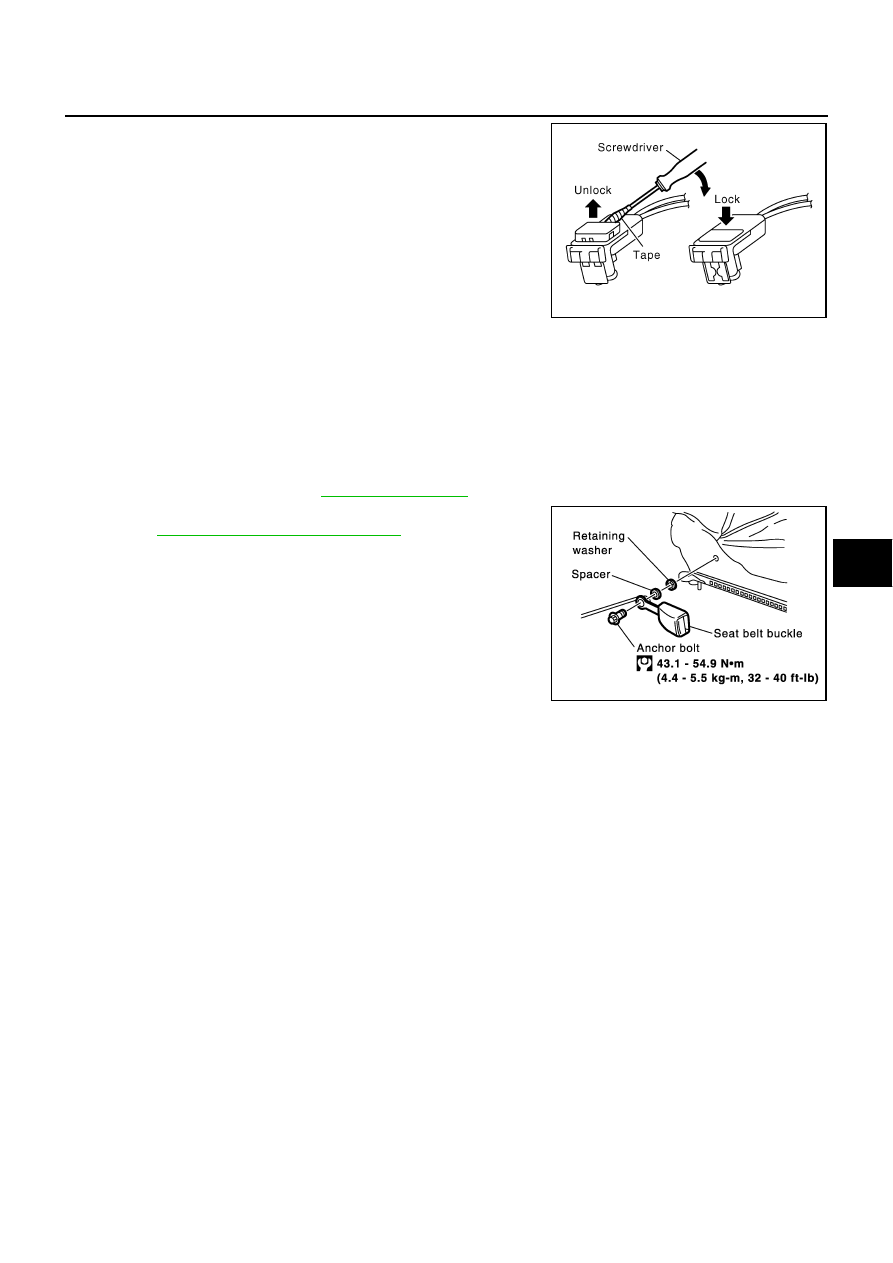

5.

Disconnect the front seat belt pre-tensioner connector.

CAUTION:

●

For installing/removing pre-tensioner seat belt connec-
tor, insert thin screwdriver wrapped in tape into notch, lift
lock and remove connector.

●

Install connector with lock raised, and push lock into
connector.

6.

Remove the front seat belt pre-tensioner retractor fixing screw and then remove the seat belt retractor.

INSTALLATION OF SEAT BELT RETRACTOR

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
Install in the reverse order of removal.

REMOVAL OF SEAT BELT BUCKLE

1.

Remove the front seat. Refer to

SE-130, "REMOVAL"

 .

2.

Remove the screws, and remove the seat cushion inner finisher.
Refer to

SE-127, "Removal and Installation"

 .

3.

Disconnect harness connector remove the anchor bolt, and
remove the buckle.

INSTALLATION OF SEAT BELT BUCKLE

Install in the reverse order of removal.

PHIA0341E

PHIA0235E

SB-6

SEAT BELTS

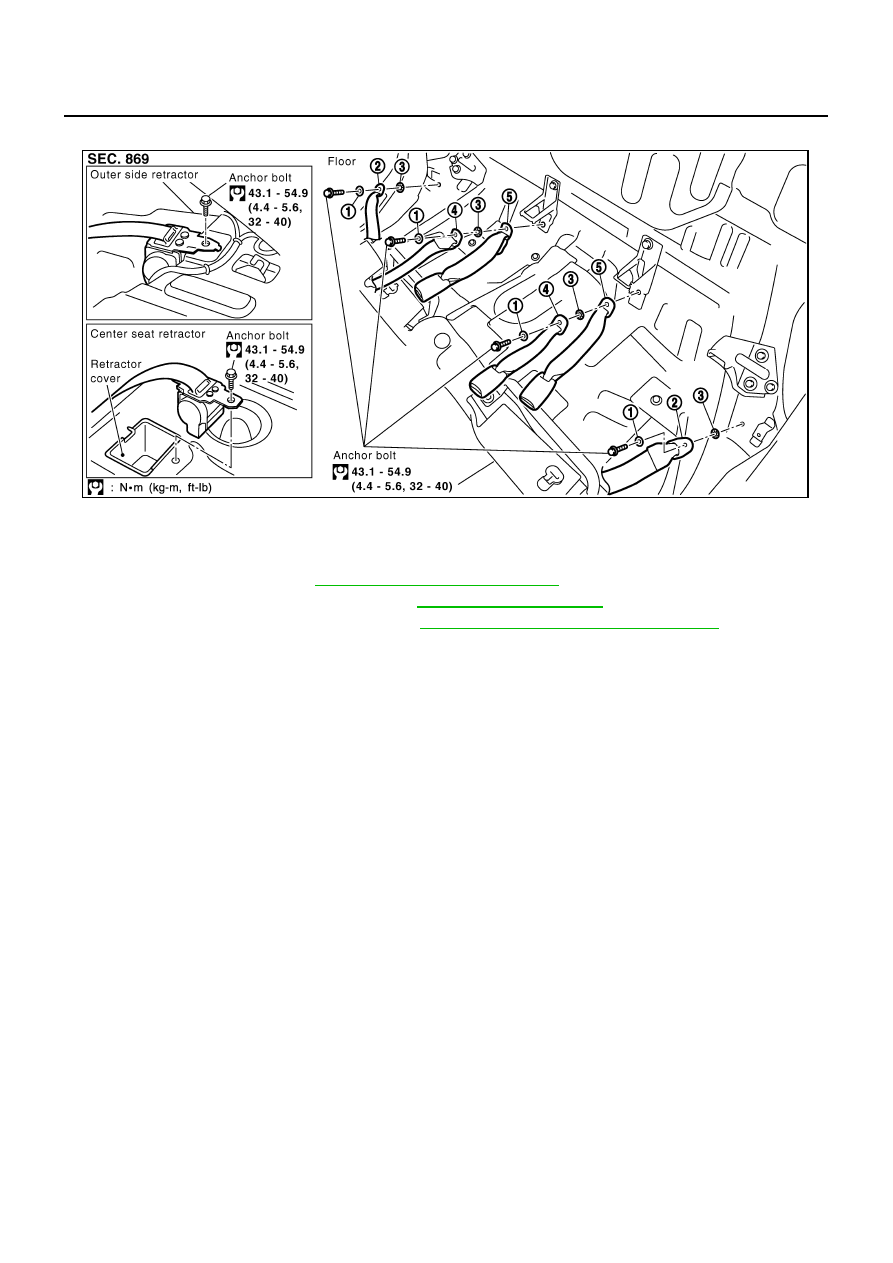

Removal and Installation of Rear Seat Belt

AHS0009I

REMOVAL

1.

Remove the rear seat. Refer to

SE-133, "Removal and Installation"

 .

2.

Remove the rear pillar finisher upper. Refer to

EI-34, "BODY SIDE TRIM"

 .

3.

Remove the rear parcel shelf finisher. Refer to

EI-37, "REAR PARCEL SHELF FINISHER"

 .

4.

Remove the outer and inner anchor bolt.

5.

Remove seat belt retractor mounting anchor bolt, and remove the seat belt assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Plain washer

2.

Outer anchor

3.

Fiber washer

4.

Inner anchor (upper)

5.

Inner anchor (lower)

PHIA0693E
