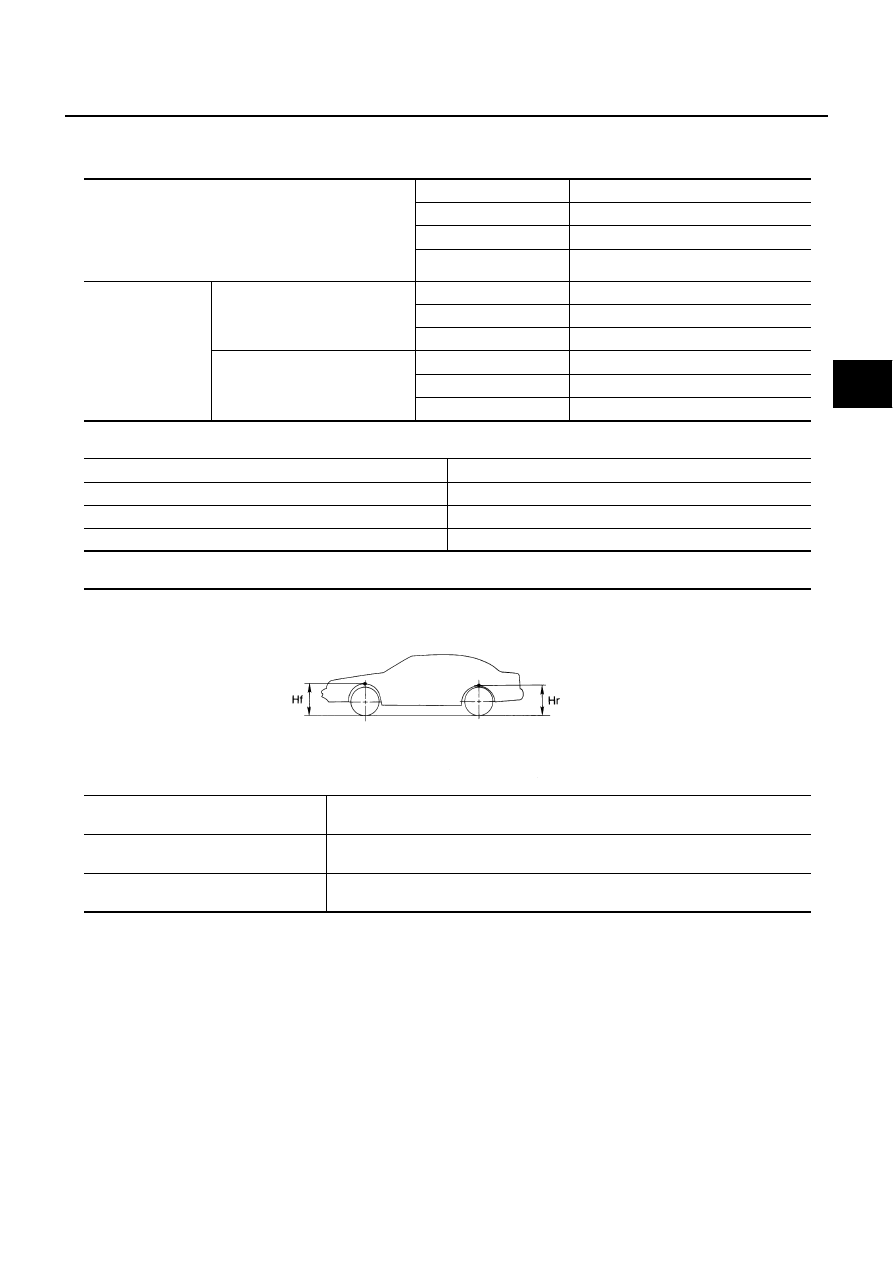

SERVICE DATA
PFP:00030
Wheel Alignment
AES00096
Ball Joint
AES00097
Wheelarch Height (Unladen*)
AES00098
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
Camber
Degree minute (Decimal degree)
Minimum
−
1
°
10
′
(
−
1.17
°
)
Nominal
−
0
°
40
′
(
−
0.67
°
)
Maximum
−
0
°
10
′
(
−
0.17
°
)
Left and right difference
45
′
(0.75
°
) or less
Total toe-in
Distance (A - B)
Minimum
0 mm (0 in)
Nominal
2.6 mm (0.1.2 in)
Maximum
5.2 mm (0.205 in)
Angle
Degree minute (Decimal degree)
Minimum
0
′
(0.00
°
Nominal
7
′
(0.12
°
)
Maximum
14
′
(0.23
°
)
Axial end play
0 mm (0 in)
Swing torque
0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)
Measurement on spring balance (cotter pinhole position)
7.85 - 54.4 N (0.80 - 5.55 kg, 1.77 - 12.27 lb)
Rotating torque
0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)
Tire
235/45R18
P235/45R18
Front (Hf)
711 mm (27.99 in) [USA model]
712 mm (28.03 in) [Canada model]
Rear (Hr)
706 mm (27.79 in) [USA model]
707 mm (27.83 in) [Canada model]
SFA818A
