REAR SUSPENSION ASSEMBLY

RSU-5

C

D

F

G

H

I

J

K

L

M

A

B

RSU

REAR SUSPENSION ASSEMBLY

PFP:55020

On-Vehicle Inspection and Service

AES0008V

Check that the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.

INSPECTION OF BALL JOINT END PLAY

Measure axial end play by installing and moving up/down with an iron pry bar or something similar
between suspension arm and axle.

CAUTION:

Be careful not to damage ball joint boot.

SHOCK ABSORBER INSPECTION

Check shock absorber for oil leakage, damage and replace if necessary.

Wheel Alignment Inspection

AES0008W

DESCRIPTION

Measure wheel alignment under unladen conditions. “Unladen conditions” means that fuel, coolant, and
lubricant are full. Spare tire, jack, hand tools and mats in designated positions.

PRELIMINARY INSPECTION

1.

Check tires for improper air pressure and wear.

2.

Check road wheels for runout.

3.

Check wheel bearing axial end play.

4.

Check ball joint axial end play of suspension arm.

5.

Check shock absorber operation.

6.

Check each mounting point of axle and suspension for looseness and deformation.

7.

Check each link, arm and member for cracks, deformation, and other damage.

8.

Check vehicle posture.

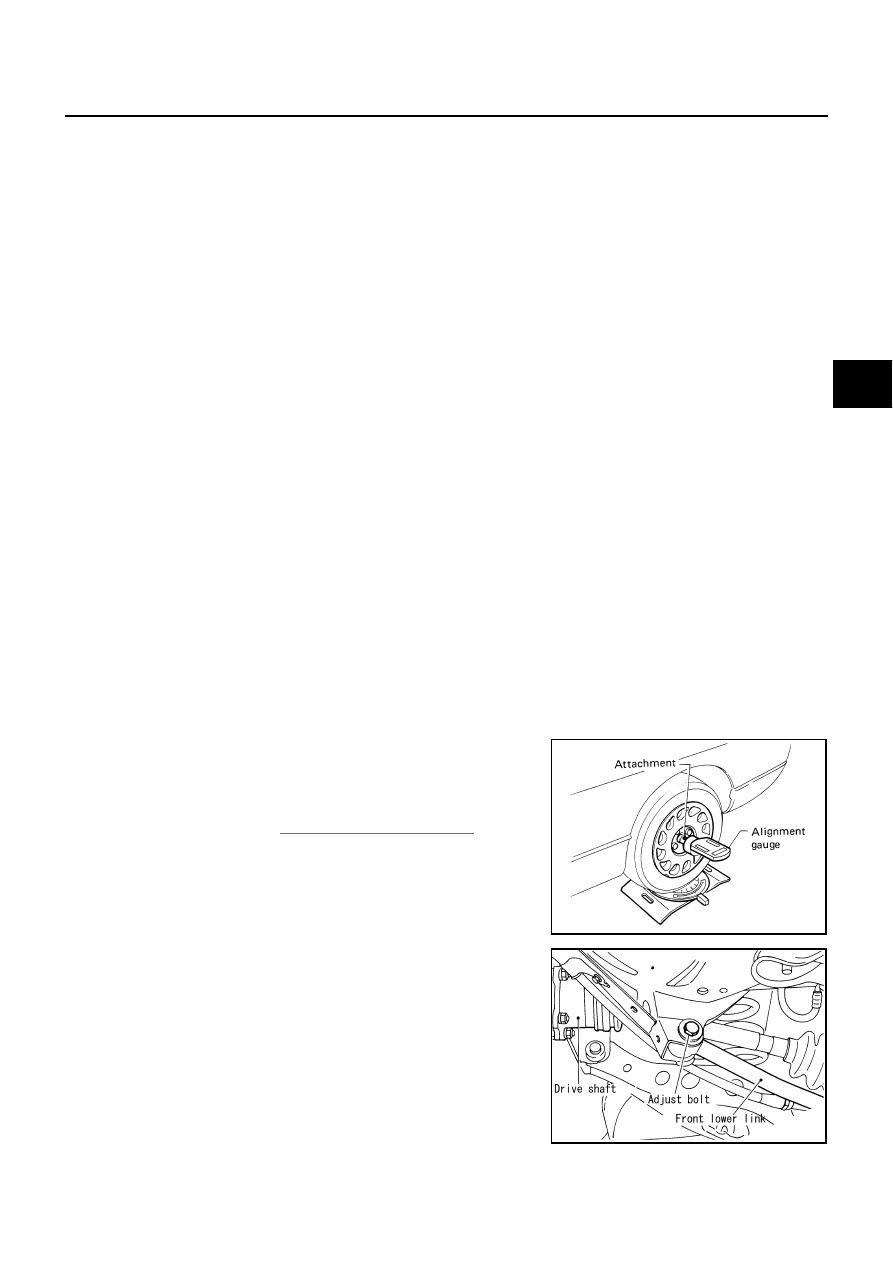

CAMBER INSPECTION

Measure camber of both right and left wheels with a suitable
alignment gauge and adjust in accordance with the following
procedures.

If outside the standard value, adjust with adjusting bolt in front lower
link.

CAUTION:

After adjusting camber, be sure to check toe-in.

Standard value

Axial end play

: 0 mm (0 in)

Standard value

Camber

: Refer to

RSU-17, "SERVICE DATA"

 .

SRA096A

SEIA0071E

RSU-6

REAR SUSPENSION ASSEMBLY

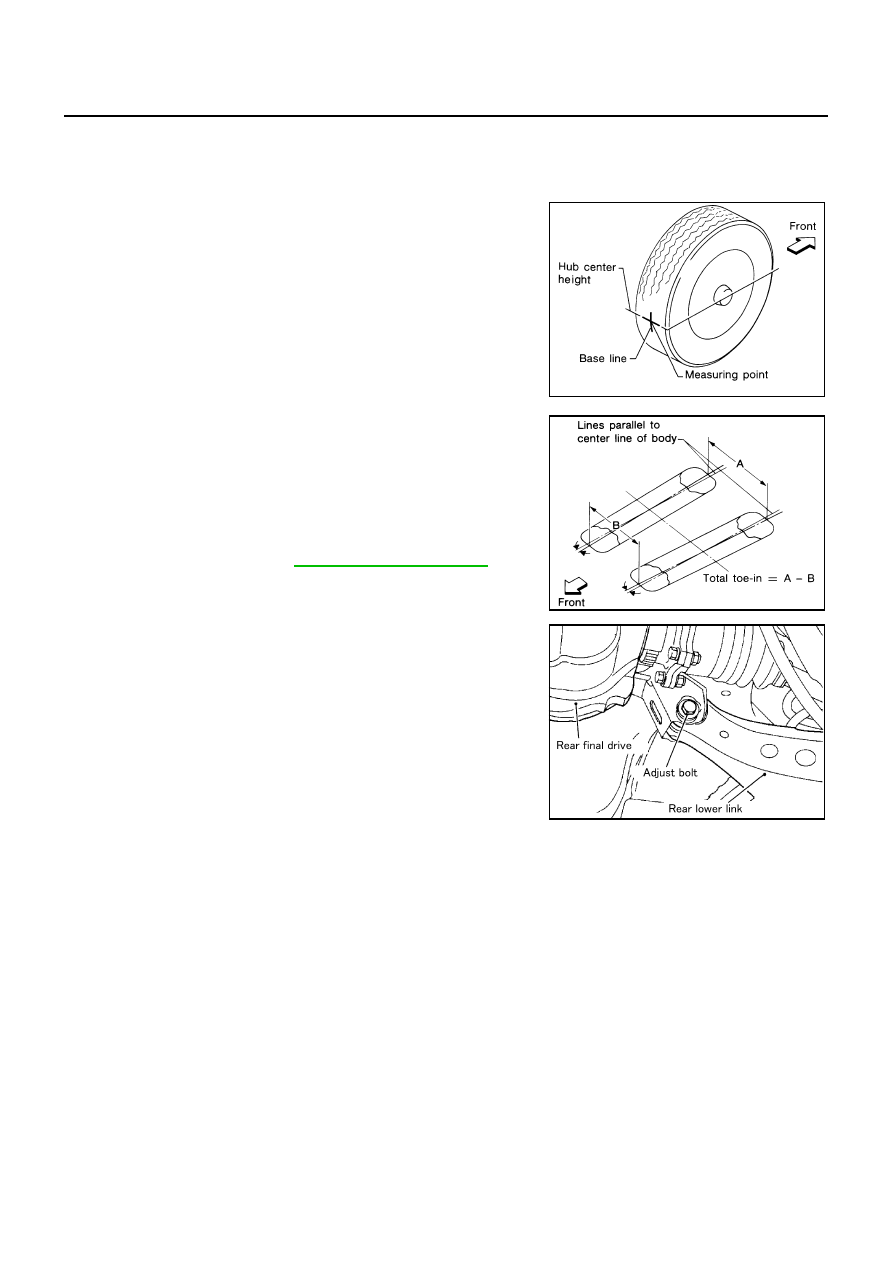

TOE-IN

Measure toe-in using following procedure. If out of specification, inspect and replace any damaged or worn
rear suspension parts.

WARNING:

Always perform following procedure on a flat surface.

Make sure that no person is in front of vehicle before push-
ing it.

1.

Bounce rear of vehicle up and down to stabilize the posture.

2.

Push vehicle straight ahead about 5 m (16 ft).

3.

Put a mark on base line of the tread (rear side) of both tires at
the same height of hub center. These are measuring point.

4.

Measure distance “A” (rear side).

5.

Push vehicle slowly ahead to rotate wheels 180 degrees (1/2
turn).
If wheels have rotated more than 180 degrees (1/2 turn), try the
above procedure again from the beginning. Never push vehicle
backward.

6.

Measure distance “B” (front side).

7.

If outside the standard value, adjust with adjusting bolt in rear
lower link.

CAUTION:

Be sure to adjust equally on RH and LH side with adjusting
bolt.

SFA614B

Standard value

Total toe-in

: Refer to

RSU-17, "SERVICE DATA"

 .

SFA234AC

SEIA0072E

REAR SUSPENSION ASSEMBLY

RSU-7

C

D

F

G

H

I

J

K

L

M

A

B

RSU

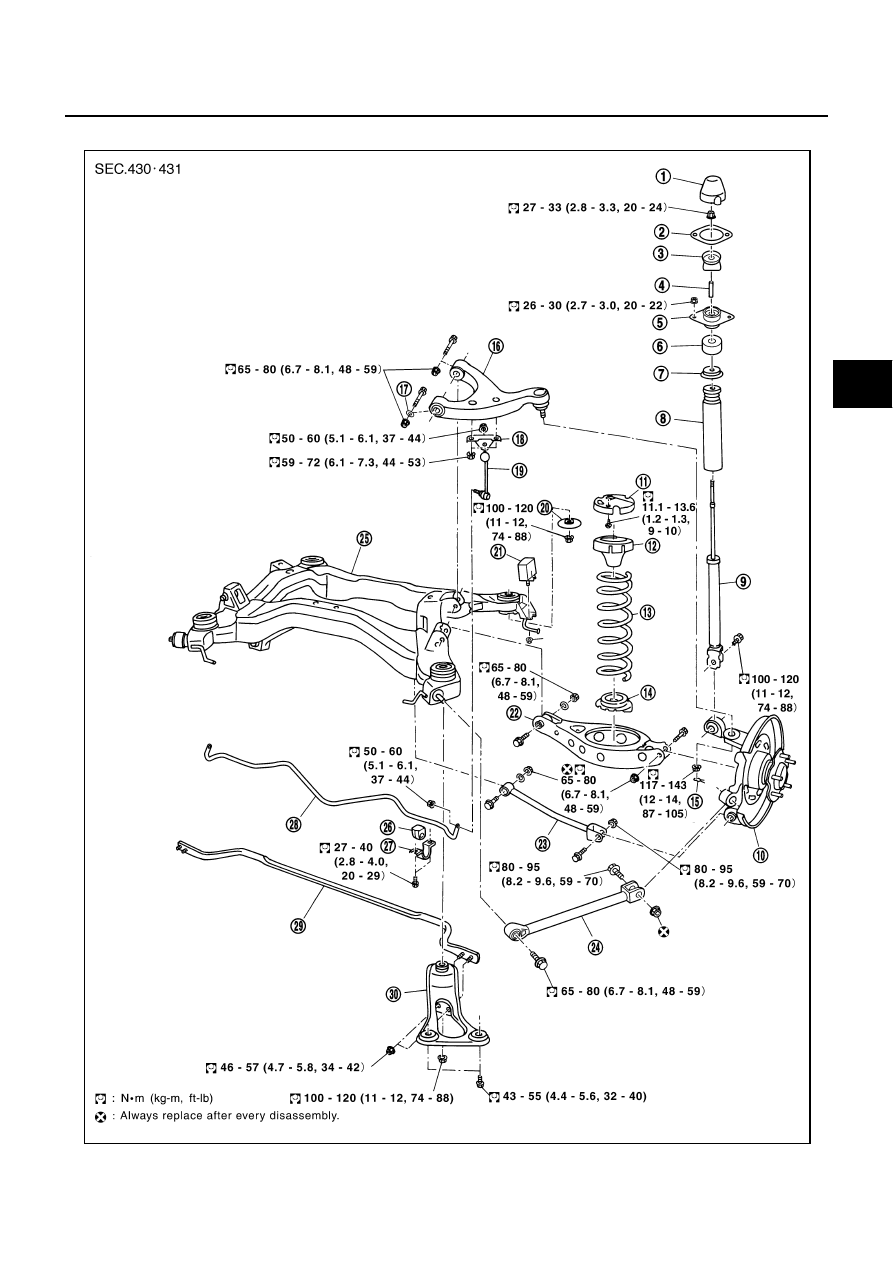

Components

AES0008U

SEIA0401E

RSU-8

REAR SUSPENSION ASSEMBLY

1.

Cap

2.

Shock absorber mounting seal

3.

Bushing

4.

Distance tube

5.

Shock absorber mounting bracket

6.

Bushing

7.

Bound bumper cover

8.

Bound bumper

9.

Shock absorber

10. Axle assembly

11.

Bracket

12. Upper seat

13. Coil spring

14. Rubber seat

15. Cotter pin

16. Suspension arm

17. Stopper rubber

18. Stabilizer connecting rod mounting

bracket

19. Stabilizer connecting rod

20. Mount stopper

21. Dynamic dumper

22. Rear lower link

23. Front lower link

24. Radius rod

25. Rear suspension member

26. Stabilizer bushing

27. Stabilizer clamp

28. Stabilizer bar

29. Cross bar

30. Member stay
