REAR FINAL DRIVE ASSEMBLY

RFD-29

C

E

F

G

H

I

J

K

L

M

A

B

RFD

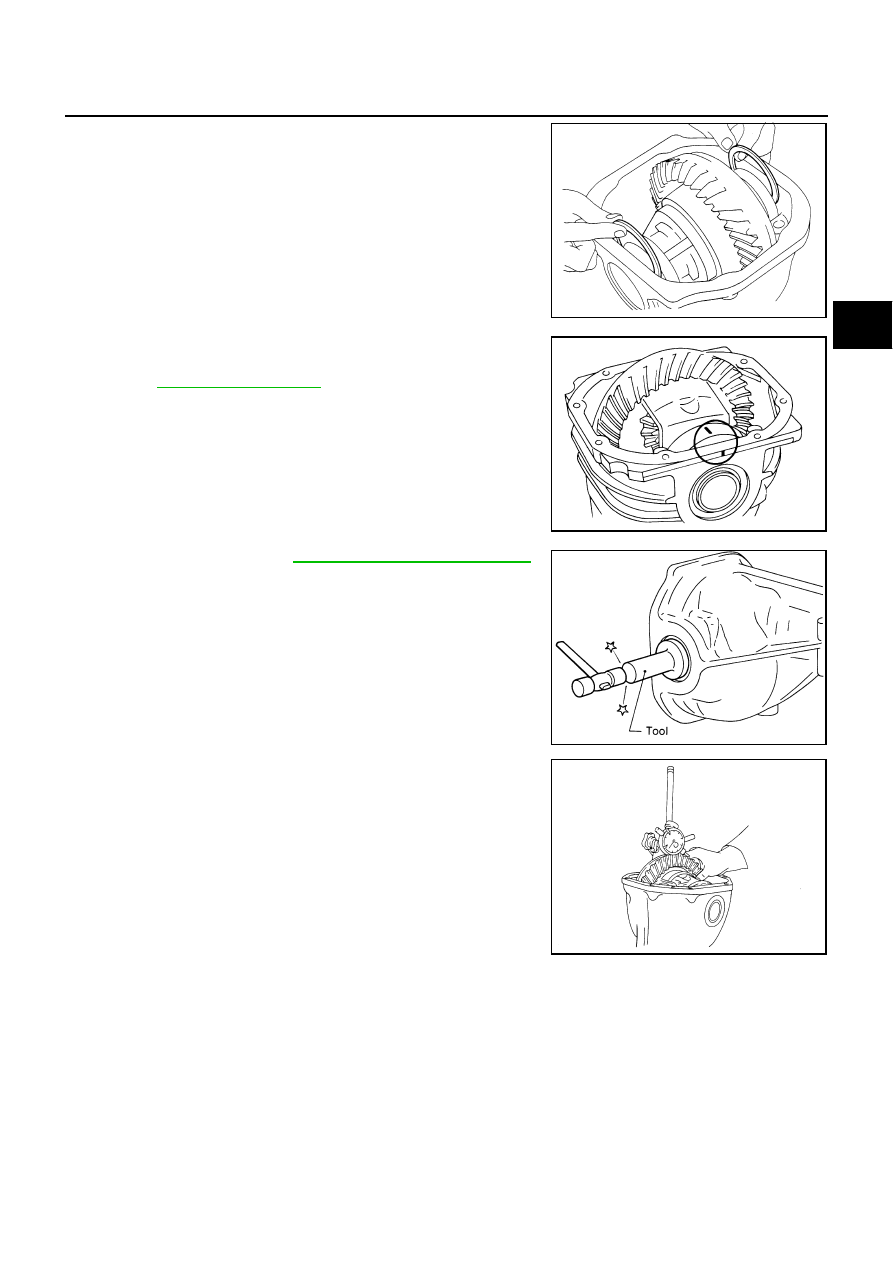

3.

Insert left and right side bearing adjusting washers in place
between side bearings and carrier.

4.

Align mark on bearing cap with that on gear carrier.

5.

Install the bearing cap, tighten the bolt to the specified torque.
Refer to

RFD-12, "Components"

 .

6.

Install side oil seal. Refer to

RFD-9, "Removal and Installation"

 .

7.

Measure drive gear to drive pinion backlash with a dial indicator
at several point.

It backlash is too small, adjustment of washer thickness is required. Decrease thickness of left shim
and increase thickness of right by the same amount.
If backlash is too great, reverse the above procedure.

Never change the total amount of washers as it will change the bearing preload.

SPD924

SPD889

Tool number

: KV38100200 (J26233)

SPD560

Drive gear to drive pinion backlash

: 0.10 - 0.15 mm (0.0039 - 0.0059 in) or less

SPD513

RFD-30

REAR FINAL DRIVE ASSEMBLY

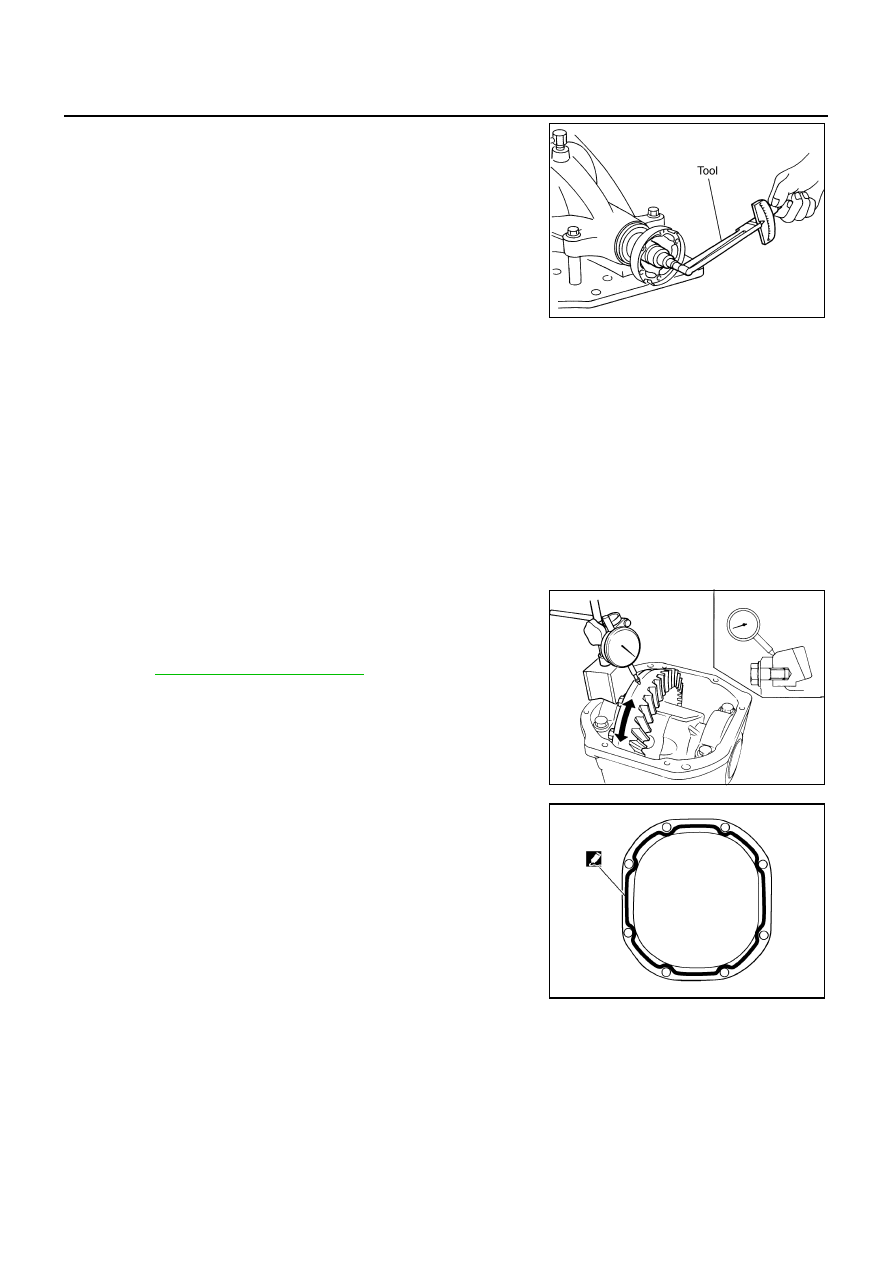

8.

Check total preload with Tool.

When checking preload, turn drive pinion in both directions several times to seat bearing rollers correctly.

If preload is too great, remove the same amount of washer to each side.

If preload is too small, add the same amount of washer to each side.

Never add or remove a different number of washers for each side. Difference in number of washers will
change drive gear to drive pinion backlash.

9.

Recheck drive gear to drive pinion backlash. Increase or decrease in thickness of shims will cause
change to drive gear to pinion backlash.

Check whether the backlash varies excessively in different places. Foreign matter may be caught
between the drive gear and the differential case causing the trouble.

The backlash can vary greatly even when the drive gear runout is within a specified range. In that case,
replace the hypoid gear set or differential case.

10. Check runout of drive gear with a dial indicator.

11. Check tooth contact.

Refer to

RFD-25, "TOOTH CONTACT"

 .

12. Install rear cover. Apply liquid sealant to rear cover side and

install gear carrier.

Tool number

: ST3127S000 (See J25765-A)

SDIA1007E

Total preload

: 2.84 - 3.75 N·m (0.29 - 0.38 kg-m, 26 - 33 in-lb)

Runout limit

: 0.05 mm (0.0020 in) or less

SPD524

SDIA0970E

SERVICE DATA AND SPECIFICATIONS (SDS)

RFD-31

C

E

F

G

H

I

J

K

L

M

A

B

RFD

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

ADS00090

Drive Gear Runout

ADS00091

Unit: mm (in)

Side Gear Adjustment

ADS00092

Unit: mm (in)

AVAILABLE SIDE GEAR THRUST WASHERS

Unit: mm (in)

Applied model

VK45DE  engine

5A / T

Final drive model

R200 (2

 pinion)

Gear ratio

3.133

Number of teeth (Drive gear / drive pinion)

47 / 15

Oil capacity (Approx.)

 (US pt, lmp pt)

1.4  (3, 2 - 1/2)

Type

R200

Drive gear runout limit

0.05 (0.0020) or less

Type

R200

Clearance limit between side gear thrust washer and  differential case
mm (in)

0.20 (0.0079) or less

Type

R200

Thrust washer

Thickness

Part number

0.75 (0.0295)

38424 0C000

0.78 (0.0307)

38424 0C001

0.81 (0.0319)

38424 0C002

0.84 (0.0331)

38424 0C003

0.87 (0.0343)

38424 0C004

0.90 (0.0350)

38424 0C005

0.93 (0.0366)

38424 0C006

RFD-32

SERVICE DATA AND SPECIFICATIONS (SDS)

Drive Pinion Height Adjustment

ADS00093

AVAILABLE PINION HEIGHT ADJUSTING WASHERS

Unit: mm (in)

Drive Pinion Preload Adjustment

ADS00094

Side Bearing Preload Adjustment

ADS00095

SIDE BEARING ADJUSTING WASHERS

Unit: mm (in)

Total Preload Adjustment

ADS00096

Companion Flange

ADS000W7

Type

R200

Adjusting washer

Thickness

Part number

3.05 (0.1201)

38154 0C000

3.08 (0.1213)

38154 0C001

3.11 (0.1224)

38154 0C002

3.14 (0.1236)

38154 0C003

3.17 (0.1248)

38154 0C004

3.20 (0.1260)

38154 0C005

3.23 (0.1272)

38154 0C006

3.26 (0.1283)

38154 0C007

Type

R200

Drive pinion preload

2.65

 3.23 N·m (0.27

 0.32 kg

m, 24

 28 in lb)

Type

R200

Side bearing preload <Reference>

0.20

 0.52 N·m (0.02

 0.05 kg

m, 2

 4 in lb)

Torque by spring gauge

34.2

 39.2 N (3.5

 4 kg, 7.7

 8.8 lb)

Type

R200

Adjusting washer

Thickness

Part number

Thickness

Part number

2.00 (0.0787)

38453 N3100

2.35 (0.0925)

38453 N3107

2.05 (0.0807)

38453 N3101

2.40 (0.0945)

38453 N3108

2.10 (0.0827)

38453 N3102

2.45 (0.0965)

38453 N3109

2.15 (0.0846)

38453 N3103

2.50 (0.0984)

38453 N3110

2.20 (0.0866)

38453 N3104

2.55 (0.1004)

38453 N3111

2.25 (0.0886)

38453 N3105

2.60 (0.1024)

38453 N3112

2.30 (0.0906)

38453 N3106

2.65 (0.1043)

38453 N3113

Type

R200

Total preload (with oil seal)

2.84

 3.75 N·m (0.29

 0.38 kg

m, 26

 33 in lb)

Drive gear to drive pinion backlash

0.10

 0.15 mm (0.0039

 0.0059 in)

Type

R200

Runout limit

0.08 mm (0.0031 in)
