SMJ (SUPER MULTIPLE JUNCTION)

SMJ (SUPER MULTIPLE JUNCTION)

PFP:B4341

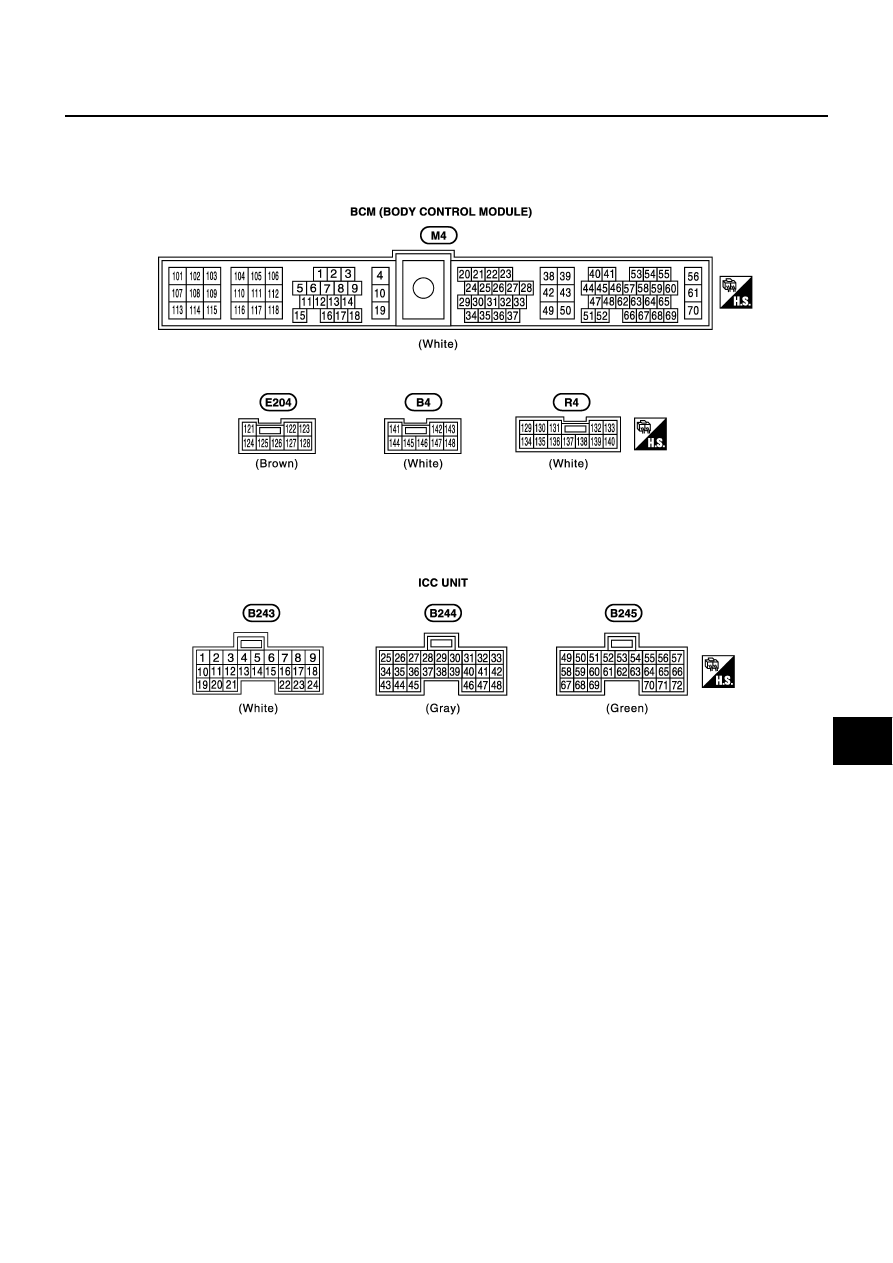

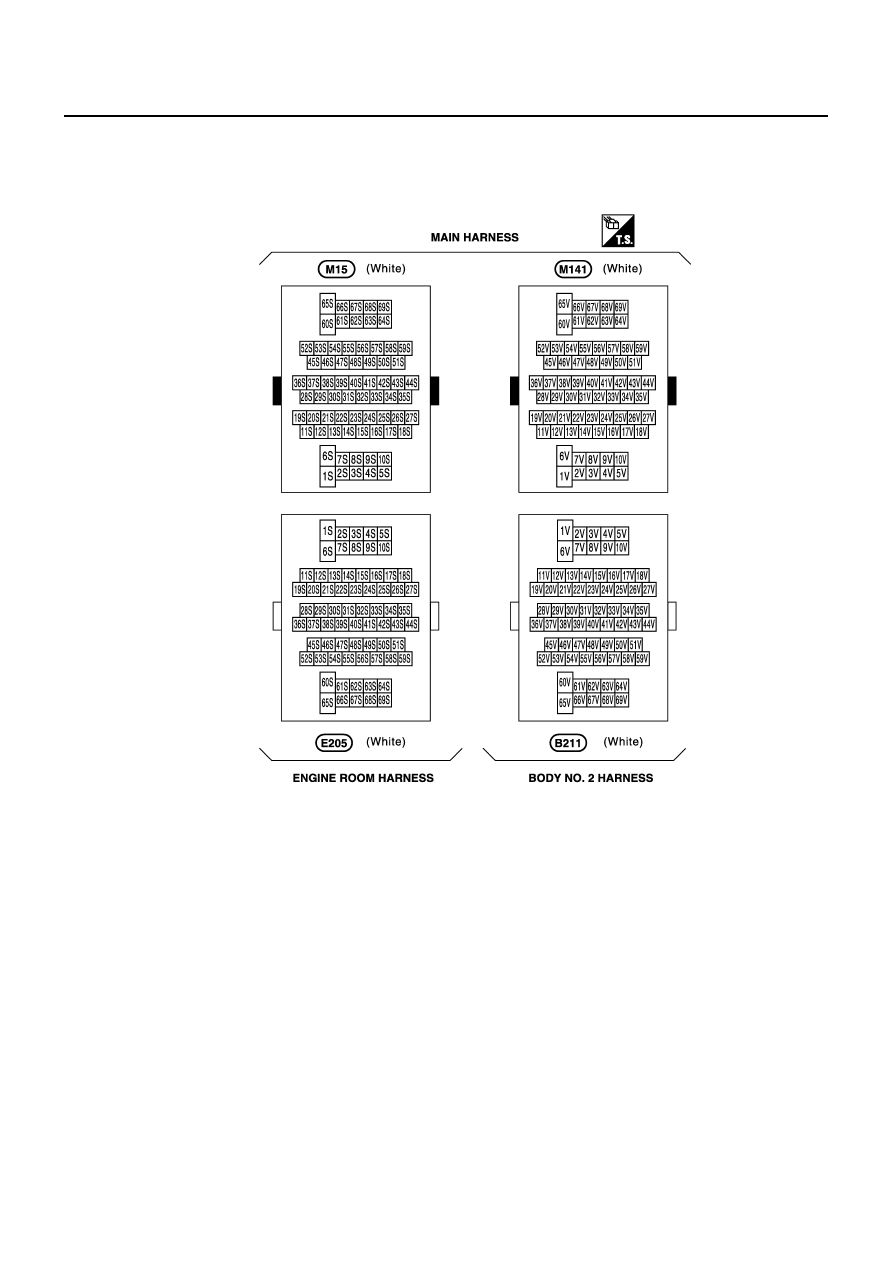

Terminal Arrangement

AKS002S3

CKIM0061E

SMJ (SUPER MULTIPLE JUNCTION)

PG-59

C

D

E

F

G

H

I

J

L

M

A

B

PG

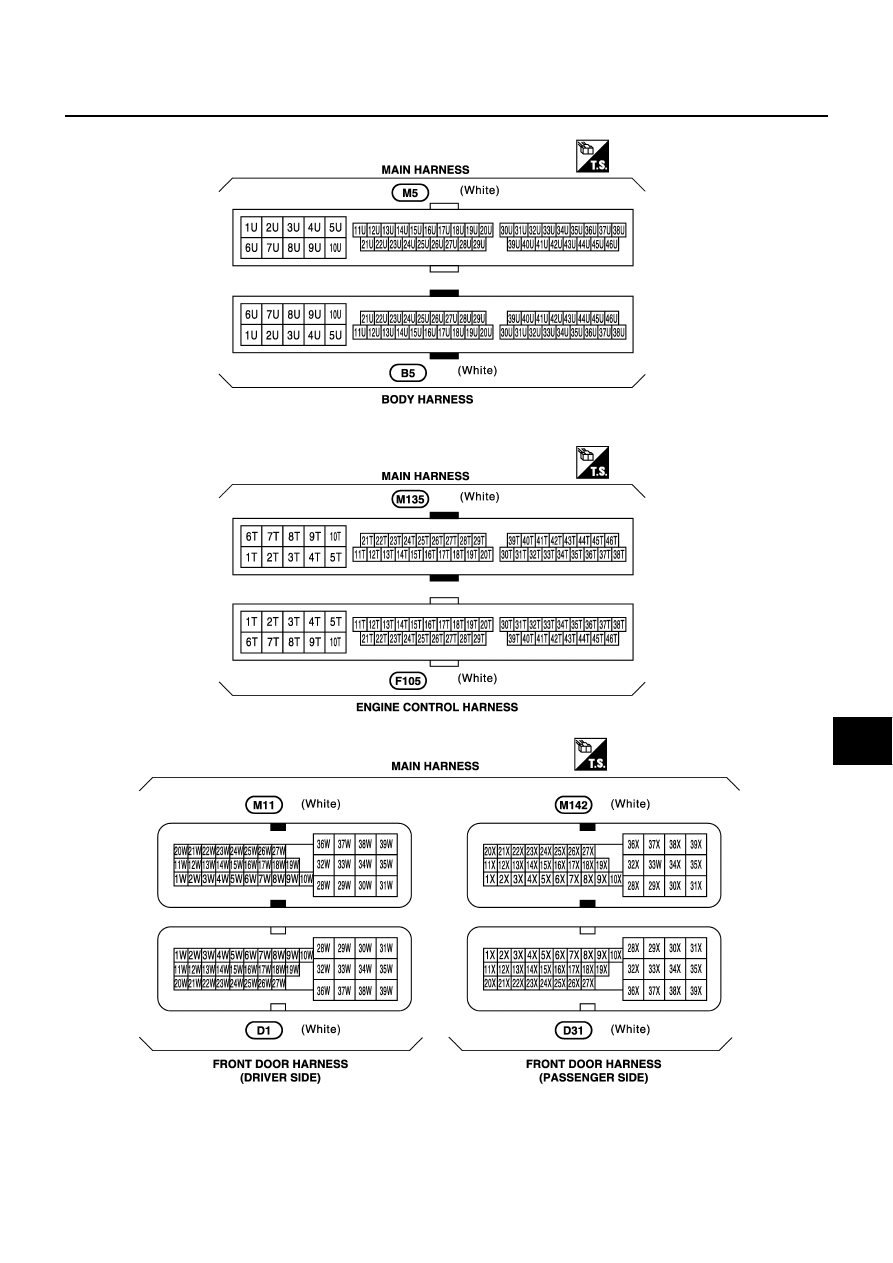

CKIM0062E

PG-60

STANDARDIZED RELAY

STANDARDIZED RELAY

PFP:00011

Description

AKS002S4

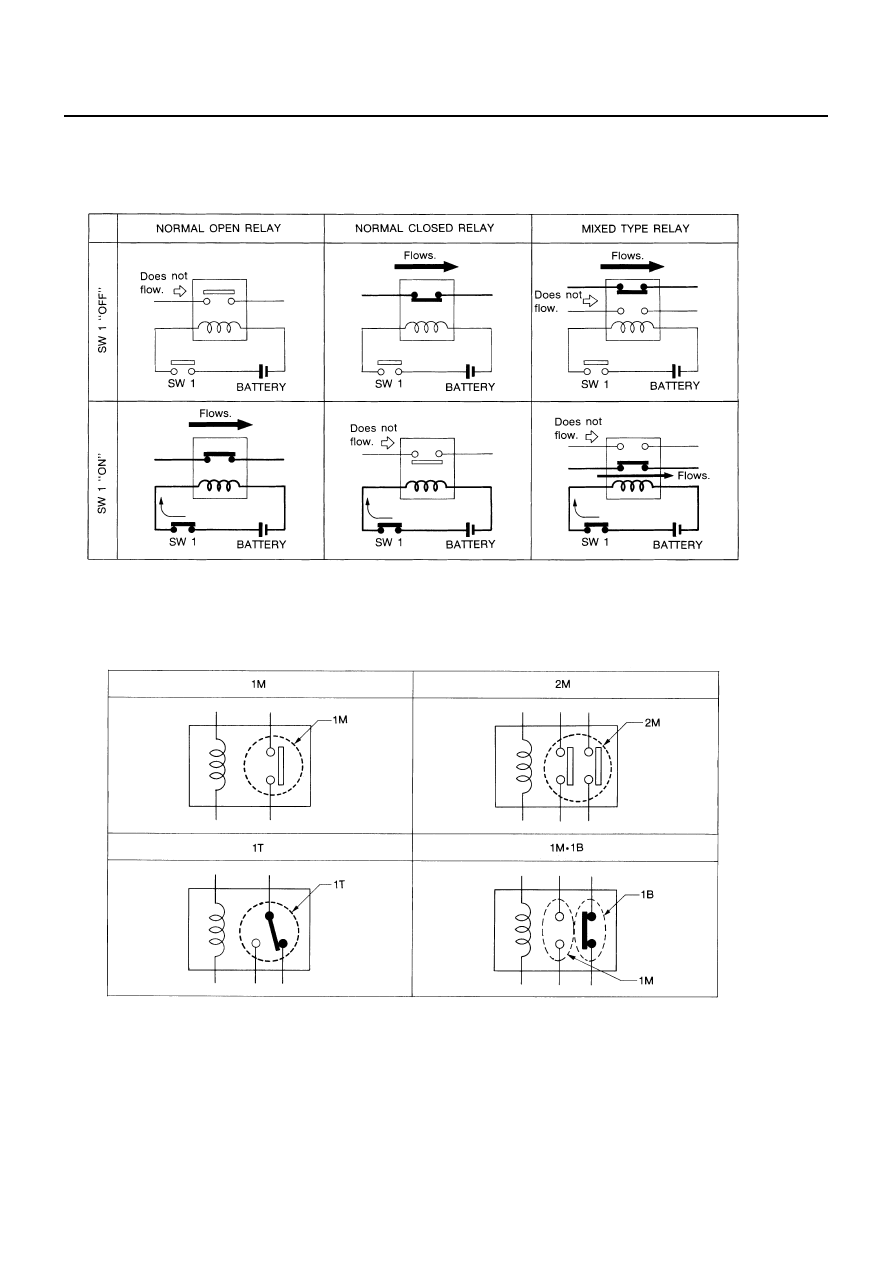

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H
