Infiniti M45 (Y34). Manual - part 697

HARNESS CONNECTOR

PG-53

C

D

E

F

G

H

I

J

L

M

A

B

PG

HARNESS CONNECTOR

PFP:00011

Description

AKS002S0

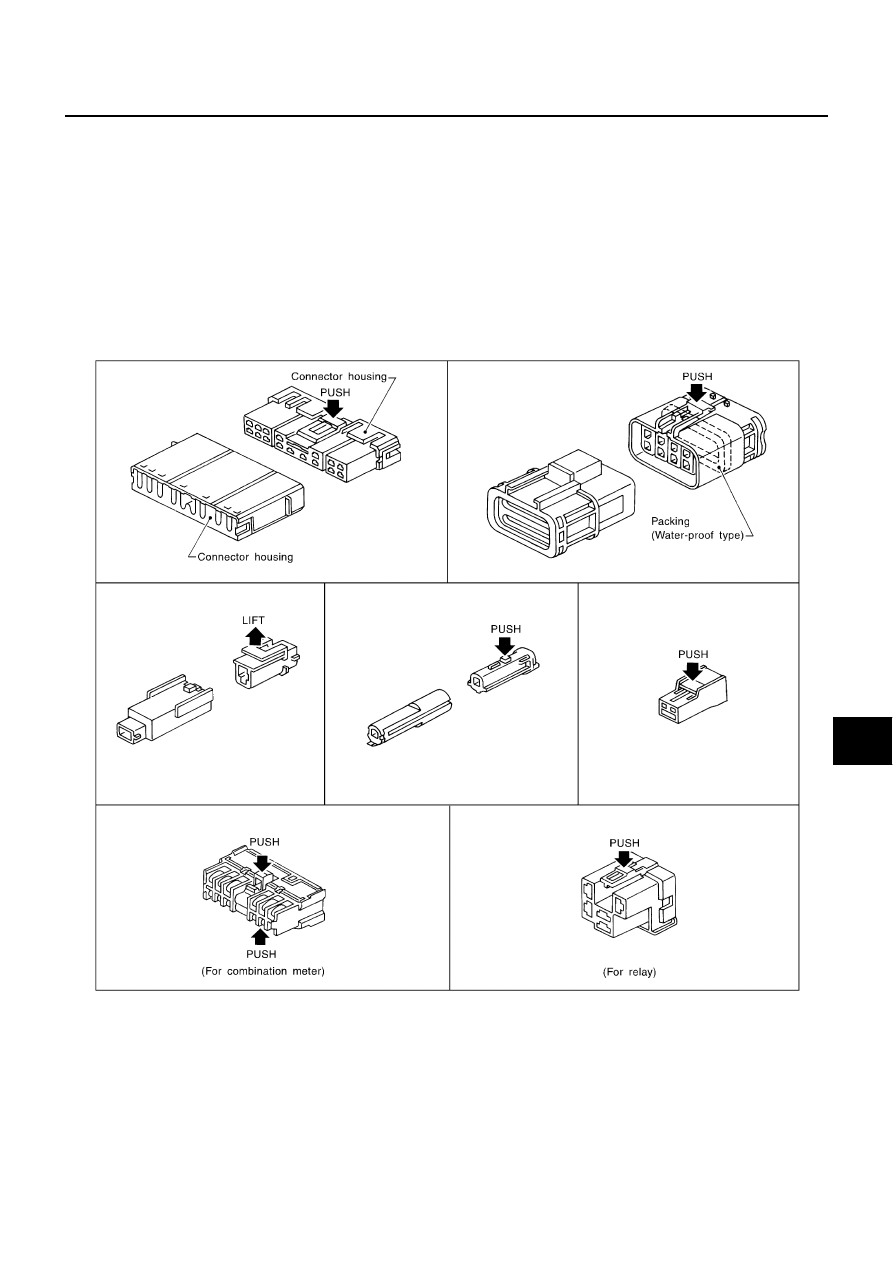

HARNESS CONNECTOR (TAB-LOCKING TYPE)

●

The tab-locking type connectors help prevent accidental looseness or disconnection.

●

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.

[Example]

SEL769DA

PG-54

HARNESS CONNECTOR

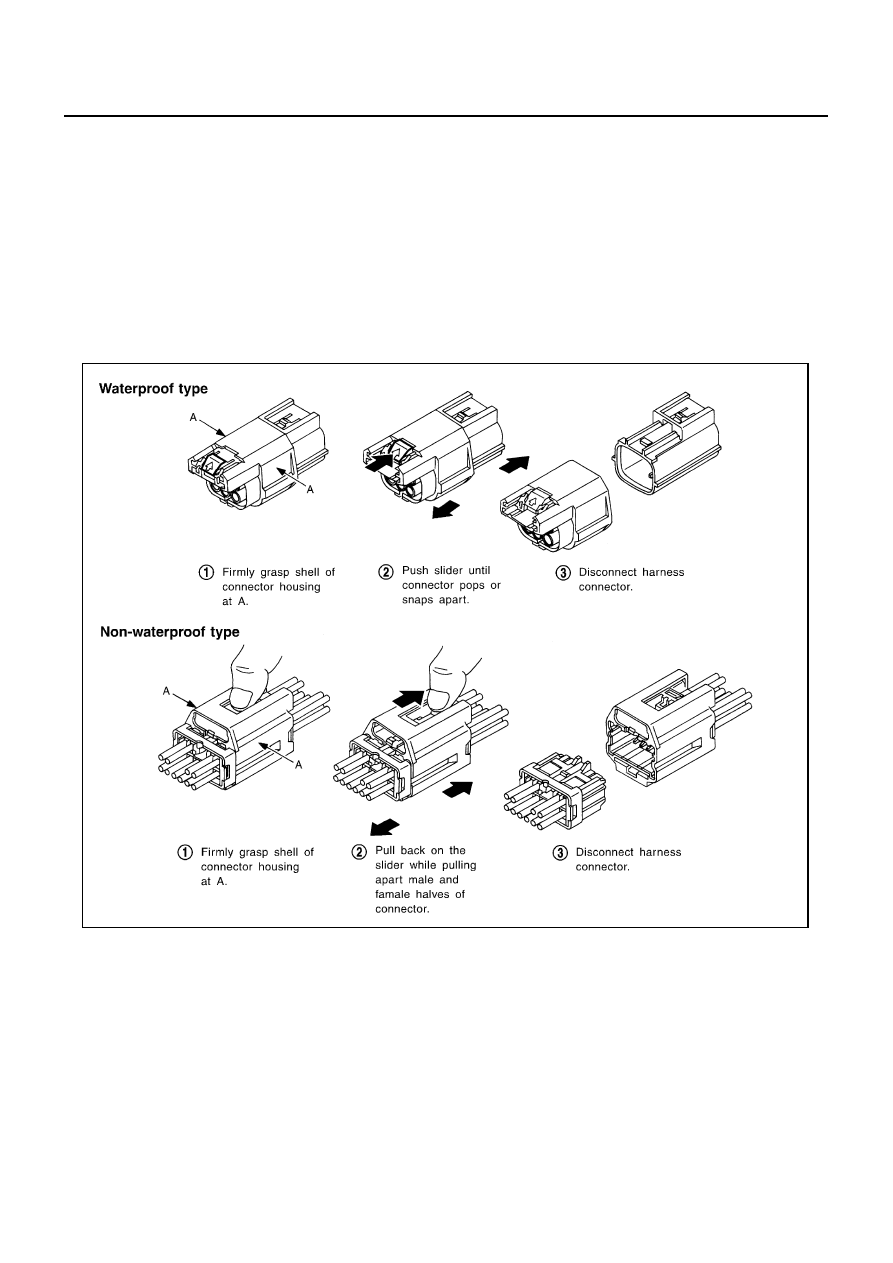

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

●

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

●

The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.

●

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.

CAUTION:

●

Do not pull the harness or wires when disconnecting the connector.

●

Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

SEL769V

JOINT CONNECTOR (J/C)

PG-55

C

D

E

F

G

H

I

J

L

M

A

B

PG

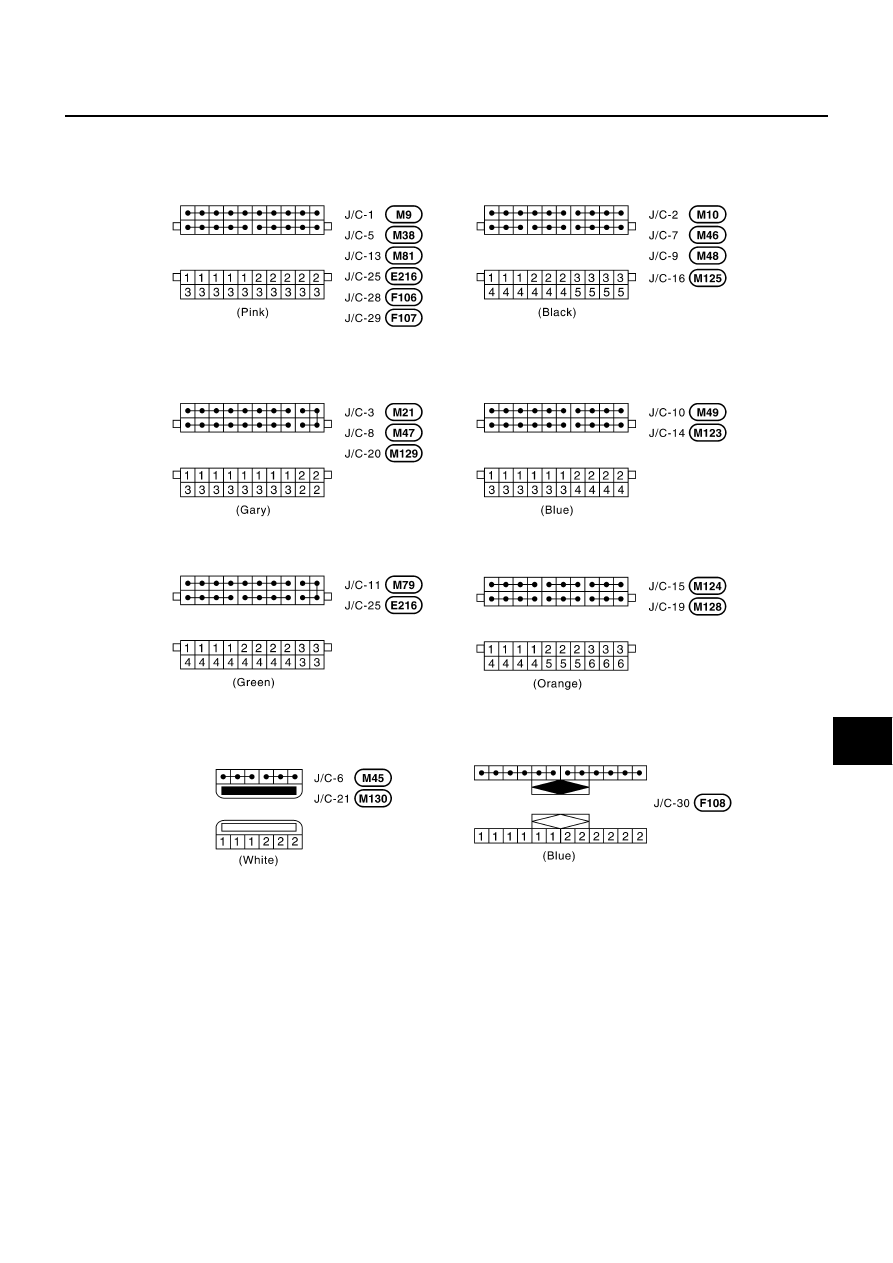

JOINT CONNECTOR (J/C)

PFP:B4341

Terminal Arrangement

AKS002S1

CKIA0264E

PG-56

ELECTRICAL UNITS

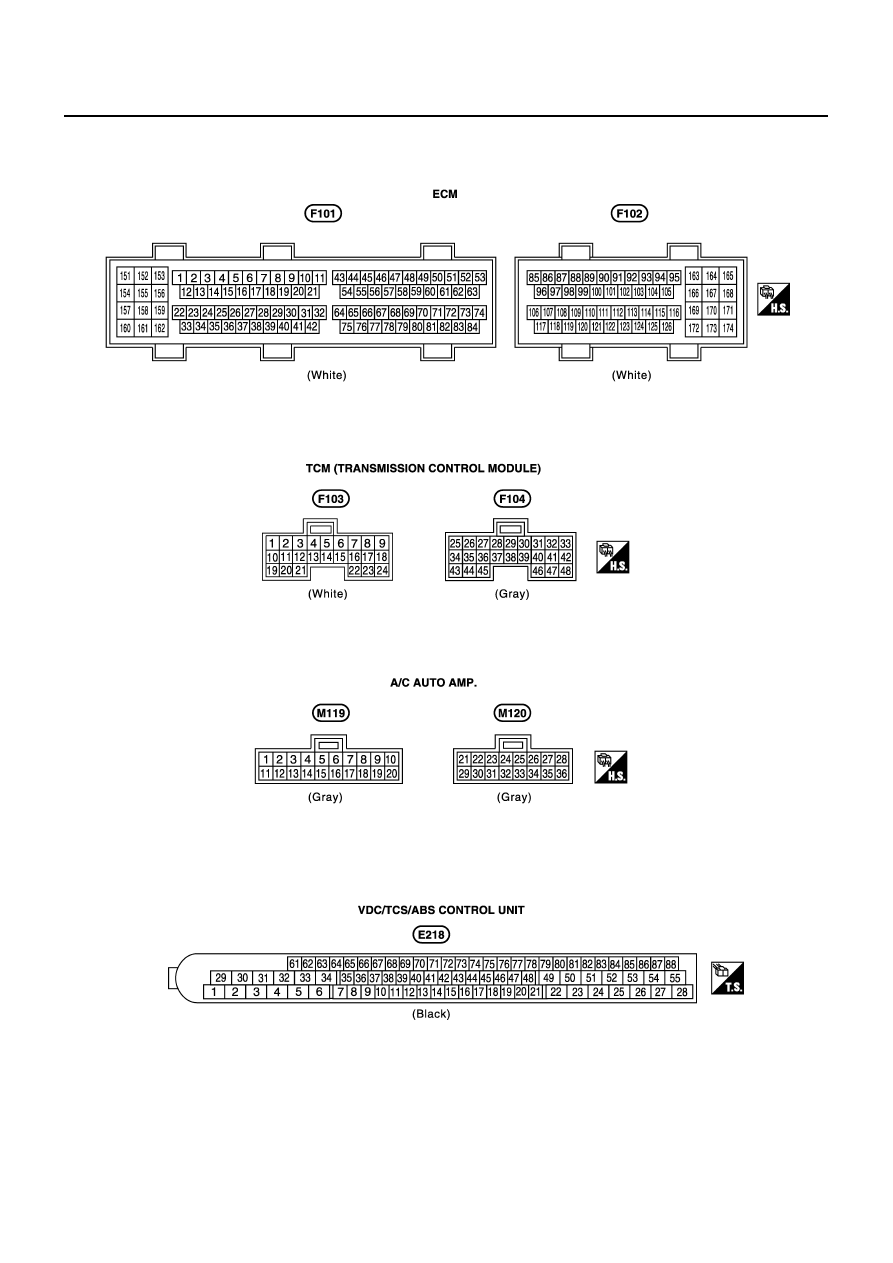

ELECTRICAL UNITS

PFP:23710

Terminal Arrangement

AKS002S2

CKIM0114E
