a.

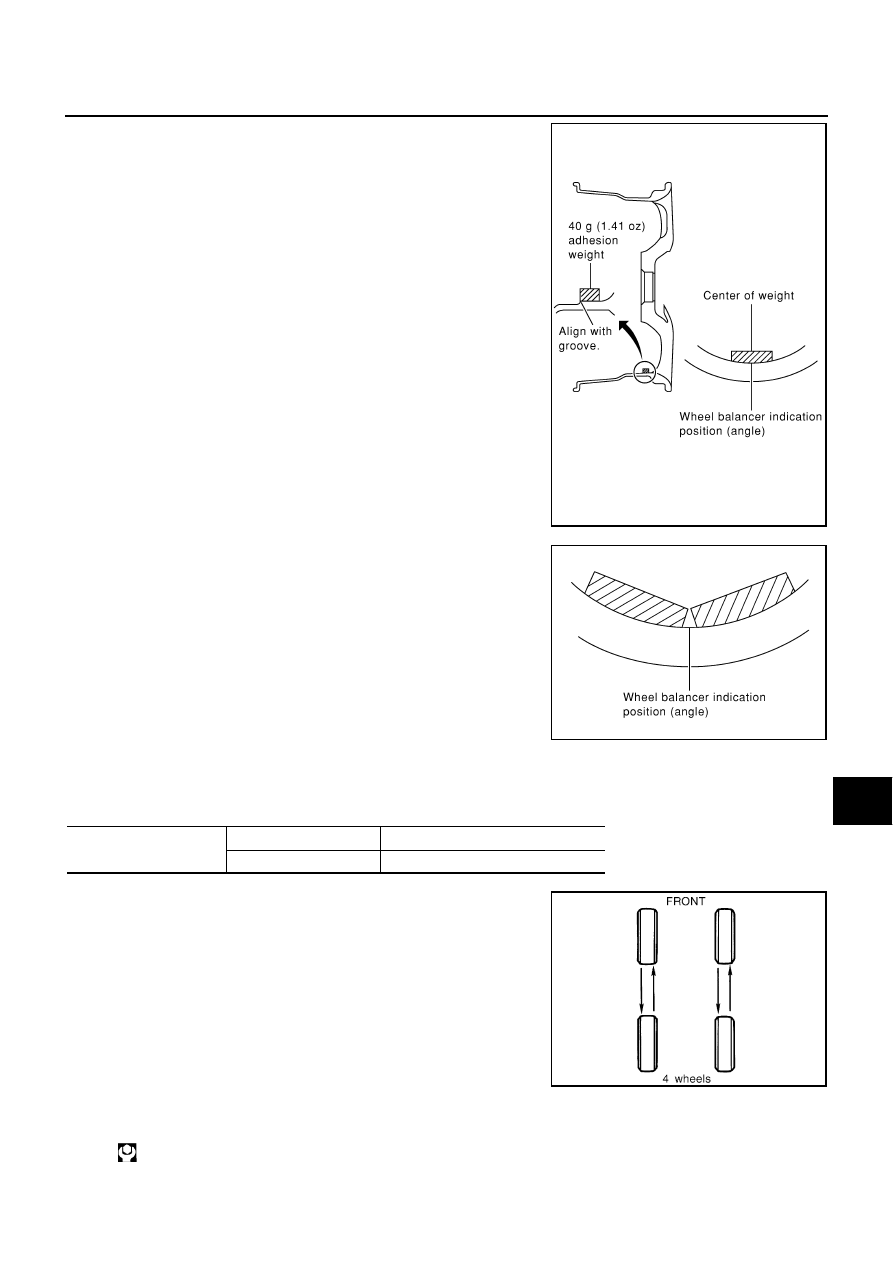

Install balance weight in the position shown in the figure at right.

b.

When installing balance weight to road wheels, set it into the
grooved area on the inner wall of the road wheel as shown in the
figure so that the balance weight center is aligned with the wheel
balancer indication position (angle).

CAUTION:

●

Always use genuine Nissan adhesion balance weights.

●

Balance weights are unreusable; always replace with new
ones.

●

Do not install more than three sheets of balance weight.

c.

If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other (as shown in
the figure).

CAUTION:

Do not install one balance weight sheet on top of another.

3.

Start wheel balancer again.

4.

Install drive-in balance weight on inner side of road wheel in the
wheel balancer indication position (angle).

CAUTION:

Do not install more than two balance weights.

5.

Start wheel balancer. Make sure that inner and outer residual
unbalance values are 10 g (0.35 oz) each or below.

●

If either residual unbalance value exceeds 10 g (0.35 oz), repeat installation procedures.

Wheel balance (Maximum allowable unbalance):

Tire Rotation

ALS0005M

Do not include the T-type spare tire when rotating the tires.

SEIA0166E

Maximum allowable
unbalance

Dynamic (At rim flange)

Less than 10 g (0.35 oz) (one side)

Static (At rim flange)

Less than 20 g (0.70 oz)

SMA056D

SMA829C

Wheel nuts

: 98 - 118 N·m (10.0 - 12.0 kg-m, 72 - 87 ft-lb)

MA-24

CHASSIS AND BODY MAINTENANCE

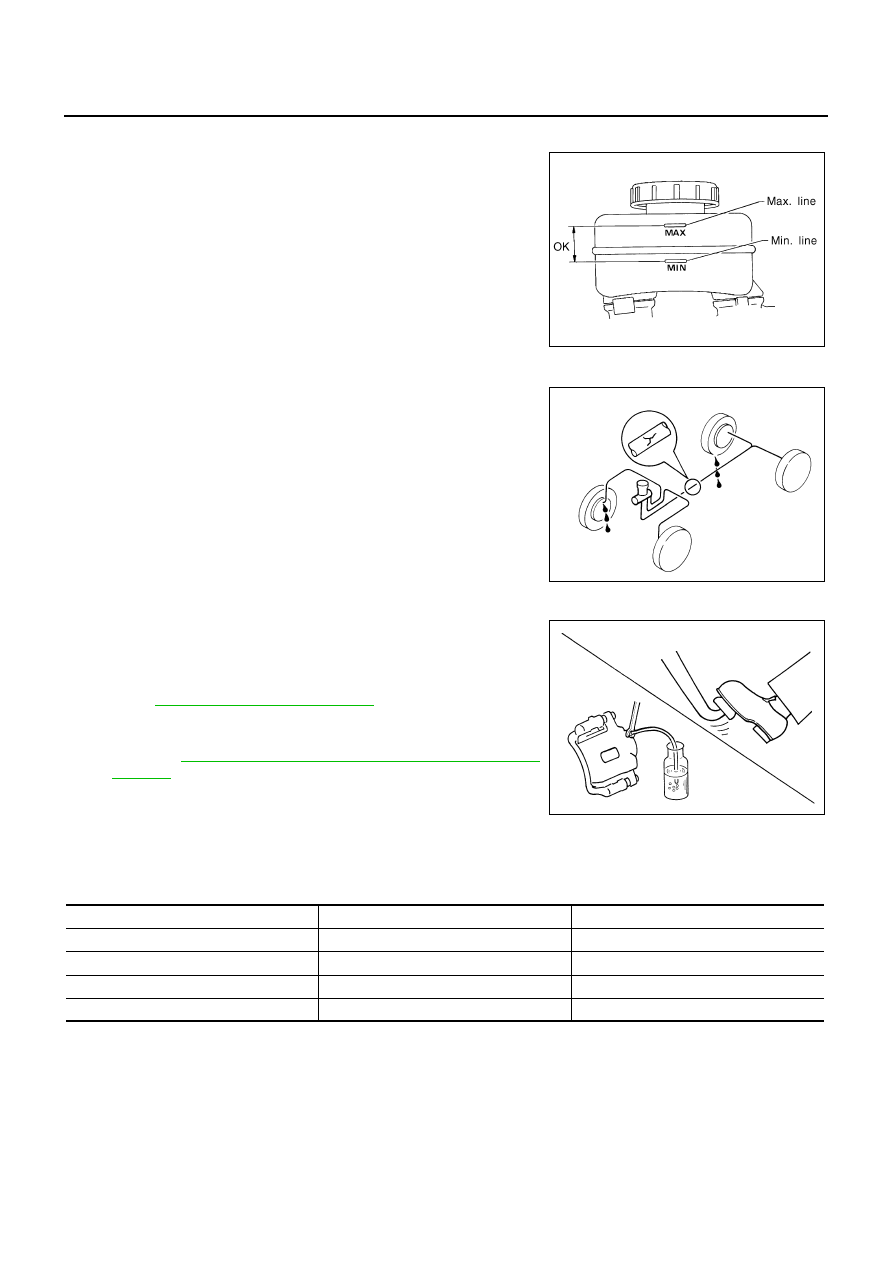

Checking Brake Fluid Level and Leaks

ALS0005N

●

If fluid level is extremely low, check brake system for leaks.

Checking Brake Lines and Cables

ALS0005O

●

Check brake fluid lines and parking brake cables for improper
attachment, leaks, chafing, abrasions, deterioration, etc.

Changing Brake Fluid

ALS0005P

1.

Drain brake fluid from each bleed valve.

2.

Refill until new brake fluid comes out from each bleed valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to

BR-9, "Bleeding Brake System"

 .

●

Refill with recommended Genuine Brake Fluid or equivalent
DOT 3 (US FMVSS No. 116).
Refer to

MA-10, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

●

Never reuse drained brake fluid.

●

Be careful not to splash brake fluid on painted areas.

Checking Disc Brake

ALS0005Q

ROTOR

Check condition, wear, and damage.

SBR451D

SBR389C

SBR419C

Front

Rear

Brake model

CLZ31VA

AD14VD

Standard thickness

28.0 mm (1.102 in)

16.0 mm (0.630 in)

Maximum runout

0.07 mm (0.0028 in) or less

0.10 mm (0.0039 in) or less

Minimum thickness (Wear limit)

26.0 mm (1.024 in)

14.0 mm (0.551 in)

CHASSIS AND BODY MAINTENANCE

MA-25

C

D

E

F

G

H

I

J

K

M

A

B

MA

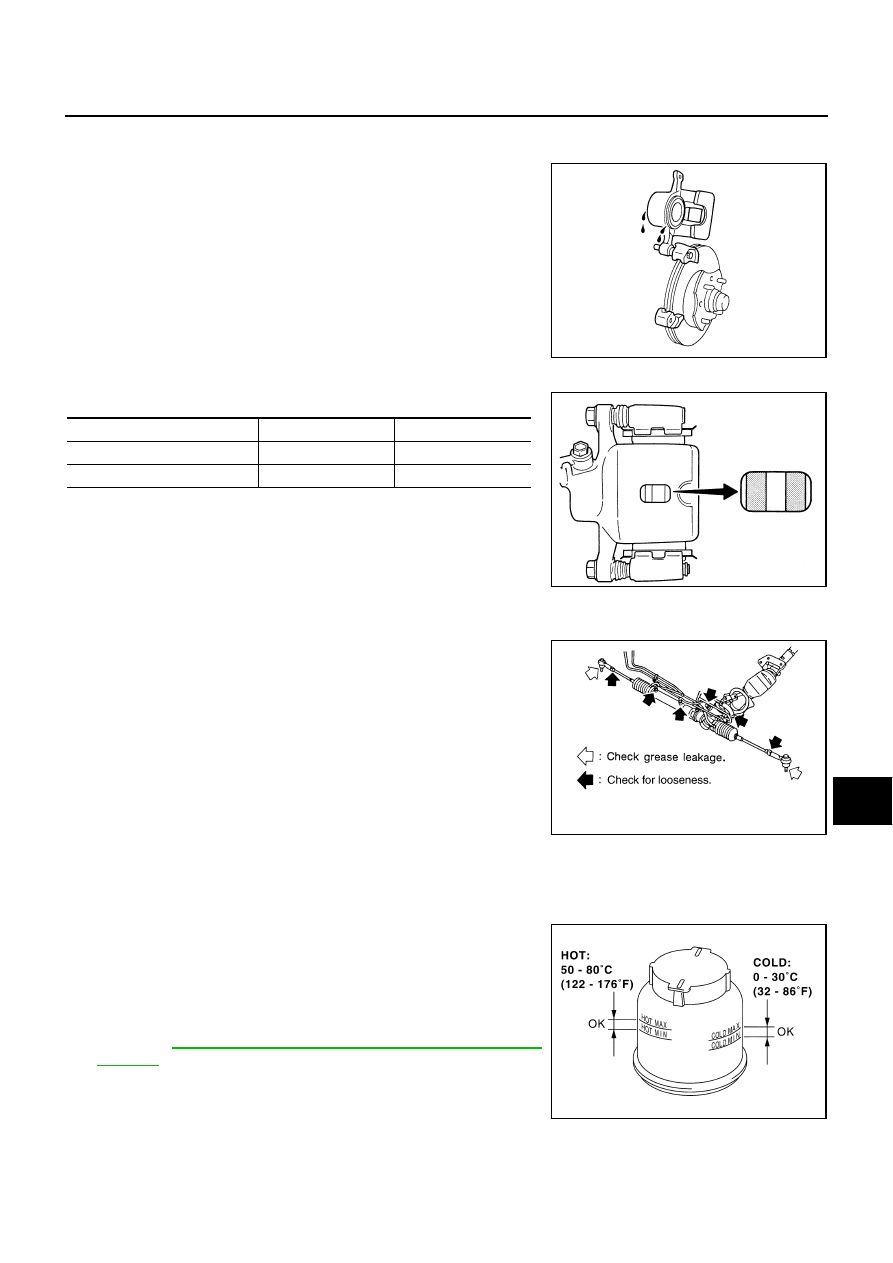

CALIPER

●

Check for leakage.

PAD

●

Check for wear or damage.

Checking Steering Gear and Linkage

ALS0005R

STEERING GEAR

●

Check gear housing and boots for looseness, damage and
grease leakage.

●

Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

Checking Power Steering Fluid and Lines

ALS0005S

Check fluid level in reservoir tank with engine off.
Use “HOT” range at fluid temperatures of 50 to 80

°

C (122 to 176

°

F)

or “COLD” range at fluid temperatures of 0 to 30

°

C (32 to 86

°

F).

CAUTION:

●

Do not overfill.

●

Recommended fluid is Genuine NISSAN PSF or equivalent.
Refer to

MA-10, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"



SMA922A

Brake model

CLZ31VA

AD14VD

Standard thickness

10.0 mm (0.394 in)

9.8 mm (0.386 in)

Minimum thickness (Wear limit)

2.0 mm (0.079 in)

2.0 mm (0.079 in)

BRA0010D

SLIA0014E

SST850C

MA-26

CHASSIS AND BODY MAINTENANCE

●

Check lines for improper attachment, leaks, cracks, dam-
age, loose connections, chafing and deterioration.

●

Check rack boots for accumulation of power steering fluid.

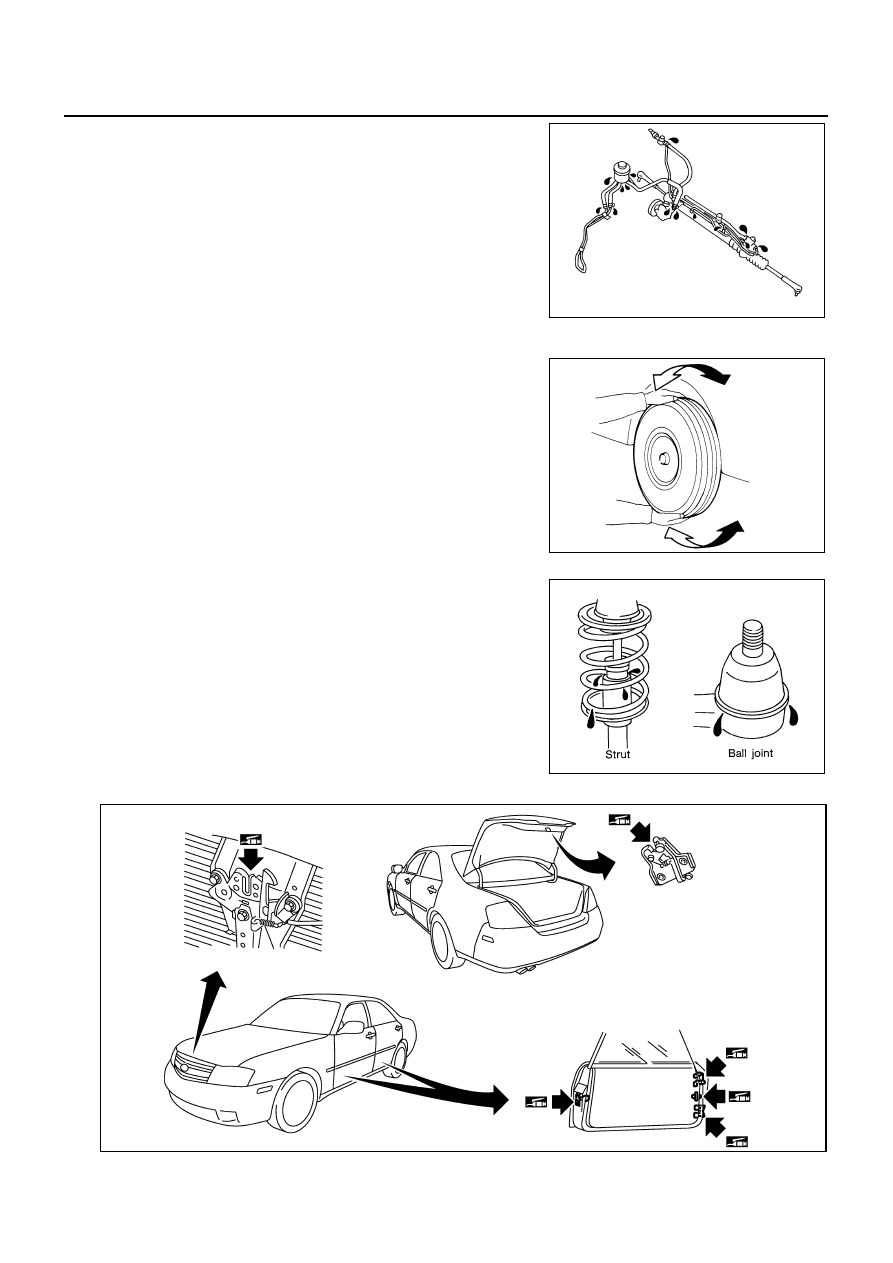

Axle and Suspension Parts

ALS0005T

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.

●

Shake each wheel to check for excessive play.

●

Check wheel bearings for smooth operation.

●

Check axle and suspension nuts and bolts for looseness.

●

Check strut (shock absorber) for oil leakage or other damage.

●

Check suspension ball joint for grease leakage and ball joint
dust cover for cracks or other damage.

Lubricating Locks, Hinges and Hood Latch

ALS0005V

SST851C

SMA525A

SFA392B

PIIA3116E
