REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-99

C

D

E

F

G

H

J

K

L

M

A

B

GW

ACTIVE TEST
Display Item List

On Board Diagnosis

AIS001HE

BCM can check each local unit (LCU), switches, loads, and malfunctions in communication with the self-diag-
nosis.

DIAGNOSIS ITEM

Test item

Description

TILT MOTOR

The tilt motor is activated by receiving the drive signal.

TELESCO MOTOR

The telescoping motor is activated by receiving the drive signal.

SEAT SLIDE

The sliding motor is activated by receiving the drive signal.

SEAT RECLINING

The reclining motor is activated by receiving the drive signal.

SEAT LIFTER FR

The front end lifter motor is activated by receiving the drive signal.

SEAT LIFTER RR

The rear end lifter motor is activated by receiving the drive signal.

MEMORY SW INDCTR

The memory switch indicator is lit by receiving the drive signal.

MIRROR MOTOR RH

The passenger side door mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the
drive signal.

MIRROR MOTOR LH

The driver side door mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive
signal.

Diagnosis item

Description

Communication diagnosis

It can check the communication line between BCM and each LCU, and also each LCU,
for a communication error and malfunction.

Switch monitor

It can check the switch systems which send data to BCM and each LCU for a malfunc-
tion.

Self-diagnosis for auto drive positioner

Diagnoses malfunctions in each motor and sensor in the electrical load parts of the
driver power seat system (sliding, reclining, and lifter [front/rear]), of the steering wheel
system (tilt, telescoping), and of door mirror.

GW-100

REVERSE INTERLOCK DOOR MIRROR SYSTEM

COMMUNICATION DIAGNOSIS

Check the communication between BCM and each local control unit(LCU).

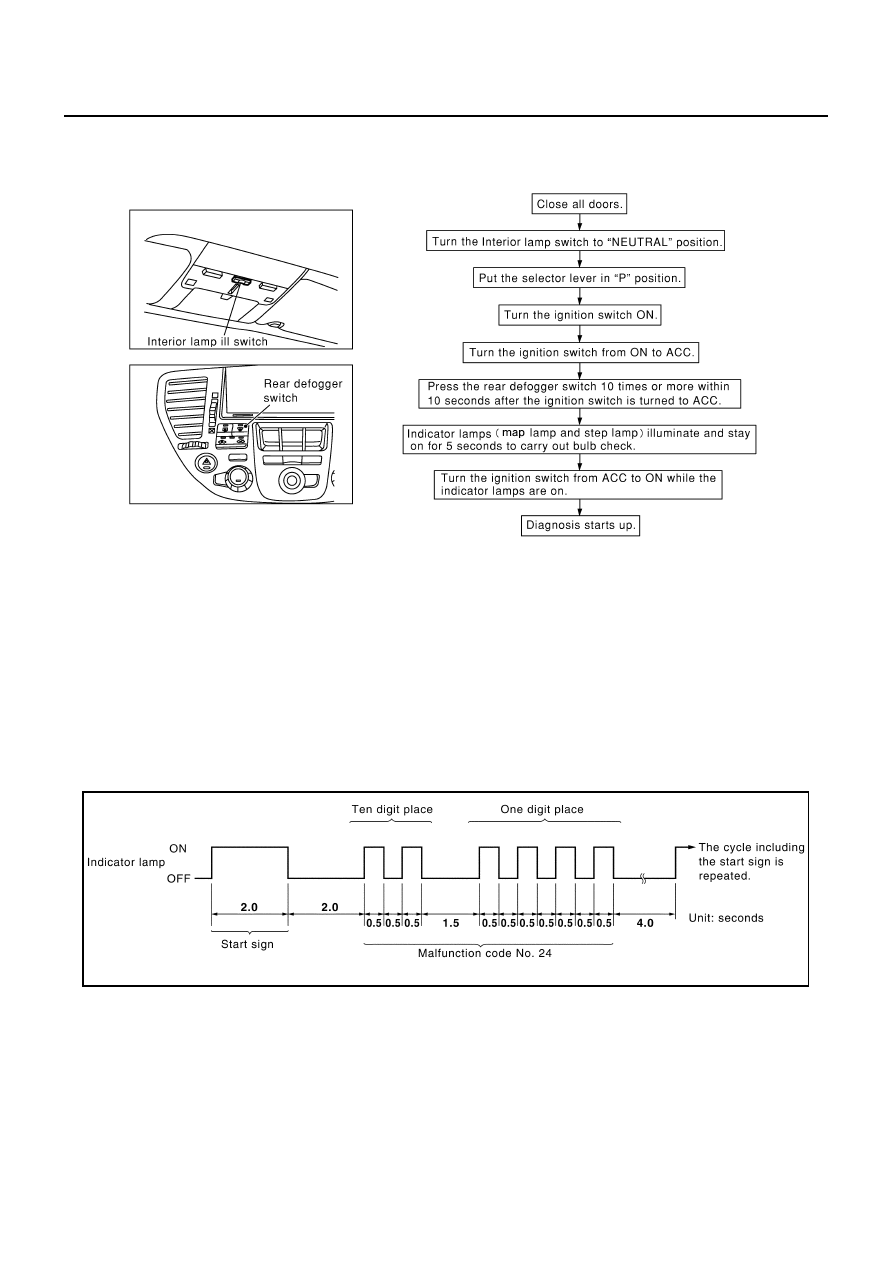

Operation Procedure

Diagnosis Result Display

The indicator lamps (the map lamp and step lamp) turn ON (illuminate) for 2 seconds and OFF (go off) for
2 seconds to indicate that the diagnosis has started, then indicate the diagnosis trouble code.

To indicate the self–diagnosis trouble code, the indicator lamps illuminate or flash.

At first, the lamps indicate the second place by ON / OFF with 0.5 second-interval, then OFF for 1.5 sec-
onds. Next, they indicate the first place by ON / OFF with 0.5 second interval.

If there are multiple malfunctioning parts, the lamps indicate them in sequence from the smallest diagno-
sis trouble code.

The diagnosis results repeat until the diagnosis is cancelled.

If a malfunction is indicated, carry out the communication diagnosis again to check that the same diagno-
sis trouble code is indicated.

Diagnosis Trouble Code Indication Example

SIIA0409E

SIIA0410E

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-101

C

D

E

F

G

H

J

K

L

M

A

B

GW

Trouble Diagnosis Chart

NOTE:

For a specific local control unit(LCU), either "PAST COMM DATA" or "PAST NO RESPONSE" may be displayed instead of the
above results. This is caused by the data record, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an
irreproducible incident occurred.)

Follow the steps below to erase the memory.
Carry out either disconnect BCM battery power supply or erase memory with CONSULT-II.

With the battery connected, if the local control unit(LCU) connector is disconnected and left for approximately 1 minute, the BCM
stores "NO RESPONSE" record.

Cancel of Communication Diagnosis

If one of the following conditions is satisfied, the communication diagnosis is cancelled.

When the ignition switch is turned OFF.

The vehicle speed becomes 7 km/h (4 MPH) or higher.

Ten minutes have passed since the diagnosis result indication start without no diagnosis cancel operation.

Malfunctioning

item

Display unit

CONSULT–II IVMS communication

diagnosis content

Self-diagnosis trou-

ble code No.

Malfunctioning system and

reference

COMM DATA

One LCU is dis-
played.

POWER WINDOW  C/U–DR
"COMM DATA"

24

Replace the displayed
LCU.

DOOR MIRROR  C/U–RH
"COMM DATA"

27

DOOR MIRROR  C/U–LH
"COMM DATA"

37

POWER SEAT  C/U–DR
"COMM DATA"

47

Multiple LCUs
are displayed

BCM
"COMM FAIL1" ,"COMM FAIL2"

Displays in order of
24

27

37

47

and cycles from 24.

Communication system A:
Refer to

GW-102

 .

NO
RESPONSE

One LCU is dis-
played.

POWER WINDOW C/U–DR
"NO RESPONSE"

25

Communication system B:
Refer to

GW-102

 .

DOOR MIRROR C/U–RH
"NO RESPONSE"

28

DOOR MIRROR C/U–LH
"NO RESPONSE"

38

POWER SEAT C/U–DR
"NO RESPONSE"

48

Multiple LCUs
are displayed

BCM/HARNESS

Displays in order of
25

28

38

48



and cycles from 25.

Communication system C:
Refer to

GW-102

 .

SLEEP malfunc-
tion

One LCU is dis-
played.

POWER WINDOW C/U–DR "SLEEP"

No self-diagnosis
function

Replace the displayed
LCU.

DOOR MIRROR C/U–RH
"SLEEP"

DOOR MIRROR C/U–LH
"SLEEP"

POWER SEAT C/U–DR
"SLEEP"

Multiple LCUs
are displayed

All the above control units are displayed.

No self-diagnosis
function

Communication system A:
Refer to

GW-102

 .

GW-102

REVERSE INTERLOCK DOOR MIRROR SYSTEM

COMMUNICATION SYSTEM A

1.

BCM INSPECTION

Replace BCM with a known-good one, and carry out the communication diagnosis. Refer to

GW-100, "COM-

MUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace BCM.

NG

>> GO TO 2.

2.

LCU INSPECTION

1.

Replace with the previously installed BCM.

2.

Replace LCU with a known-good one, and carry out the communication diagnosis. Refer to

SE-46, "COM-

MUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace LCU.

NG

>> Perform the following.

Repair or replace communication harness between LCU and BCM.

Replace with the previously installed LCU.

COMMUNICATION SYSTEM B

1.

HARNESS CONNECTOR INSPECTION

Check the terminals (at the control unit and harness) on the malfunctioning LCU for disconnection, bend, poor
connection and other malfunctions.

OK or NG?

OK

>> GO TO 2.

NG

>> Repair the terminals and connectors.

2.

LCU INSPECTION

Replace the malfunctioning LCU with a known-good one, and carry out the communication diagnosis. Refer to

GW-100, "COMMUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace LCU.

NG

>> Perform the following.

Repair or replace communication harness between LCU and BCM.

Replace with the previously installed LCU.

COMMUNICATION SYSTEM C

1.

HARNESS CONNECTOR INSPECTION

Check the terminals (at the control unit and harness) on BCM and LCU for disconnection, bend, poor connec-
tion, and other malfunctions.

OK or NG?

OK

>> GO TO 2.

NG

>> Repair the terminals and connectors.
