REVERSE INTERLOCK DOOR MIRROR SYSTEM

Terminals and Reference Values for Driver Side Door Mirror Control Unit & Ter-
minals and Reference Value for Passenger Side Door Mirror Control Unit

AIS001H9

*: Body ground
( ):Passenger side

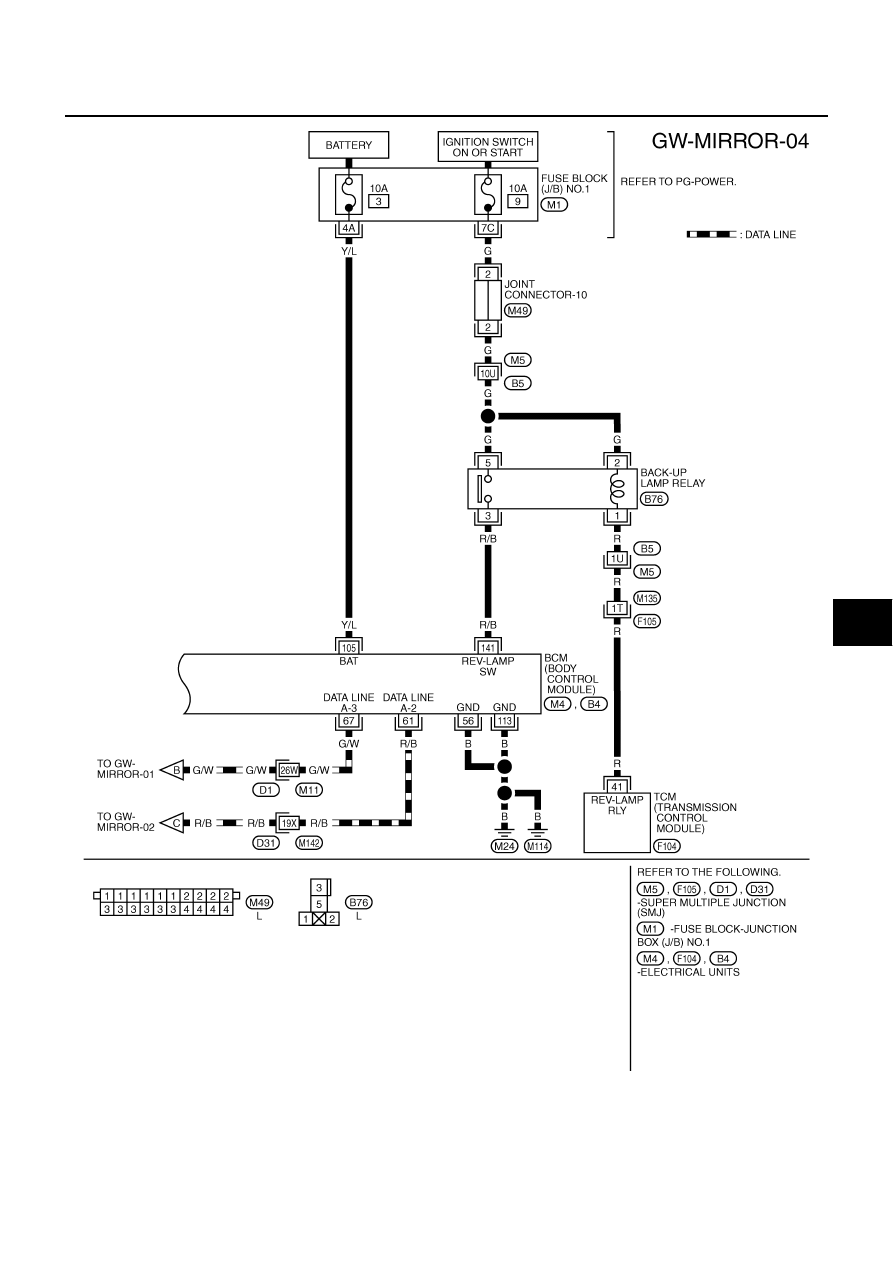

Terminals and Reference Values for BCM

AIS001HA

TERMINAL

WIRE COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx.)

+

–

+

–

1

*

W/L

—

Mirror sensor power
supply

—

5

2

Y

—

Ground (Mirror sensor)

—

0

3

9

GY/R

(R)

PU/W

(OR)

Mirror motor UP signal

When motor is activated (UP)

Battery voltage

When motor is not activated

0

4

9

BR

PU/W

(OR)

Mirror motor LH signal

When motor is activated (LH)

Battery voltage

When motor is not activated

0

5

*

L/Y

—

Mirror sensor
UP / DOWN signal

When motor is activated
(UP or DOWN)

Changes between

 4 (UP) – 0.5 (DOWN)

6

*

G

—

Mirror sensor
LEFT / RIGHT signal

When motor is activated
(LEFT or RIGHT)

Changes between

 4 (RIGHT) – 0.5 (LEFT).

7

G/W

(R/B)

—

Data line A-3

—

—

8

L

—

BAT power supply

—

Battery voltage

9

3

PU/W

(OR)

GY/R

(R)

Mirror motor DOWN sig-
nal

When motor is activated (DOWN)

Battery voltage

When motor is not activated

0

9

4

PU/W

(OR)

BR

Mirror motor RH signal

When motor is activated (RH)

Battery voltage

When motor is not activated

0

10

*

B

—

Ground

—

0

TERMINAL

WIRE

COLOR

ITEM

CONDITION

Voltage (V)

(Approx.)

21

SB

Door mirror change over
switch RIGHT signal

Set the door mirror control switch to right position.

0

Other than above

5

24

BR/Y

Door mirror change over
switch LEFT signal

Set the door mirror remote control switch to left

position.

0

Other than above

5

25

G/R

Door mirror remote control
switch signal–LH operation

Set the either LH/RH door mirror face to left.

0

Other than above

5

29

LG/R

Door mirror remote control
switch signal–RH opera-
tion

Set the either LH/RH door mirror face to right.

0

Other than above

5

32

L/W

Door mirror remote control
switch signal–Upward

Set the either LH/RH door mirror face upward.

0

Other than above

5

34

P/L

Door mirror remote control
switch signal–Downward

Set the either LH/RH door mirror face downward.

0

Other than above

5

39

G

Memory switch1 signal

Memory switch1 (ON)

0

Memory switch1 (OFF)

5

43

OR/L

Memory switch2 signal

Memory switch2 (ON)

0

Memory switch2 (OFF)

5

50

P/B

Set switch signal

Set switch (ON)

0

Set switch (OFF)

5

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-89

C

D

E

F

G

H

J

K

L

M

A

B

GW

Work Flow

AIS001HB

1.

Check the symptom and customer's requests.

2.

Understand the system description. Refer to

GW-78, "System Description"

 .

3.

Carry out the preliminary check. Refer to

GW-90, "Preliminary Check"

 .

4.

Carry out the communication diagnosis.
If CONSULT-II is used, refer to

GW-93, "IVMS Communication Diagnosis"

 .

If CONSULT-II is not used, refer to

GW-100, "COMMUNICATION DIAGNOSIS"

 .

Is the communication diagnosis result OK?
If OK, GO TO 7.
If NG, GO TO 5.

5.

Repair or replace depending on the diagnosis result.

6.

Carry out the communication diagnosis again.
If CONSULT-II is used, refer to

GW-93, "IVMS Communication Diagnosis"

 .

If CONSULT-II is not used, refer to

GW-100, "COMMUNICATION DIAGNOSIS"

 .

Is communication diagnosis result OK?
If OK, GO TO 7.
If NG, GO TO 5.

7.

Perform self-diagnosis. If CONSULT-II is used, refer to

GW-97, "SELF–DIAGNOSIS RESULTS"

 .

If CONSULT-II is not used, refer to

GW-105, "ON BOARD DIAGNOSIS FOR AUTOMATIC DRIVE POSI-

TIONER"

 .

Is self-diagnosis result OK?
If OK, GO TO 11.
If NG, GO TO 8.

8.

Repair or replace depending on the diagnosis result.

9.

Carry out the self-diagnosis again. If CONSULT-II is used, refer to

GW-97, "SELF–DIAGNOSIS

RESULTS"

 .

If CONSULT-II is not used, refer to

GW-105, "ON BOARD DIAGNOSIS FOR AUTOMATIC DRIVE POSI-

TIONER"

 .

Is self-diagnosis result OK?
If OK, GO TO 11.
If NG, GO TO 8.

10. Refer to Trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

GW-107, "Symp-

tom Chart"

 .

11. Does the Reverse Interlock Door Mirror System operate normally?

If it operates normally, GO TO 12.
If not, GO TO 10.

12. Inspection END.

56

B

Ground

—

0

61

R/B

Data line A–2

—

—

67

G/W

Data line A–3

—

—

105

Y/L

BAT power supply

—

Battery voltage

113

B

Ground

—

0

141

R/B

R position signal

When the selector lever is in R position

Battery voltage

When the selector lever is not in R position

0

TERMINAL

WIRE

COLOR

ITEM

CONDITION

Voltage (V)

(Approx.)

GW-90

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Preliminary Check

AIS001HC

POWER SUPPLY AND GROUND CIRCUIT CHECK

1.

CHECK FUSE

Check that any of the following fuses in BCM and door mirror control unit are blown.

NOTE:
Refer to

GW-78, "Component Parts and Harness Connector Location"

 .

OK or NG?

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

GW-

78, "Component Parts and Harness Connector Location"

 .

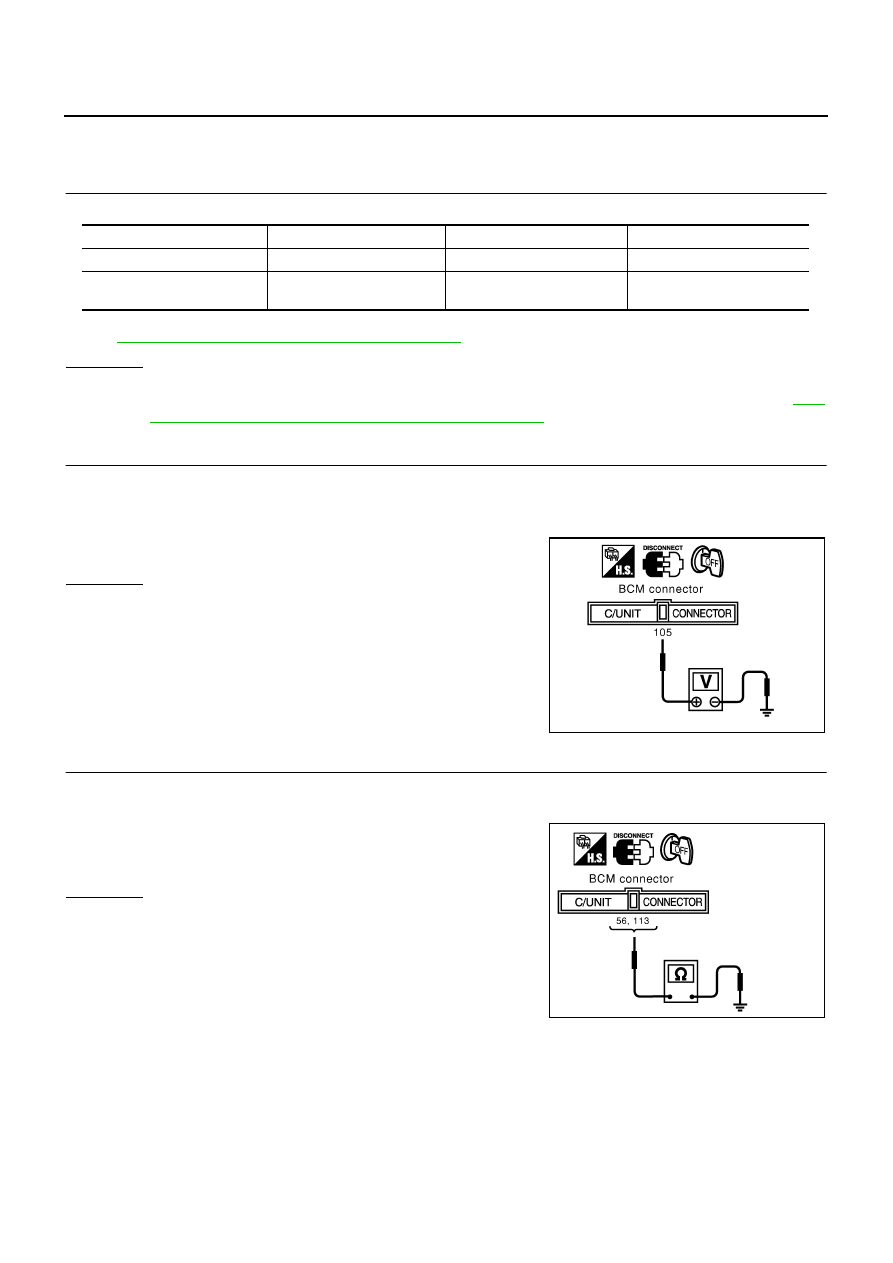

2.

POWER SUPPLY CIRCUIT INSPECTION (BCM)

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check voltage between BCM connector M4 terminal 105 and ground.

OK or NG?

OK

>> GO TO 3.

NG

>> Repair or replace the harnesses for BCM power supply

circuit.

3.

GROUND CIRCUIT INSPECTION(BCM)

1.

Turn ignition switch OFF.

2.

Check continuity between BCM connector M4 terminal 56, 113 and ground.

OK or NG?

OK

>> GO TO 4.

NG

>> Repair or replace harness.

Unit

Terminal No.

Power source

Fuse No.

BCM

105

BAT power supply

#3

Door Mirror Control Unit

(Driver side & Passenger side)

8

BAT power supply

#8

105 (Y/L) – Ground

: Battery voltage

PIIA4607E

56 (B) – Ground

: Continuity should exist.

113 (B) – Ground

: Continuity should exist.

PIIA0170E
