Infiniti M45 (Y34). Manual - part 577





POWER WINDOW SYSTEM

GW-19

C

D

E

F

G

H

J

K

L

M

A

B

GW

ANTI-PINCH SYSTEM

Driver door control unit (LCU01) and passenger door control unit monitor the power window regulator motor
operation and the power window position (full closed or other) by the signals from encoder and limit switch in
power window regulator motor.
When driver door control unit (LCU01) and passenger door control unit detect interruption during the following
close operation in the each door.

automatic close operation when ignition switch is in the ON position.

automatic close operation during power window timer operation.

Driver door control unit (LCU01) and passenger door control unit power window regulator motor for open and
the power window will be lowered about 150 mm(5.91 in).

POWER WINDOW CONTROL BY THE KEY CYLINDER SWITCH

When ignition key switch is OFF, front power window can be opened or closed by turning the front door key
cylinder driver side UNLOCK / LOCK position more then 1.5 seconds over condition.

Power window can be opened as the door key cylinder is kept fully turning to the UNLOCK position.

Power window can be closed as the door key cylinder is kept fully turning to the LUCK position.

The power window opening stops when the following operations are carried out.

While performing open / close the window, power window is stopped at the position as the door key cylin-
der is placed on NEUTRAL.

When the ignition switch is turned ON while the power window opening is operated.

GW-20

POWER WINDOW SYSTEM

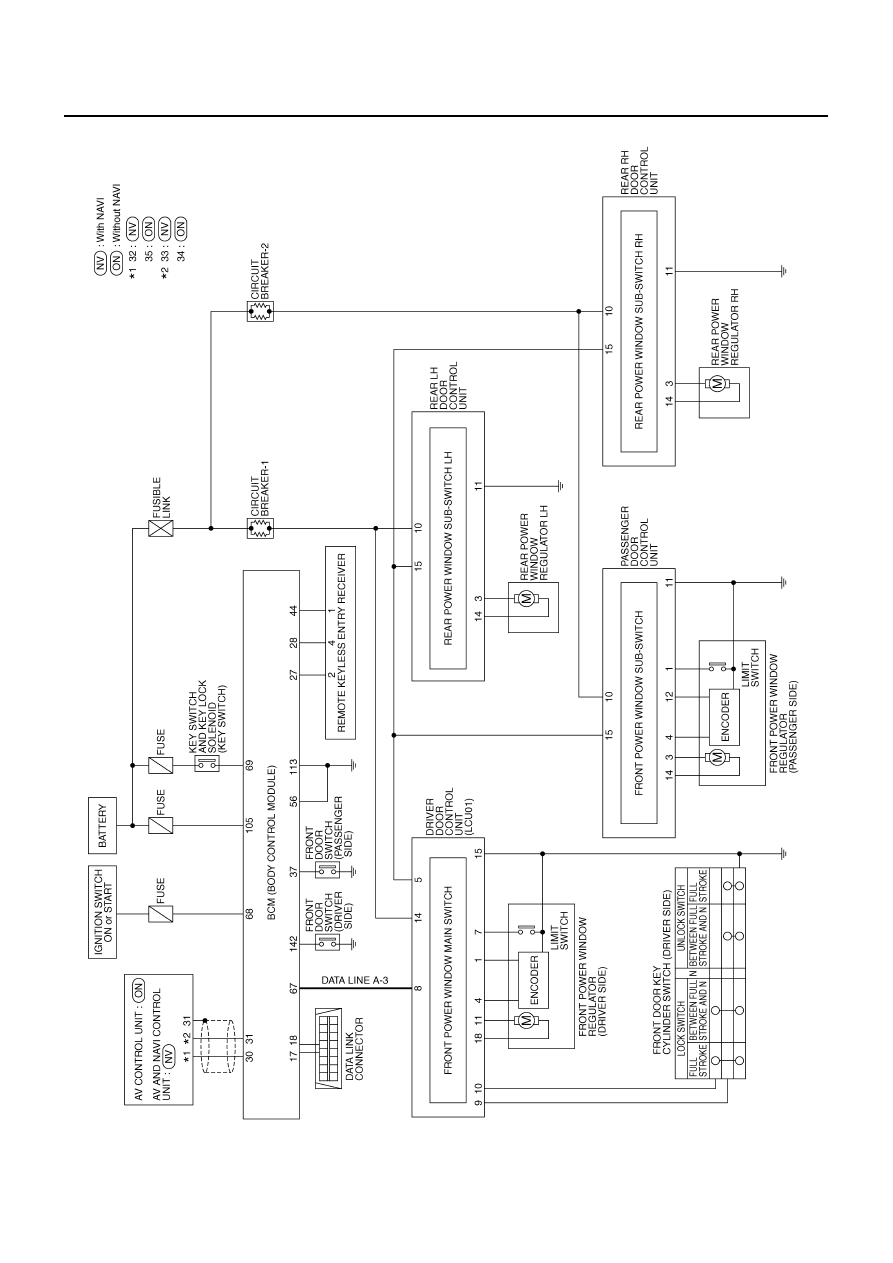

Schematic

AIS001MT

TIWA0213E

POWER WINDOW SYSTEM

GW-21

C

D

E

F

G

H

J

K

L

M

A

B

GW

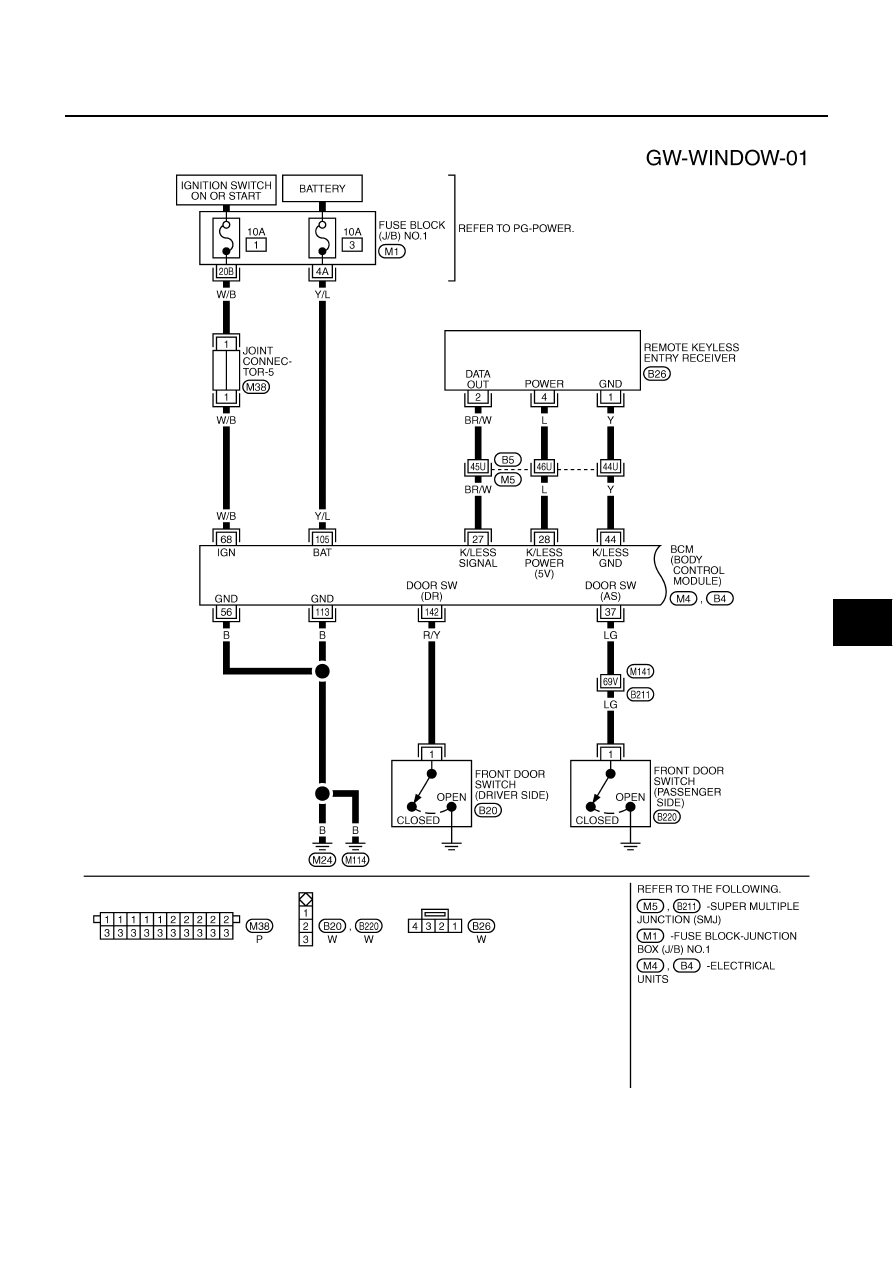

Wiring Diagram — WINDOW —

AIS001MU

TIWA0214E

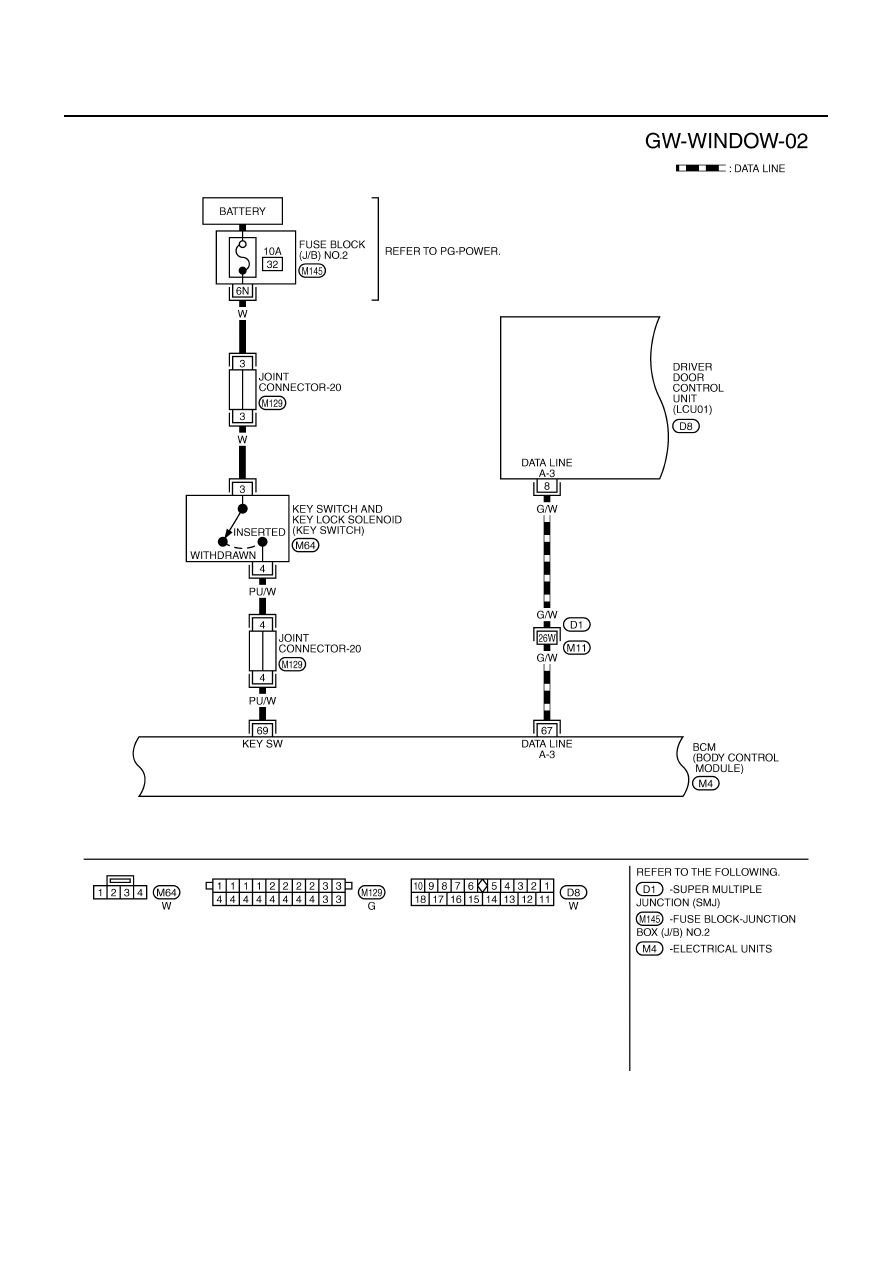

GW-22

POWER WINDOW SYSTEM

TIWA0215E
