INJECTOR CIRCUIT

EC-669

C

D

E

F

G

H

I

J

K

L

M

A

EC

Component Inspection

ABS002TU

INJECTOR

1.

Disconnect injector harness connector.

2.

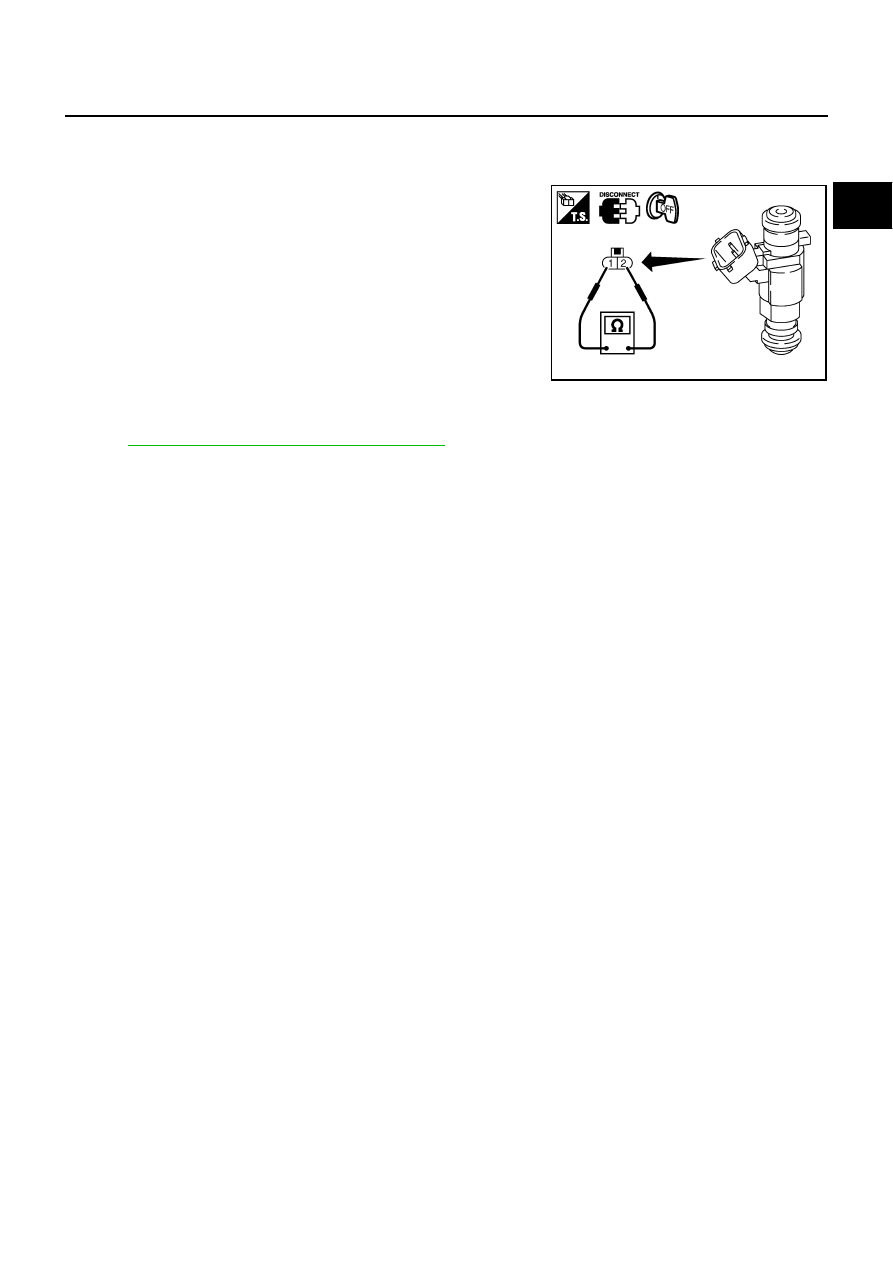

Check resistance between terminals as shown in the figure.

Removal and Installation

ABS002TV

INJECTOR

Refer to

EM-31, "FUEL INJECTOR AND FUEL TUBE"

 .

Resistance: 13.5 - 17.5

 [at 10 - 60

°

C (50 - 140

°

F)]

PBIB1727E

EC-670

START SIGNAL

START SIGNAL

PFP:48750

CONSULT-II Reference Value in Data Monitor Mode

ABS002TW

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

START SIGNAL

Ignition switch: ON

 START

 ON

OFF

 ON

 OFF

START SIGNAL

EC-671

C

D

E

F

G

H

I

J

K

L

M

A

EC

Wiring Diagram

ABS002TX

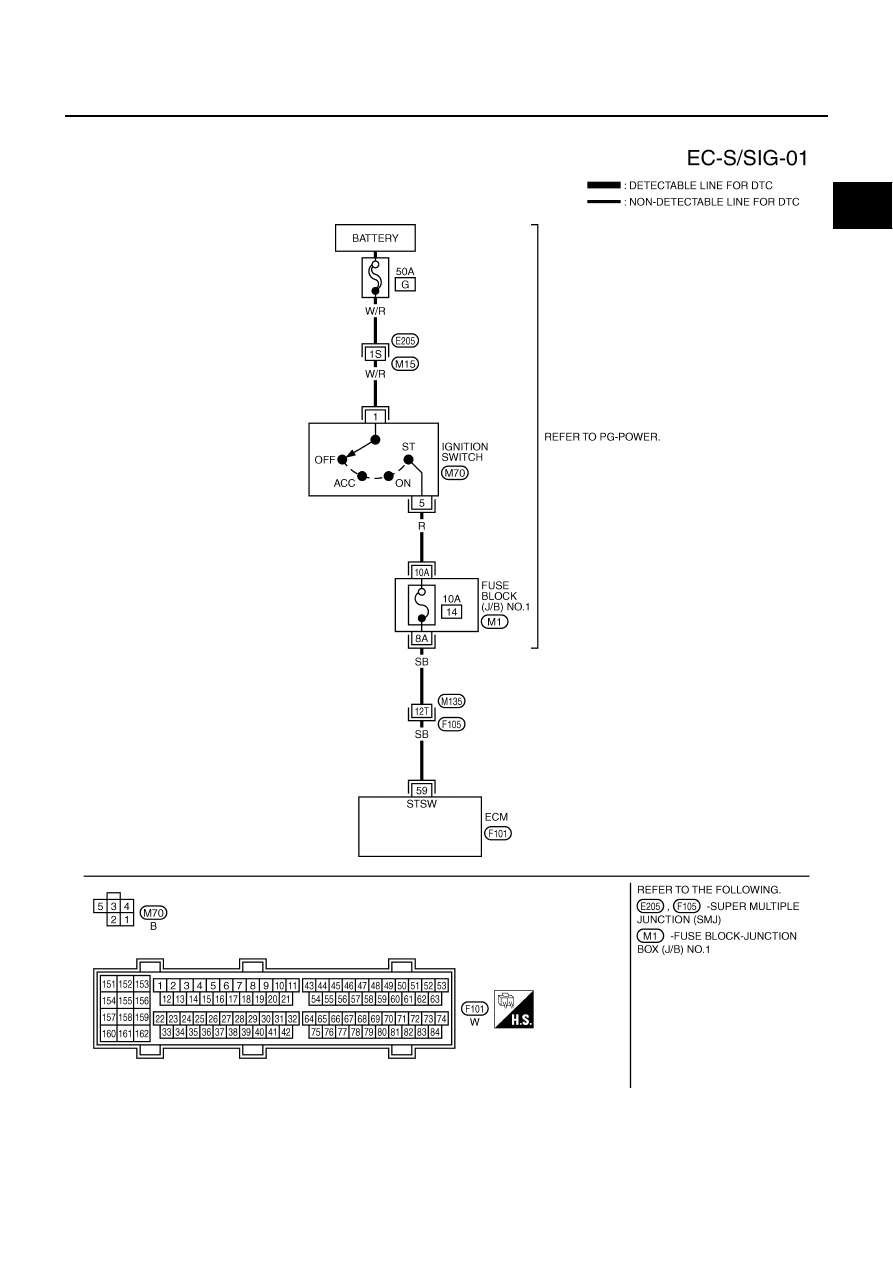

TBWA0313E

EC-672

START SIGNAL

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

ABS002TY

1.

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

>> GO TO 2.

No

>> GO TO 3.

2.

CHECK OVERALL FUNCTION

 With CONSULT-II

1.

Turn ignition switch ON.

2.

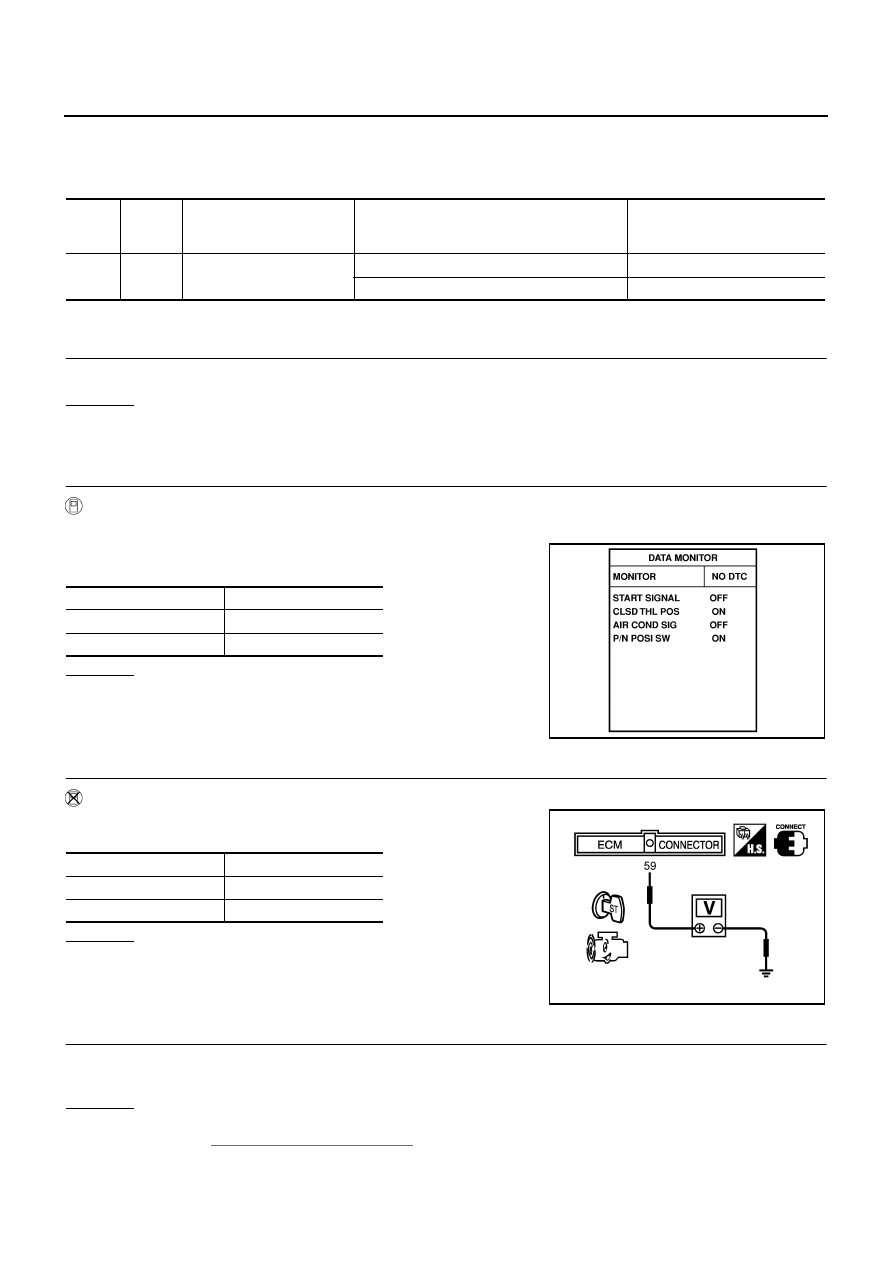

Check “START SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

3.

CHECK OVERALL FUNCTION

 Without CONSULT-II

Check voltage between ECM terminal 59 and ground under the fol-
lowing conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

4.

CHECK STARTING SYSTEM

Turn ignition switch OFF, then turn it to START.
Does starter motor operate?

Yes or No

Yes

>> GO TO 5.

No

>> Refer to

SC-9, "STARTING SYSTEM"

 .

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

59

SB

Start signal

[Ignition switch: ON]

Approximately 0V

[Ignition switch: START]

9 - 12V

Condition

START SIGNAL

Ignition switch: ON

OFF

Ignition switch: START

ON

PBIB0182E

Condition

Voltage

Ignition switch: START

Battery voltage

Other positions

Approximately 0V

PBIB0677E
