DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

EC-169

C

D

E

F

G

H

I

J

K

L

M

A

EC

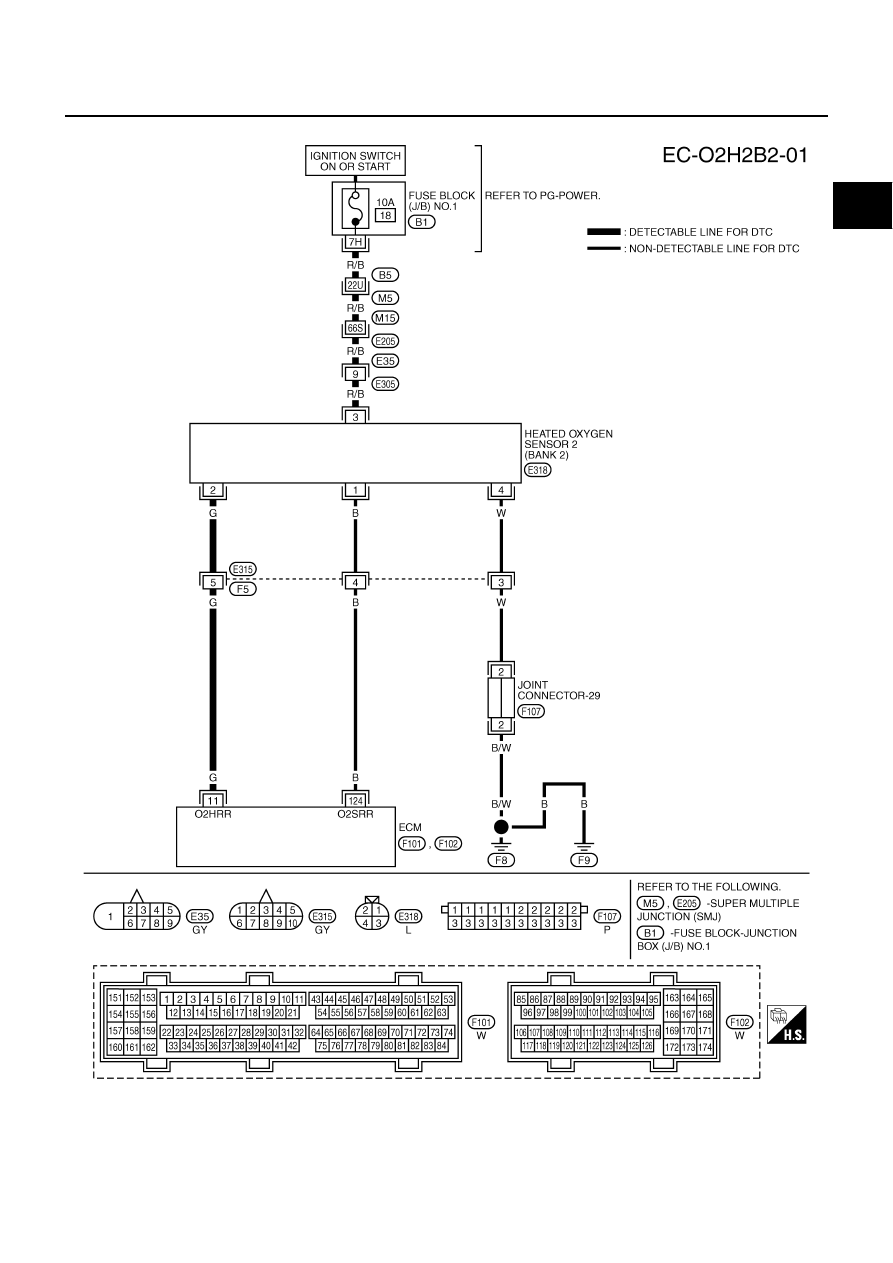

BANK 2

TBWA0270E

EC-170

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

ABS002EX

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

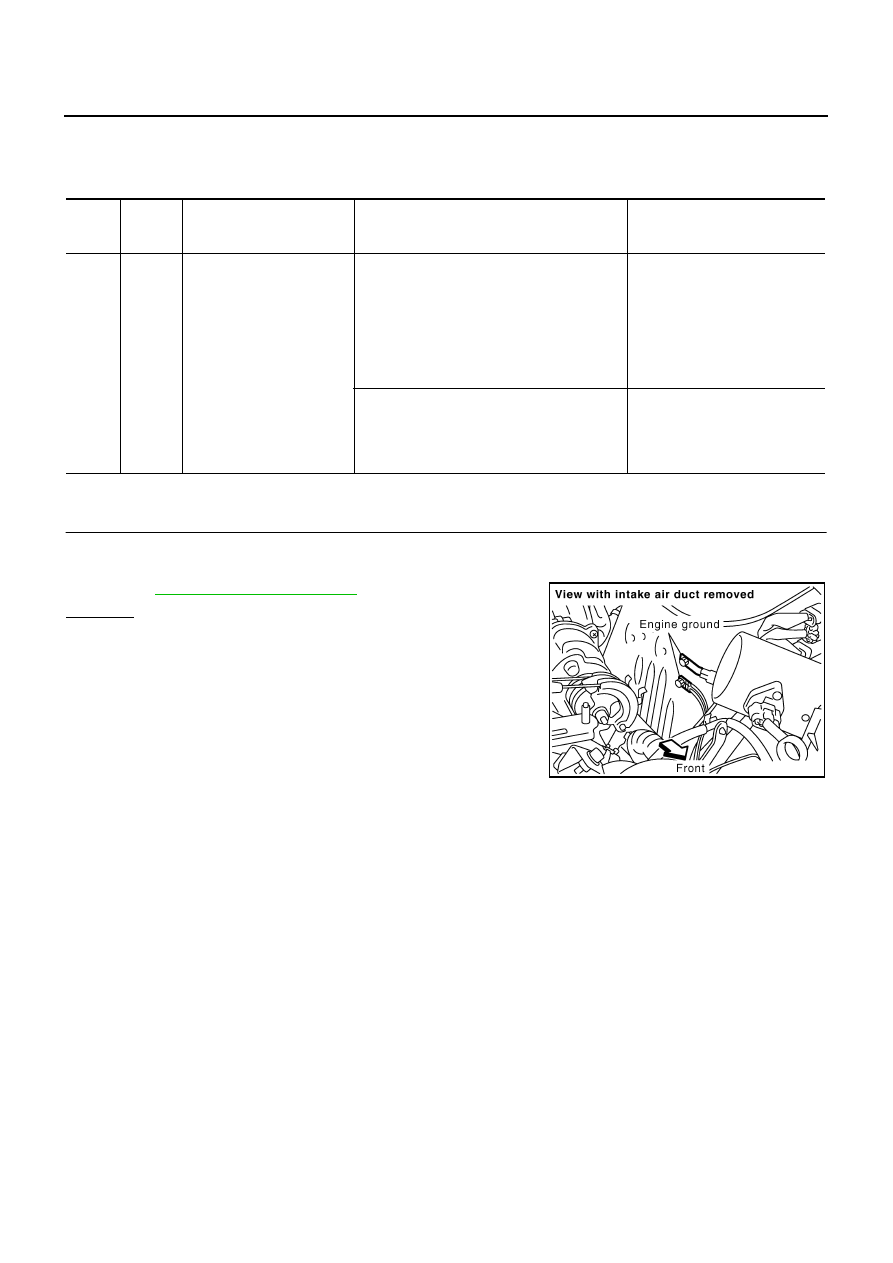

Loosen and retighten two ground screws.
Refer to

EC-141, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

11

G

Heated oxygen sensor 2
heater (bank 2)

[Engine is running]

●

Engine speed is below 3,600 rpm after the
following conditions are met.

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

●

Engine stopped

[Engine is running]

●

Engine speed: Above 3,600 rpm.

BATTERY VOLTAGE
(11 - 14V)

PBIB1118E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

EC-171

C

D

E

F

G

H

I

J

K

L

M

A

EC

2.

CHECK HO2S2 POWER SUPPLY CIRCUIT

1.

Disconnect heated oxygen sensor 2 harness connector.

2.

Turn ignition switch ON.

3.

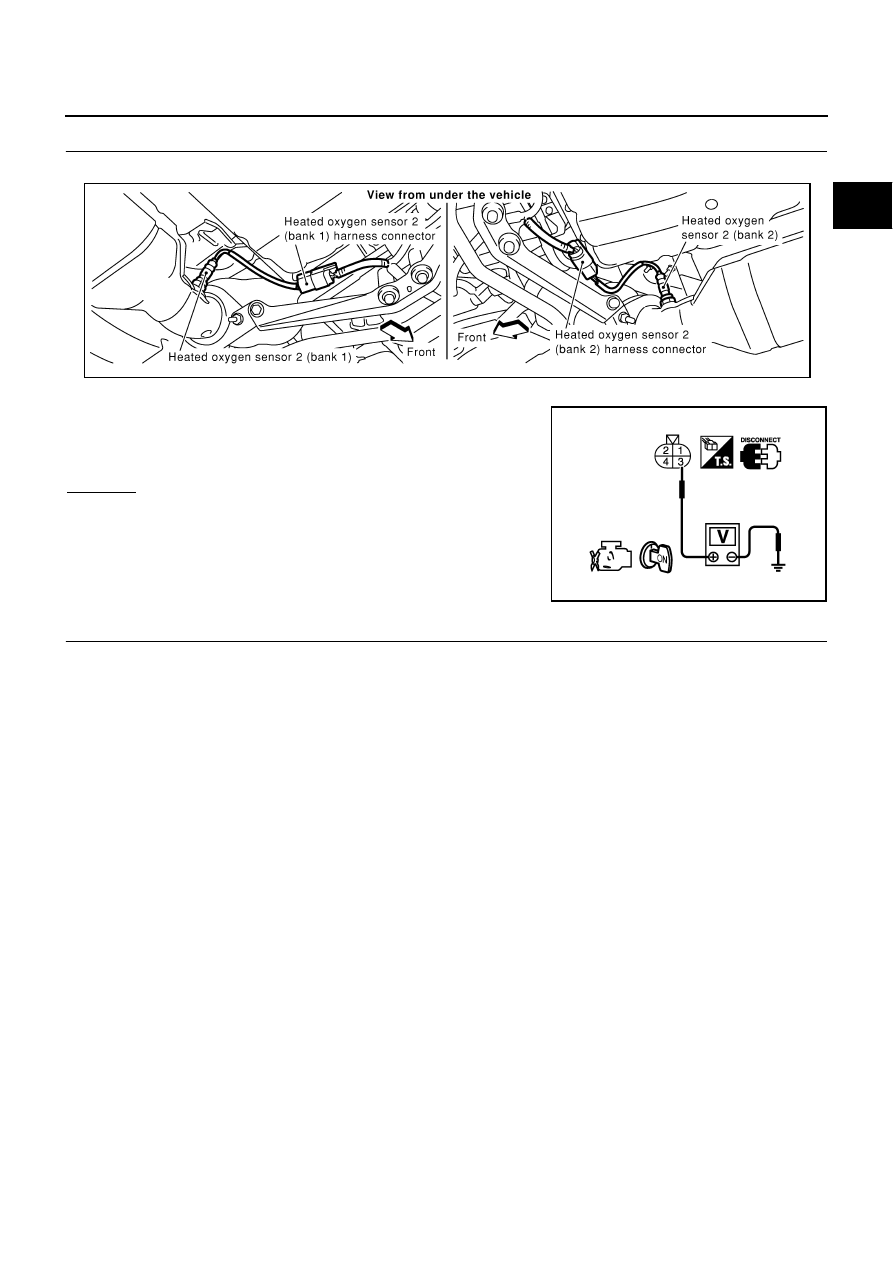

Check voltage between HO2S2 terminal 3 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors B5, M5

●

Harness connectors M15, E205

●

Harness connectors E35, E305

●

Fuse block (J/B) No.1 connector B1

●

10A fuse

●

Harness for open or short between heated oxygen sensor 2 and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

Voltage: Battery voltage

PBIB0018E

PBIB0112E

EC-172

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

4.

CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal and HO2S2 terminal as follows.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E315, F5

●

Harness for open or short between heated oxygen sensor 2 and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK HEATED OXYGEN SENSOR 2 HEATER

Refer to

EC-173, "Component Inspection"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Replace malfunctioning heated oxygen sensor 2.

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

DTC

Terminals

Bank

ECM

Sensor

P0037, P0038

10

2

1

P0057, P0058

11

2

2

Continuity should exist.
