DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

EC-165

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

PFP:226A0

Description

ABS002ES

SYSTEM DESCRIPTION

The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.

OPERATION

CONSULT-II Reference Value in Data Monitor Mode

ABS002ET

Specification data are reference values.

On Board Diagnosis Logic

ABS002EU

Sensor

Input Signal to ECM

ECM function

Actuator

Camshaft position sensor (PHASE)

Engine speed

Heated oxygen sensor 2
heater control

Heated oxygen sensor 2 heater

Crankshaft position sensor (POS)

Engine coolant temperature sensor

Engine coolant temperature

Mass air flow sensor

Amount of intake air

Engine speed rpm

Heated oxygen sensor 2 heater

Above 3,600

OFF

Below 3,600 rpm after the following conditions are met.

●

Engine: After warming up

●

Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load

ON

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S2 HTR (B1)
HO2S2 HTR (B2)

●

Engine speed: Above 3,600 rpm

OFF

●

Engine speed is below 3,600 rpm after the following conditions are met.

–

Engine: After warming up

–

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load

ON

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0037
0037
(Bank 1)

Heated oxygen sensor 2
heater control circuit low

The current amperage in the heated oxygen sensor
2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

●

Harness or connectors
(The heated oxygen sensor 2 heater
circuit is open or shorted.)

●

Heater oxygen sensor 2 heater

P0057
0057
(Bank 2)

P0038
0038
(Bank 1)

Heated oxygen sensor 2
heater control circuit high

The current amperage in the heated oxygen sensor
2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

●

Harness or connectors
(The heated oxygen sensor 2 heater
circuit is shorted.)

●

Heater oxygen sensor 2 heater

P0058
0058
(Bank 2)

EC-166

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

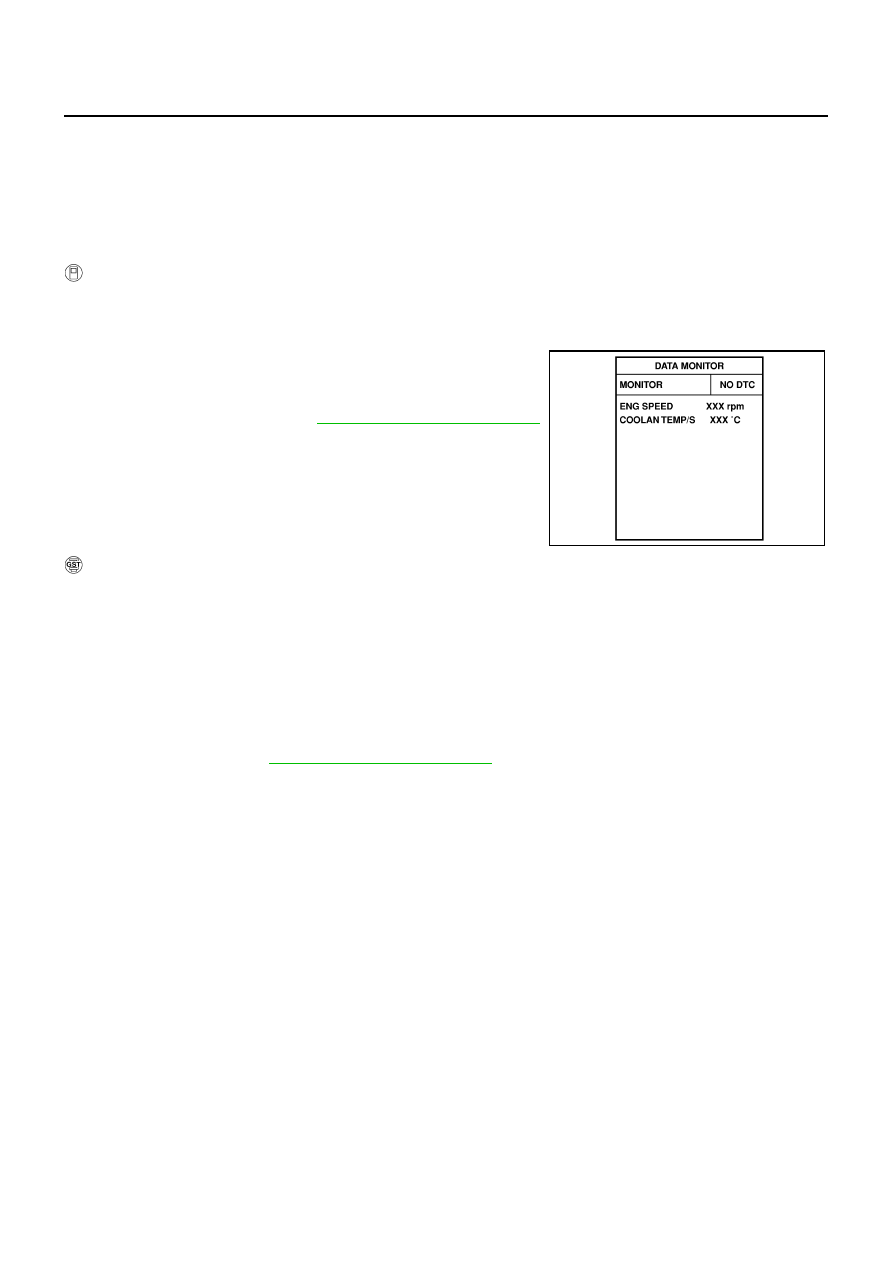

DTC Confirmation Procedure

ABS002EV

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.

 WITH CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.

2.

Start the engine and warm it up to the normal operating temperature.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Start engine and keep the engine speed between 3,500 and
4,000 rpm for at least 1 minute.

5.

Let engine idle for 1 minute.

6.

If 1st trip DTC is detected, go to

EC-170, "Diagnostic Procedure"

.

 WITH GST

1.

Start the engine and warm it up to the normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute.

4.

Let engine idle for 1 minute.

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute.

7.

Let engine idle for 1 minute.

8.

Select “MODE 3” with GST.

9.

If DTC is detected, go to

EC-170, "Diagnostic Procedure"

 .

●

When using GST, DTC Confirmation Procedure should be performed twice as much as when using
CONSULT-II because GST cannot display MODE 7 (1st trip DTC) concerning this diagnosis. There-
fore, using CONSULT-II is recommended.

SEF174Y

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

EC-167

C

D

E

F

G

H

I

J

K

L

M

A

EC

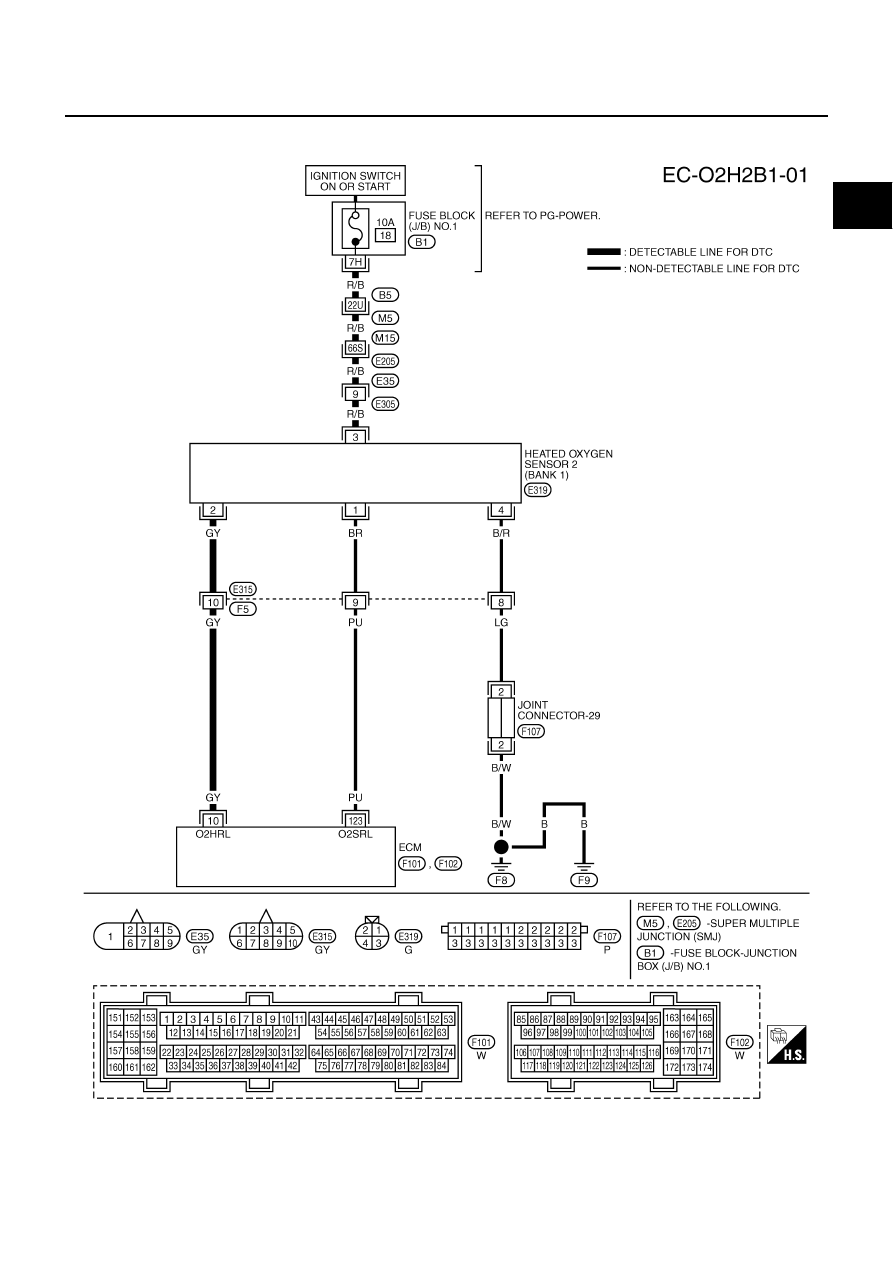

Wiring Diagram

ABS002EW

BANK 1

TBWA0269E

EC-168

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

10

GY

Heated oxygen sensor 2
heater (bank 1)

[Engine is running]

●

Engine speed is below 3,600 rpm after the
following conditions are met.

–

Engine: After warming up

–

Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load

0 - 1.0V

[Ignition switch: ON]

●

Engine stopped

[Engine is running]

●

Engine speed: Above 3,600 rpm.

BATTERY VOLTAGE
(11 - 14V)
