TROUBLE DIAGNOSIS

EC-109

C

D

E

F

G

H

I

J

K

L

M

A

EC

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION

Item

DIAGNOSTIC TEST MODE

WORK

SUP-

PORT

SELF-DIAGNOSTIC

RESULTS

DATA

MONI-

TOR

DATA

MONI-

TOR

(SPEC)

ACTIVE

TEST

DTC & SRT

CONFIRMATION

DTC*1

FREEZE

FRAME
DATA*2

SRT

STATUS

DTC

WORK

SUP-

PORT

ENGINE CO

NTROL COMPONENT

P

ARTS

INPUT

Crankshaft position sensor (POS)

×

×

×

×

Camshaft position sensor (PHASE)

×

×

×

×

Mass air flow sensor

×

×

×

Engine coolant temperature sensor

×

×

×

×

×

Heated oxygen sensor 1

×

×

×

×

×

Heated oxygen sensor 2

×

×

×

×

×

Vehicle speed sensor

×

×

×

×

Accelerator pedal position sensor

×

×

×

Throttle position sensor

×

×

×

Fuel tank temperature sensor

×

×

×

×

EVAP control system pressure
sensor

×

×

×

Intake air temperature sensor

×

×

×

×

Knock sensor

×

Radiator coolant temperature sen-
sor

×

×

×

Refrigerant pressure sensor

×

×

Ignition switch (start signal)

×

×

Closed throttle position switch
(accelerator pedal position sensor
signal)

×

×

Air conditioner switch

×

×

Park/neutral position (PNP) switch

×

×

×

Stop lamp switch

×

×

×

Power steering pressure sensor

×

×

×

Battery voltage

×

×

Load signal

×

×

Intake valve timing control position
sensor

×

×

×

Fuel level sensor

×

×

×

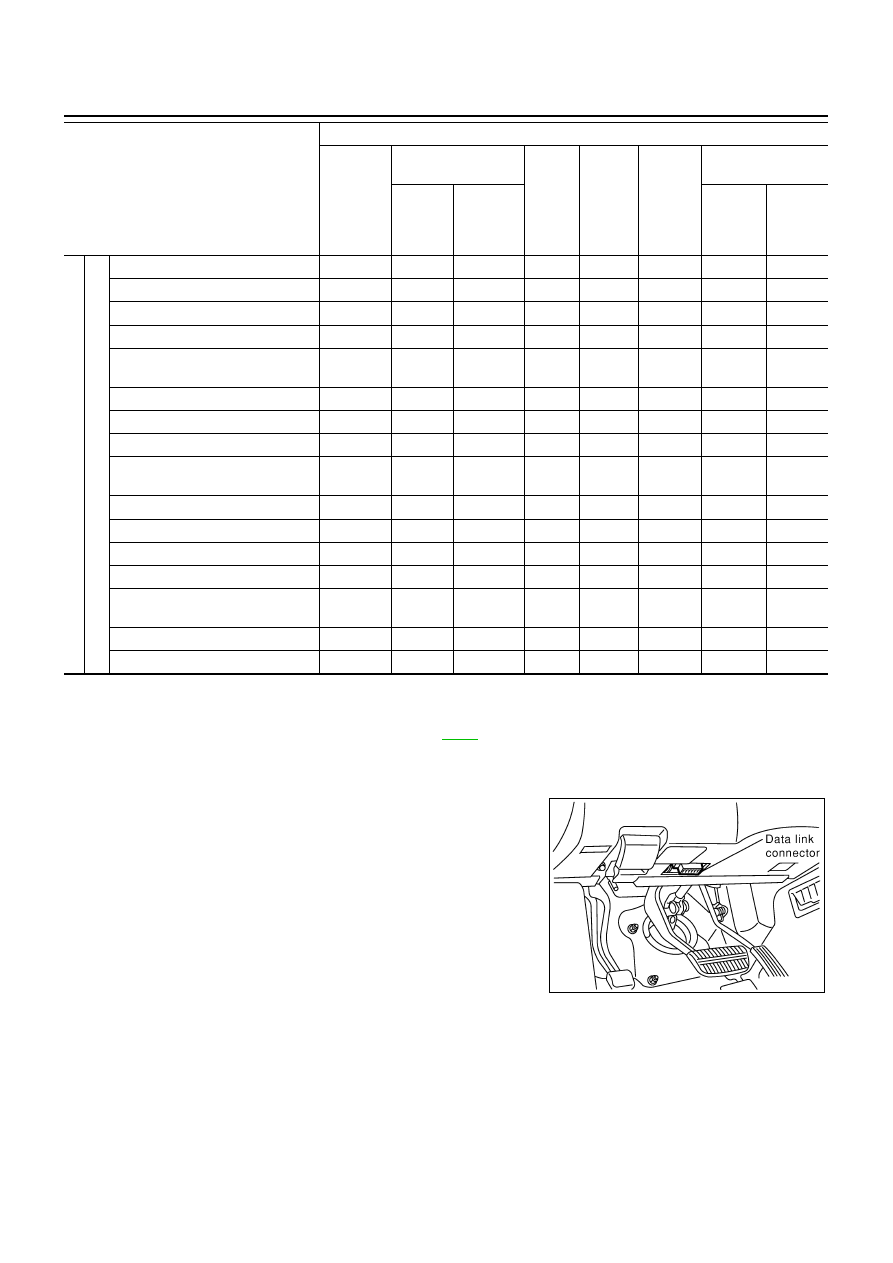

EC-110

TROUBLE DIAGNOSIS

X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to

EC-54

 .

INSPECTION PROCEDURE

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector, which is located under LH dash panel near the
fuse box cover.

3.

Turn ignition switch ON.

ENGINE CONTROL

COM

P

O

N

ENT

 P

ARTS

OU

T

P

U

T

Fuel injector

×

×

×

Power transistor (Ignition timing)

×

×

×

Throttle control motor relay

×

×

×

Throttle control motor

×

EVAP canister purge volume con-
trol solenoid valve

×

×

×

×

×

FPCM

×

×

×

×

Air conditioner relay

×

×

Fuel pump relay

×

×

×

×

Cooling fan speed control solenoid
valve

×

×

×

×

Heated oxygen sensor 1 heater

×

×

×

×

Heated oxygen sensor 2 heater

×

×

×

×

EVAP canister vent control valve

×

×

×

×

×

Vacuum cut valve bypass valve

×

×

×

×

×

×

Intake valve timing control solenoid
valve

×

×

×

×

VIAS control solenoid valve

×

×

×

Calculated load value

×

×

×

Item

DIAGNOSTIC TEST MODE

WORK

SUP-

PORT

SELF-DIAGNOSTIC

RESULTS

DATA

MONI-

TOR

DATA

MONI-

TOR

(SPEC)

ACTIVE

TEST

DTC & SRT

CONFIRMATION

DTC*1

FREEZE

FRAME
DATA*2

SRT

STATUS

DTC

WORK

SUP-

PORT

PBIB0196E

TROUBLE DIAGNOSIS

EC-111

C

D

E

F

G

H

I

J

K

L

M

A

EC

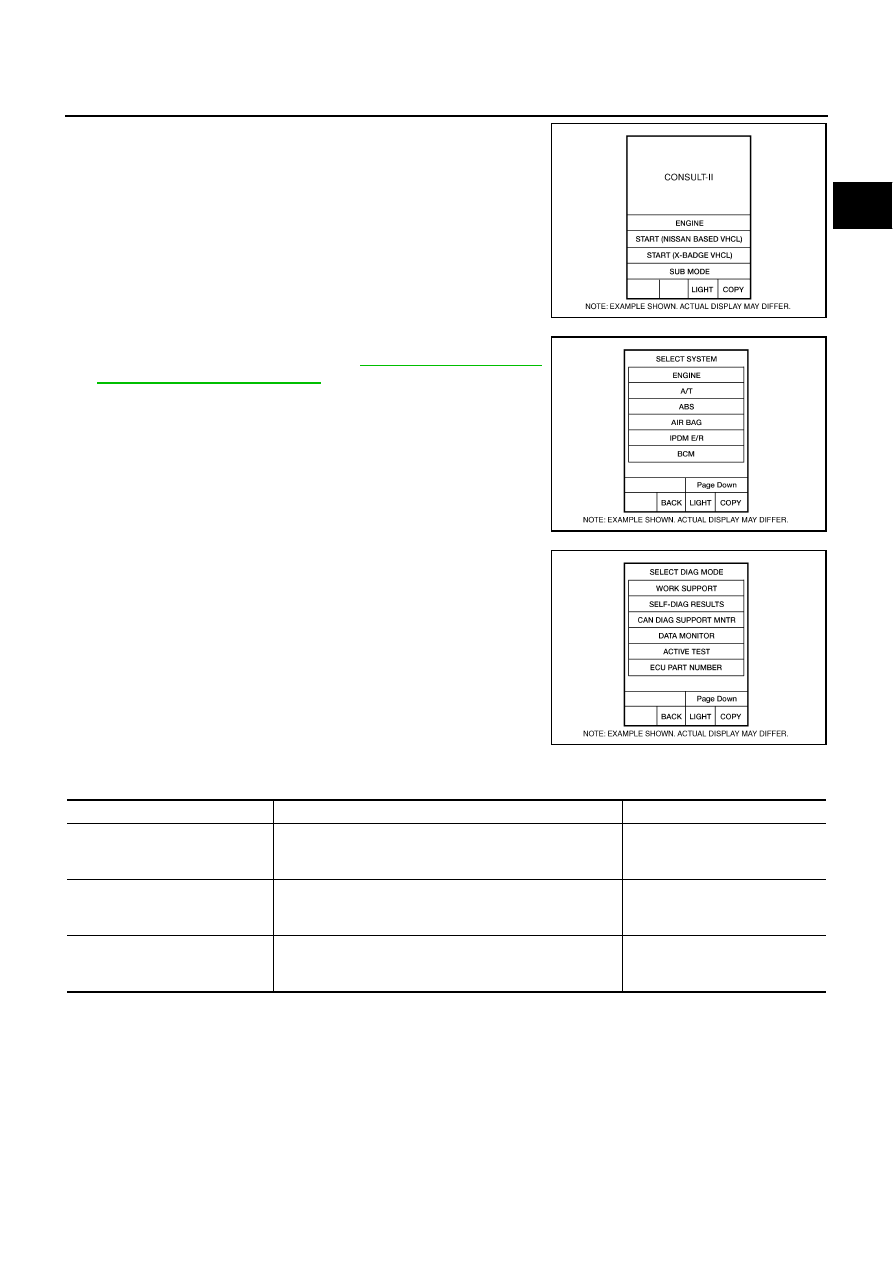

4.

Touch “START(NISSAN BASED VHCL)”.

5.

Touch “ENGINE”.
If “ENGINE” is not indicated, go to

GI-38, "CONSULT-II Data

Link Connector (DLC) Circuit"

 .

6.

Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Man-
ual.

WORK SUPPORT MODE
Work Item

BCIA0029E

BCIA0030E

BCIA0031E

WORK ITEM

CONDITION

USAGE

FUEL PRESSURE RELEASE

●

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.

When releasing fuel pressure
from fuel line

IDLE AIR VOL LEARN

●

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.

When learning the idle air volume

SELF-LEARNING CONT

●

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.

When clearing the coefficient of
self-learning control value

EC-112

TROUBLE DIAGNOSIS

*: This function is not necessary in the usual service procedure.

SELF-DIAG RESULTS MODE
Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to

EC-9, "INDEX FOR DTC"

 .)

Freeze Frame Data and 1st Trip Freeze Frame Data

EVAP SYSTEM CLOSE

OPEN THE VACUUM CUT VALVE BYPASS VALVE AND
CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.

●

IGN SW ON

●

ENGINE NOT RUNNING

●

AMBIENT TEMPERATURE IS ABOVE 0

°

C (32

°

F).

●

NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS-
TEM

●

TANK FUEL TEMP. IS MORE THAN 0

°

C (32

°

F).

●

WITHIN 10 MINUTES AFTER STARTING “EVAP SYS-
TEM CLOSE”

●

WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”
UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
II WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.

NOTE:
WHEN STARTING ENGINE, CONSULT-II MAY DISPLAY
“BATTERY VOLTAGE IS LOW. CHARGE BATTERY”,
EVEN IN USING CHARGED BATTERY.

When detecting EVAP vapor leak
point of EVAP system

TARGET IDLE RPM ADJ*

●

IDLE CONDITION

When setting target idle speed

TARGET IGNITION TIMING ADJ*

●

IDLE CONDITION

When adjusting target ignition tim-
ing

WORK ITEM

CONDITION

USAGE

Freeze frame data

item*

Description

DIAG TROUBLE
CODE
[PXXXX]

●

The engine control component part/control system has a trouble code, it is displayed as “PXXXX”. (Refer
to

EC-9, "INDEX FOR DTC"

 .)

FUEL SYS-B1

●

“Fuel injection system status” at the moment a malfunction is detected is displayed.

●

One mode in the following is displayed.
“Mode 2”: Open loop due to detected system malfunction
“Mode 3”: Open loop due to driving conditions (power enrichment, deceleration enleanment)
“Mode 4”: Closed loop - using oxygen sensor(s) as feedback for fuel control
“Mode 5”: Open loop - has not yet satisfied condition to go to closed loop

FUEL SYS-B2

CAL/LD VALUE [%]

●

The calculated load value at the moment a malfunction is detected is displayed.

COOLANT TEMP [

°

C]

or [

°

F]

●

The engine coolant temperature at the moment a malfunction is detected is displayed.

S-FUEL TRM-B1 [%]

●

“Short-term fuel trim” at the moment a malfunction is detected is displayed.

●

The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel
schedule.

S-FUEL TRM-B2 [%]

L-FUEL TRM-B1 [%]

●

“Long-term fuel trim” at the moment a malfunction is detected is displayed.

●

The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule
than short-term fuel trim.

L-FUEL TRM-B2 [%]

ENGINE SPEED
[rpm]

●

The engine speed at the moment a malfunction is detected is displayed.

VEHICL SPEED [km/
h] or [mph]

●

The vehicle speed at the moment a malfunction is detected is displayed.
