Infiniti M45 (Y34). Manual - part 337





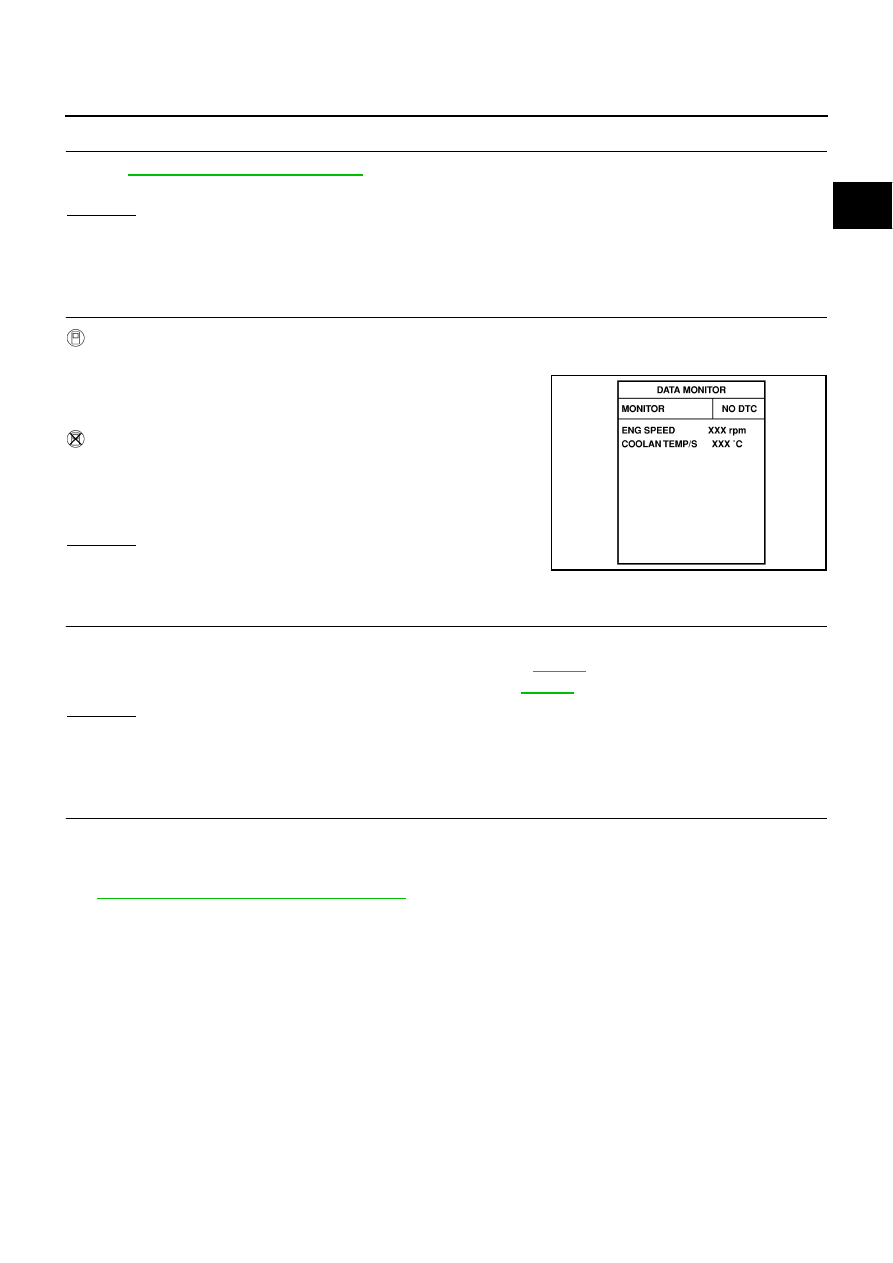

BASIC SERVICE PROCEDURE

EC-37

C

D

E

F

G

H

I

J

K

L

M

A

EC

6.

PERFORM IDLE AIR VOLUME LEARNING

Perform

EC-44, "Idle Air Volume Learning"

 .

Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

>> GO TO 7.

No

>> 1. Follow the instruction of Idle Air Volume Learning.

2. GO TO 4.

7.

CHECK TARGET IDLE SPEED AGAIN

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Read idle speed in “DATA MONITOR” mode with CONSULT-II.

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the Following.

Check camshaft position sensor (PHASE) and circuit. Refer to

EC-317

 .

Check crankshaft position sensor (POS) and circuit. Refer to

EC-309

 .

OK or NG

OK

>> GO TO 9.

NG

>> 1. Repair or replace.

2. GO TO 4.

9.

CHECK ECM FUNCTION

1.

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)

2.

Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to

BL-174, "ECM Re-Communicating Function"

 .

>> GO TO 4.

650

±

 50 rpm (in P or N position)

650

±

 50 rpm (in P or N position)

SEF174Y

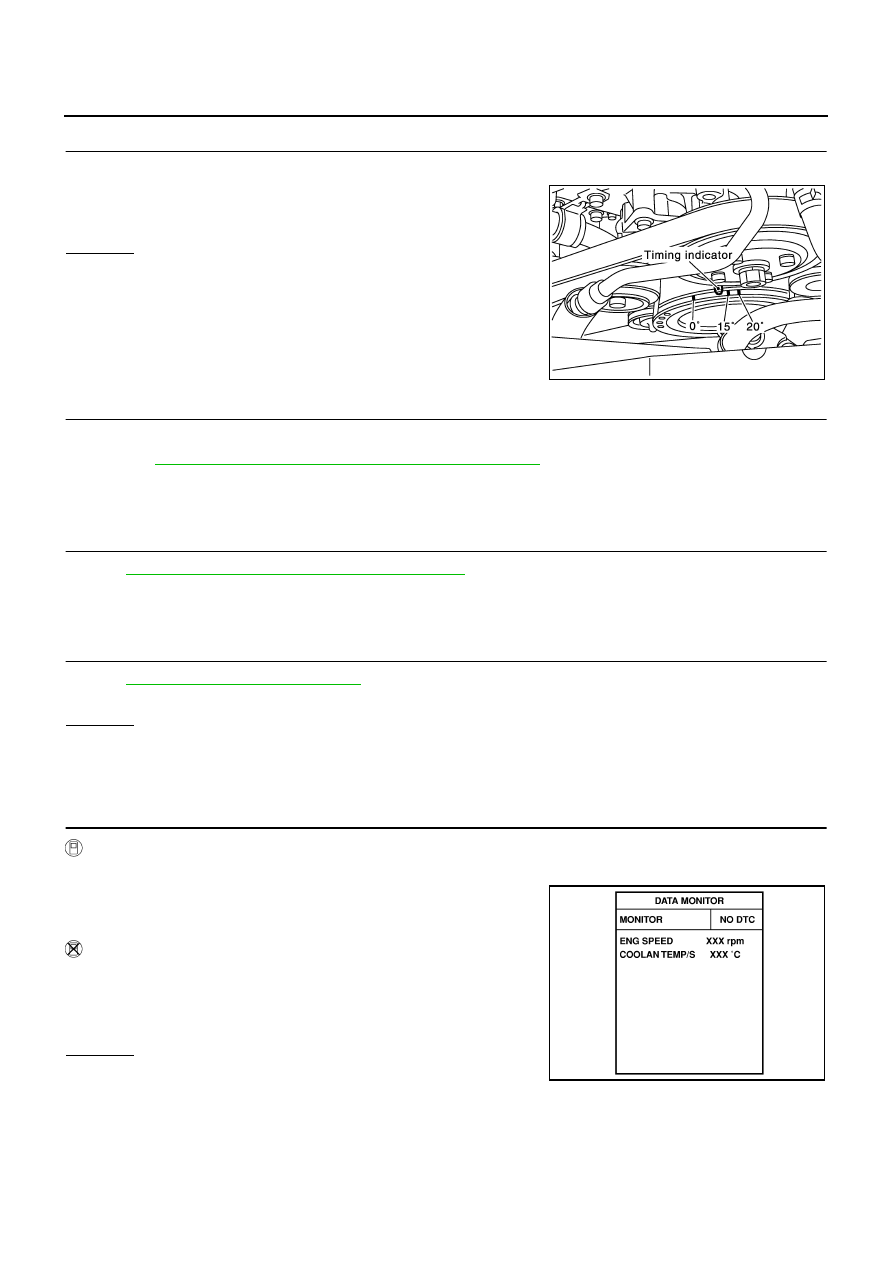

EC-38

BASIC SERVICE PROCEDURE

10.

CHECK IGNITION TIMING

1.

Run engine at idle.

2.

Check ignition timing with a timing light.

OK or NG

OK (With CONSULT-II)>>GO TO 19.
OK (Without CONSULT-II)>>GO TO 20.
NG

>> GO TO 11.

11.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1.

Stop engine.

2.

Perform

EC-44, "Accelerator Pedal Released Position Learning"

 .

>> GO TO 12.

12.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-44, "Throttle Valve Closed Position Learning"

 .

>> GO TO 13.

13.

PERFORM IDLE AIR VOLUME LEARNING

Perform

EC-44, "Idle Air Volume Learning"

 .

Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

>> GO TO 14.

No

>> 1. Follow the instruction of Idle Air Volume Learning.

2. GO TO 4.

14.

CHECK TARGET IDLE SPEED AGAIN

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Read idle speed in “DATA MONITOR” mode with CONSULT-II.

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Check idle speed.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 17.

12

±

 5

°

 BTDC (in P or N position)

PBIB1242E

650

±

 50 rpm (in P or N position)

650

±

 50 rpm (in P or N position)

SEF174Y

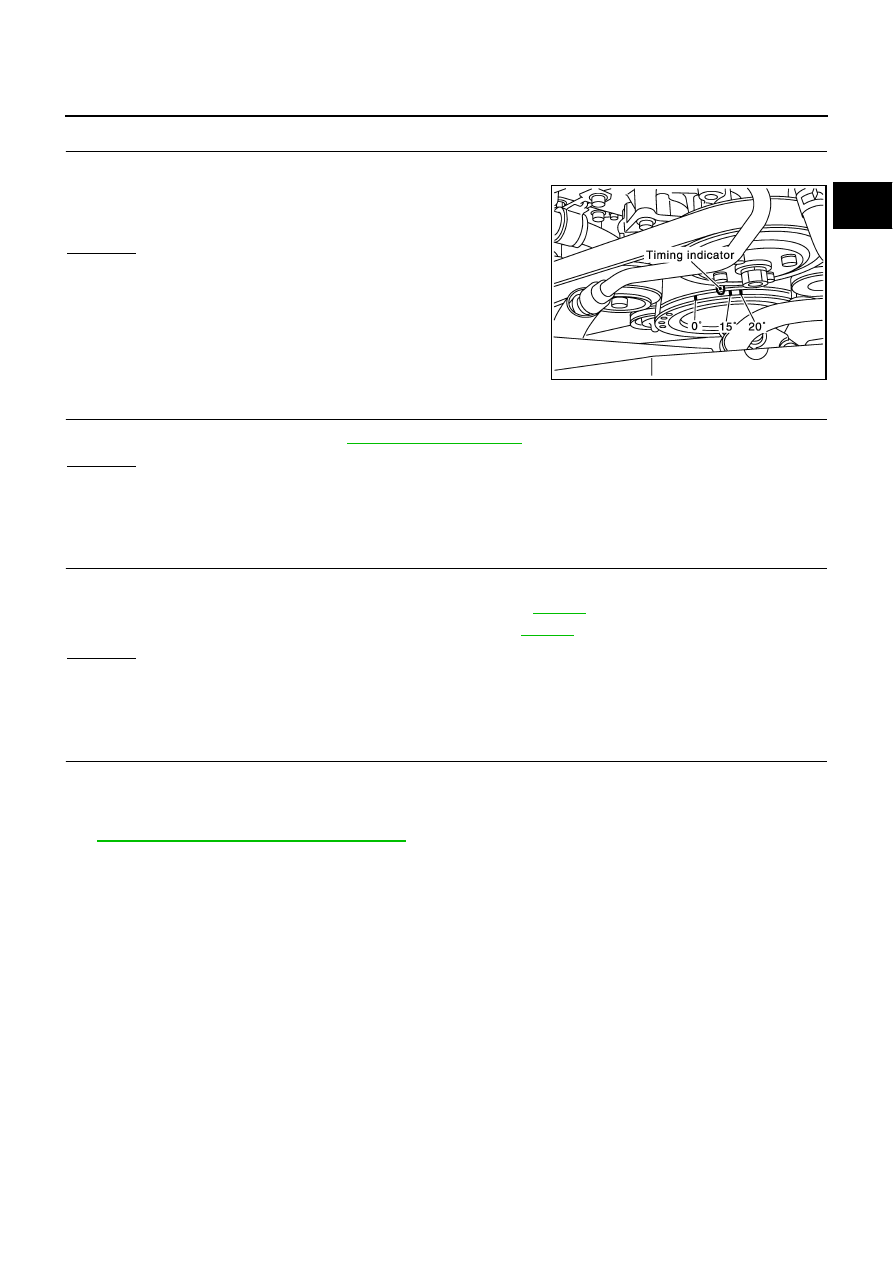

BASIC SERVICE PROCEDURE

EC-39

C

D

E

F

G

H

I

J

K

L

M

A

EC

15.

CHECK IGNITION TIMING AGAIN

1.

Run engine at idle.

2.

Check ignition timing with a timing light.

OK or NG

OK (With CONSULT-II)>>GO TO 19.
OK (Without CONSULT-II)>>GO TO 20.
NG

>> GO TO 16.

16.

CHECK TIMING CHAIN INSTALLATION

Check timing chain installation. Refer to

EM-38, "TIMING CHAIN"

 .

OK or NG

OK

>> GO TO 17.

NG

>> 1. Repair the timing chain installation.

2. GO TO 4.

17.

DETECT MALFUNCTIONING PART

Check the following.

Check camshaft position sensor (PHASE) and circuit. Refer to

EC-317

 .

Check crankshaft position sensor (POS) and circuit. Refer to

EC-309

 .

OK or NG

OK

>> GO TO 18.

NG

>> 1. Repair or replace.

2. GO TO 4.

18.

CHECK ECM FUNCTION

1.

Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)

2.

Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to

BL-174, "ECM Re-Communicating Function"

 .

>> GO TO 4.

12

±

 5

°

 BTDC (in P or N position)

PBIB1242E

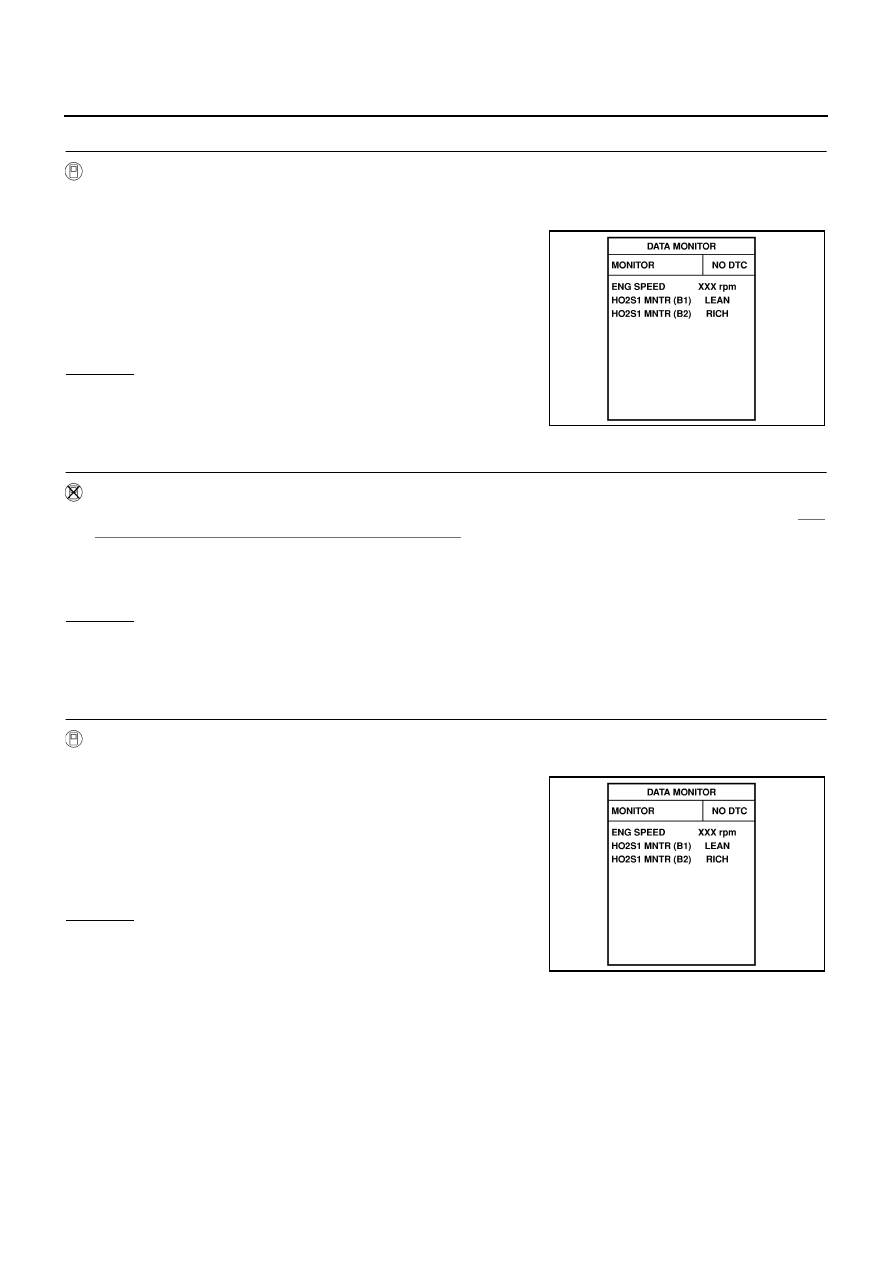

EC-40

BASIC SERVICE PROCEDURE

19.

CHECK HEATED OXYGEN SENSOR 1 (BANK 1) SIGNAL

 With CONSULT-II

1.

Run engine at about 2,000 rpm for about 2 minutes under no load.

2.

See “HO2S1 MNTR (B1)” in “DATA MONITOR” mode.

3.

Running engine at 2,000 rpm under no load (The engine is
warmed up to normal operating temperature.), check that the
monitor fluctuates between LEAN and RICH more than 5 times
during 10 seconds.

OK or NG

OK

>> GO TO 21.

NG (Monitor does not fluctuate.)>>GO TO 23.
NG (Monitor fluctuates less than 5 times.)>>GO TO 31.

20.

CHECK HEATED OXYGEN SENSOR 1 (BANK 1) SIGNAL

 Without CONSULT-II

1.

Stop engine and set ECM to Self Diagnostic Test Mode II (Heated oxygen sensor 1 monitor). Refer to

EC-

65, "HOW TO SWITCH DIAGNOSTIC TEST MODE"

 .

2.

Start engine and run it at about 2,000 rpm for about 2 minutes under no load.

3.

Running engine at 2,000 rpm under no load (The engine is warmed up to normal operating temperature.),
check that the MIL comes on more than 5 times during 10 seconds.

OK or NG

OK

>> GO TO 22.

NG (MIL does not come on)>>GO TO 23.
NG (MIL comes on less than 5 times)>>GO TO 31.

21.

CHECK HEATED OXYGEN SENSOR 1 (BANK 2) SIGNAL

 With CONSULT-II

1.

See “HO2S1 MNTR (B2)” in “DATA MONITOR” mode.

2.

Running engine at 2,000 rpm under no load (The engine is
warmed up to normal operating temperature.), check that the
monitor fluctuates between LEAN and RICH more than 5 times
during 10 seconds.

OK or NG

OK

>> INSPECTION END

NG (Monitor does not fluctuate.)>>GO TO 24.
NG (Monitor fluctuates less than 5 times.)>>GO TO 31.

1 time:

RICH

 LEAN

 RICH

2 times:

RICH

 LEAN

 RICH

 LEAN

 RICH

PBIB0120E

1 time:

RICH

 LEAN

 RICH

2 times:

RICH

 LEAN

 RICH

 LEAN

 RICH

PBIB0120E
