PREPARATION

PFP:00002

Commercial Service Tools

AKS003VD

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

DI-6

COMBINATION METERS

COMBINATION METERS

PFP:24814

System Description

AKS002HM

UNIFIED CONTROL METER

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled totally
by control unit built in combination meter.

Digital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Odo/trip meter, A/T indicator and ICC system display segments can be checked in self-diagnosis mode.

Meter/gauge can be checked in self-diagnosis mode.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

The CAN communication signals (vehicle speed signal) from VDC/TCS/ABS control unit, and the memory
signals from the meter memory circuit are processed by the combination meter, and the mileage is dis-
played.

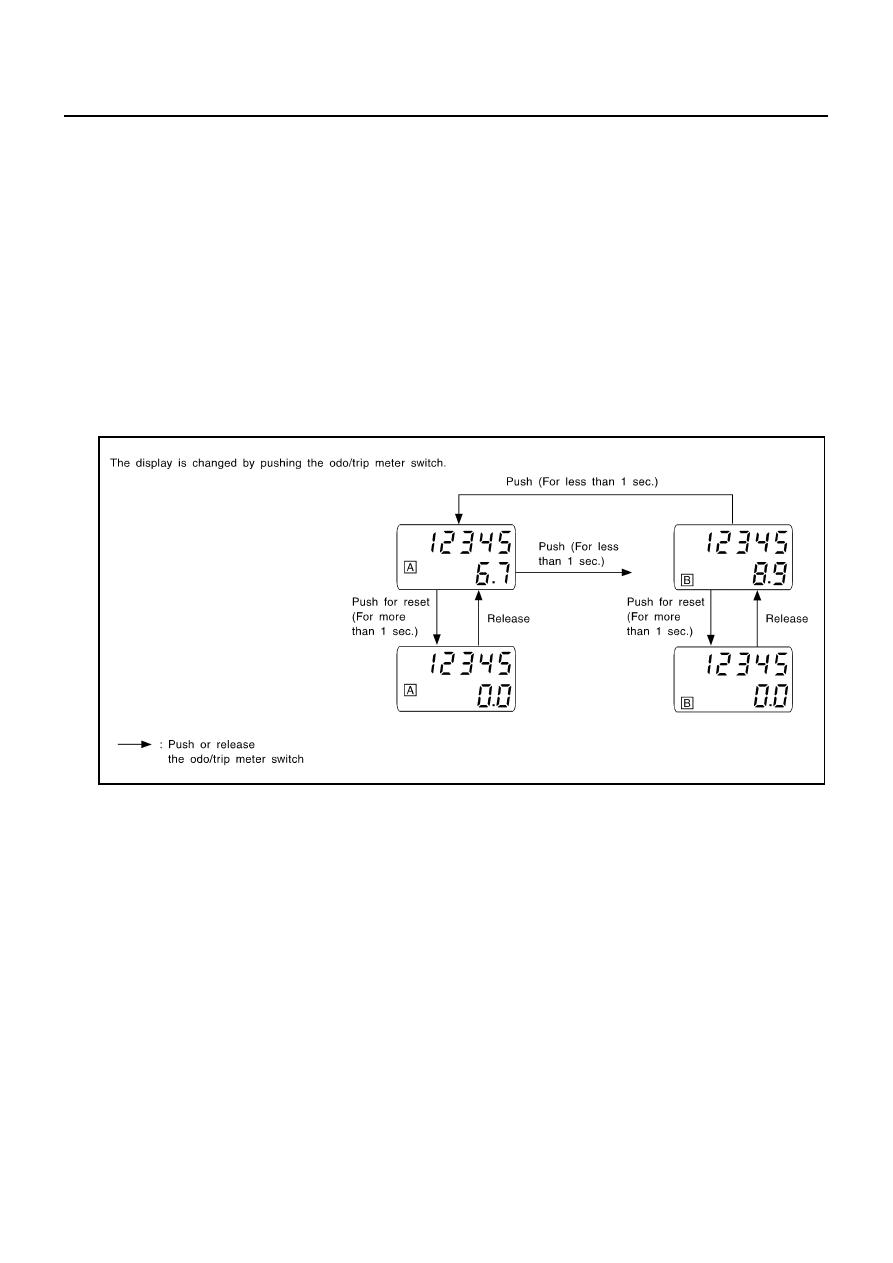

Operating the odo/trip meter switch allows switching the mode in the following order.

The odometer/trip display switching and trip display resetting can be identified by the time from pressing
the odometer/trip switch to releasing it.

When resetting with trip A displayed, only trip A display is reset (same as trip B).

POWER SUPPLY AND GROUND CIRCUIT

Power is supplied at all times

through 10A fuse [No. 6, located in the fuse block (J/B) No. 1]

to combination meter terminal 39.

With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 9, located in the fuse block (J/B) No. 1]

to combination meter terminals 40 and 42.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 21, located in the fuse block (J/B) No. 1]

to combination meter terminal 28.

Ground is supplied

to combination meter terminals 20 and 33

through body grounds M24 and M114.

SEL175W

COMBINATION METERS

DI-7

C

D

E

F

G

H

I

J

L

M

A

B

DI

WATER TEMPERATURE GAUGE

The water temperature gauge indicates the engine coolant temperature.
ECM provides an engine coolant temperature signal to combination meter for water temperature gauge with
CAN communication line.

TACHOMETER

The tachometer indicates engine speed in revolution per minutes (rpm).
ECM provides a engine speed signal to combination meter for tachometer with CAN communication line.

FUEL GAUGE

The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable resister signal supplied

to combination meter terminal 30 for the fuel level sensor

from terminal 5 of the fuel level sensor unit

through terminal 6 of the fuel level sensor unit and

through combination meter terminal 31.

SPEEDOMETER

VDC/TCS/ABS control unit provides a vehicle speed signal to the combination meter for the speedometer with
CAN communication line.

CAN Communication System Description

AKS002HN

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

AKS00AOJ

Refer to

LAN-21, "CAN Communication Unit"

  in “LAN SYSTEM”.

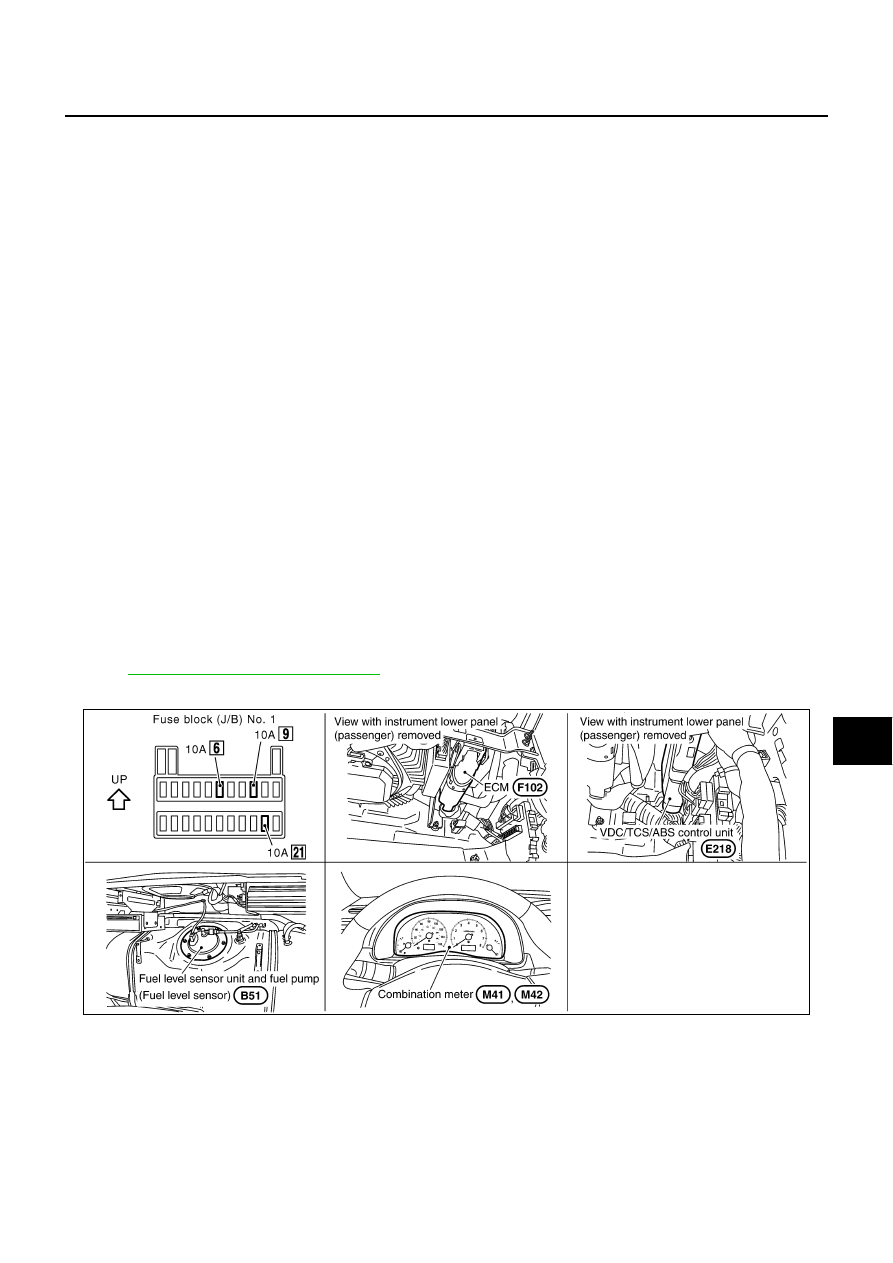

Component Parts and Harness Connector Location

AKS002HO

SKIA9268E

DI-8

COMBINATION METERS

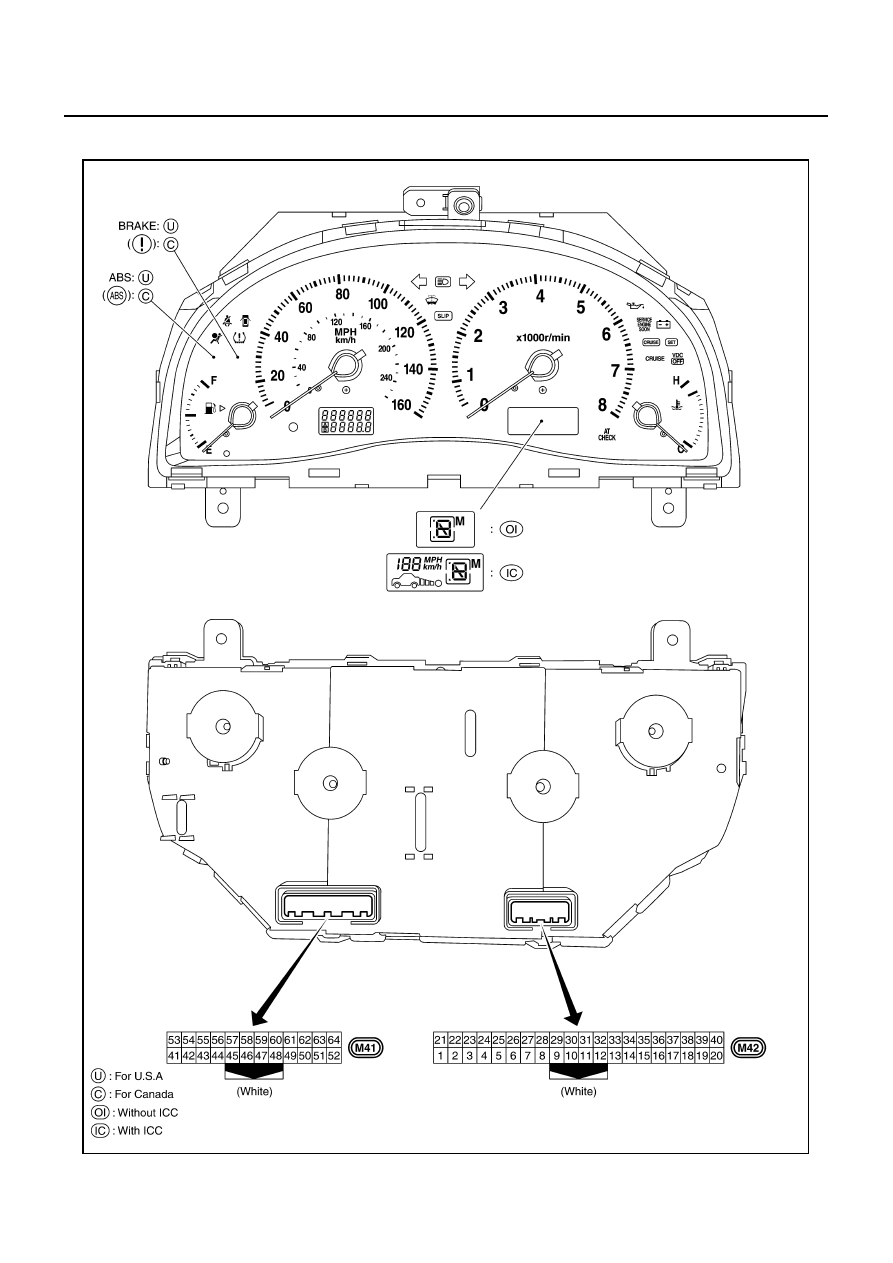

Combination Meter

AKS002HP

CHECK

SKIA9288E
