Infiniti M45 (Y34). Manual - part 242





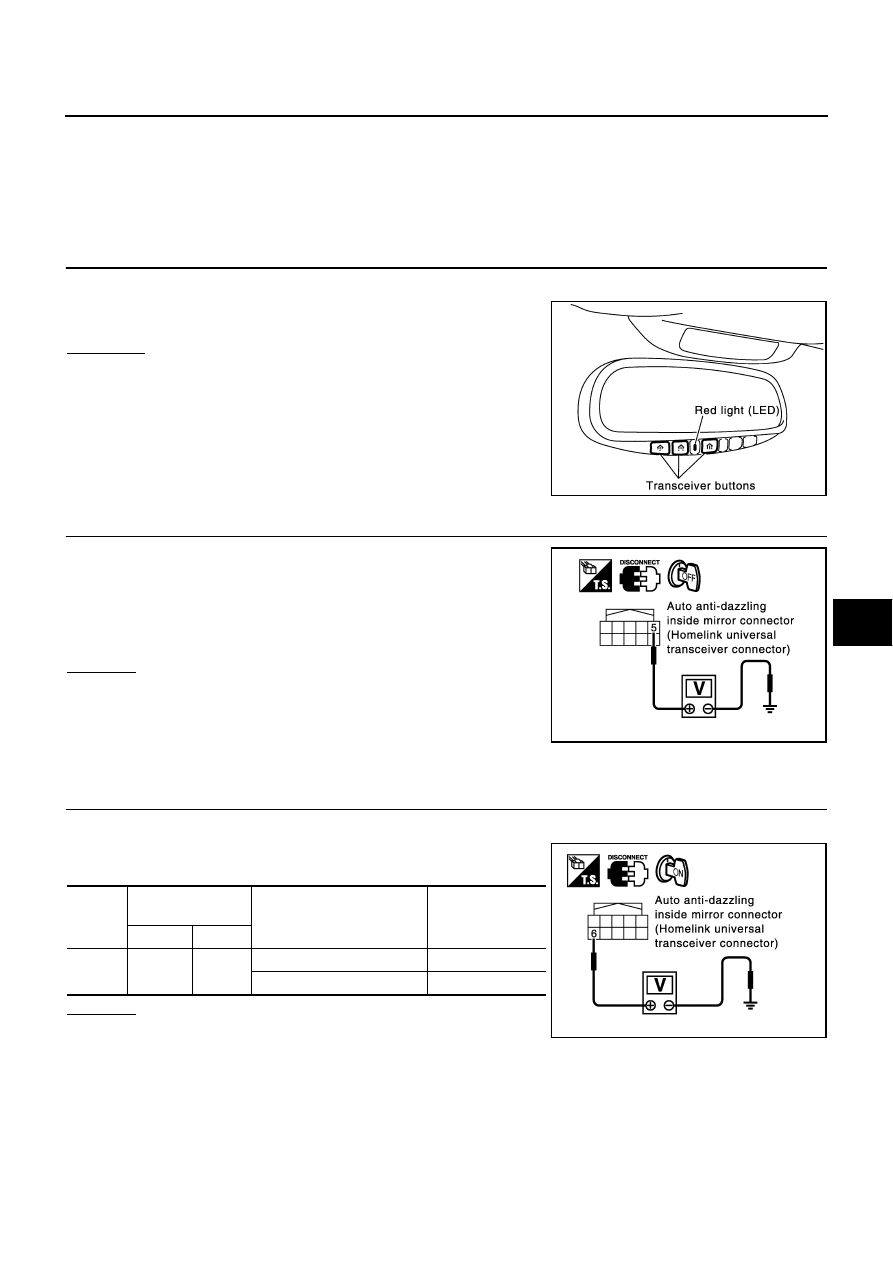

HOMELINK UNIVERSAL TRANSCEIVER

BL-193

C

D

E

F

G

H

J

K

L

M

A

B

BL

Trouble Diagnosis

AIS001FZ

DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter Does Not Activate Receiver

Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is malfunctioning, not
vehicle related.

1.

CHECK ILLUMINATION

Turn ignition switch OFF.

Does red light (LED) of transmitter illuminate when any button is
pressed?

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK BATTERY POWER SUPPLY

1.

Disconnect transmitter connector.

2.

Check voltage between auto anti-dazzling mirror (homelink uni-
versal transceiver) harness connector R9 terminal 5(R/W) and
body ground.

OK or NG

OK

>> GO TO 3.

NG

>>

Check 10A fuse [No.8 located in the fuse block (J/B)
No.1].

Repair or replace harness between fuse block (J/B)
and auto anti-dazzling mirror (home link universal transceiver).

3.

CHECK IGNITION POWER SUPPLY

1.

Turn ignition switch ON.

2.

Check voltage between auto anti-dazzling mirror (homelink uni-
versal transceiver) harness connector and body ground.

OK or NG

OK

>> GO TO 4.

NG

>>

Check 10A fuse [No. 1 located in the fuse block (J/B)
No. 1].

Repair or replace harness between fuse block (J/B) and auto anti-dazzling mirror (homelink uni-
versal transceiver).

PIIA2881E

5 (R/W) – Ground

: Battery voltage

PIIA2879E

Con-

nector

Terminal

(Wire color)

Condition

Voltage (V)

(+)

(–)

R9

6 (B/OR)

Ground

Turn ignition switch ON.

 Battery voltage

Turn ignition switch OFF.

0

PIIA2880E

BL-194

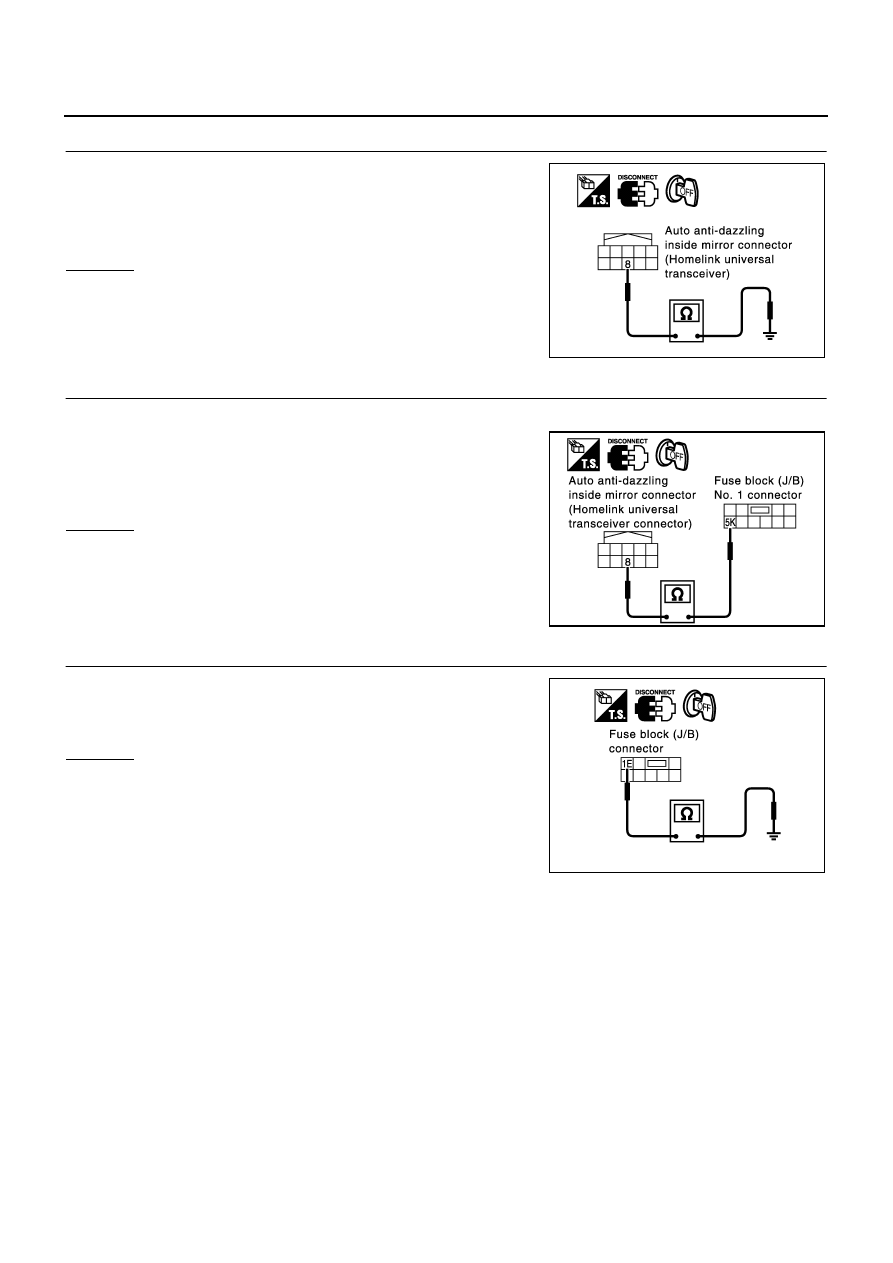

HOMELINK UNIVERSAL TRANSCEIVER

4.

CHECK 1: GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between transceiver harness connector R9 ter-
minal 8(B) and body ground.

OK or NG

OK

>> Replace auto anti-dazzling inside mirror assembly.

NG

>> GO TO 5.

5.

CHECK 2: GROUND CIRCUIT

1.

Disconnect fuse block (J/B) connector.

2.

Check continuity between auto anti-dazzling mirror (homelink
universal transceiver) harness connector R9 terminal 8(B)and
fuse block (J/B) harness connector E201 terminal 5K (B).

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness between auto anti-dazzling

mirror (home link universal transceiver) and fuse block
(J/B).

6.

CHECK 3: GROUND CIRCUIT

Check continuity between transceiver harness connector E201 ter-
minal 1E (B) and body ground.

OK or NG

OK

>> Replace fuse block (J/B).

NG

>> Repair or replace harness between fuse block (J/B) and

Ground.

8 (B) – Ground

: Continuity should exist.

PIIA2876E

8 (B) – 5K (B)

: Continuity should exist.

PIIA2877E

1E (B) – Ground

: Continuity should exist.

PIIA2878E

BODY REPAIR

BL-195

C

D

E

F

G

H

J

K

L

M

A

B

BL

2004 M45

BODY REPAIR

PFP:60100

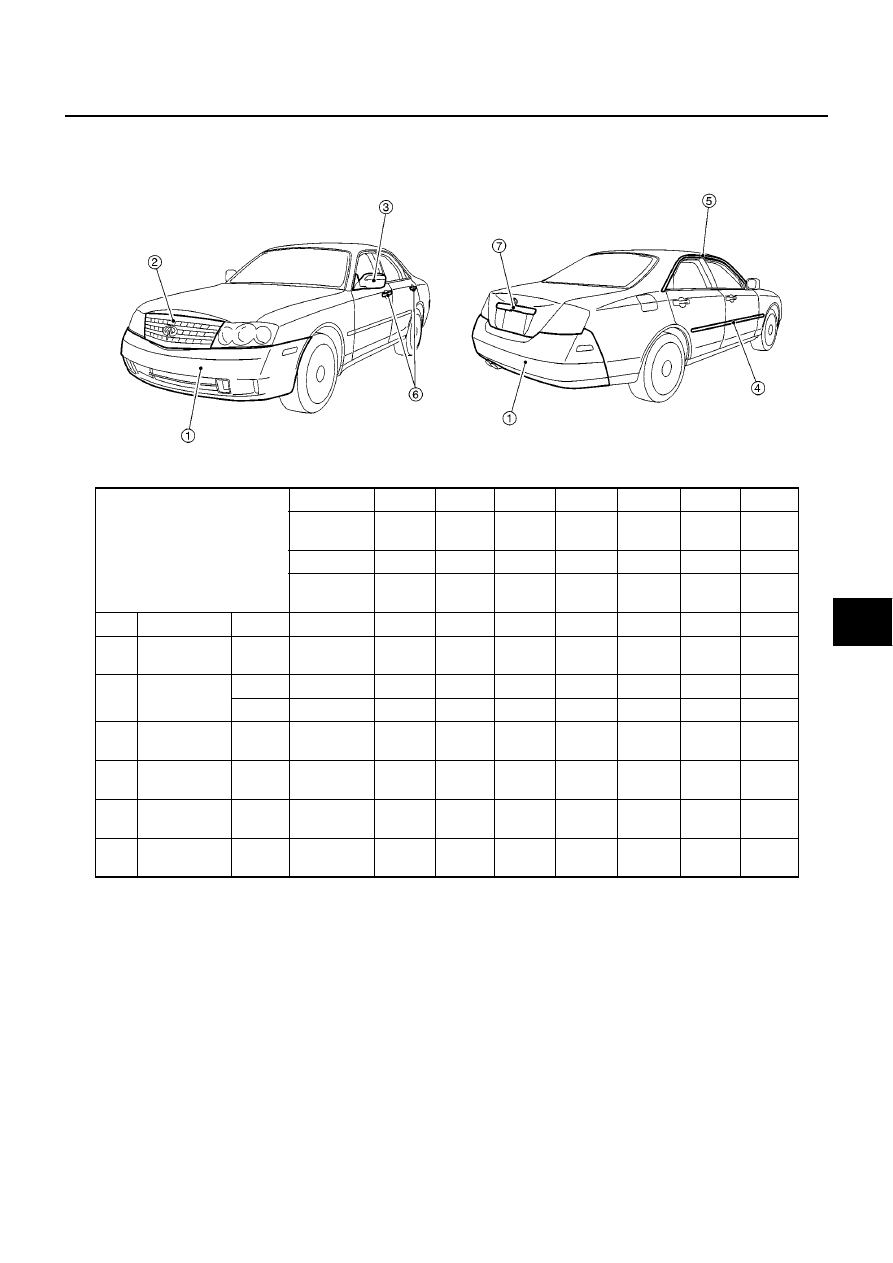

Body Exterior Paint Color

AIS0000A

2S:2-Coat solid,

2M:2-Coat metallic,

3P:3-Coat pearl, 2PM:2-Coat pearl metallic

SIIA1906E

Component

Color code

BAY2

BD10

BEY0

BKH3

BKY0

BQX1

BWV2

Description

Red

Dark

Green

Light
Gold

Black

Silver

White

Silver

Paint type

2PM

2M

2PM

2S

2M

3P

2M

Hard clear
coat

X

X

X

X

X

X

X

1

Bumper fascia

Body color

BAY2

BD10

BEY0

BKH3

BKY0

BQX1

BWV2

2

Front grille

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

3

Door outside
mirror

Case

Body color

BAY2

BD10

BEY0

BKH3

BKY0

BQX1

BWV2

Base

Body color

BAY2

BD10

BEY0

BKH3

BKY0

BQX1

BWV2

4

Side guard
molding

Body color

BAY2

BD10

BEY0

BKH3

BKY0

BQX1

BWV2

5

Roof drip
molding

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

6

Door outside
handle

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

7

Trunk lid
finisher

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

BL-196

BODY REPAIR

2004 M45

Body Component Parts

AIS0000B

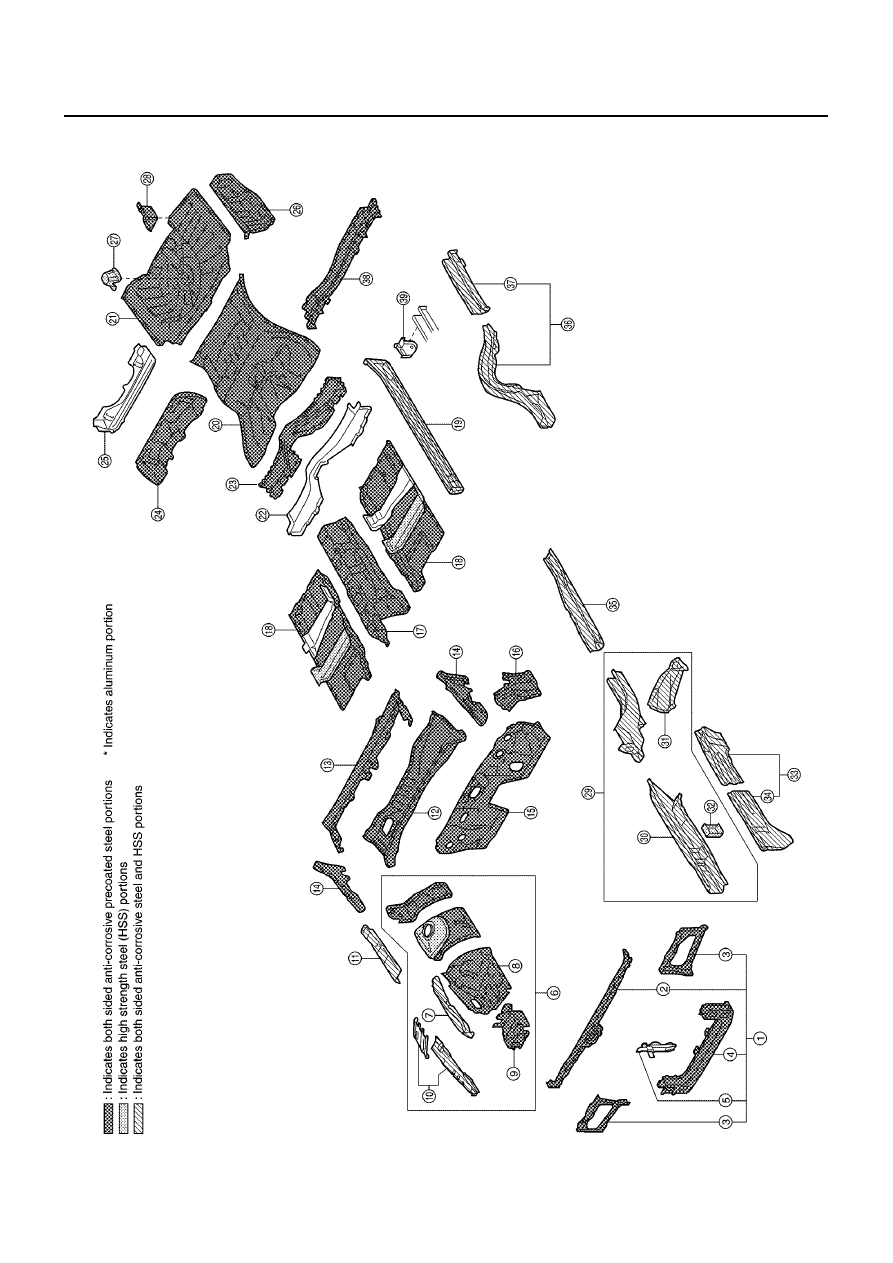

UNDERBODY COMPONENT PARTS

SIIA2384E
