Infiniti M45 (Y34). Manual - part 239





IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-181

C

D

E

F

G

H

J

K

L

M

A

B

BL

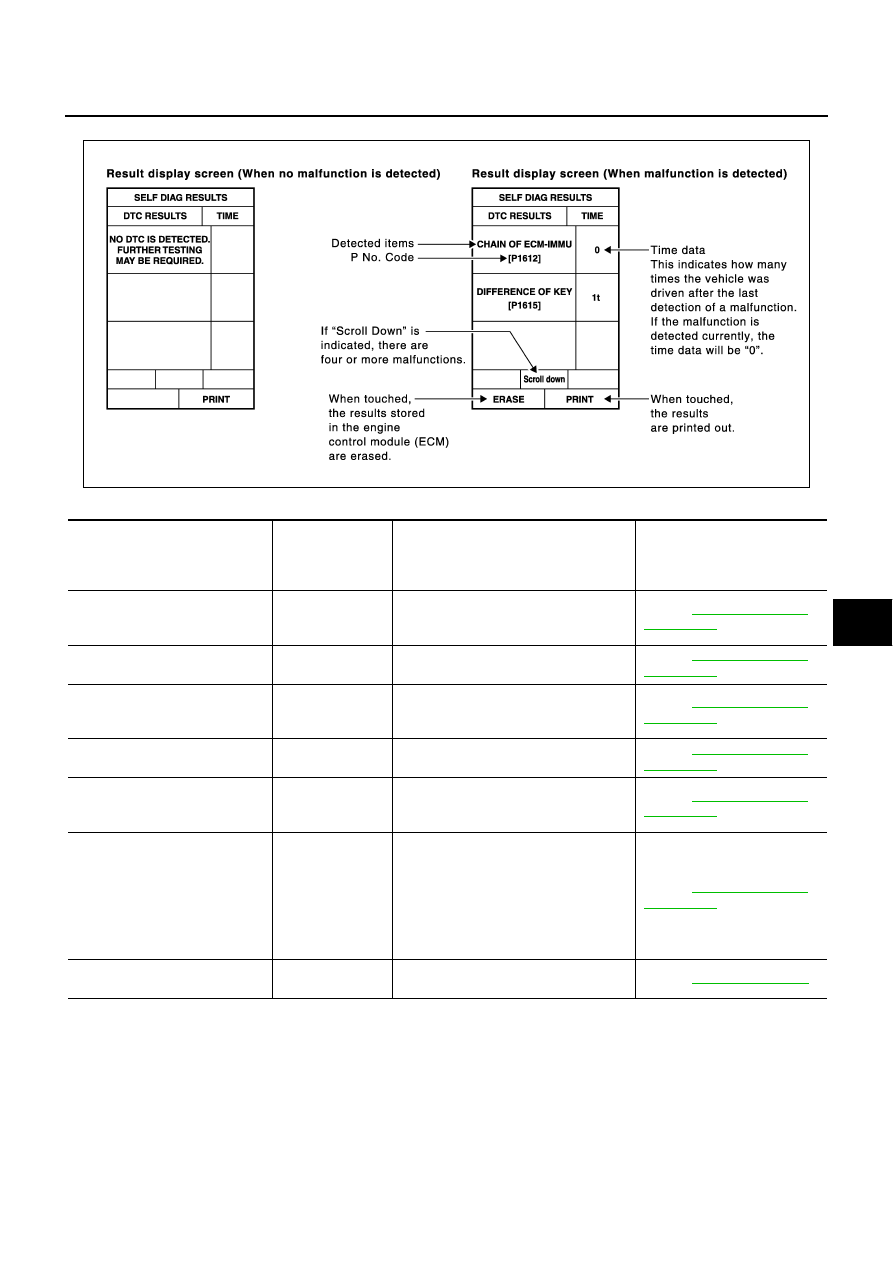

HOW TO READ SELF-DIAGNOSTIC RESULTS

NATS SELF-DIAGNOSTIC RESULT ITEM CHART

PIIA1124E

Detected items (Screen terms)

P No.Code

(Self-diagnostic

result of

“ENGINE”)

Description

Diagnostic procedure

ECM INT CIRC-IMMU

P1613

The malfunction of ECM internal circuit
of NATS IMMU communication line is
detected.

Refer to

BL-184, "Diagnostic

Procedure 1"

 .

CHAIN OF ECM-IMMU

P1612

Communication impossible between
ECM and NATS IMMU.

Refer to

BL-185, "Diagnostic

Procedure 2"

 .

DIFFERENCE OF KEY

P1615

NATS IMMU can receive the key ID sig-
nal but the result of ID verification
between key ID and NATS IMMU is NG.

Refer to

BL-187, "Diagnostic

Procedure 3"

 .

CHAIN OF IMMU-KEY

P1614

NATS IMMU cannot receive the key ID
signal.

Refer to

BL-189, "Diagnostic

Procedure 6"

 .

ID DISCORD, IMM-ECM

P1611

The result of ID verification between
NATS IMMU and ECM is NG. System ini-
tialization is required.

Refer to

BL-187, "Diagnostic

Procedure 4"

 .

LOCK MODE

P1610

When the starting operation is carried
out 5 or more times consecutively under
the following conditions, IVIS(NATS) will
shift the mode to one which prevents the
engine from being started.

unregistered electronic key is used

NATS IMMU or ECM malfunctioning

Refer to

BL-188, "Diagnostic

Procedure 5"

 .

DON'T ERASE BEFORE
CHECKING ENG DIAG

Engine trouble data and IVIS (NATS)
trouble data have been detected in ECM.

Refer to

BL-182, "Work Flow"

 .

BL-182

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

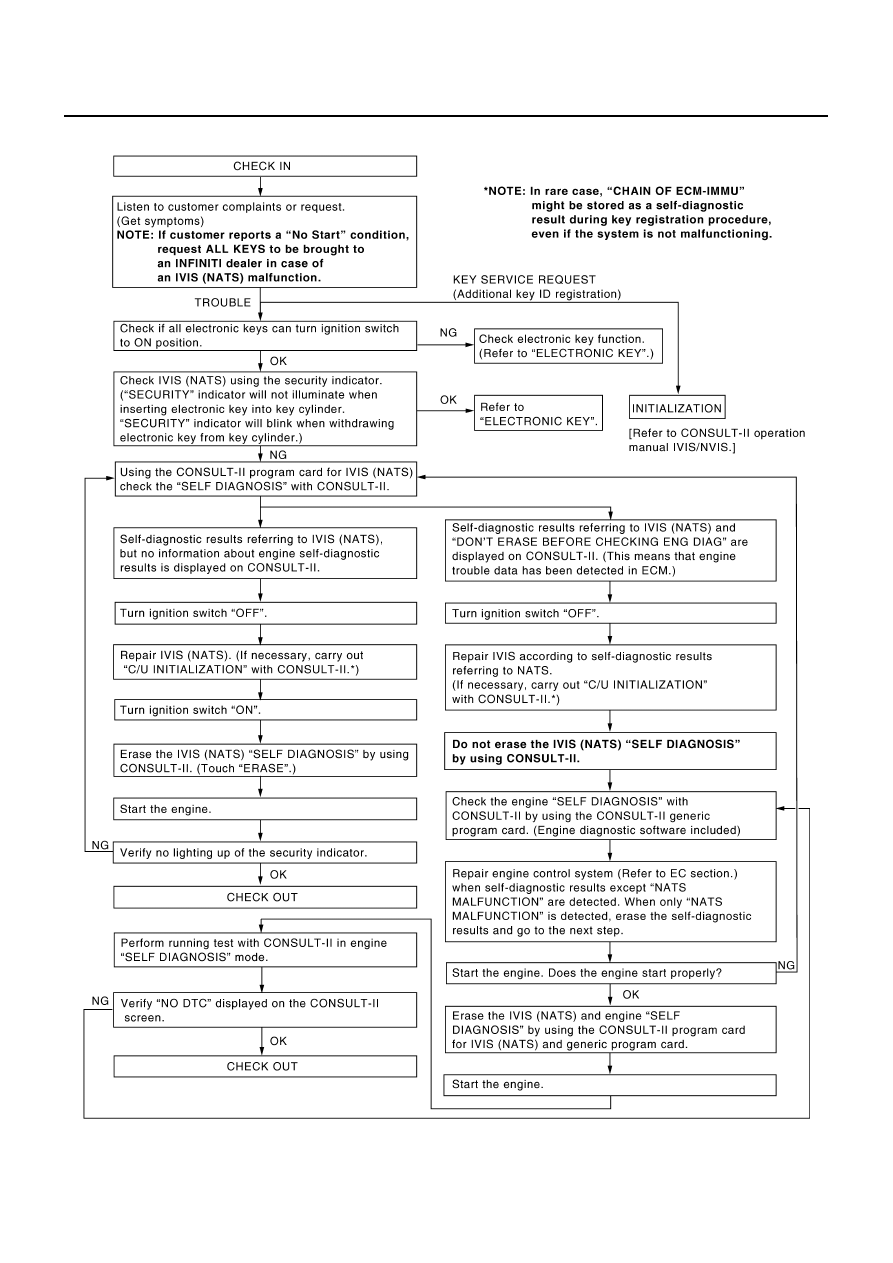

Work Flow

AIS002AW

PIIA0379E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-183

C

D

E

F

G

H

J

K

L

M

A

B

BL

Symptom Chart 1

AIS002AX

 *: When IVIS (NATS) detects trouble, the security indicator lights up while electronic key is in the “ON” position.

SYMPTOM

Displayed “SELF-DIAG

RESULTS” on CON-

SULT-II screen.

DIAGNOSTIC PROCE-

DURE

SYSTEM (Malfunction-

ing part or mode)

REFERENCE PART

NO. OF ILLUSTRATION

Security indicator
lighting up*

Engine hard to start

ECM INT CIRC-IMMU

[P1613]

Refer to

BL-184, "Diag-

nostic Procedure 1"

 .

ECM

B

CHAIN OF ECM-IMMU

[P1612]

Refer to

BL-185, "Diag-

nostic Procedure 2"

 .

Open circuit in battery
voltage line of NATS
IMMU circuit

C1

Open circuit in ignition
line of NATS IMMU cir-
cuit

C2

Open circuit in ground
line of NATS IMMU cir-
cuit

C3

Open or short circuit
between NATS IMMU
and ECM communica-
tion line.

C4

ECM

B

NATS IMMU

A

DIFFERENCE OF KEY

[P1615]

Refer to

BL-187, "Diag-

nostic Procedure 3"

 .

Unregistered key

D

NATS IMMU

A

CHAIN OF IMMU-KEY
[P1614]

Refer to

BL-189, "Diag-

nostic Procedure 6"

 .

Open or short circuit
between NATS IMMU
and NATS antenna amp.

E1 - E4

Malfunction of key ID
chip

D

NATS IMMU

A

Antenna amp.

E

ID DISCORD, IMM-ECM

[P1611]

Refer to

BL-187, "Diag-

nostic Procedure 4"

System initialization has
not yet been completed.

F

ECM

B

LOCK MODE

[P1610]

Refer to

BL-188, "Diag-

nostic Procedure 5"

 .

LOCK MODE

When the starting opera-
tion is carried out 5 or
more times consecu-
tively under the following
conditions, IVIS(NATS)
will shift the mode to one
which prevents the
engine from being
started.

unregistered elec-
tronic key is used

NATS IMMU or ECM
malfunctioning

MIL staying ON

Security indicator
lighting up*

DON'T ERASE
BEFORE CHECKING
ENG DIAG

WORK FLOW

Engine trouble data and
IVIS (NATS) trouble data
have been detected in
ECM

BL-184

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

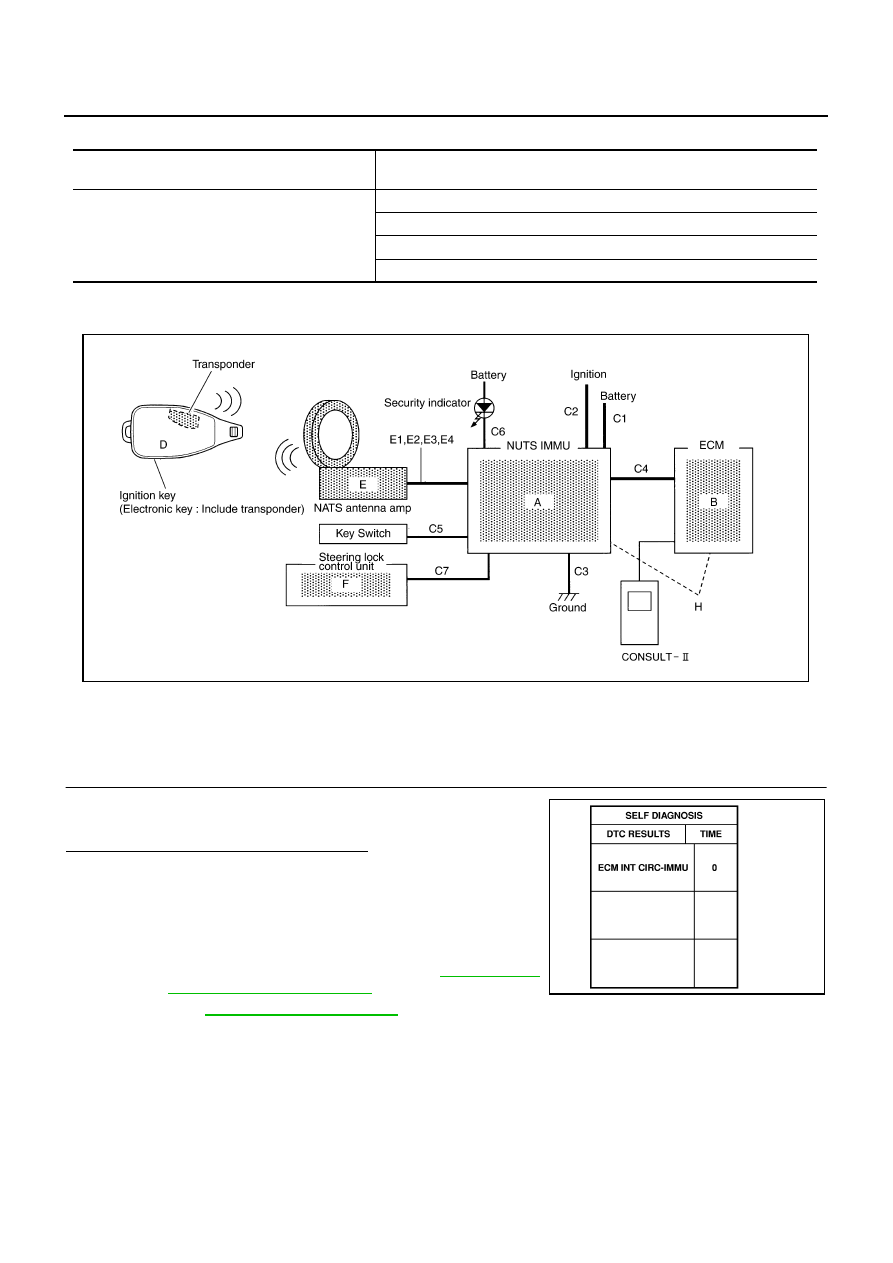

Symptom Chart 2

AIS002AY

*: CONSULT-II self-diagnostic results display screen “no malfunction is detected”.

Diagnostic System Diagram

AIS002AZ

Diagnostic Procedure 1

AIS002B0

Self-diagnostic results:
“ECM INT CIRC-IMMU” displayed on CONSULT-II screen

1.

CONFIRM SELF-DIAGNOSTIC RESULTS

Confirm SELF-DIAGNOSTIC RESULTS “ECM INT CIRC-IMMU” dis-
played on CONSULT-II screen.

Is CONSULT-II screen displayed as above?

YES

>> ECM is malfunctioning.

Replace ECM. Ref. part No. B

Perform initialization or re-communicating function.

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.

For re-communicating function, refer to

BL-174, "ECM

Re-Communicating Function"

 .

NO

>> GO TO

BL-183, "Symptom Chart 1"

 .

SYMPTOM

SYSTEM

(Malfunctioning part or mode)

Security indicator does not light up*

Security indicator

Open circuit between Fuse and NATS IMMU

Continuation of initialization mode

NATS IMMU

PIIA0378E

SEL314W
