POWER DOOR LOCK SYSTEM

BL-21

C

D

E

F

G

H

J

K

L

M

A

B

BL

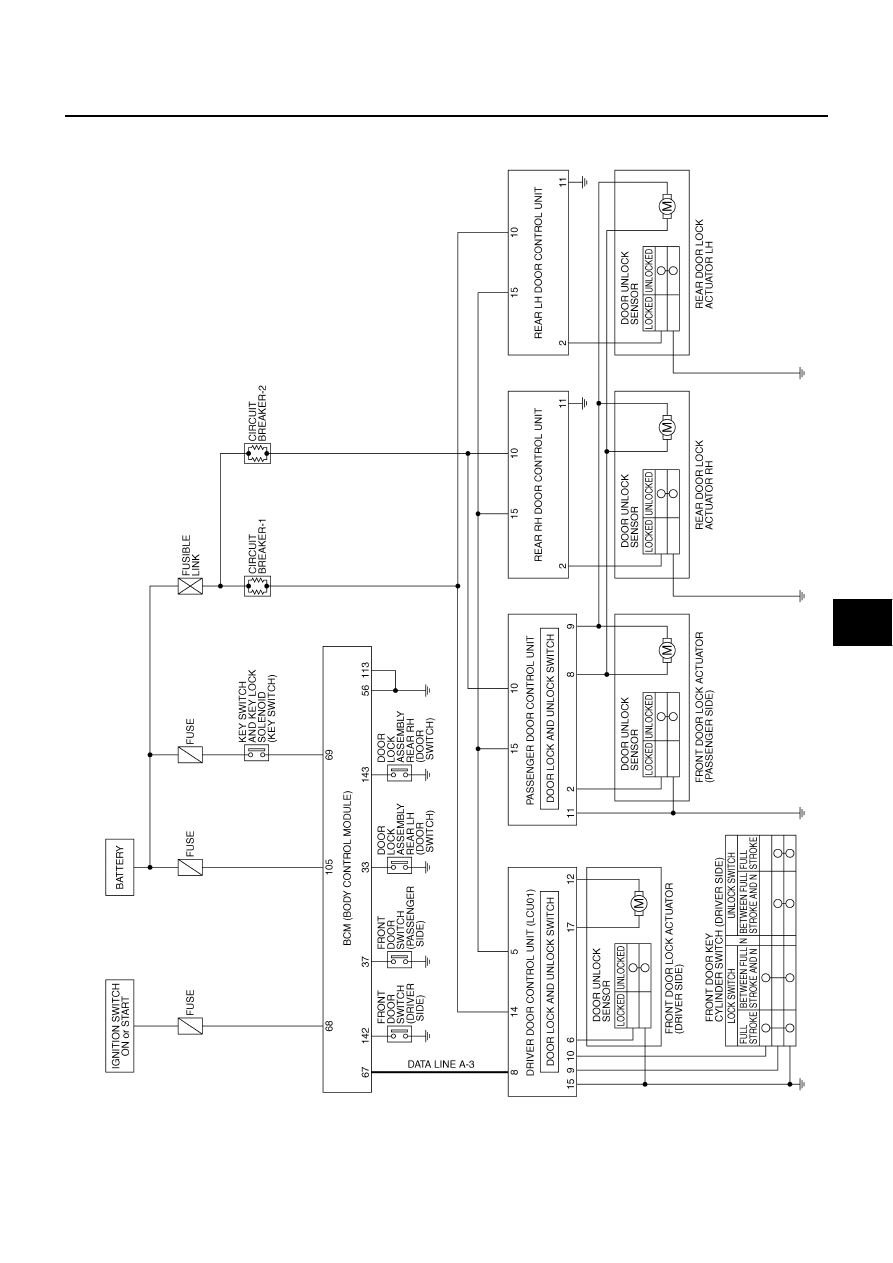

Schematic

AIS001D8

TIWA0181E

BL-22

POWER DOOR LOCK SYSTEM

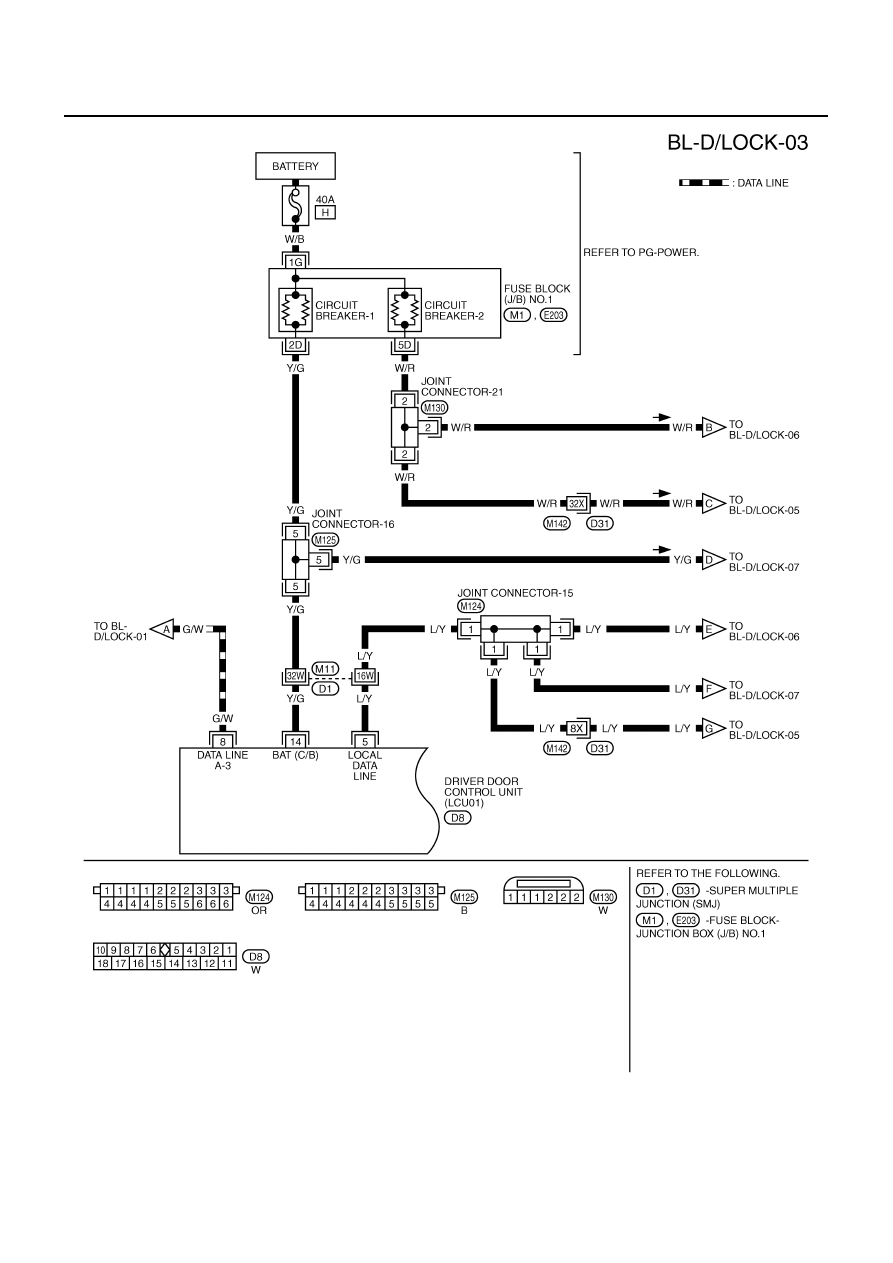

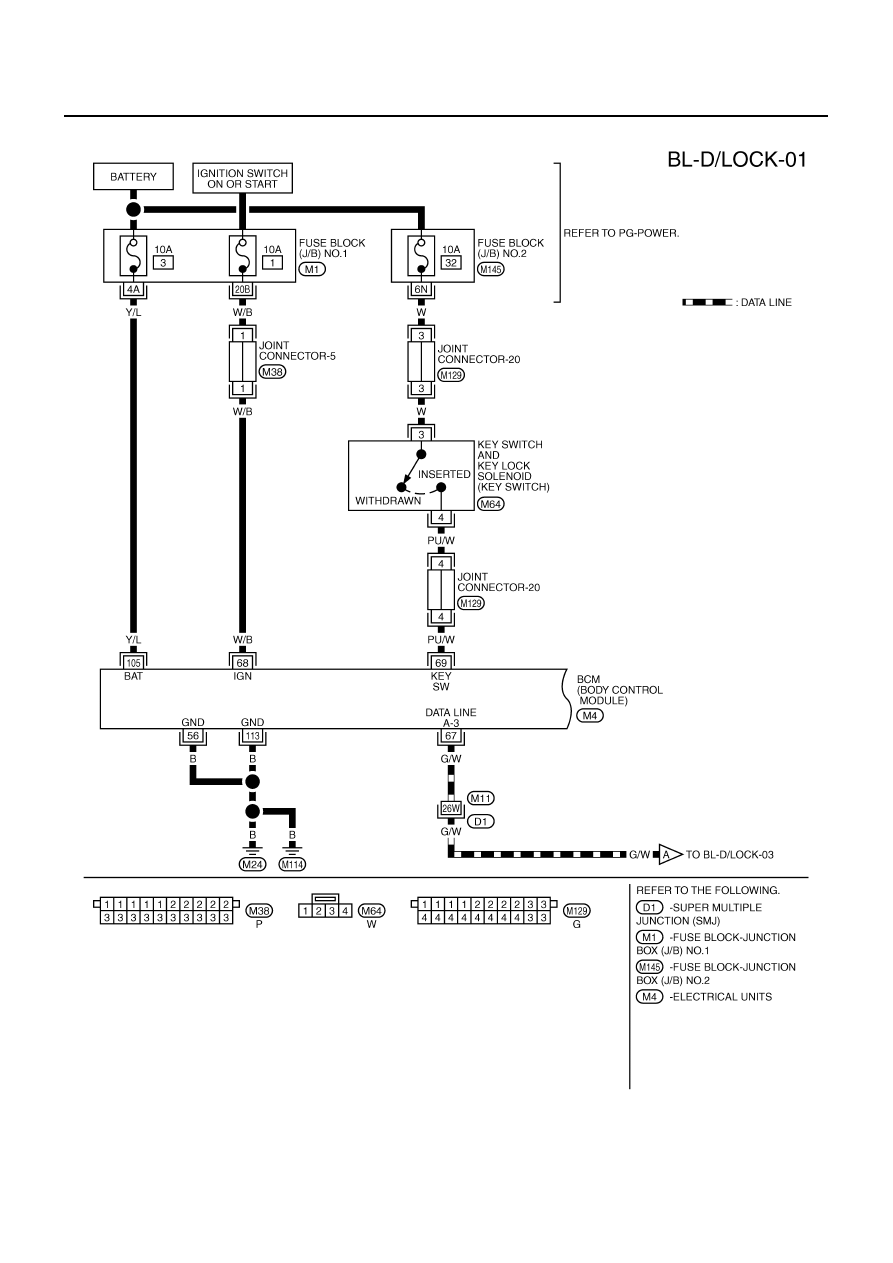

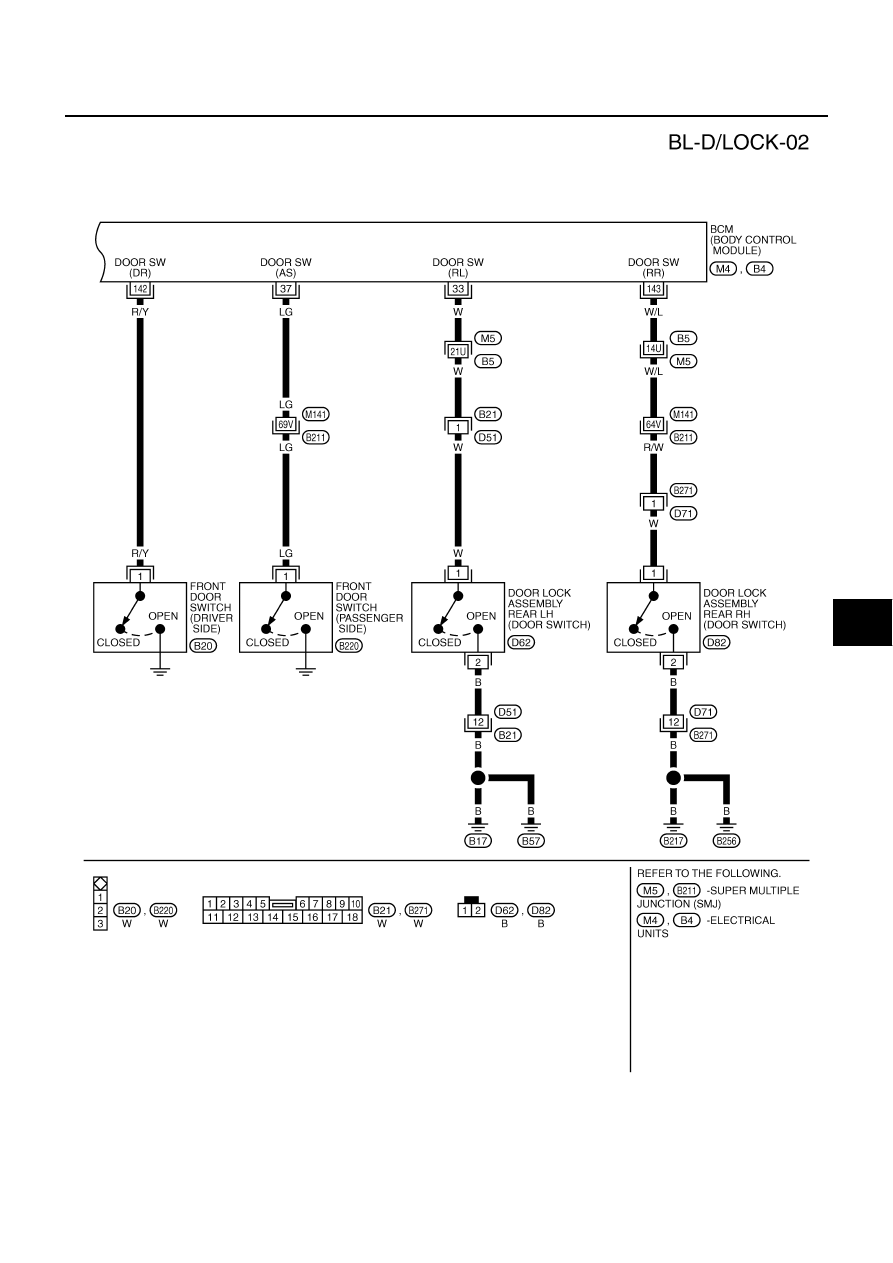

Wiring Diagram – D/LOCK –

AIS001D9

TIWA0182E

POWER DOOR LOCK SYSTEM

BL-23

C

D

E

F

G

H

J

K

L

M

A

B

BL

TIWA0183E

BL-24

POWER DOOR LOCK SYSTEM

TIWA0184E
