Infiniti M45 (Y34). Manual - part 198





HOOD

BL-17

C

D

E

F

G

H

J

K

L

M

A

B

BL

Hood Lock Control Inspection

AIS001D5

CAUTION:

If the hood lock cable is bent or deformed, replace it.
1.

Make sure that the secondary latch is properly engaged with the
secondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height.

2.

While operating the hood opener, carefully confirm that the front
end of the hood is raised by approx. 20 mm (0.79 in). Also check
that the hood opener returns to the original position.

3.

Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points shown in the figure.

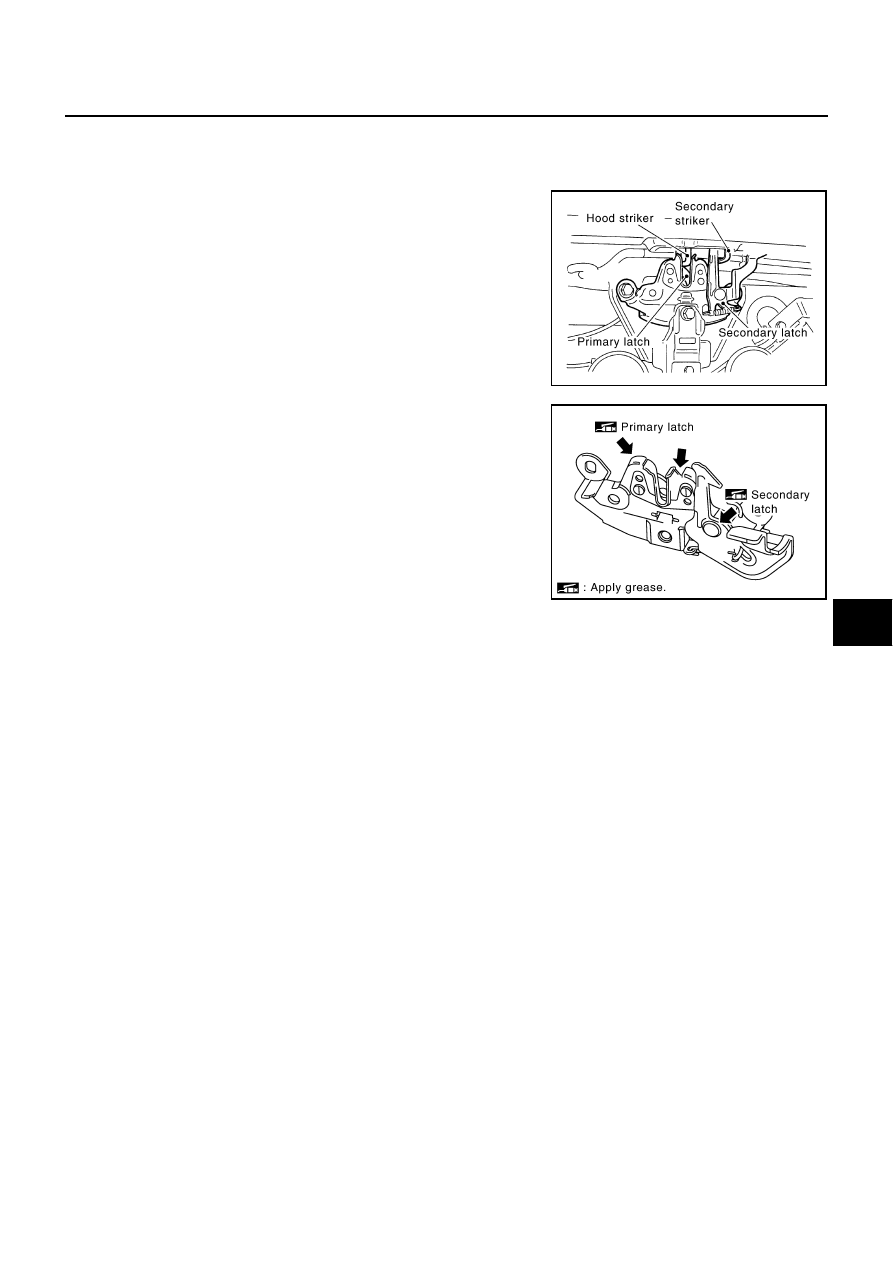

PIIB1082E

PIIB1378E

BL-18

POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEM

PFP:24814

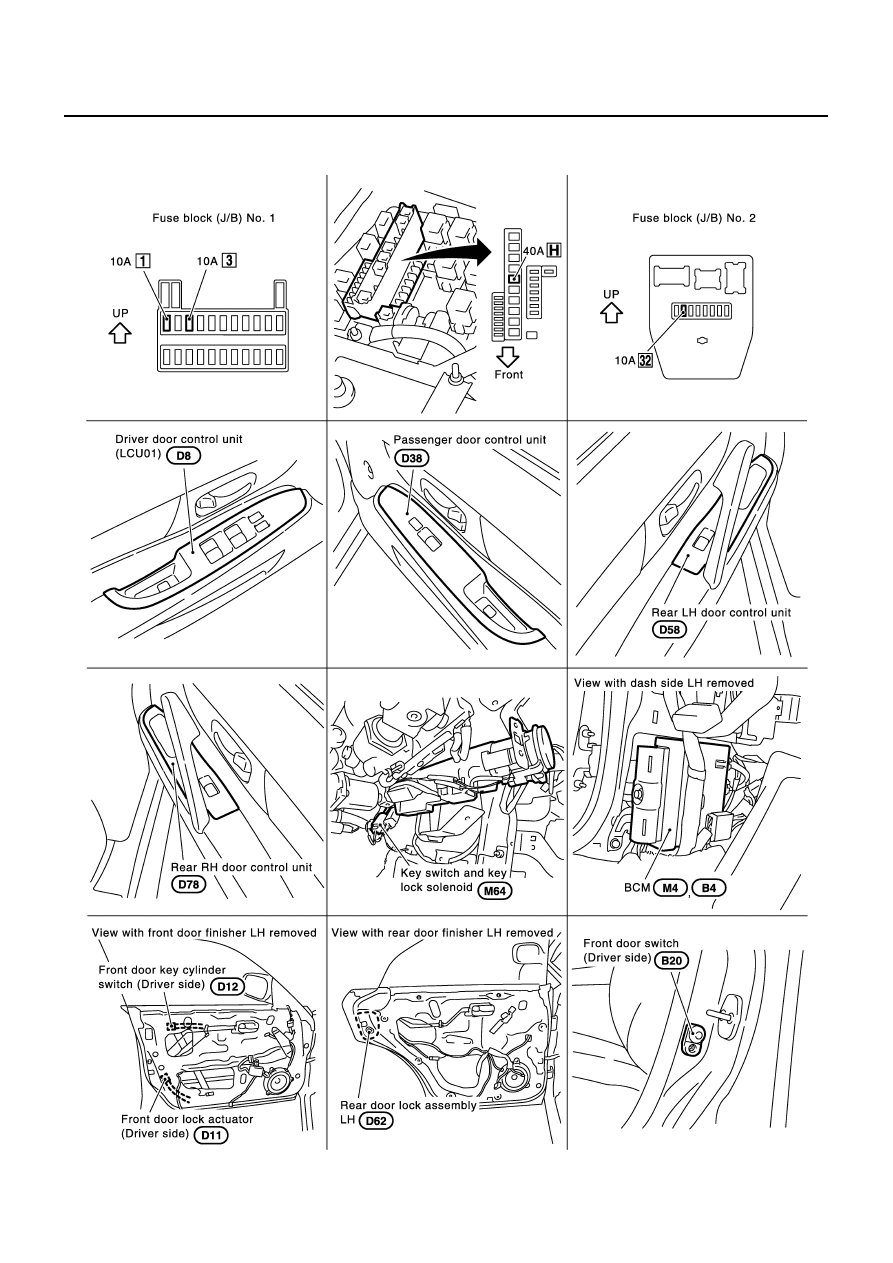

Component Parts and Harness Connector Location

AIS001D6

PIIA2792E

POWER DOOR LOCK SYSTEM

BL-19

C

D

E

F

G

H

J

K

L

M

A

B

BL

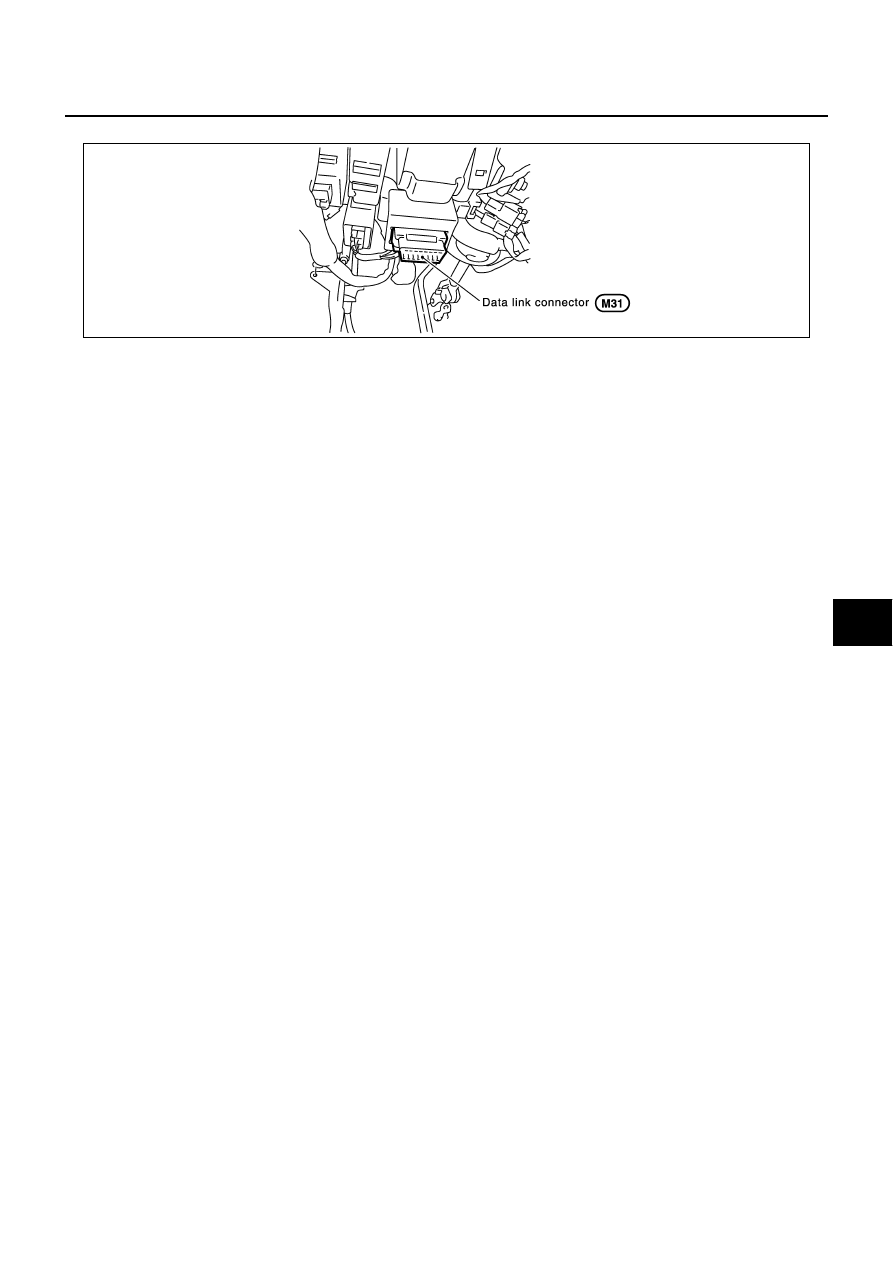

Component Parts and Harness Connector Location

AIS002BR

System Description

AIS001D7

POWER SUPPLY AND GROUND

Power is supplied at all times

to BCM terminal 105

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1].

to key switch terminal 3

through 10A fuse [No. 32, located in the fuse block (J/B) No. 2].

When the key switch is ON position (key is inserted in ignition key cylinder), power is supplied

to BCM terminal 69

through key switch terminal 4.

When the ignition switch is ON or START position, power is supplied

to BCM terminal 68

through 10A fuse [No.1, located in the fuse block (J/B) No. 1].

When front door switch is ON (front door is opened), ground is supplied

to BCM terminal 142 (driver side) or 37 (passenger side)

through front door switch terminal 1 and case ground.

When rear door switch is ON (rear door is opened), ground is supplied

to BCM terminals 33 (rear LH) or 143 (rear RH)

through rear door switch terminal 1 and 2

through body ground B17 and B57 (rear LH) or B217 and B256 (rear RH).

When door is unlocked, ground is supplied

to driver door control unit (LCU01) terminal 6 or passenger, rear LH, RH door control unit terminal 2

through each door unlock sensor terminals 2 and 4.

When the door is locked with the emergency key, ground is supplied

to LCU01 terminal 10.

through front door key cylinder switch terminals 2 and 3

through grounds M24 and M114

When the door is unlocked with the emergency key, ground is supplied

to LCU01 terminal 9.

through front door key cylinder switch terminals 1 and 2

through grounds M24 and M114

BCM is connected to LCU01 as DATA LINE A-3.

PIIA2864E

BL-20

POWER DOOR LOCK SYSTEM

OPERATION

The lock and unlock switch on driver’s door trim and passenger's door trim can lock and unlock all doors.

With the door key inserted in the key cylinder on front LH door, turning it to “LOCK”, will lock all doors;
turning it to “UNLOCK” once unlocks the corresponding door; turning it to “UNLOCK” again within 5 sec-
onds after the first unlock operation unlocks all of the other doors. (Signals from front door key cylinder
switch)

Key Reminder Door System

However, if the electronic key is in the electronic key cylinder and one or more of the front doors are open, set-
ting the lock & unlock switch to “LOCK” locks the doors once but then immediately unlocks them. (Combina-
tion signals from key switch, door switch)
