 STEERING SWITCH GROUND CIRCUIT CHECK

1.

Disconnect steering switch connector.

2.

Check harness between steering switch harness connector
M444 terminal 3(B) and ground.

OK or NG

OK

>> Replace steering switch.

NG

>> Repair or replace harness.

Removal and Installation of Audio Unit

AKS002NZ

REMOVAL

1.

Remove glove box assembly. Refer to

IP-11, "Removal and Installation"

 .

2.

Remove screws (3), and remove audio unit.

3.

Remove screws (4), and remove bracket.

INSTALLATION

Install in the reverse order of removal.

3 (B) - Ground

: Continuity should exist.

SKIA3759E

SKIA9280E

SKIA9281E

AV-30

AUDIO

Removal and Installation of CD Auto Changer

AKS002O0

REMOVAL

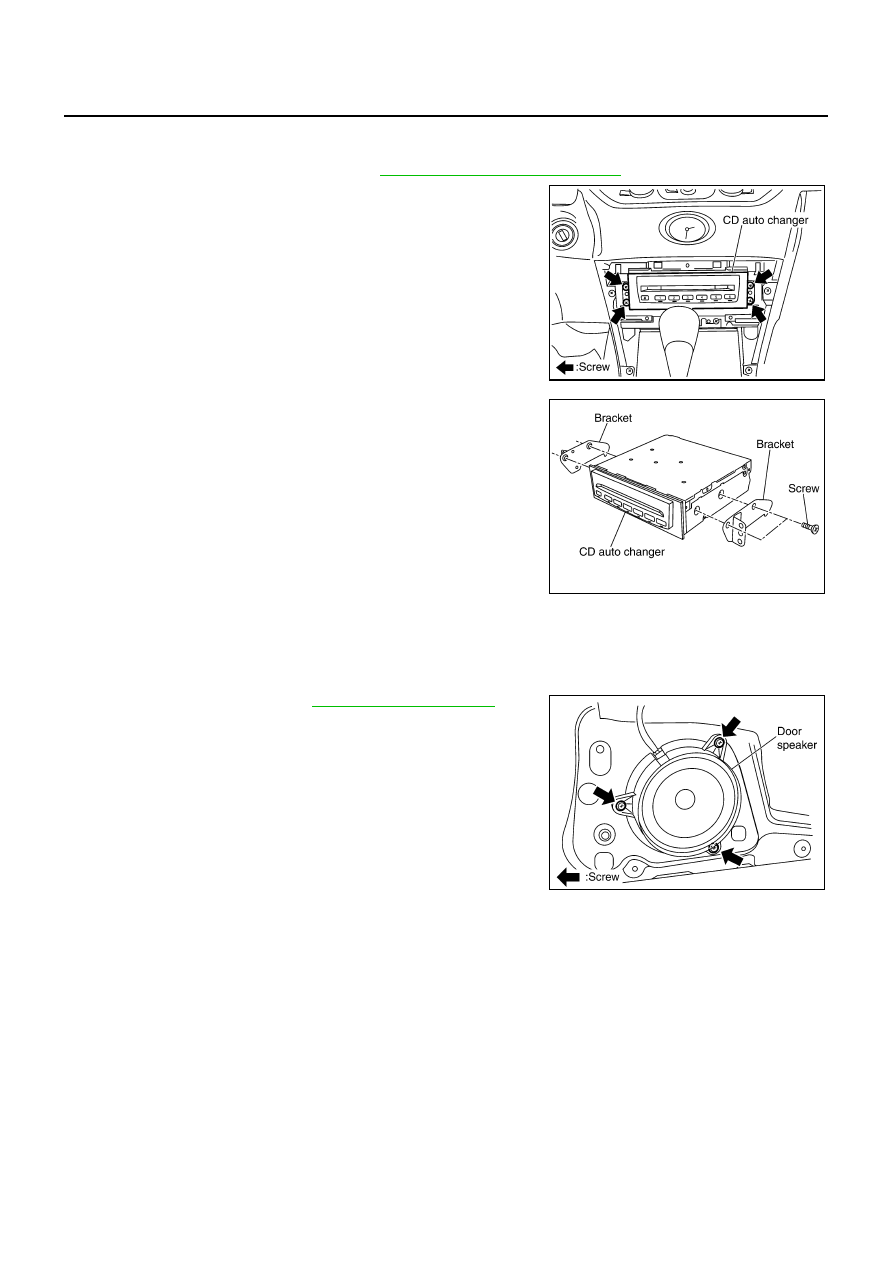

1.

Remove console upper finisher. Refer to

IP-10, "Component Parts Drawing"

 .

2.

Remove screws (4), and remove CD auto changer.

3.

Remove screws (4), and remove bracket.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Door Speaker

AKS002O1

REMOVAL

1.

Remove door finisher. Refer to

EI-31, "DOOR FINISHER"

2.

Remove screws (3), and remove speaker.

INSTALLATION

Install in the reverse order of removal.

SKIA9282E

SKIA9283E

PKIA1682E

AUDIO

AV-31

C

D

E

F

G

H

I

J

L

M

A

B

AV

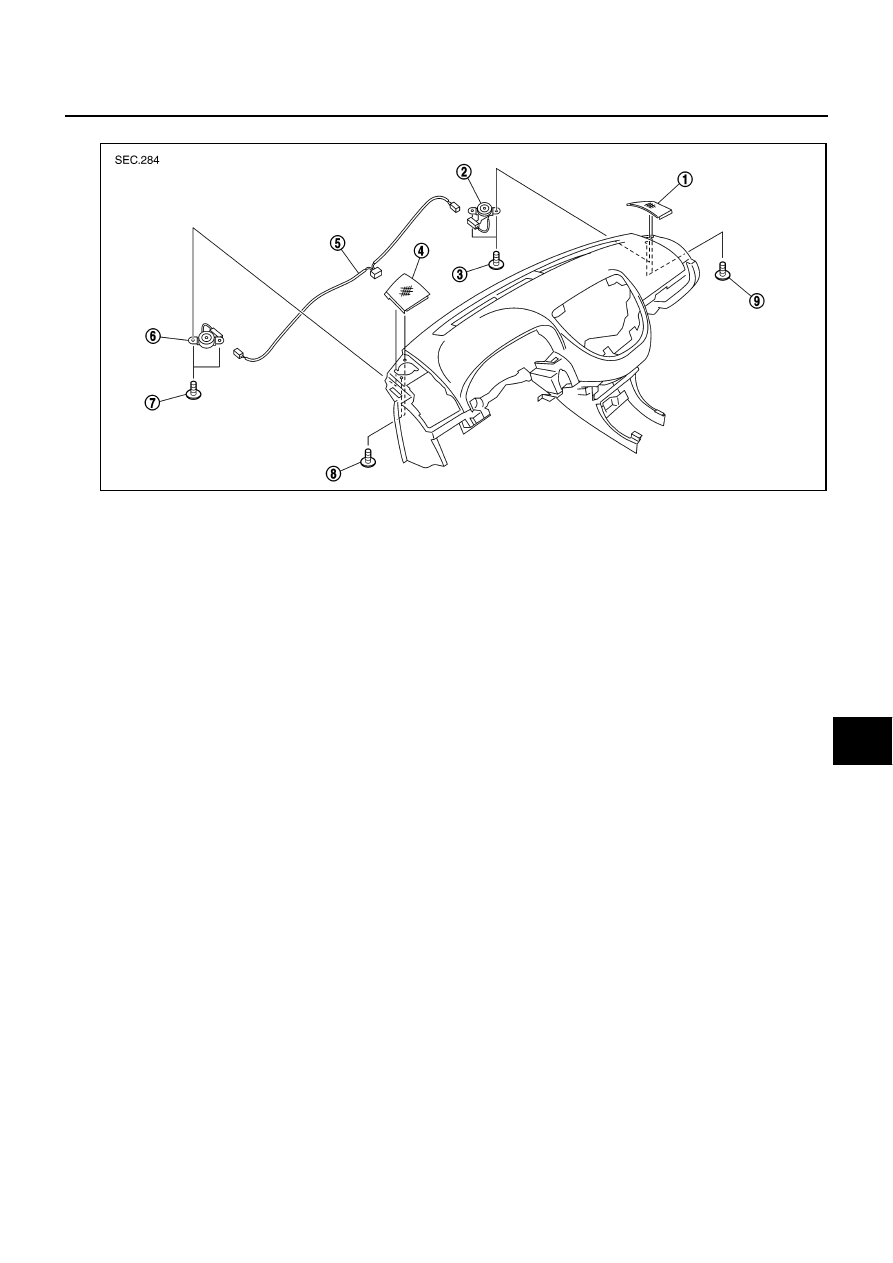

Removal and Installation of Instrument Panel Speaker

AKS002O2

PKIA1683E

1.

Grille (right)

2.

Speaker (right)

3.

Screws

4.

Grille (left)

5.

Speaker sub-harness

6.

Speaker (left)

7.

Screws

8.

Screws

9.

Screws

AV-32

AUDIO

REMOVAL

1.

Remove instrument panel. Refer to

IP-10, "Component Parts Drawing"

 .

2.

Remove screws (2), and remove instrument panel speaker.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Woofer

AKS002O3

REMOVAL

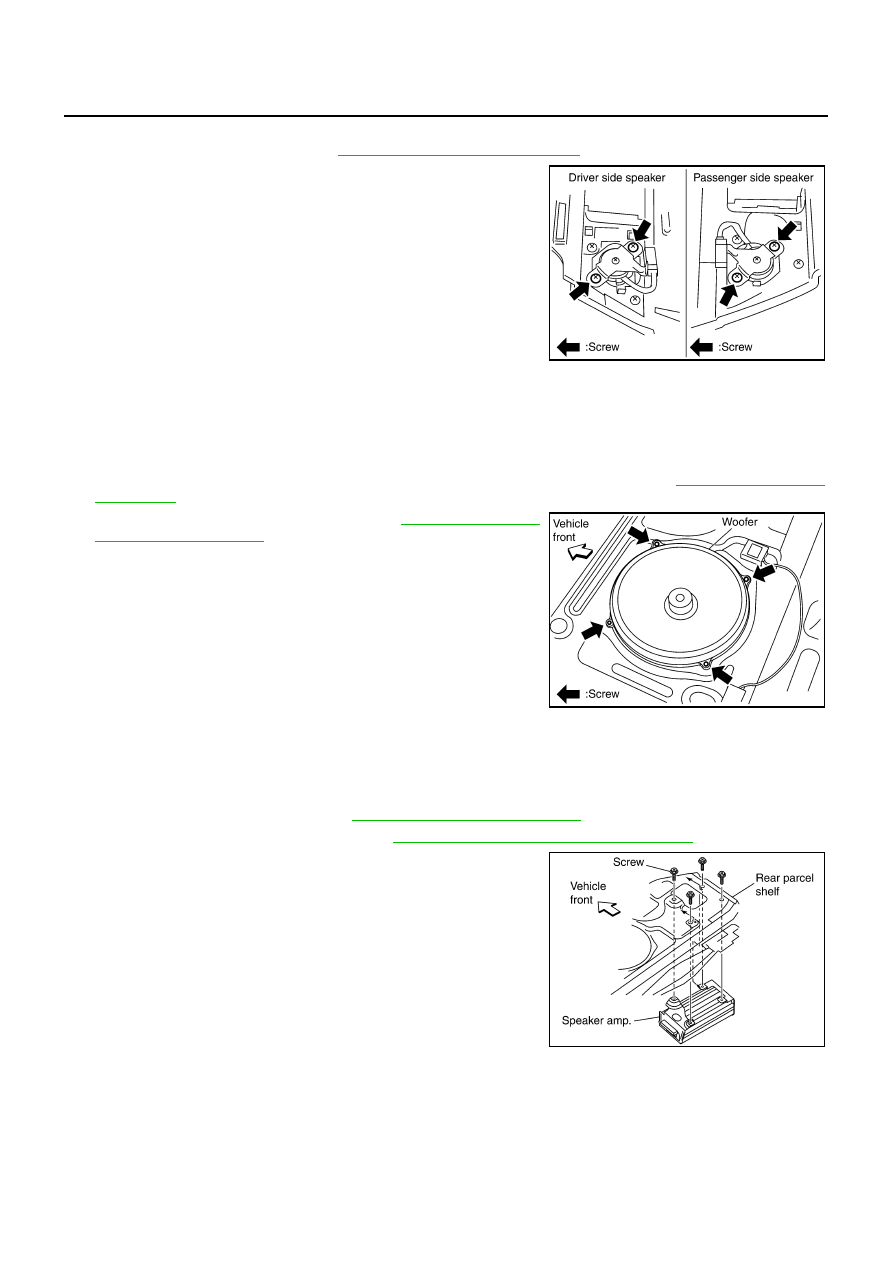

1.

Remove trunk front finisher, and disconnect woofer harness connector. Refer to

EI-42, "Removal and

Installation"

 .

2.

Remove rear parcel shelf finisher. Refer to

EI-37, "REAR PAR-

CEL SHELF FINISHER"

3.

Remove screws (4), and remove woofer.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of BOSE Speaker Amplifier

AKS002O4

REMOVAL

1.

Remove trunk front finisher. Refer to

EI-42, "Removal and Installation"

 .

2.

Remove rear parcel shelf finisher. Refer to

EI-37, "REAR PARCEL SHELF FINISHER"

 .

3.

Remove screws (4), and remove BOSE speaker amplifier from
the trunk room side.

INSTALLATION

Install in the reverse order of removal.

PKIA1684E

PKIA1685E
