REFRIGERANT LINES

ATC-137

C

D

E

F

G

H

I

K

L

M

A

B

ATC

Removal and Installation of Compressor

AJS0008O

REMOVAL

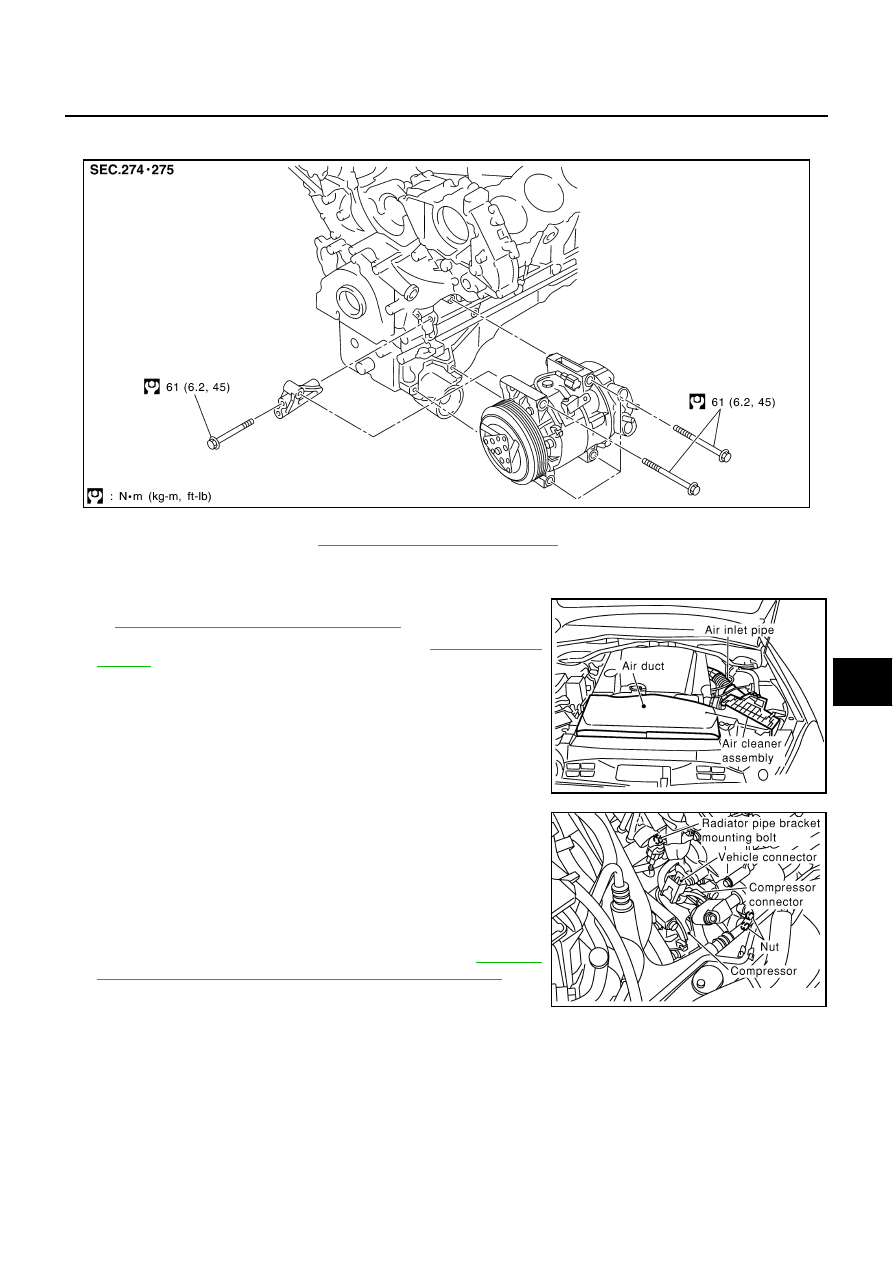

1.

Remove engine cover. Refer to

EM-12, "ENGINE ROOM COVER"

 .

2.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

3.

Remove engine under cover, using power tools.

4.

Remove air cleaner assembly, air duct and air inlet pipe. Refer
to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

5.

Remove compressor-alternator belt. Refer to

EM-13, "DRIVE

BELTS"

 .

6.

Remove mounting nuts from both high-pressure flexible hose
and low-pressure flexible hose.

CAUTION:

Cap or wrap the joint of the pipe with a suitable material
such as vinyl tape to avoid the entry of air.

7.

Disconnect compressor connectors (magnet clutch and ECV).

8.

Remove mounting bolt from radiator pipe bracket.

9.

Remove high-pressure flexible hose. Refer to

ATC-142,

"Removal and Installation of High-Pressure Flexible Hose"

 .

CAUTION:

Cap or wrap the joint of the pipe with a suitable material
such as vinyl tape to avoid the entry of air.

10. Remove high-pressure pipe mounting clips.

11. Remove mounting bolts from compressor, using power tools.

12. Move radiator hose to right side of the vehicle.

13. Remove compressor from the upper side of the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA3088E

RJIA0327E

RJIA0133E

ATC-138

REFRIGERANT LINES

CAUTION:

Replace low-pressure flexible hose and high-pressure flexible hose O-rings with new ones. Apply
compressor oil prior to installation.

When recharging refrigerant, check for leaks.

Removal and Installation of Compressor Clutch

AJS0008P

REMOVAL
Overhaul

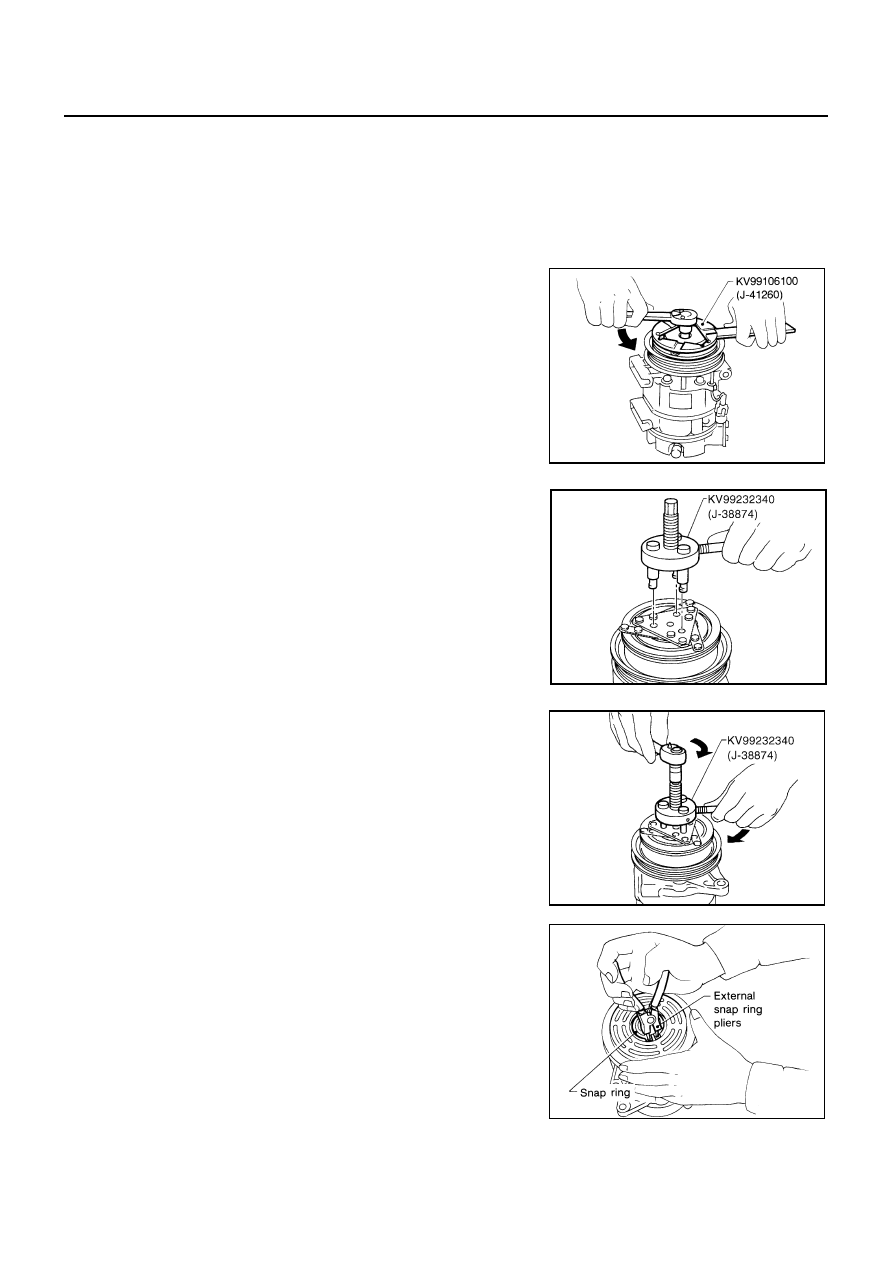

1.

When removing center bolt, hold clutch disc with wrench.

2.

Remove clutch disc using the clutch disc puller.

3.

Remove the snap ring using external snap ring pliers.

RHA136EB

RHA399F

RHA124F

RHA138E

REFRIGERANT LINES

ATC-139

C

D

E

F

G

H

I

K

L

M

A

B

ATC

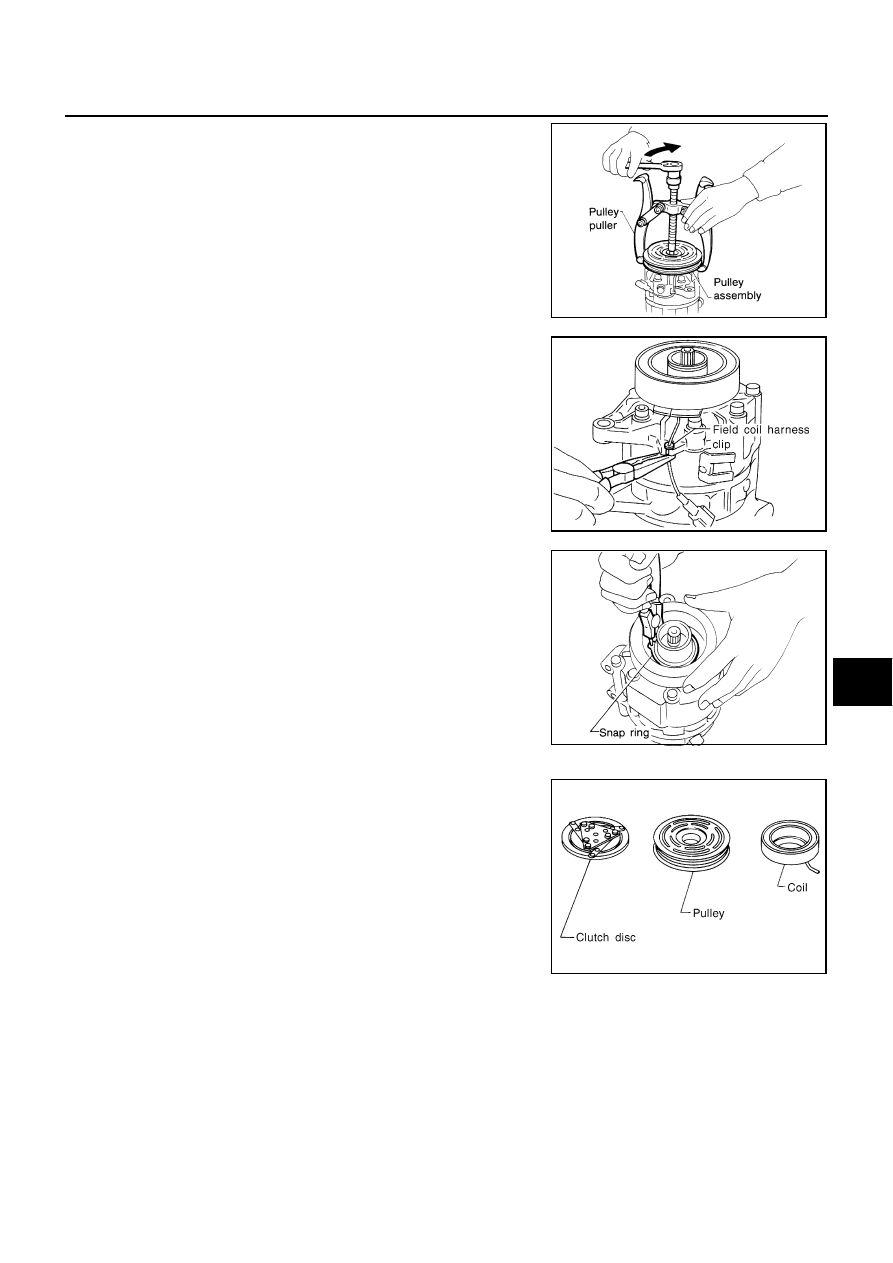

4.

Position the center pulley puller on the end of the drive shaft,
and remove the pulley assembly using any commercially avail-
able pulley puller.
To prevent the pulley groove from being deformed, the puller
claws should be positioned at the edge of the pulley assembly.

5.

Remove the field coil harness clip using a pair of pliers.

6.

Remove the snap ring using external snap ring pliers.

Inspection

Clutch disc
If the contact surface shows signs of damage due to excessive heat,
replace clutch disc and pulley.

Pulley
Check the appearance of the pulley assembly. If the contact surface
of pulley shows signs of excessive grooving, replace clutch disc and
pulley. The contact surfaces of the pulley assembly should be
cleaned with a suitable solvent before reinstallation.

Coil

Check coil for loose connection or cracked insulation.

RHA139E

RHA125F

RHA145E

RHA126F

ATC-140

REFRIGERANT LINES

INSTALLATION

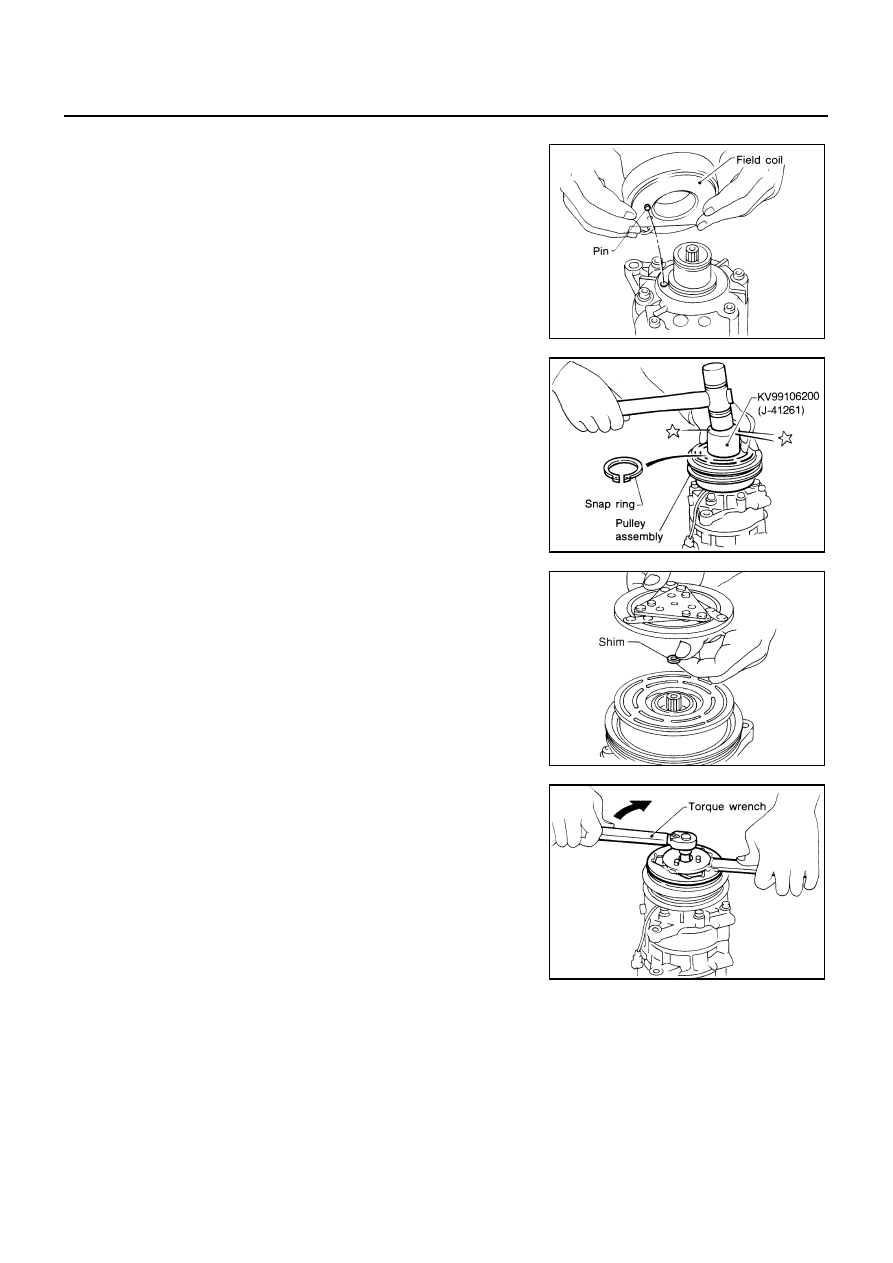

1.

Install field coil.
Be sure to align the coil’s pin with the hole in the compressor’s
front head.

2.

Install the field coil harness clip using a screwdriver.

3.

Install the pulley assembly using the installer and a hand press,
and then install the snap ring using snap ring pliers.

4.

Install the clutch disc on the drive shaft, together with the original
shim(s). Press the clutch disc down by hand.

5.

Using the holder to prevent clutch disc rotation, tighten the bolt
to 14 N·m (1.4 kg-m, 10 ft-lb) torque.
After tightening the bolt, make sure the pulley rotates smoothly.

RHA142E

RHA143EA

RHA127F

RHA086E
