SUNLOAD SENSOR

ATC-117

C

D

E

F

G

H

I

K

L

M

A

B

ATC

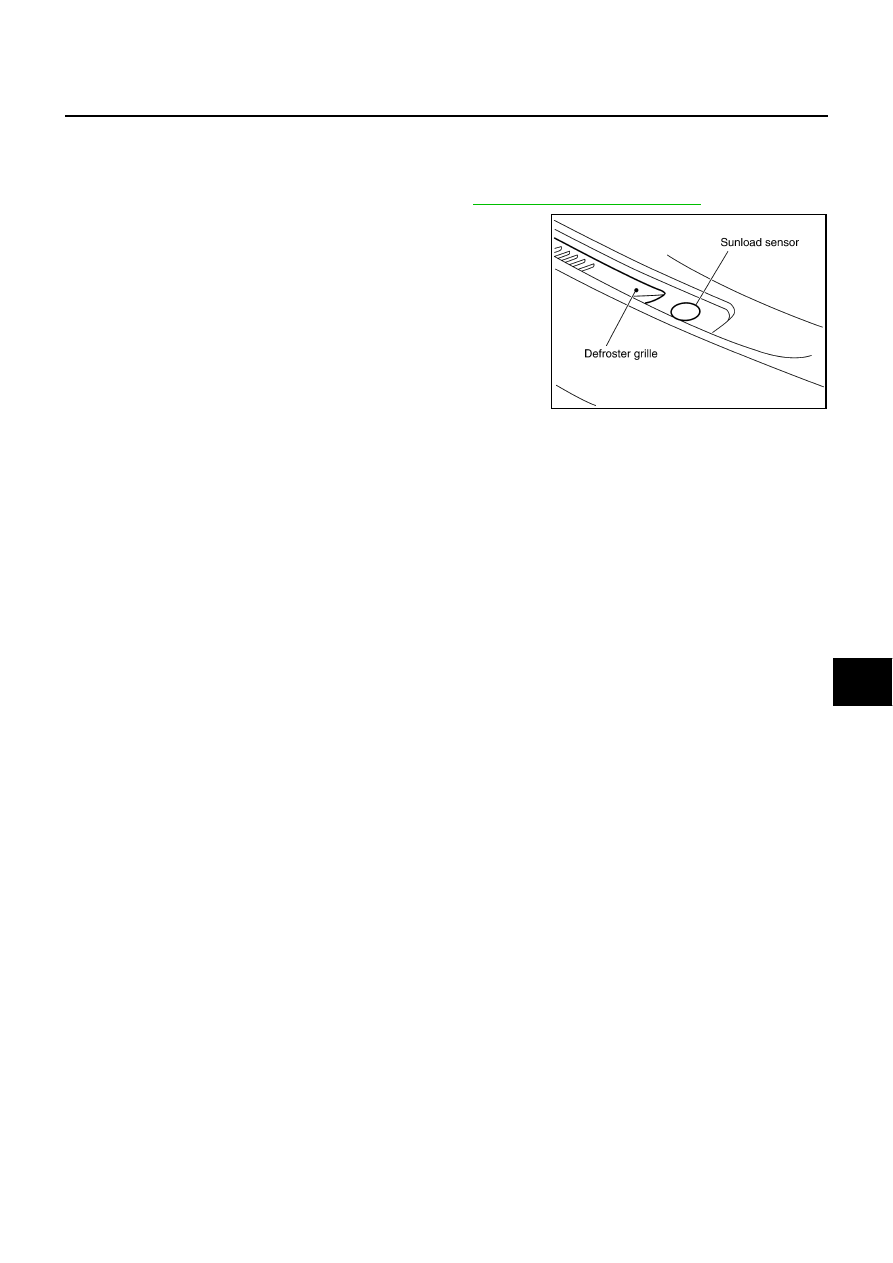

SUNLOAD SENSOR

PFP:27721

Removal and Installation

AJS000QN

REMOVAL

1.

Remove front defroster grille (left-hand side). Refer to

IP-11, "Removal and Installation"

 .

2.

Disconnect sunload sensor connector, and then remove the
sunload sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA1309E

ATC-118

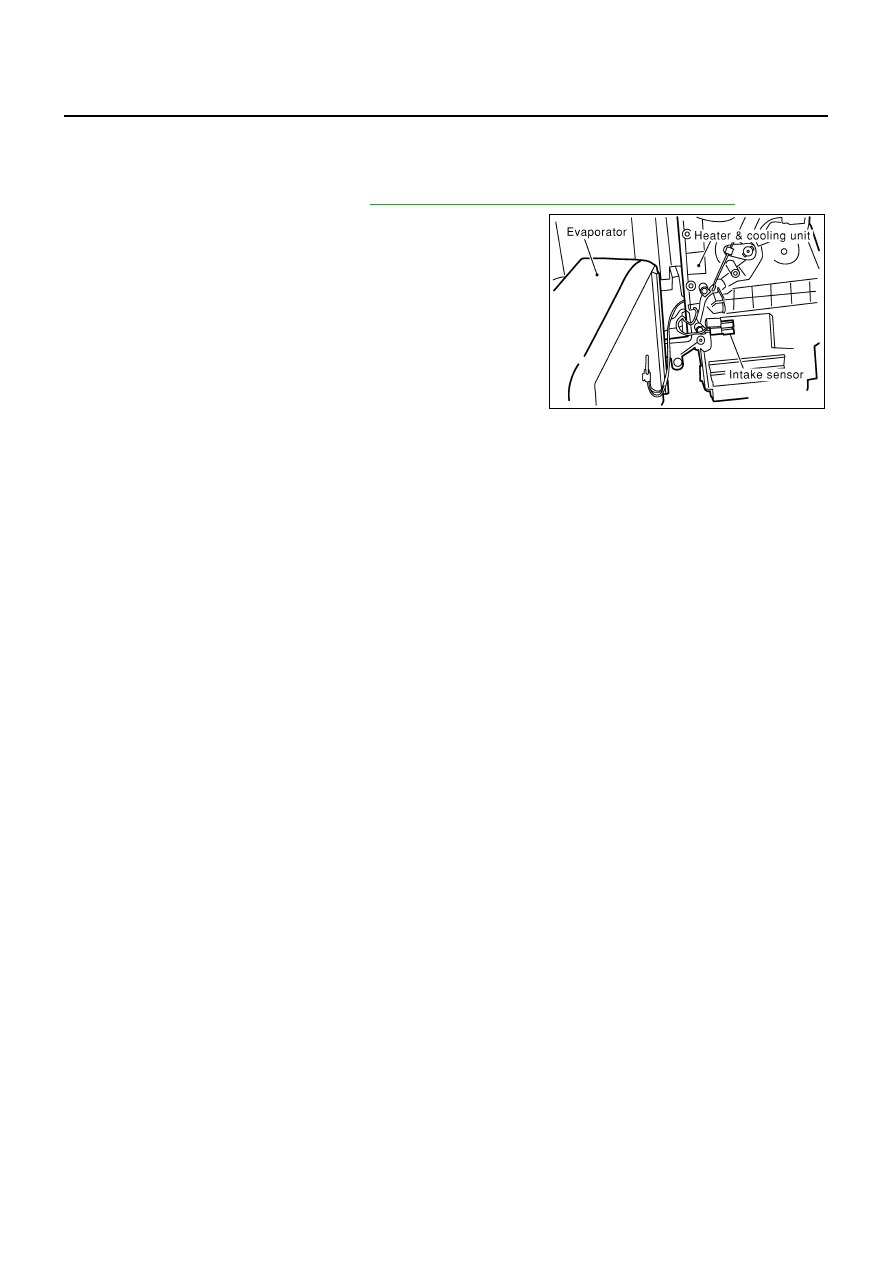

INTAKE SENSOR

INTAKE SENSOR

PFP:27723

Removal and Installation

AJS000QO

REMOVAL

1.

Remove heater & cooling unit. Refer to

ATC-124, "HEATER & COOLING UNIT ASSEMBLY"

 .

2.

Remove evaporator from heater & cooling unit.

3.

Separate heater & cooling unit case.

4.

Remove the intake sensor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0110E

BLOWER UNIT

ATC-119

C

D

E

F

G

H

I

K

L

M

A

B

ATC

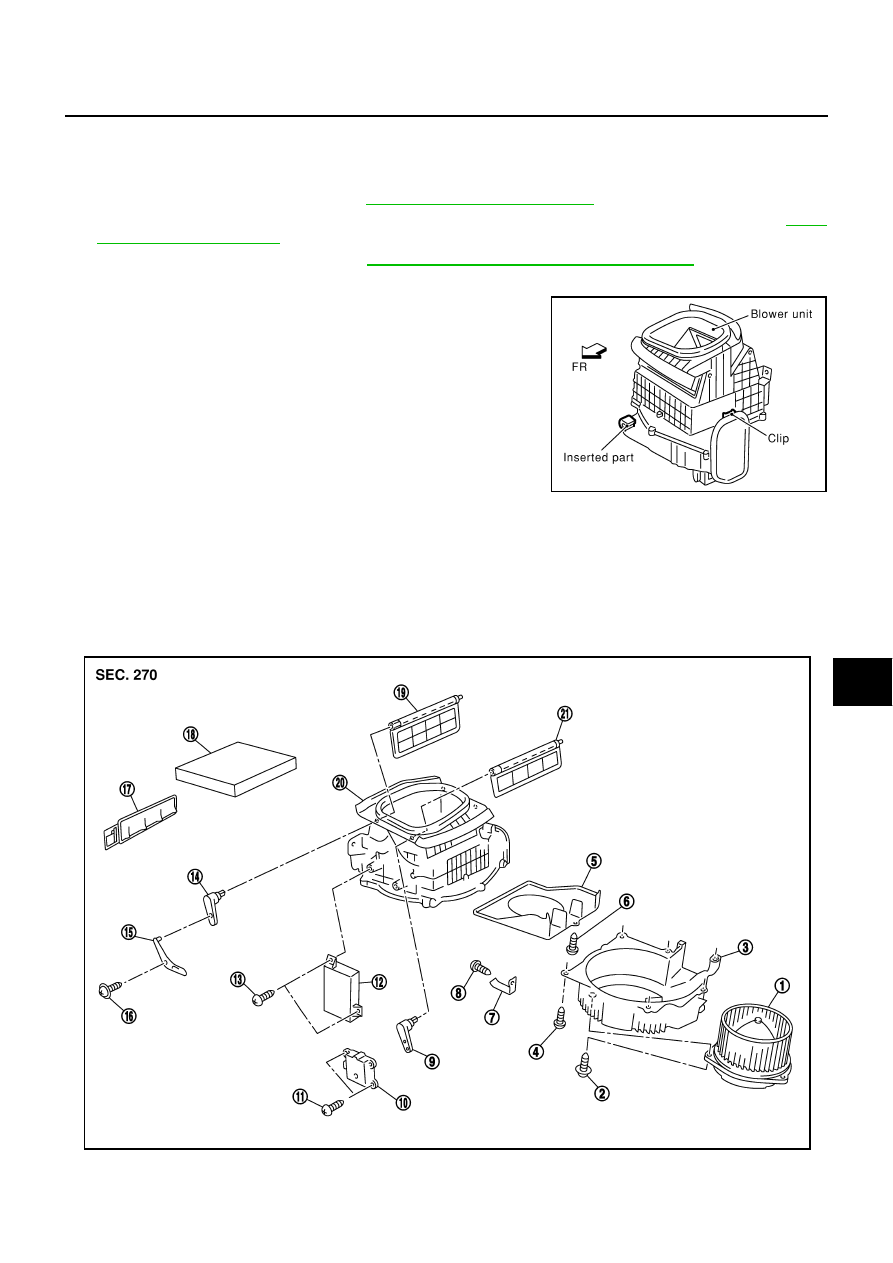

BLOWER UNIT

PFP:27200

Removal and Installation

AJS000CP

REMOVAL

1.

Remove glove box assembly. Refer to

IP-11, "Removal and Installation"

 .

2.

Remove glove box cover, instrument lower assistant panel and instrument panel bracket. Refer to

IP-11,

"Removal and Installation"

 .

3.

Remove ECM and audio unit. Refer to

AV-29, "Removal and Installation of Audio Unit"

 .

4.

Disconnect blower motor connector, intake door motor connector and auto amp. connector.

5.

Remove mounting screws from blower unit, and then remove it.

CAUTION:

Slide the blower unit toward right, remove location pins (2
pieces), then move it downwards.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Make sure the location pins (2 pieces) are securely installed.

NOTE:

When attaching the blower unit, the work will be easier if the blower motor is removed first.

Disassembly and Assembly

AJS000CQ

RJIA0314E

RJIA0315E

ATC-120

BLOWER UNIT

1.

Blower motor assembly

2.

Screw

3.

Lower case

4.

Screw

5.

Bell mouth

6.

Screw

7.

Clamp

8.

Screw

9.

Intake door lever No. 1

10. Intake door motor

11. Screw

12. Auto amp.

13. Screw

14. Intake door lever No. 2

15. Intake door link

16. Screw

17. Filter cover

18. In-cabin microfilter

19. Intake door No. 2

20. Upper case

21. Intake door No. 1
