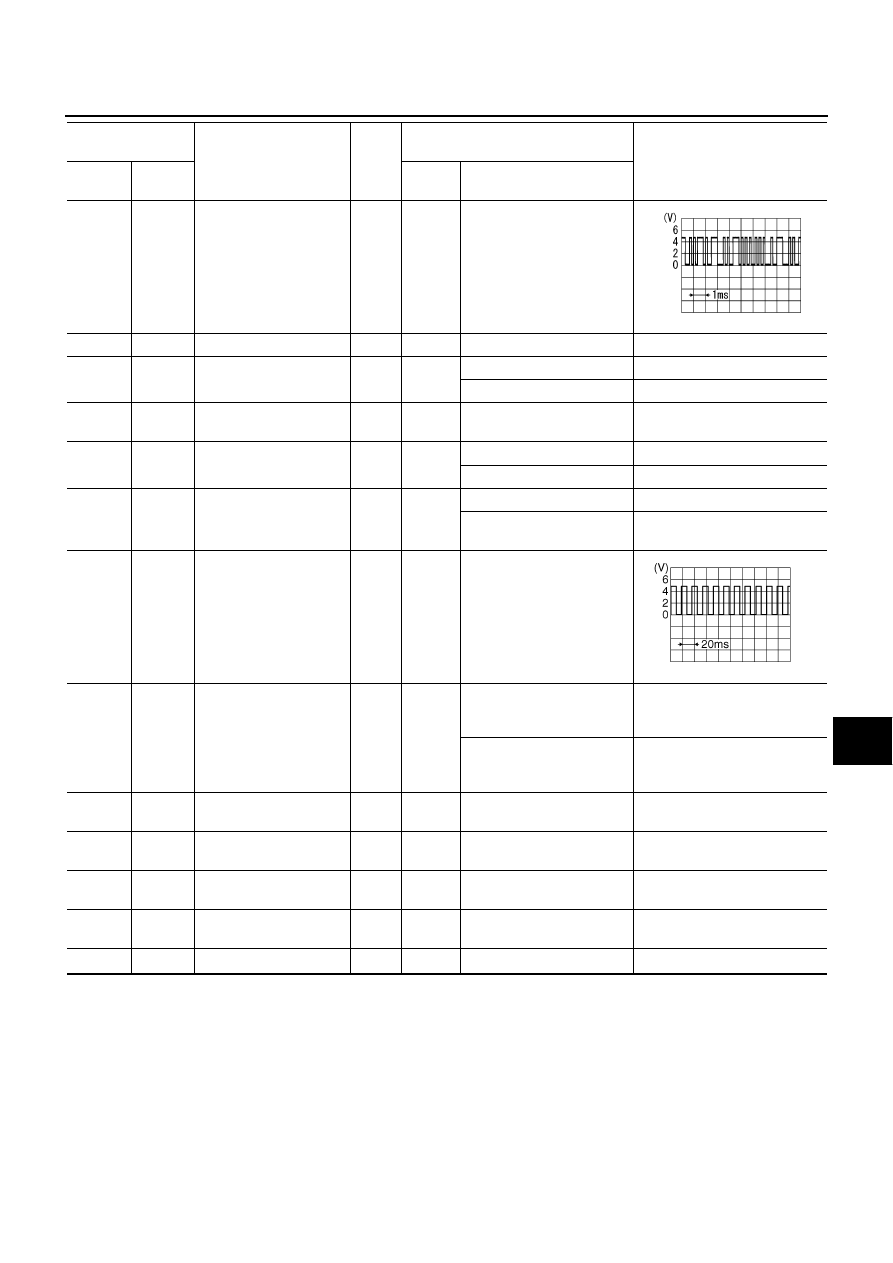

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT

AV-209

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

*: With navigation system

54

(W/L)

Ground

Communication signal
(DISP-CONT)

Input

ON

When adjusting display
brightness.

55

–

Shield

–

–

–

–

61

(LG)

Ground

Illumination signal

Input

OFF

Lighting switch is OFF.

Approx. 0 V

Lighting switch is ON.

Approx. 12 V

63

(Y/G)

Ground

Ignition signal

Input

ON

–

Battery voltage

64

(P)

Ground

Parking brake signal

Input

ON

Parking brake ON.

Approx. 0 V

Parking brake OFF.

Approx. 12 V

65

(O)

Ground

Reverse signal

Input

ON

Select lever in R position.

Approx. 12 V

Other than selector lever in
R position.

Approx. 0 V

66

(G)

Ground

Vehicle speed signal
(8-pulse)

Input

ON

When vehicle speed is
approx. 40 km/h (25 MPH).

67

(V)

Ground

Camera-connection rec-
ognition signal

Input

ON

Connected to rear view
camera control unit connec-
tor.

Approx. 0 V

Not connected to rear view
camera control unit connec-
tor.

Approx. 5 V

69

(W)

–

Communication signal
(H)

Input/

Output

–

–

–

70

(R)

–

Communication signal
(L)

Input/

Output

–

–

–

71

(LG)

–

CAN-H

Input/

Output

–

–

–

72

(P)

–

CAN-L

Input/

Output

–

–

–

107

*

Ground

GPS signal

Input

ON

Connector is not connected.

Approx. 5 V

Terminal

(Wire color)

Item

Signal

Input/

output

Condition

Reference value

+

–

Ignition

switch

Operation

PKIB5039J

SKIA6649J

AV-210

[WITH MOBILE ENTERTAINMENT SYSTEM]

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT

Video Distributor

NKS004AP

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

+

–

Ignition

Switch

Operation

1

(W)

–

Communication signal
(H)

Input/

Output

–

–

–

2

(R)

–

Communication signal
(L)

Input/

Output

–

–

–

3

(W)

–

Communication signal
(H)

Input/

Output

–

–

–

4

(O)

–

Communication signal
(L)

Input/

Output

–

–

–

6

–

Shield

–

–

–

–

7

(B/R)

Ground

Composite synchroniz-
ing signal (front)

Output

ON

Front display
DVD image

8

(BR)

Ground

Composite image signal
(front)

Output

ON

Front display
DVD image

10

(B)

12

(G)

RGB signal (R: red)
(front)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

11

(W)

12

(G)

RGB signal (G: green)
(front)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

12

(G)

–

RGB ground

–

ON

–

Approx. 0 V

13

(R)

12

(G)

RGB signal (B: blue)
(front)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

SKIA0187E

SKIB2251J

SKIB2238J

SKIB2236J

SKIB2237J

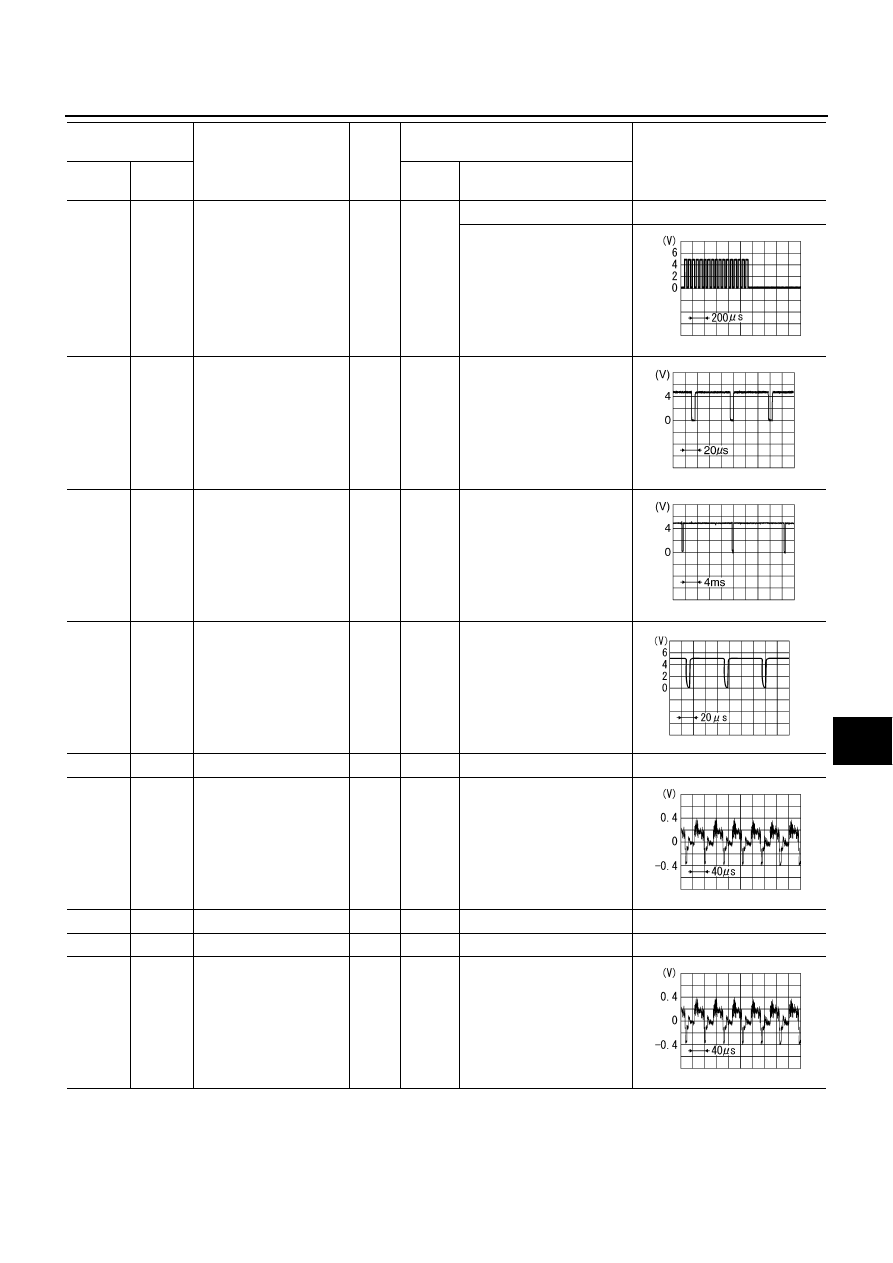

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT

AV-211

[WITH MOBILE ENTERTAINMENT SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

AV

14

(L/G)

Ground

RGB area (YS) signal
(front)

Output

ON

When inputting RGB image.

Approx. 5 V

Set the selector lever in R
position, and then display
the rear view  image.

15

(W/L)

Ground

Horizontal synchronizing
(HP) signal (front)

Input

ON

–

16

(O/L)

Ground

Vertical synchronizing
(VP) signal (front)

Input

ON

–

17

(L/Y)

Ground

RGB synchronizing
signal (front)

Output

ON

–

18

–

Shield

–

–

–

–

19

(R)

Ground

AUX image signal

Input

ON

AUX image

21

–

Shield

–

–

–

–

22

–

Shield

–

–

–

–

23

(L)

Ground

DVD image signal

Input

ON

DVD image

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

+

–

Ignition

Switch

Operation

PKIB4948J

SKIB3601E

SKIB3598E

SKIA3222J

SKIB2251J

SKIB2251J

AV-212

[WITH MOBILE ENTERTAINMENT SYSTEM]

TERMINALS AND REFERENCE VALUE FOR CONTROL UNIT

25

(B)

27

(G)

RGB signal (R: red)
(rear)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

26

(W)

27

(G)

RGB signal (G: green)
(rear)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

27

(G)

Ground

RGB ground

–

ON

–

Approx. 0 V

28

(R)

27

(G)

RGB signal (B: blue)
(rear)

Output

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

29

(W/R)

Ground

Vertical synchronizing
(VP) signal
(rear)

Input

ON

–

30

(W)

Ground

Horizontal synchronizing
(HP) signal (rear)

Input

ON

–

31

–

Shield

–

–

–

–

32

(R/L)

Ground

RGB area (YS) signal
(rear)

Output

ON

When inputting RGB image.

Approx. 5 V

Rear display
DVD image

Terminal

(Wire color)

Item

Signal

input/

output

Condition

Reference value

+

–

Ignition

Switch

Operation

SKIB2238J

SKIB2236J

SKIB2237J

SKIB0823E

SKIB0825E

PKIB4949J
