REMOVAL AND INSTALLATION

WT-27

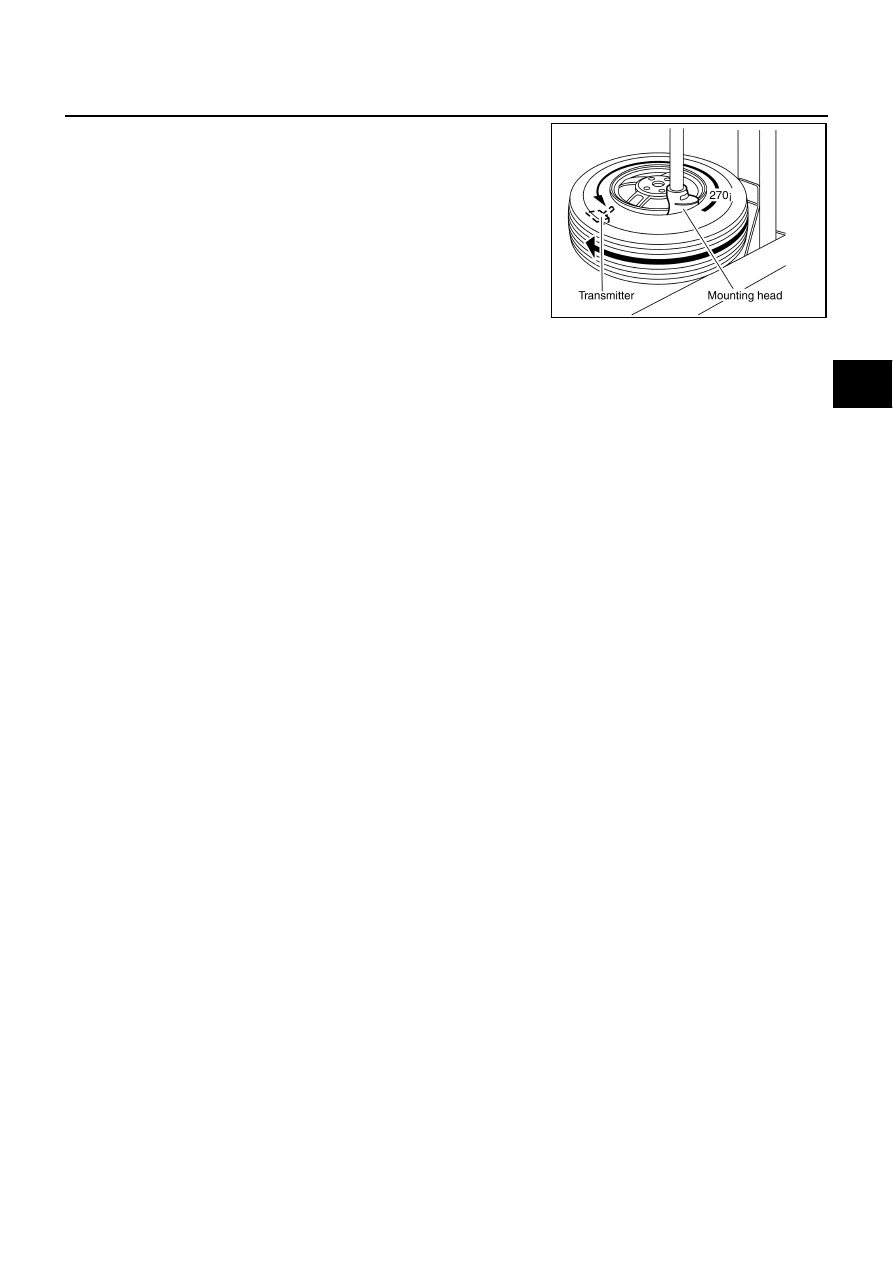

Place wheel on turntable of tire machine. Ensure that transmitter
is 270 degree from mounting head when second side of tire is
fitted.

NOTE:
Do not touch transmitter at mounting head.

Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.

Inflate tire and fit to appropriate wheel position.

SEIA0048E

WT-28

SERVICE DATA

PFP:00030

Road Wheel

EES000DT

Tire

EES000DU

Unit: kPa (kg/cm

, psi)

Kind of wheel

Aluminum

Steel for emergency use

Deflection limit

Lateral deflection

Less than 0.3 mm

(0.012 in)

Less than 1.0 mm

(0.039in)

Vertical deflection

Less than 0.3 mm

(0.012in)

Less than 1.2 mm

(0.047in)

Allowable quantity of
residual unbalance

Dynamic
(On the ear part)

Less than 10g (0.35oz) (per side)

Static (On the ear part)

Less than 20g (0.70oz)

Tire size

Air pressure

Front wheel

Rear wheel

225/55R17
245/45R18

230 (2.3, 33)

T145/90D16

420 (4.2, 60)

WW-2

PRECAUTION

PFP:00011

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EKS00F57

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Wiring Diagrams and Trouble Diagnosis

EKS001IQ

When you read wiring diagrams, refer to the followings:

●

Refer to

GI-13, "How to Read Wiring Diagrams"

●

Refer to

PG-2, "POWER SUPPLY ROUTING"

for power distribution circuit.

When you perform trouble diagnosis, refer to the followings:

●

Refer to

GI-10, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

●

Refer to

GI-26, "How to Perform Efficient Diagnosis for an Electrical Incident"
