SIDE CURTAIN AIR BAG MODULE

SRS-47

C

D

E

F

G

I

J

K

L

M

A

B

SRS

SIDE CURTAIN AIR BAG MODULE

PFP:985P0

Removal and Installation

EHS0008S

REMOVAL

CAUTION:

●

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

●

Always work from the side of the side curtain air bag module.

1.

Remove rear pillar finisher. Refer to

EI-37, "Removal and Installation"

 .

2.

Disconnect the side curtain air bag module connector.

3.

Remove headlining. Refer to

EI-49, "Removal and Installation"

 .

4.

Remove side curtain air bag module fixing bolts, and remove the side curtain air bag module.

CAUTION:

●

Always place the side curtain air bag module with the caution label facing upward.

●

Do not attempt to disassemble side curtain air bag module.

●

Do not insert any foreign objects (screwdriver, etc.) into air
bag module connector.

●

Replace side curtain air bag module if it has been dropped
or sustained an impact.

●

Do not expose the air bag module to temperatures exceed-
ing 90

°

C (194

°

F).

●

Do not allow oil, grease or water to come in contact with the
side curtain air bag module.

INSTALLATION

To install, reverse the removal procedure sequence.

CAUTION:

●

Always work from the side of the side curtain air bag module.

●

After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunc-
tion is detected. Refer to

SRS-20, "SRS Operation Check"

 .

SHIA0190E

SBF814E

SRS-48

CRASH ZONE SENSOR

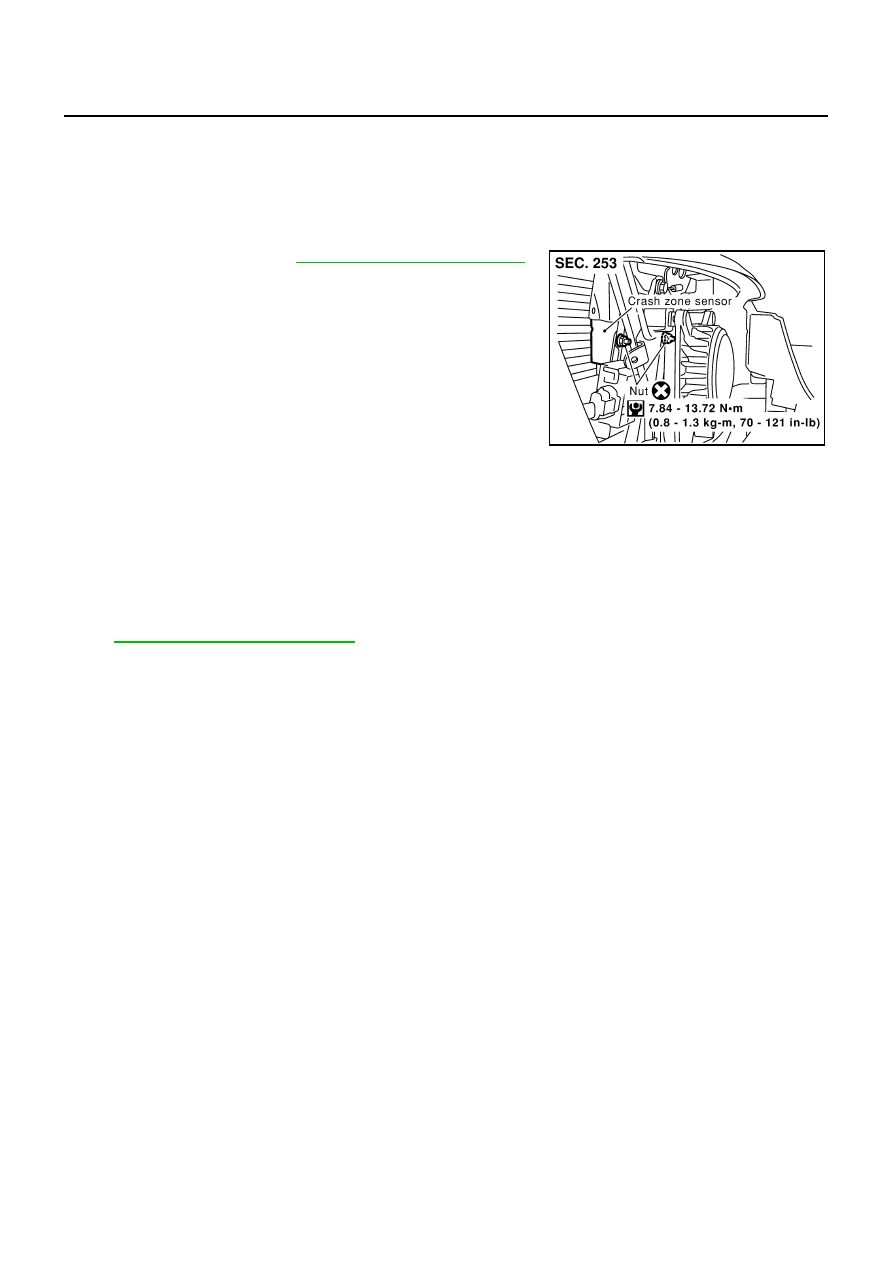

CRASH ZONE SENSOR

PFP:98531

Removal and Installation

EHS0009M

REMOVAL

CAUTION:

●

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

1.

Remove front grille. Refer to

EI-19, "Removal and Installation"

 .

2.

Remove crash zone sensor connector.

3.

Remove crash zone sensor fixing nuts.

CAUTION:

●

Replace crash zone sensor if it has been dropped or sustained an impact.

●

Do not attempt to disassemble crash zone sensor.

INSTALLATION

To install, reverse the removal procedure sequence.

CAUTION:

●

Check crash zone sensor for proper installation.

●

After the work is complete, perform self-diagnosis to check that no malfunction is detected. Refer
to

SRS-20, "SRS Operation Check"

 .

SHIA0191E

SIDE AIR BAG (SATELLITE) SENSOR

SRS-49

C

D

E

F

G

I

J

K

L

M

A

B

SRS

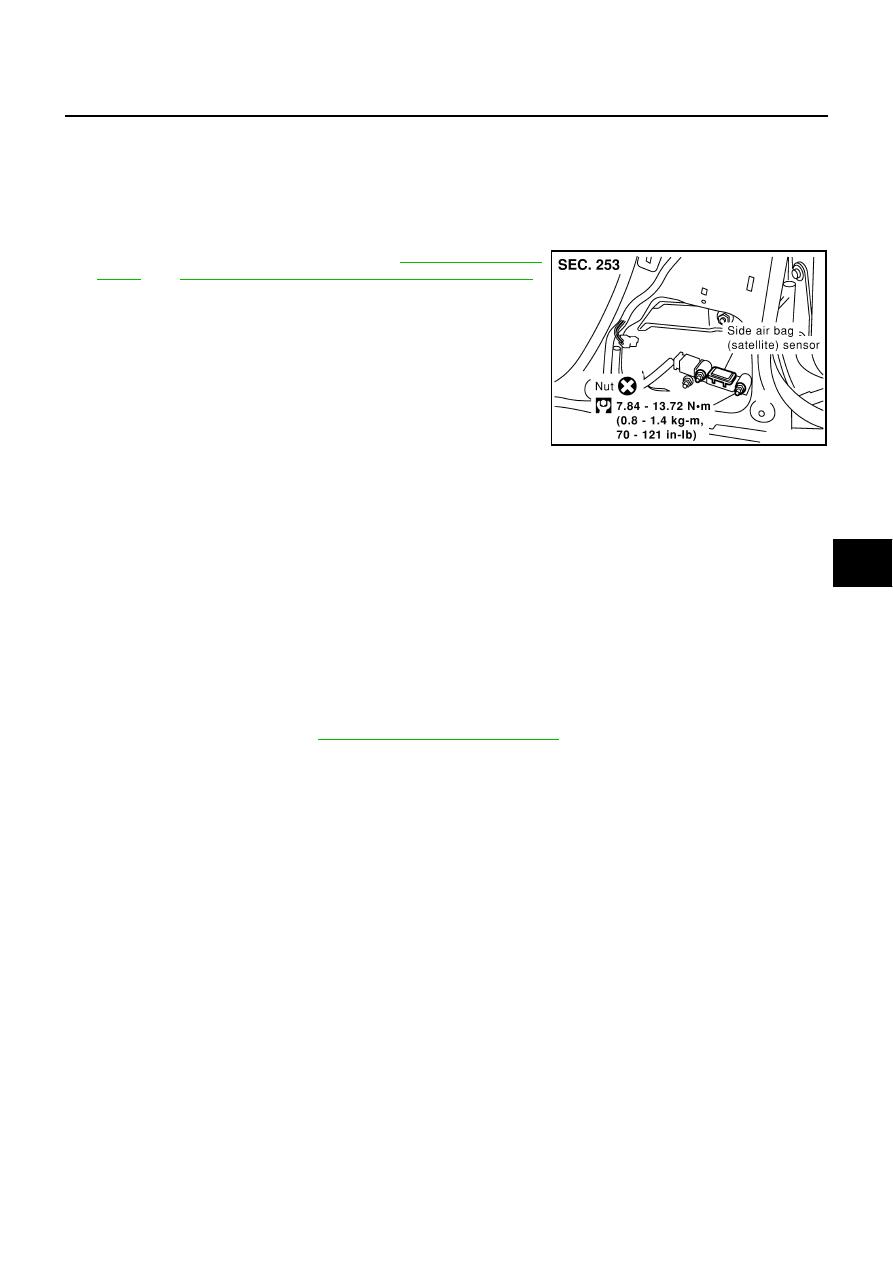

SIDE AIR BAG (SATELLITE) SENSOR

PFP:98830

Removal and Installation

EHS0008U

REMOVAL

CAUTION:

●

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

1.

Remove seat belt pre-tensioned. Refer to

EI-37, "BODY SIDE

TRIM"

  and

SB-3, "Removal and Installation of Front Seat Belt"

 .

2.

Remove side air bag (Satellite) sensor fixing nuts.

3.

Remove the side air bag (Satellite) sensor connector.

CAUTION:

●

Do not use old bolts, replace with new ones.

●

Check side air bag (Satellite) sensor to ensure they are free of deformities, dents, cracks or rust. If
it shows any visible signs of damage, replace it with new one.

●

Do not attempt to disassemble side air bag (Satellite) sensor.

●

Replace side air bag (Satellite) sensor if it has been dropped or sustained an impact.

●

When the front side air bag or side curtain air bag deploys, always replace it with a new one.

INSTALLATION

To install, reverse the removal procedure sequence.

CAUTION:

●

Check side air bag (Satellite) sensor for proper installation.

●

After replacement of side air bag (Satellite) sensor, perform self-diagnosis to check that no mal-
function is detected. Refer to

SRS-20, "SRS Operation Check"

 .

SHIA0194E

SRS-50

FRONT SEAT BELT PRE-TENSIONER

FRONT SEAT BELT PRE-TENSIONER

PFP:86884

Removal and Installation

EHS000O5

To removal and installation procedures, refer to

SB-3, "Removal and Installation of Front Seat Belt"

 .
