Infiniti F50. Manual - part 794





CLIMATE CONTROLLED SEAT

SE-167

C

D

E

F

G

H

J

K

L

M

A

B

SE

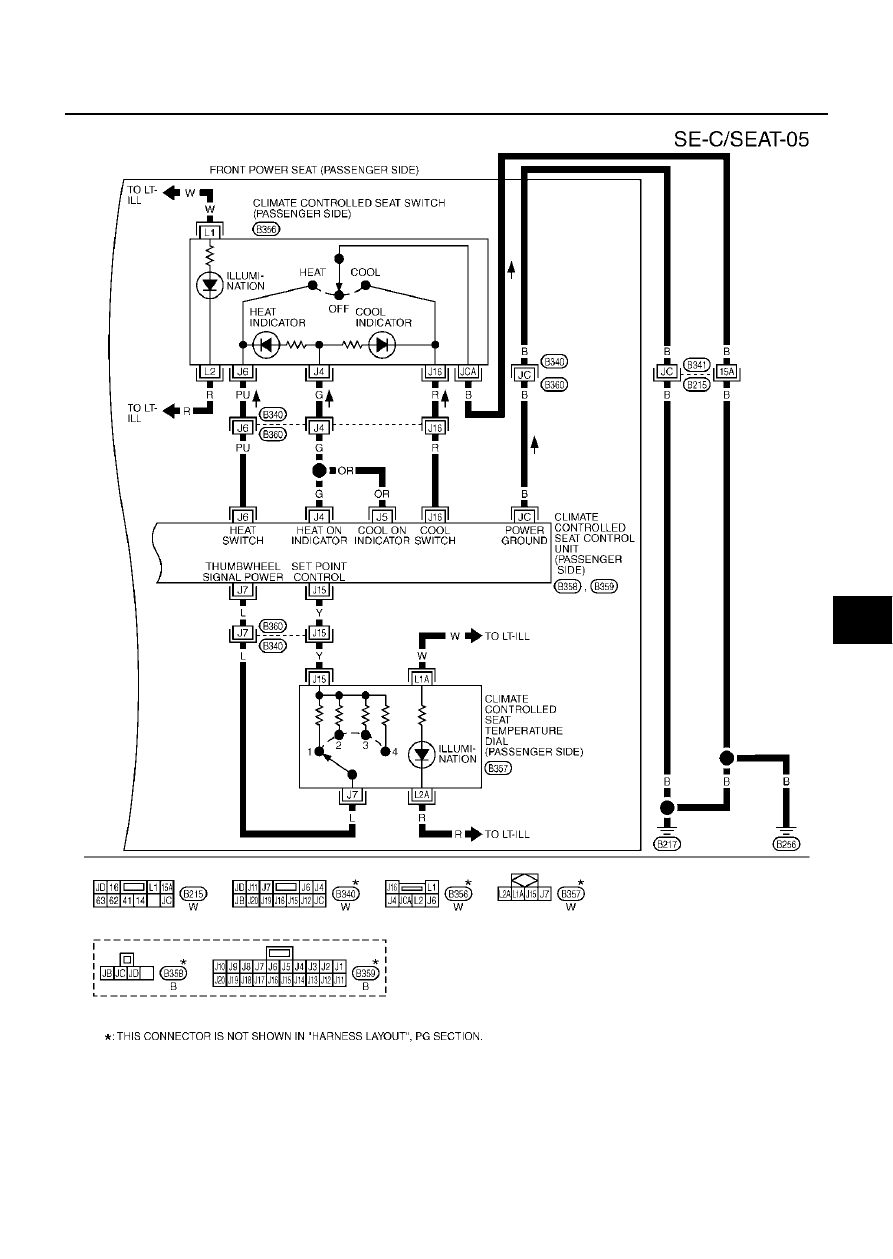

TIWM0175E

SE-168

CLIMATE CONTROLLED SEAT

Terminal and Reference Value For Climate Controlled Seat Control Unit

EIS003SB

TER-

MINAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx)

JB

W/G

Ignition switch power supply

Ignition switch ON or START

Battery voltage

JC

B

Ground

0

JD

W/R

Ignition switch power supply

Ignition switch ON or START

Battery voltage

J 1

Y/G

Seat cushion thermal electric
device power supply (HEAT)

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT"

0 – 12

Climate controlled seat switch
select "OFF"

0

J 2

W/L

Seat cushion thermal electric
device power supply (COOL)

Ignition switch ON or
START

Climate controlled seat switch
select "COOL"

0 – 12

Climate controlled seat switch
select "OFF"

0

J3

GY

Ground

0

J4

G

"HEAT" switch indicator signal

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT"

Battery voltage

Climate controlled seat switch
select "OFF"

0

J5

OR

"COOL" switch indicator signal

Ignition switch ON or
START

Climate controlled seat switch
select "COOL"

Battery voltage

Climate controlled seat switch
select "OFF"

0

J6

PU

"HEAT" switch signal

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT"

0

Climate controlled seat switch
OFF

Battery voltage

J7

L

Temperature dial power supply

Ignition switch ON or
START

temperature dial 1 – 4

7.1 – 11.4

Ignition switch OFF

0

J10

PU

Blower motor power supply

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT" or "COOL"
temperature dial 1 – 4

5.5 – 12

Climate controlled seat switch
select "OFF"

Battery voltage

Ignition switch OFF

0

J 11

B/R

Seatback thermal electric
device power supply (HEAT)

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT"

0 – 12

Climate controlled seat switch
select "OFF"

0

J 12

PU/W

Seatback thermal electric
device power supply (COOL)

Ignition switch ON or
START

Climate controlled seat switch
select "COOL"

0 – 12

Climate controlled seat switch
select "OFF"

0

J 13

R

Blower motor speed control sig-
nal

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT" or "COOL"
temperature dial 1 – 4

4.5 – 9.5

Climate controlled seat switch
OFF

0

J14

W

Blower motor tachometer signal

Ignition switch ON or
START

Climate controlled seat switch
select "HEAT" or "COOL"

5 – 7

Climate controlled seat switch
OFF

Battery voltage

CLIMATE CONTROLLED SEAT

SE-169

C

D

E

F

G

H

J

K

L

M

A

B

SE

Work Flow

EIS003SC

1.

Check the symptom and customer's requests.

2.

Understand the outline of system. Refer to

SE-158, "System Description"

 .

3.

Perform the preliminary check. Refer to

SE-169, "Preliminary Check"

 .

4.

According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

SE-170,

"Trouble Diagnoses Symptom Chart"

 .

5.

Does climate controlled seat operate normally? YES: GO TO 6, NO: GO TO 4.

6.

INSPECTION END.

Preliminary Check

EIS003UR

1.

CHECK DUCT AND FILTER

Check the following.

If is checked that there is no foreign body in the blower motor filter.

If is checked that there is no foreign body in the duct.

YES or NO

YES

>> Preliminary check is OK.

NO

>> The foreign body is removed.

J15

Y

Temperature dial signal

Ignition switch ON or
START

temperature dial 1 – 4

0 – 5

Ignition switch OFF

0

J16

R

"COOL" switch signal

Ignition switch ON or
START

Climate controlled seat switch
select "COOL"

0

Climate controlled seat switch
OFF

Battery voltage

J17

B/R

Seat cushion thermal electric
device sensor ground

Ignition switch ON

J18

G/R

Seat cushion thermal electric
device sensor signal

Ignition switch ON or START

0.5 – 4

Ignition switch OFF

0

J19

L/OR

Seatback thermal electric
device sensor signal

Ignition switch ON or START

0.5 – 4

Ignition switch OFF

0

J20

R/L

Seatback thermal electric
device sensor ground

Ignition switch ON

0

TER-

MINAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx)

SE-170

CLIMATE CONTROLLED SEAT

Trouble Diagnoses Symptom Chart

EIS003SD

Make sure other systems using the signal of the following systems operate normally.

NOTE:

The climate controlled seat blower keep low speed for approximately 60 seconds turning the switch or the
dial.

Symptom

Diagnoses / service procedure

Refer to page

Climate controlled seat do not operate (Neither the driver' s
side nor passenger's side operate).

1. Climate controlled seat relay power supply
circuit inspection.

SE-171

All the driver side climate controlled seat do not operate (Pas-
senger side operates).

1. Driver side climate controlled seat control
unit power supply and ground circuit inspec-
tion.

SE-172

2. Climate controlled seat temperature dial cir-
cuit inspection.

SE-178

3. Climate controlled seat switch ground circuit
inspection

SE-180

4. Blower motor power supply circuit inspec-
tion.

SE-185

5. Replace blower motor assembly.

All the passenger side climate controlled seat do not operate
(Driver side operates)

1. Passenger side climate controlled seat con-
trol unit power supply and ground  circuit
inspection.

SE-174

2. Climate controlled seat temperature dial cir-
cuit inspection.

SE-178

3. Climate controlled seat switch ground circuit
inspection

SE-180

4. Blower motor power supply circuit inspec-
tion.

SE-185

5. Replace blower motor assembly.

Blower motor speed cannot adjust.

1. Climate controlled temperature dial inspec-
tion.

SE-178

2. Climate controlled seat control unit inspec-
tion.

SE-187

3. Replace blower motor assembly.

The climate controlled seat  dose not operates when the switch
is done in "HEAT" (The wind rises when the switch is in "COOL"
mode).

Climate controlled seat "HEAT" switch circuit
inspection.

SE-176

The climate controlled seat  dose not operates when the switch
is done in "COOL" (The wind rises when the switch is in "HEAT"
mode).

Climate controlled seat "COOL" switch circuit
inspection.

SE-177

When the climate controlled seat switch is turned on, operation
stops at nose (When the climate controlled seat switch is in
"HEAT" or "COOL" mode after ignition switch is turned ON
again, the motor operates).

1. Seat cushion thermal electric device sensor
circuit inspection.

SE-182

2. Seat cushion thermal electric device circuit
inspection

SE-181

3. Seat back thermal electric device sensor cir-
cuit inspection.

SE-184

4. Seat back thermal electric device circuit
inspection

SE-183

5. Blower motor speed control circuit inspec-
tion.

SE-186

6. Blower motor tachometer signal circuit
inspection.

SE-187

7. Replace Climate controlled seat control unit
