CLIMATE CONTROLLED SEAT

SE-163

C

D

E

F

G

H

J

K

L

M

A

B

SE

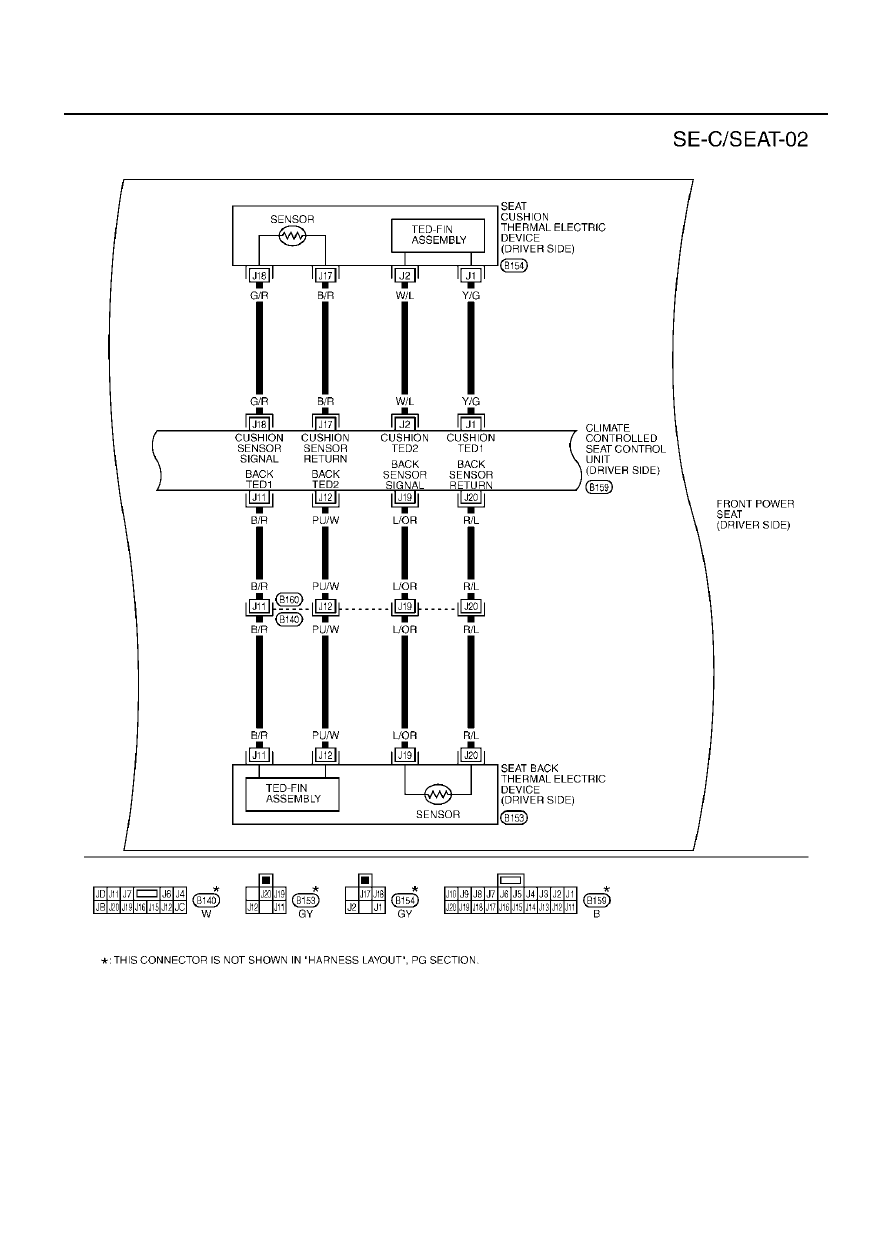

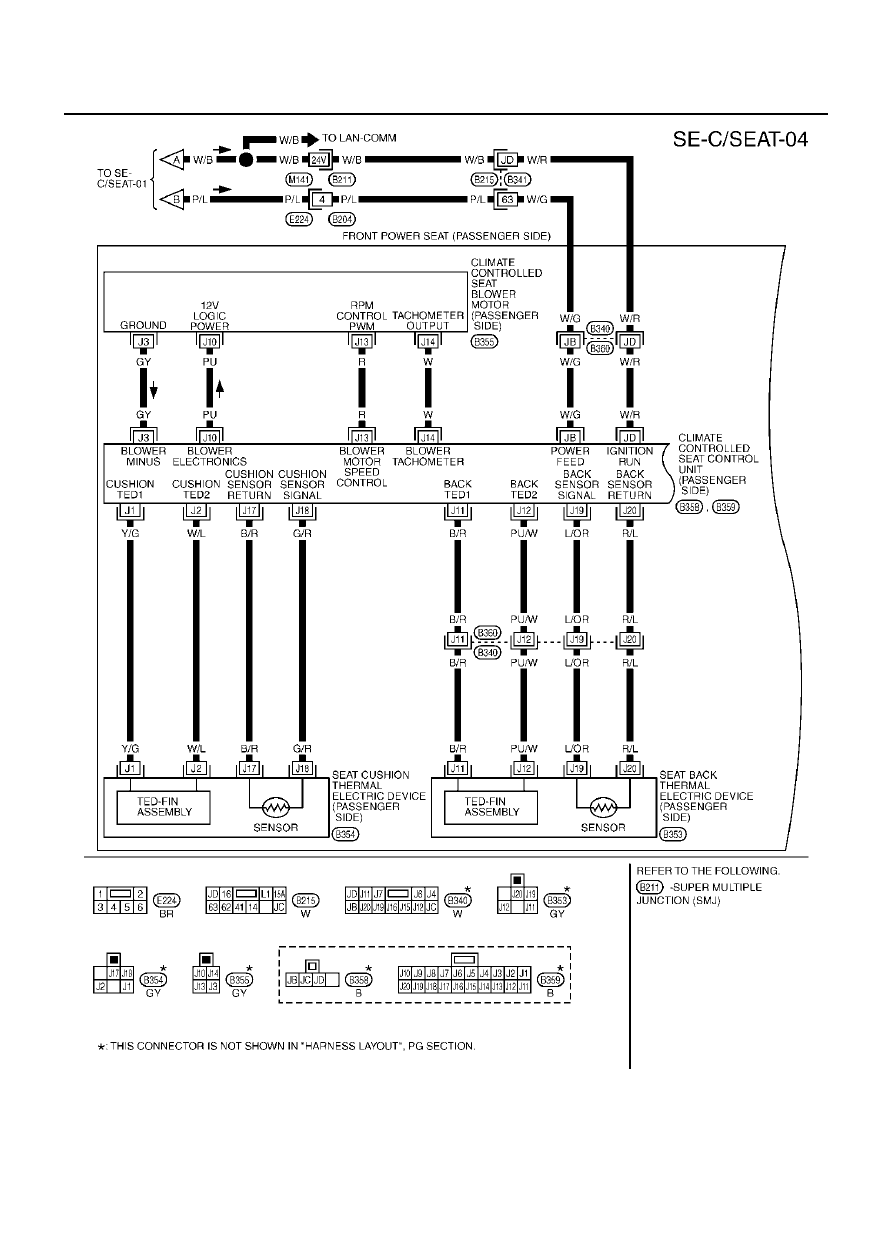

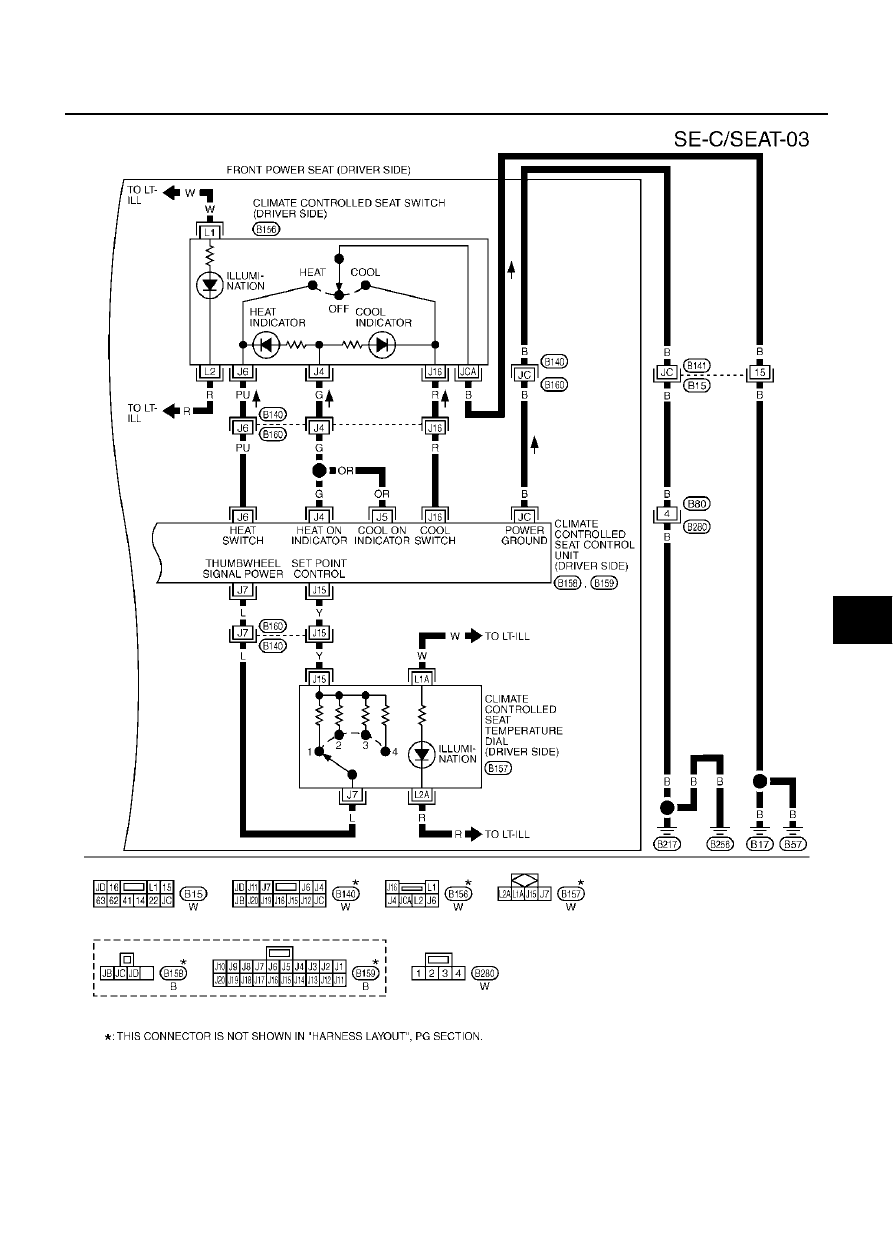

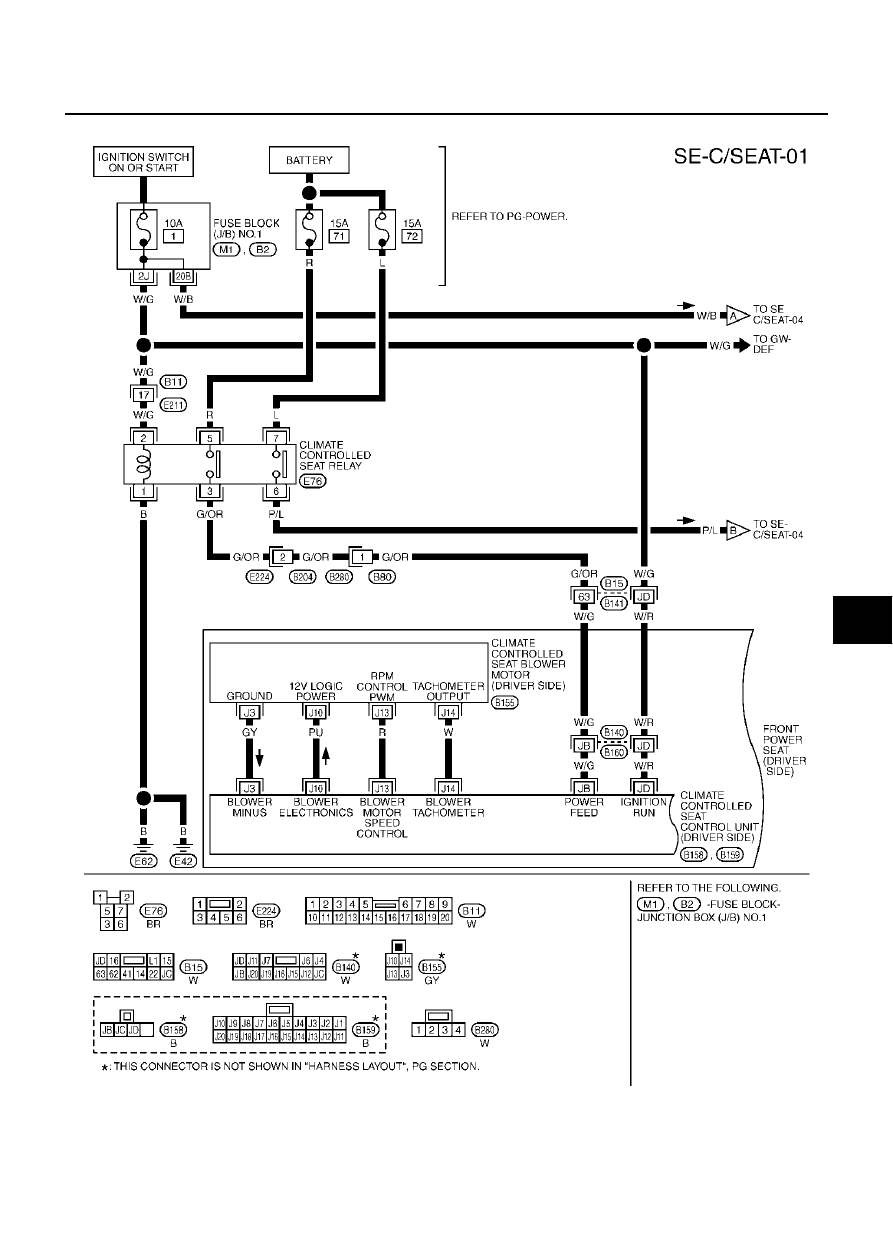

Wiring Diagram –C/SEAT–

EIS003SA

TIWM0140E

SE-164

CLIMATE CONTROLLED SEAT

TIWM0155E

CLIMATE CONTROLLED SEAT

SE-165

C

D

E

F

G

H

J

K

L

M

A

B

SE

TIWM0156E

SE-166

CLIMATE CONTROLLED SEAT

TIWM0157E
