REAR SUSPENSION ASSEMBLY

RSU-7

C

D

F

G

H

I

J

K

L

M

A

B

RSU

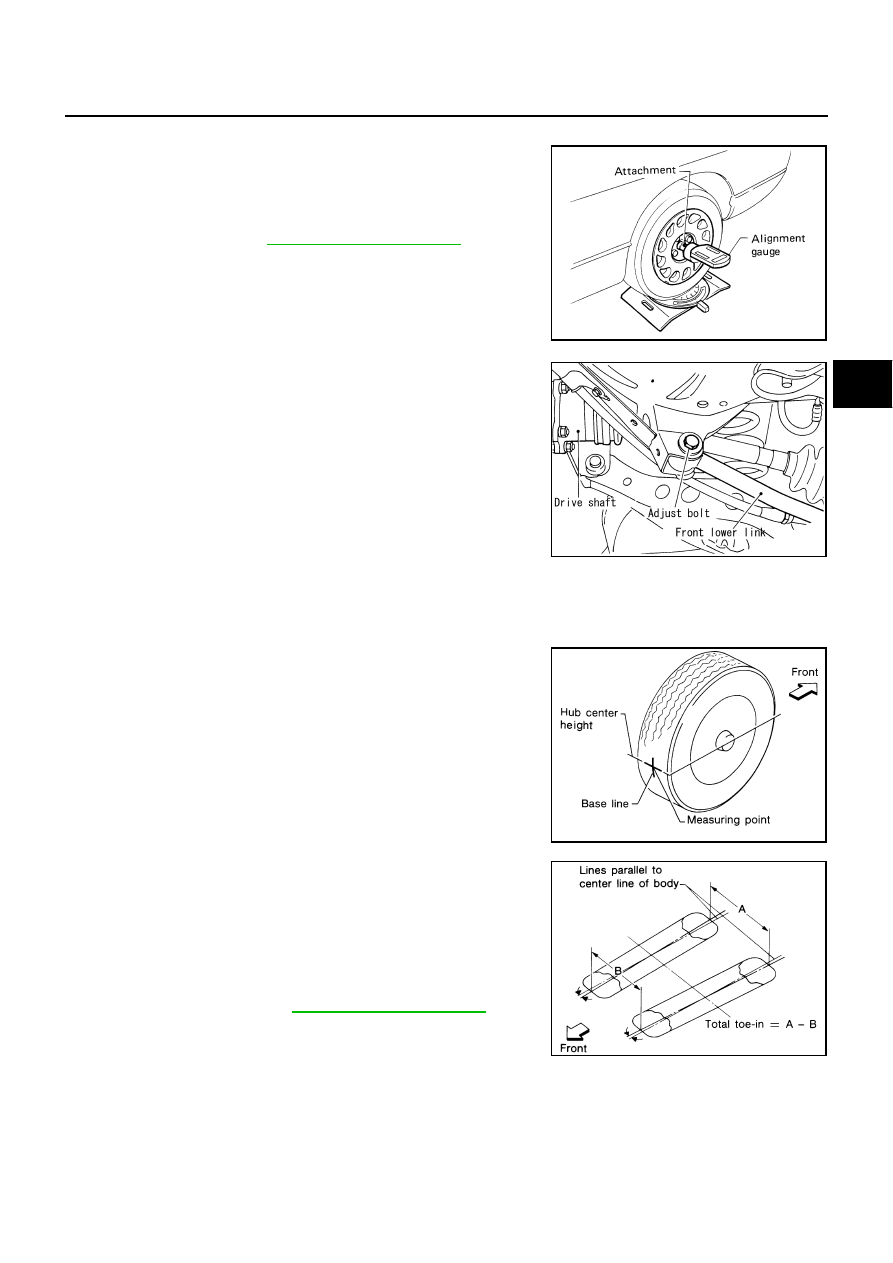

CAMBER INSPECTION

Measure camber of both right and left wheels with a suitable
alignment gauge and adjust in accordance with the following
procedures.

If outside the standard value, adjust with adjusting bolt in front lower
link.

CAUTION:

After adjusting camber, be sure to check toe-in.

TOE-IN

Measure toe-in using following procedure. If out of specification, inspect and replace any damaged or worn
rear suspension parts.

WARNING:

Always perform following procedure on a flat surface.

Make sure that no person is in front of vehicle before push-
ing it.

1.

Bounce rear of vehicle up and down to stabilize the posture.

2.

Push vehicle straight ahead about 5 m (16 ft).

3.

Put a mark on base line of the tread (rear side) of both tires at
the same height of hub center. These are measuring point.

4.

Measure distance “A” (rear side).

5.

Push vehicle slowly ahead to rotate wheels 180 agrees (1/2
turn).

If wheels have rotated more than 180 degrees (1/2 turn), try the
above procedure again from the beginning. Never push vehicle
backward.
6.

Measure distance “B” (front side).

Standard value

Camber

: Refer to

RSU-18, "SERVICE DATA"

 .

SRA096A

SEIA0071E

SFA614B

Standard value

Total toe-in

: Refer to

RSU-18, "SERVICE DATA"

 .

SFA234AC

RSU-8

REAR SUSPENSION ASSEMBLY

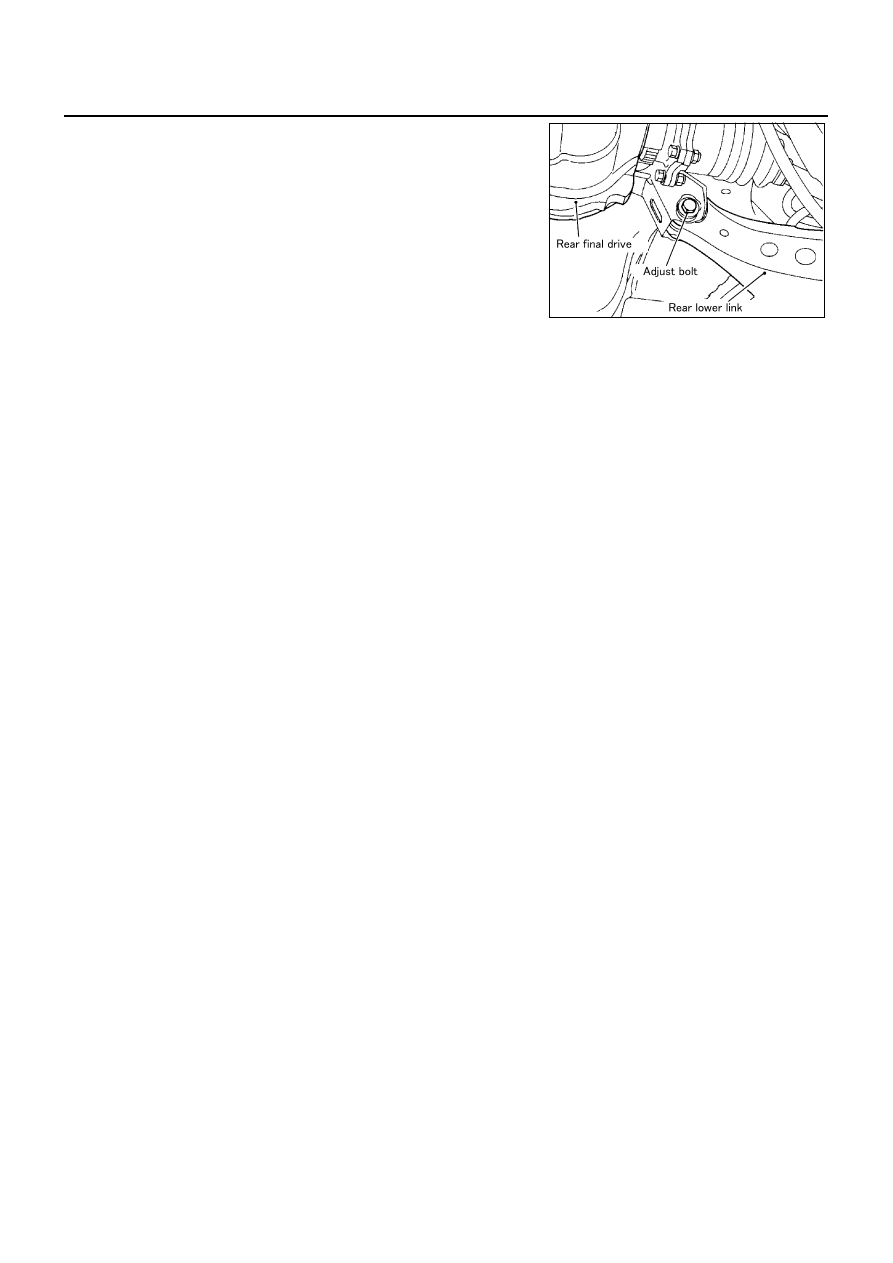

7.

If outside the standard value, adjust with adjusting bolt in rear
lower link.

CAUTION:

Be sure to adjust equally on RH and LH side with adjusting
bolt.

SEIA0072E

SHOCK ABSORBER

RSU-9

C

D

F

G

H

I

J

K

L

M

A

B

RSU

SHOCK ABSORBER

PFP:56210

Removal and Installation

EES000UD

REMOVAL

1.

Remove tire with power tool.

2.

Set jack under rear lower link to remove fixing bolt in lower side of shock absorber.

3.

Remove jack from rear lower link.

4.

Remove rear seat cushion, rear seat back and rear parcel shelf finisher.

5.

Remove cap and actuator assembly (with active damper suspension).

6.

Remove fixing nut in upper side of shock absorber.

INSPECTION AFTER REMOVAL

Check shock absorber for deformation, cracks, damage, and replace if necessary.

Check piston rod for damage, uneven wear, distortion, and replace if necessary.

Check welded and sealed areas for oil leakage, and replace if necessary.

INSTALLATION

Refer to

RSU-5, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

Perform final tightening of shock absorber lower side (rubber bushing) under unladen condition with tires
on level ground. Check wheel alignment. Refer to

RSU-18, "SERVICE DATA"

 .

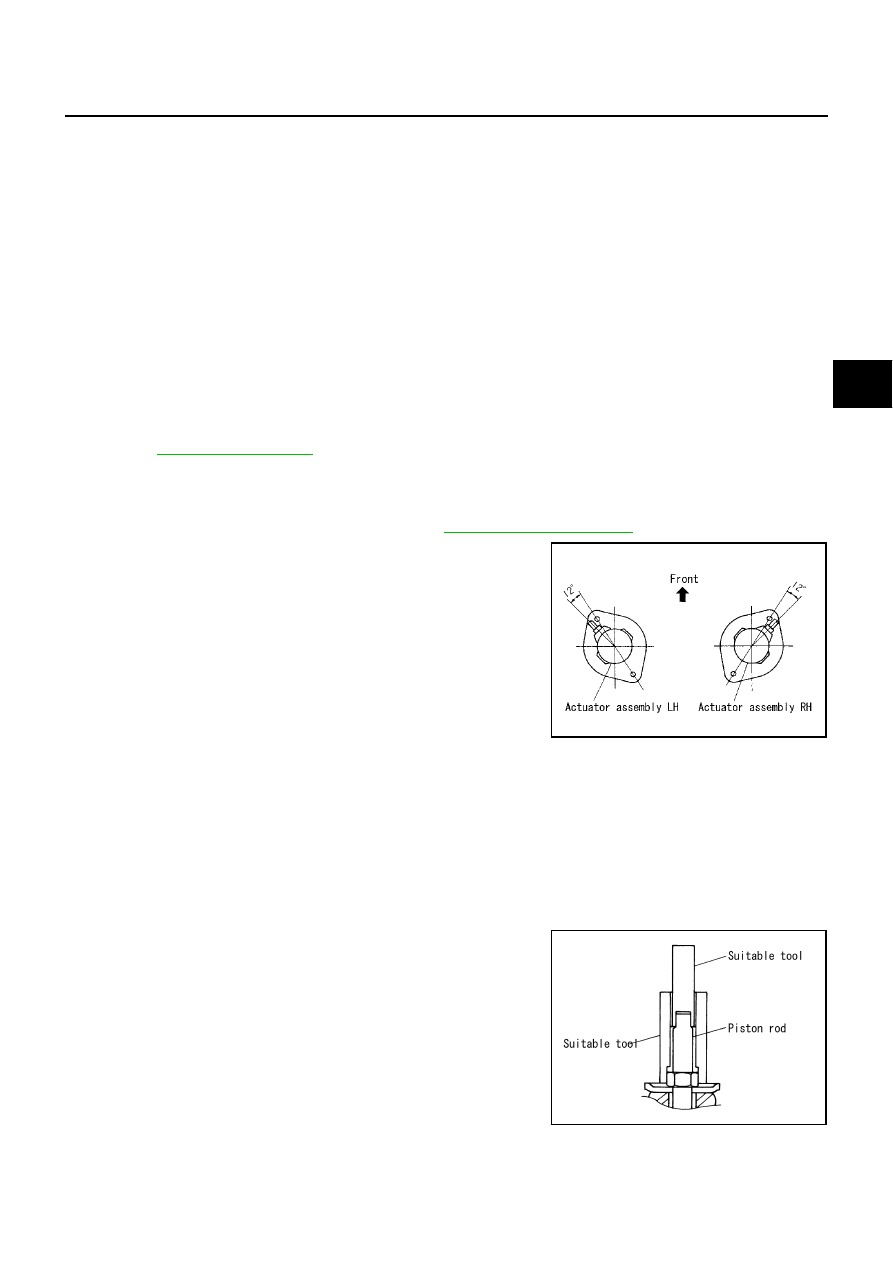

Be sure to install actuator assembly correctly as shown in illus-
tration. (With active damper suspension).

CAUTION:

If a strong shock has been given to actuator assembly or if
it has been dropped, replace it with a new one.

Disassembly and Assembly

EES000UE

DISASSEMBLY

CAUTION:

Make sure piston rod on shock absorber is not damaged when removing components from shock
absorber.
1.

Remove shock absorber mounting seal from shock absorber mounting bracket.

2.

Wrap a shop cloth around lower side of shock absorber and fix it in a vice

CAUTION:

Do not set the cylindrical part of shock absorber in vice.

3.

Fix piston rod using suitable socket wrench, and remove actua-
tor plate fixing nut with suitable tool. Then remove actuator
plate. (With active damper suspension)

4.

Secure piston rod tip so that piston rod does not turn, and remove piston rod lock nut.

SEIA0073E

SEIA0074E

RSU-10

SHOCK ABSORBER

5.

Remove washer, bushing, distance tube, shock absorber mounting bracket, bound bumper cover and
bound bumper from shock absorber.

INSPECTION AFTER DISASSEMBLY
Bound bumper and Bushing

Check bound bumper and bushing for cracks, deformation or other damage. Replace if necessary.

ASSEMBLY

Refer to

RSU-5, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

Make sure piston rod on shock absorber is not damaged when attaching components to shock
absorber.

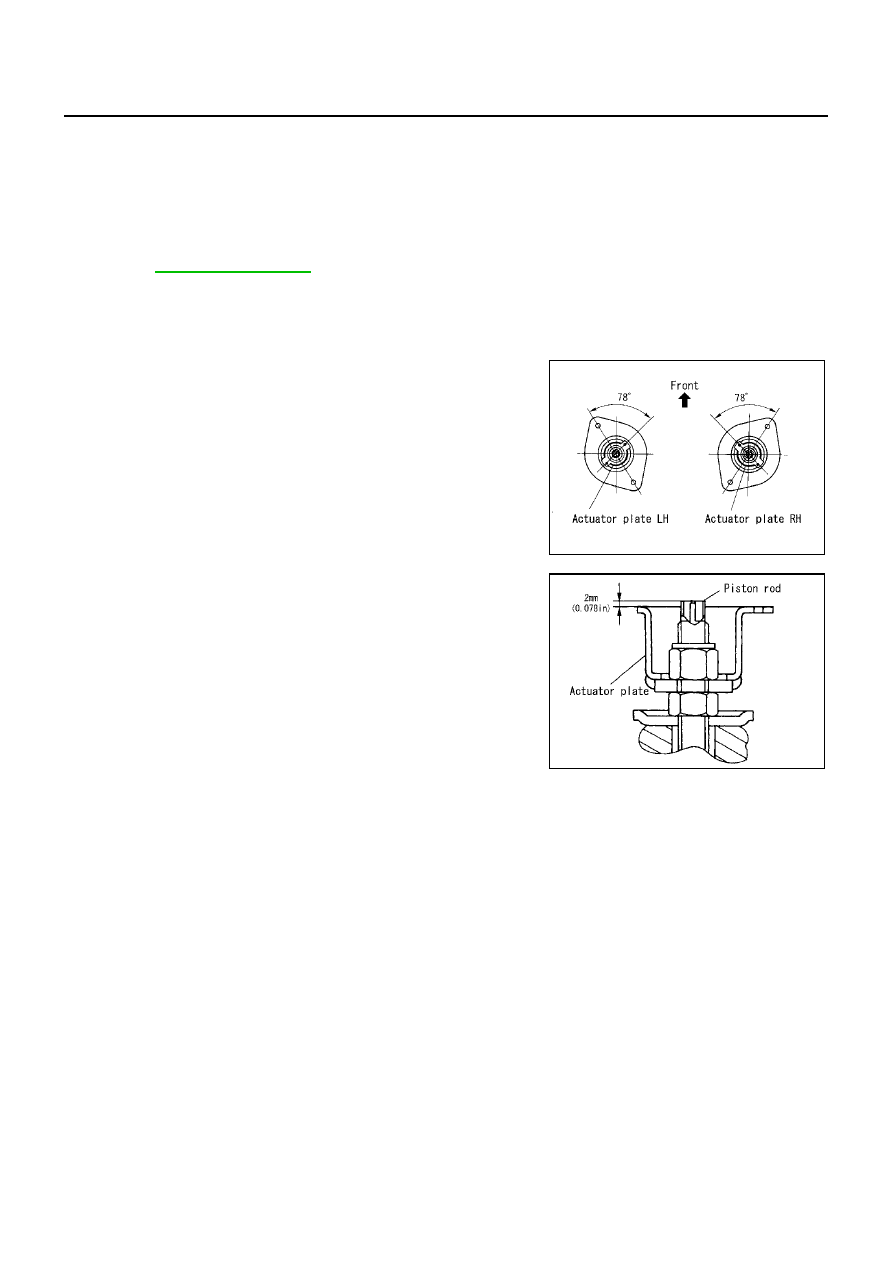

Be sure to install actuator prate correctly as shown in illustration.
(With active damper suspension)

Confirm that piston rod end is higher than actuator plate as
specified in illustration. (With active damper suspension)

SEIA0075E

SEIA0076E
