Infiniti F50. Manual - part 717





REAR DRIVE SHAFT

RAX-13

C

E

F

G

H

I

J

K

L

M

A

B

RAX

8.

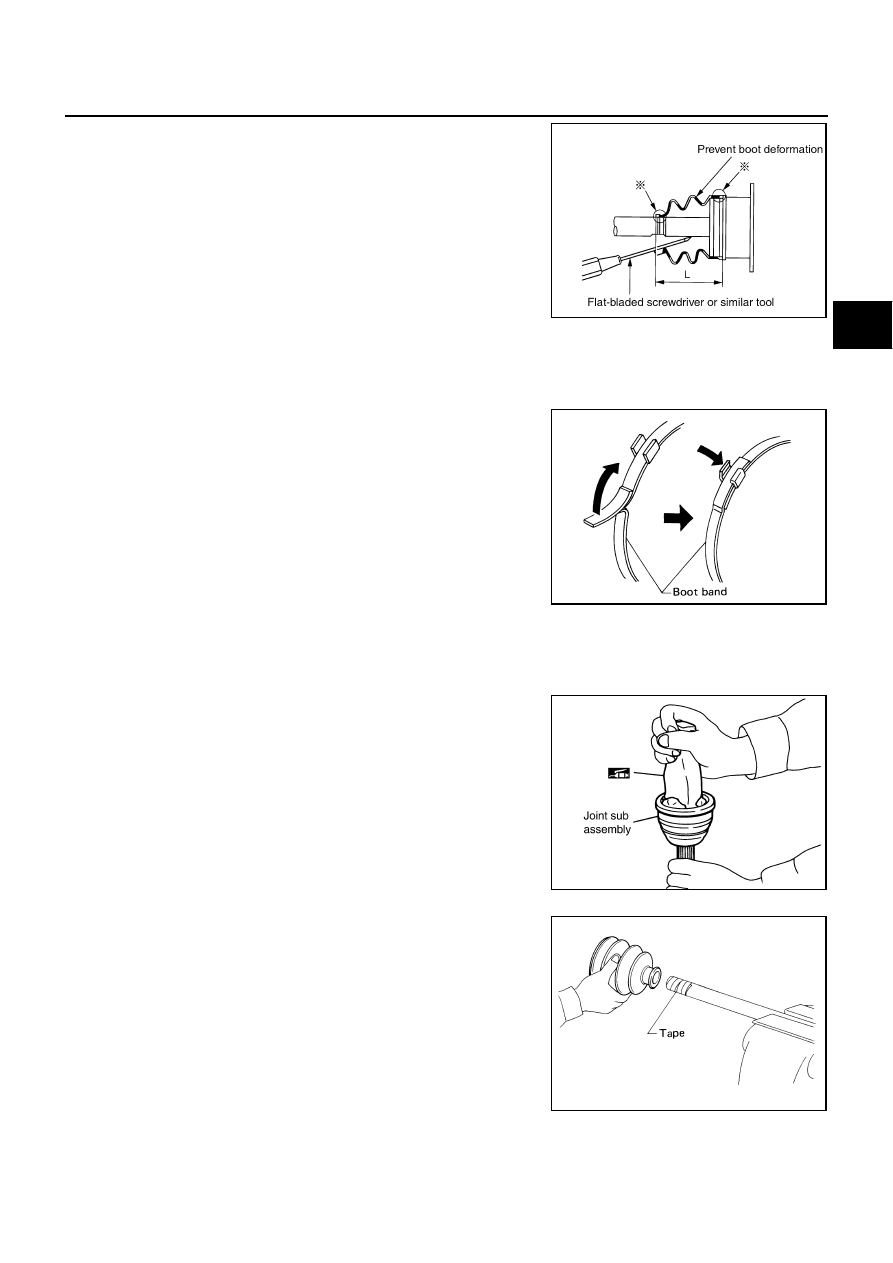

Install boot securely into grooves (indicated by * marks) shown
in the figure.

CAUTION:

If there is grease on boot mounting surfaces (indicated by*
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.

9.

Check that boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Remove air from boot to prevent boot deformation.

CAUTION:

Boot may break if boot installation length is than standard value.

Take care not to touch the tip of screwdriver to inside of boot.

10. Secure big and small ends of boot with new boot bands as

shown in the figure.

CAUTION:

Discard old boot band; replace with new ones.

11. After installing housing and shaft, rotate boot to check whether or not the actual position is correct. If boot

position is not correct, secure boot with new boot band again.

Wheel Side

1.

Insert the amount grease (Nissan genuine grease or equivalent)
into joint sub-assembly serration hole until grease begins to
ooze from ball groove and serration hole. After insert grease,
use a shop a cloth to wipe off old grease that has oozed out.

2.

Wind serrated part of shaft with tape. Install boot band and boot
to shaft. Be careful not to damage boot.

CAUTION:

Discard old boot band and boot; replace with new ones.

3.

Remove protective tape wound around serrated part of shaft.

Standard value

Boot installation Length “L”

: 93.9 mm (3.697 in)

SDIA1126E

SFA395

SDIA1127E

SFA800

RAX-14

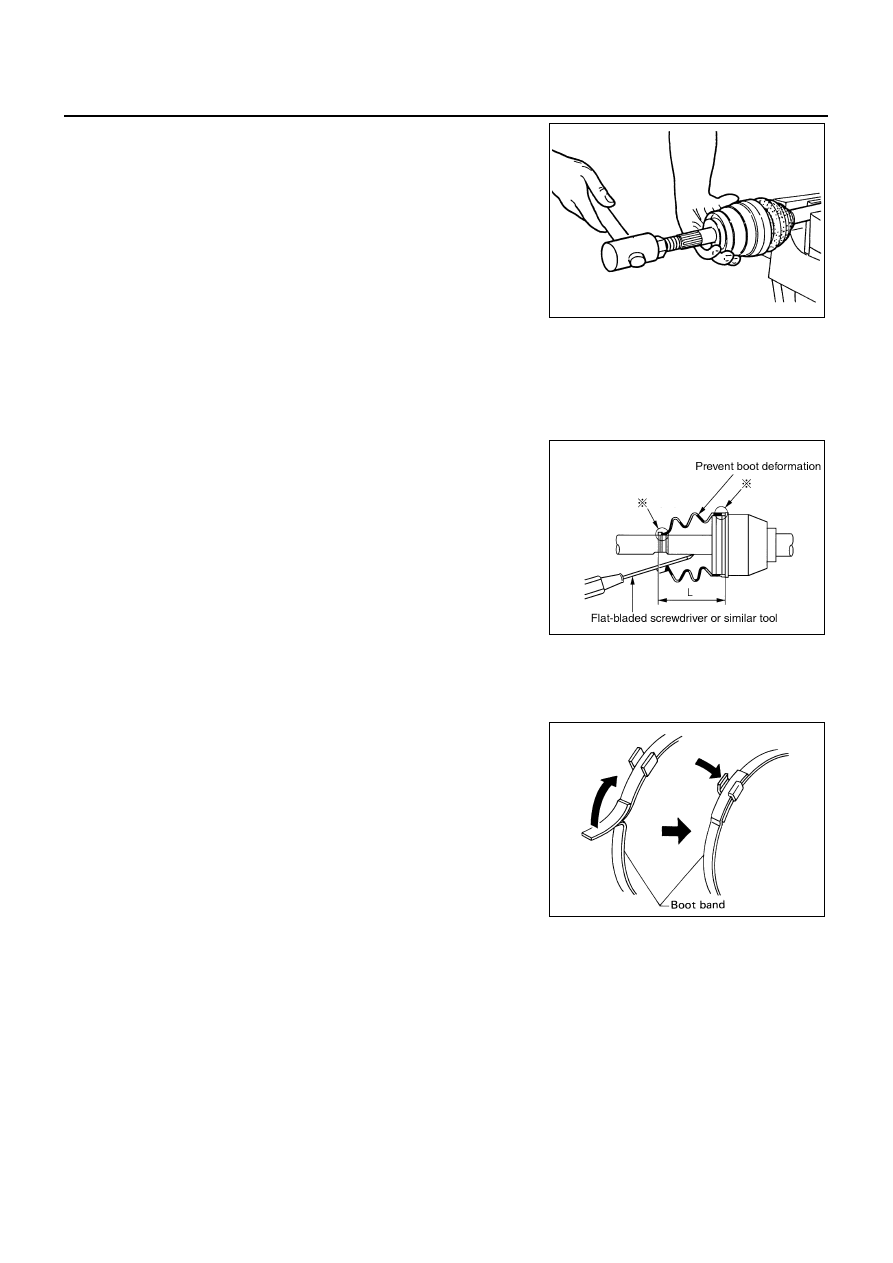

REAR DRIVE SHAFT

4.

Attach circular clip to shaft. At this time, circular clip must fit
securely into shaft groove. Attach nut to joint sub-assembly. Use
a wooden hammer to press-fit.

CAUTION:

Discard old circular clip; replace with new ones.

5.

Insert the amount grease (Nissan genuine grease or equivalent) listed below into housing from large end
of boot.

6.

Install boot securely into grooves (indicated by * marks) shown
in the figure.

CAUTION:

If there is grease on boot mounting surfaces (indicated by *
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.

7.

Check that boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Remove air from boot to prevent boot deformation.

CAUTION:

Boot may brake if boot installation length is than standard value.

Be careful that screwdriver tip doe not contact inside surface of boot.

8.

Secure big and small ends of boot with new boot bands as
shown in the figure.

CAUTION:

Discard old boot band; replace with new ones.

9.

After installing housing and shaft, rotate boot to check whether or not the actual position is correct. If boot
position is not correct, secure boot with new boot bands again.

RAC0049D

Reference value

Grease amount

: 113 - 123 g (3.99 - 4.34 oz)

Standard value

Boot installation length “L”

: 97 mm (3.82 in)

SDIA1128E

SFA395

SERVICE DATA

RAX-15

C

E

F

G

H

I

J

K

L

M

A

B

RAX

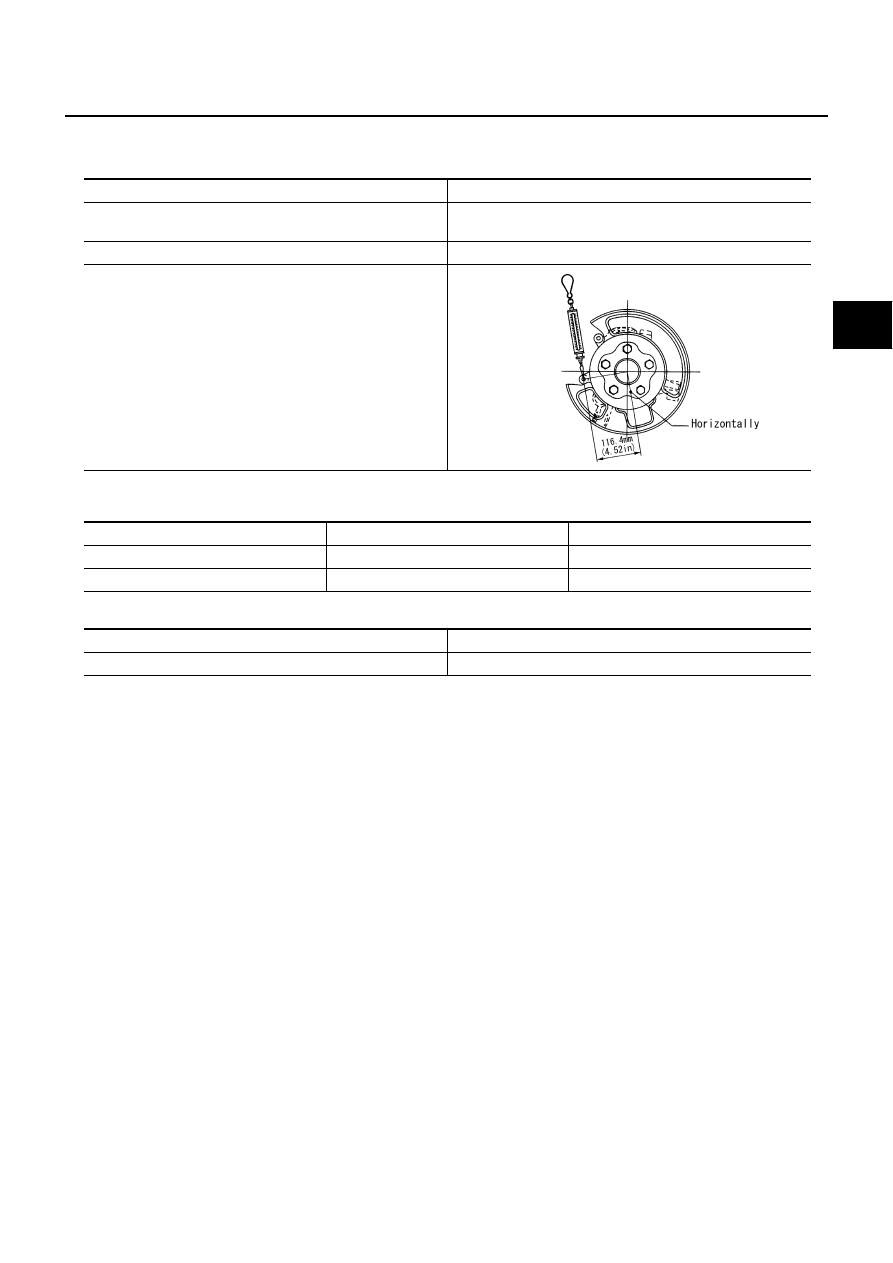

SERVICE DATA

PFP:00030

Wheel Bearing

EDS000WS

Drive Shaft

EDS000WT

Z100D90F

Tightening Torque

EDS000WU

Axial end play limit

0.05 mm (0.002 in) or less

Rotational torque

At a load of 49, 033 N (5, 000 kg, 11, 000 lb)

Less than 1.49 N·m (0.15 kg-m, 13 in-lb)

Measurement of spring scale

Less than 12.8 N (1.31 kg, 2.88 lb)

Measuring point: (Brake caliper installation points)

SDIA0293E

Joint type

Z100 (Wheel side)

D90F (Final drive side)

Grease quantity

113 - 123 g (3.99 - 4.34 oz)

165 - 175 g (5.82 - 6.17 oz)

Boots installed length

97 mm (3.82 in)

93.9 mm (3.697 in)

Drive shaft - Side flange

63 - 79 N·m (6.5 - 8.0 kg-m, 47 - 58 ft-lb)

Hub lock nut

206 - 274 N·m (21 - 27 kg-m, 152 - 202 ft-lb)

RAX-16

SERVICE DATA
