Infiniti F50. Manual - part 703





PS-1

POWER STEERING SYSTEM

G  STEERING

CONTENTS

C

D

E

F

H

I

J

K

L

M

SECTION

A

B

PS

POWER STEERING SYSTEM

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Steering System  .............................. 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5

NVH Troubleshooting Chart  ..................................... 5

POWER STEERING FLUID ........................................ 6

Checking Fluid Level  ................................................ 6
Checking Fluid Leakage ........................................... 6
Bleeding Hydraulic System  ...................................... 6

STEERING WHEEL  .................................................... 7

On-Vehicle Service ................................................... 7

CHECKING STEERING WHEEL PLAY  ................ 7
CHECKING NEUTRAL POSITION ON STEER-
ING WHEEL  .......................................................... 7
CHECKING STEERING WHEEL TURNING
FORCE .................................................................. 7
FRONT WHEEL TURNING ANGLE  ..................... 8

Removal and Installation  .......................................... 9

REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9

STEERING COLUMN  ................................................11

Removal and Installation  .........................................11

REMOVAL OF LOWER SHAFT AND HALL
COVER ................................................................11
INSTALLATION OF LOWER JOINT AND HALL
COVER ............................................................... 12
REMOVAL OF STEERING COLUMN  ................. 12
INSTALLATION OF STEERING COLUMN  ......... 12

Disassembly and Assembly  ................................... 13

DISASSEMBLY ................................................... 13
ASSEMBLY ......................................................... 14

Inspection ............................................................... 14

POWER STEERING GEAR AND LINKAGE  ............ 15

Removal and Installation  ........................................ 15

REMOVAL ........................................................... 15
INSTALLATION ................................................... 15

Component ............................................................. 17
Disassembly and Assembly .................................... 18

DISASSEMBLY ................................................... 18
PINION ROTATING TORQUE ADJUSTMENT .... 19
INSPECTION AFTER DISASSEMBLY ................ 19
ASSEMBLY ......................................................... 20

POWER STEERING OIL PUMP  ............................... 23

On-Vehicle Service  ................................................. 23

CHECKING HYDRAULIC SYSTEM  .................... 23
CHECKING AND ADJUSTING DRIVE BELTS
(FOR POWER STEERING)  ................................ 23

Removal and Installation  ........................................ 23

REMOVAL ........................................................... 23
INSTALLATION ................................................... 23

Disassembly and Assembly .................................... 24

PRE-DISASSEMBLY INSPECTION .................... 24
DISASSEMBLY ................................................... 24
INSPECTION AFTER DISASSEMBLY ................ 25
ASSEMBLY ......................................................... 26

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 28

Steering Wheel  ....................................................... 28
Steering Angle  ........................................................ 28
Steering Column  ..................................................... 28
Steering Linkage ..................................................... 28
Steering Gear  ......................................................... 29
Oil Pump ................................................................. 29
Steering Fluid .......................................................... 29

PS-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EGS000FJ

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Steering System

EGS00087

Before disassembly, thoroughly clean the outside of unit.

Disassembly should be done in a clean work area. It is important to prevent the internal parts from becom-
ing contaminated by dirt or other foreign matter.

Place disassembled parts in order, on a parts rack, for easier and proper assembly.

Use nylon cloths or paper towels to clean parts; common shop rags can leave lint that might interfere with
their operation.

Before inspection or reassembly, carefully clean all parts with a general purpose, non-flammable solvent.

Before assembly, apply a coat of recommended Genuine Nissan PSF II or equivalent to hydraulic parts.
Vaseline may be applied to O-rings and seals. Do not use any grease.

Replace all gaskets, seals and O-rings. Avoid damaging O-rings, seals and gaskets during installation.
Perform functional tests whenever designated.

PREPARATION

PS-3

C

D

E

F

H

I

J

K

L

M

A

B

PS

PREPARATION

PFP:00002

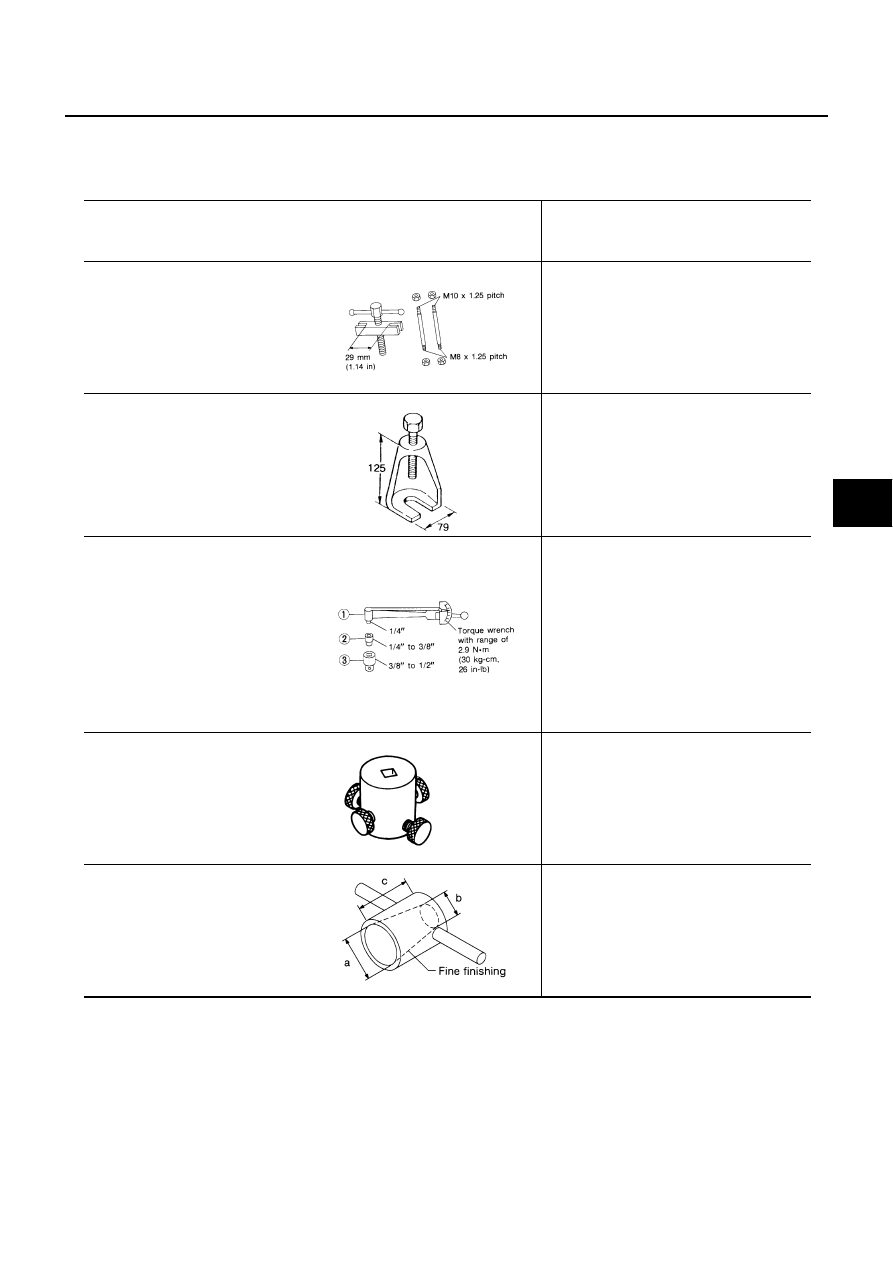

Special Service Tools

EGS0006V

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent - Moore No.)
Tool name

Description

ST27180001
(J25726 -A)
Steering wheel puller

Removal of steering wheel

ST29020001
(J24319-01)
Linkage puller

Removing tie rod outer socket

ST3127S000
(See J25765 - A)
Preload gauge
 1.GG9103000.
  (J25765 - A)
Torque wrench
 2.HT62940000
  (      –       )
Socket adapter
 3.HT62900000
  (      –       )
Socket adapter

Inspection of sliding torque, steering
torque, and rotational torque for ball joint

KV48103404
(        –         )
Torque adapter

Inspection rotational torque

KV481 04400
(       –           )
Teflon ring correcting tool

Installation of rack Teflon ring

S-NT544

ZZC0002D

S-NT541

ZZA0824D

S-NT550

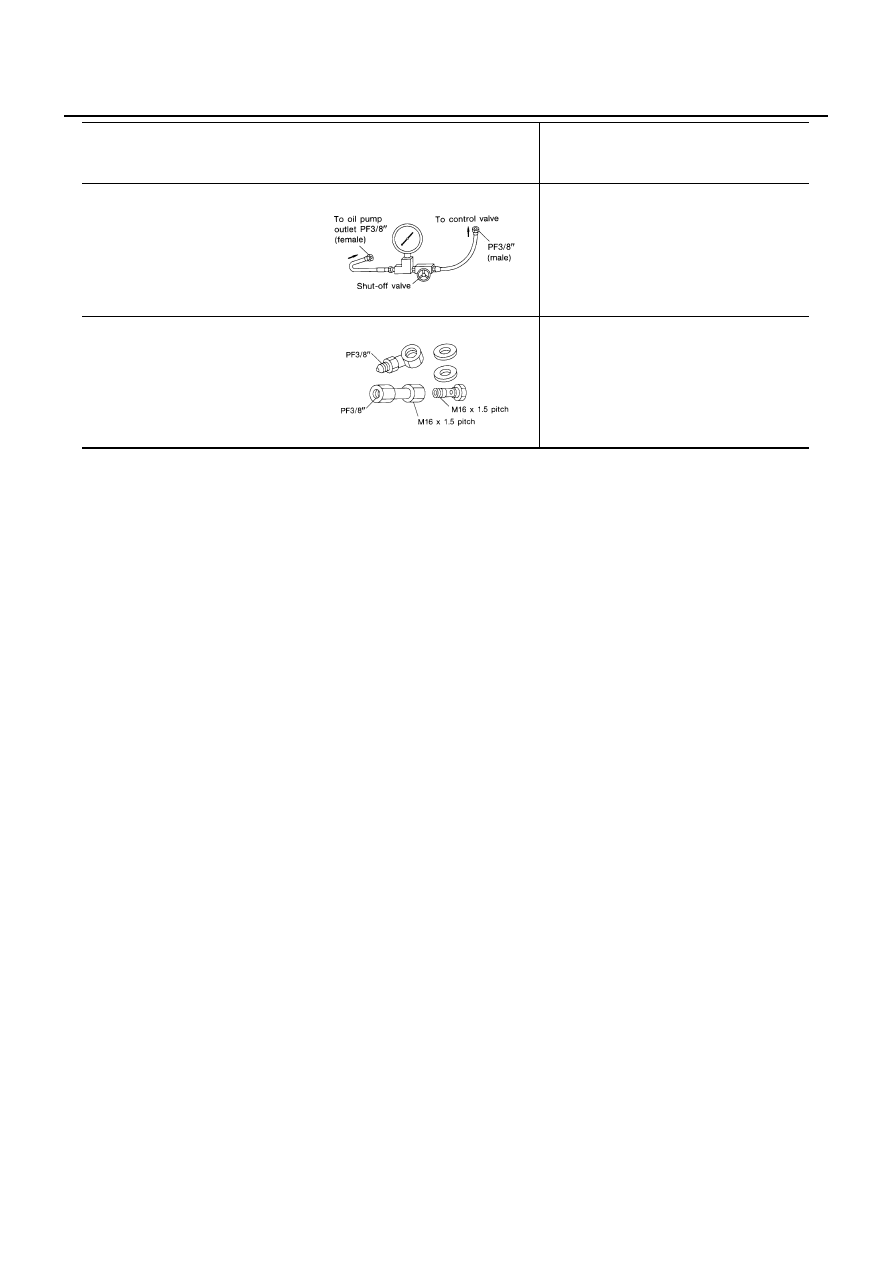

PS-4

PREPARATION

KV48103500
(J26357 and J26357-10)
Pressure gauge

Measurement oil pump relief pressure

KV4802500
(J33914)
Pressure gauge adapter

Measurement oil pump relief pressure

Tool number
(Kent - Moore No.)
Tool name

Description

S-NT547

S-NT542
