Infiniti F50. Manual - part 702





REAR PROPELLER SHAFT

PR-3

C

E

F

G

H

I

J

K

L

M

A

B

PR

REAR PROPELLER SHAFT

PFP:37000

On-Vehicle Service

EDS000A5

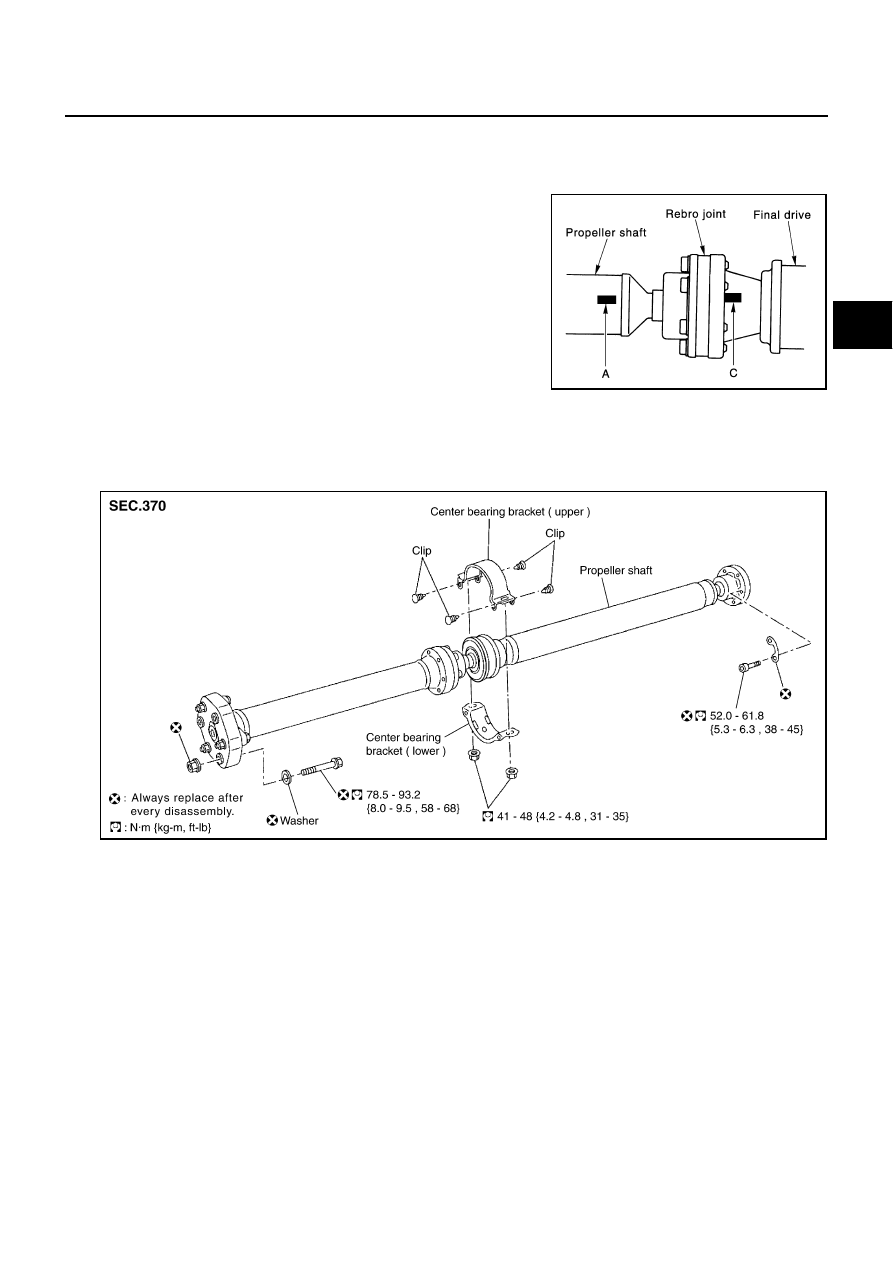

PROPELLER SHAFT VIBRATION

If vibration is present at high speed, check mounting between pro-
peller shaft and companion flange.
Make sure alignment marks A and C are located as close to each
other as possible.
If not, change mounting as indicated in “Installation”.

APPEARANCE CHECKING

Inspect propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.

If center bearing is noisy or damaged, replace propeller shaft assembly.

Removal and Installation

EDS0007O

REMOVAL

1.

Move A/T select lever to N range position.

2.

Remove exhaust tube.

3.

Remove floor reinforcement.

4.

Remove propeller shaft.

SDIA0768E

PDIA0011E

PR-4

REAR PROPELLER SHAFT

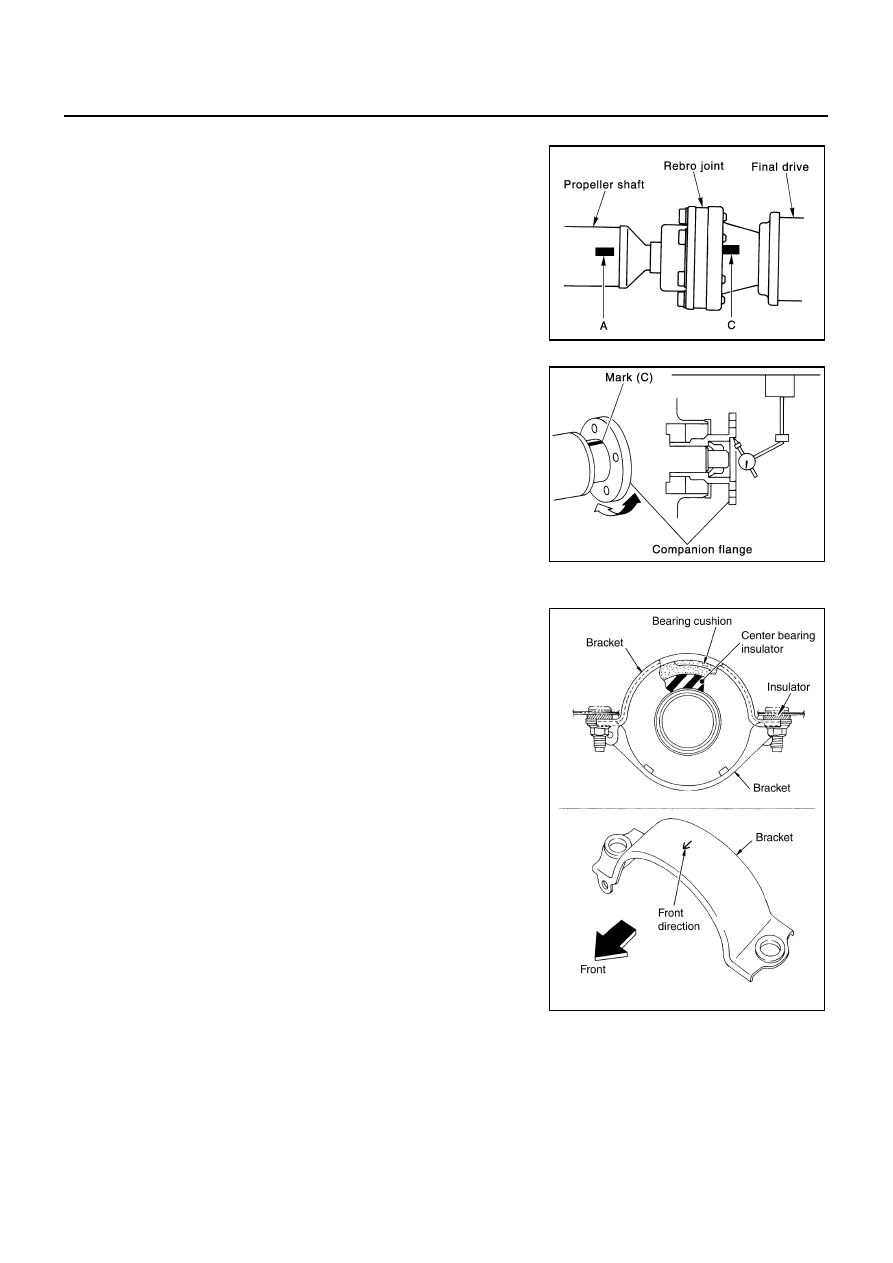

INSTALLATION

If companion flange has been removed, put new alignment marks C
on it. Then, reassemble using the following procedure. (Perform step
2 when final drive and propeller shaft are separated from each other.
Also perform step 2 when either of these parts is replaced with a new
one.)

1.

Erase original marks C from companion flange with suitable sol-
vent.

2.

Put mark C on flange perimeter.

a.

Measure companion flange vertical runout.

b.

Determine the position where maximum runout is read on dial
gauge. Put mark (shown by C in figure at left) on flange perime-
ter corresponding to maximum runout position.

3.

Tighten remaining nuts to specified torque.

Center Bearing Bracket Installation

Position the bearing cushion overlap as illustrated.

SDIA0768E

SDIA0771E

SDIA0266E

REAR PROPELLER SHAFT

PR-5

C

E

F

G

H

I

J

K

L

M

A

B

PR

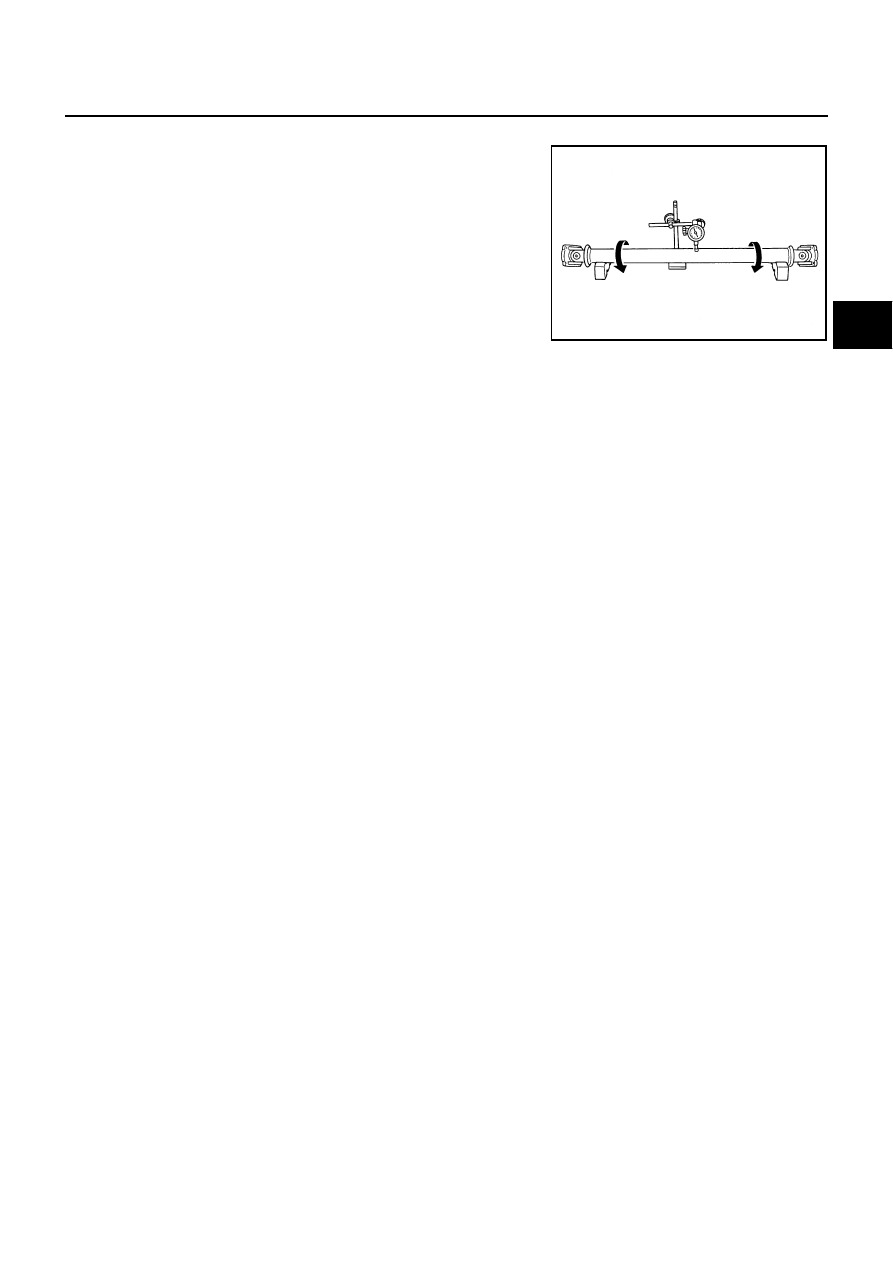

INSPECTION

Inspect propeller shaft runout. If runout exceeds specifications,
replace propeller shaft assembly.

Runout limit:

0.6 mm (0.024 in)

SPD106

PR-6

SERVICE DATA

SERVICE DATA

PFP:00030

Propeller Shaft Runout Limit

EDS0007R

Model

3F-R-2VL107

Propeller shaft runout limit

mm(in)

0.6 (0.024)
