Infiniti F50. Manual - part 676





PERIODIC MAINTENANCE

MA-9

C

D

E

F

G

H

I

J

K

M

A

B

MA

NOTE:
(1) If towing a trailer, using a camper or a car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil at every
      30,000  miles (48,000 km) or 24 months. Using automatic transmission fluid other than Genuine Nissan ATF Matic Fluid J will
     cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmission,
     which is not covered by the INFINITI new vehicle limited warranty.
(2) Refer to “Tire rotation” under the “General maintenance” heading earlier in this section.

Schedule 2

ELS0001Y

EMISSION CONTROL SYSTEM MAINTENANCE

Abbreviations: R = Replace.

I = Inspect. Correct or replace if necessary.

[ ]: At the mileage intervals only

NOTE:
(1) After 60,000 miles (96,000 km) or 48 months, inspect every 15,000 miles (24,000 km) or 12 months. Replace the drive belts if found
      damaged or if the auto belt tensioner reading reaches the maximum limit.
(2) Maintenance-free item. For service procedures, refer to FL section.
(3) After 60,000 miles (96,000 km) or 48 months, replace every 30,000 miles (48,000 km) or 24 months.

MAINTENANCE OPERATION

MAINTENANCE INTERVAL

Reference

Section -

Page or -

Content Title

Perform at number of miles,
kilometers or months, which-
ever comes first.

Miles x

1,000
(km x

1,000)

Months

33.75

(54)

27

37.5

(60)

30

41.25

(66)

33

45

(72)

36

48.75

(78)

39

52.5

(84)

42

56.25

(90)

45

60

(96)

48

Brake lines & cables

I

I

MA-25

Brake pads & rotors

I

I

I

I

MA-25

Automatic transmission fluid &
differential gear oil

NOTE (1)

I

I

MA-20

MA-22

Steering gear & linkage, axle &
suspension parts

I

I

I

I

MA-26

PS-7

 ,

MA-27

 ,

FSU-

6

Tire rotation

NOTE (2)

MA-5

MA-24

Exhaust system

I

I

I

I

MA-20

In-cabin microfilter

R

R

ATC-132

Climate controlled seat filter

R

SE-196

ASCD vacuum hoses

I

I

MA-29

MAINTENANCE OPERATION

MAINTENANCE INTERVAL

Reference Sec-

tion - Page or -

Content Title

Perform at number of miles,
kilometers or months, whichever
comes first.

Miles x 1,000

(km x 1,000)

Months

7.5

(12)

6

15

(24)

12

22.5

(36)

18

30

(48)

24

37.5

(60)

30

45

(72)

36

52.5

(84)

42

60

(96)

48

Drive belts

NOTE (1)

I*

MA-13

Air cleaner filter

[R]

[R]

MA-16

EVAP vapor lines

I*

I*

MA-19

Fuel lines

I*

I*

MA-16

Fuel filter

NOTE (2)

-

Engine coolant

NOTE (3)

R*

MA-13

Engine  oil

R

R

R

R

R

R

R

R

MA-16

Engine oil filter (Use part No.
15208-31U00 or equivalent.)

R

R

R

R

R

R

R

R

MA-17

Spark plugs (PLATINUM-
TIPPED type)

Replace every 105,000 miles (169,000 km).

MA-18

Intake & exhaust valve clear-
ance*

NOTE (4)

EM-99

MA-10

PERIODIC MAINTENANCE

(4) If valve noise increases, inspect valve clearance.
*  Maintenance items and intervals with “*” are recommended by INFINITI for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and intervals are
required.

CHASSIS AND BODY MAINTENANCE

Abbreviations: R = Replace.

I = Inspect. Correct or replace if necessary.

NOTE:
(1) Refer to “Tire rotation” under the “General maintenance” heading earlier in this section.

MAINTENANCE OPERATION

MAINTENANCE INTERVAL

Reference Sec-

tion - Page or -

Content Title

Perform at number of miles, kilo-
meters or months, whichever
comes first.

Miles x 1,000

(km x 1,000)

Months

7.5

(12)

6

15

(24)

12

22.5

(36)

18

30

(48)

24

37.5

(60)

30

45

(72)

36

52.5

(84)

42

60

(96)

48

Brake lines & cables

I

I

I

I

MA-25

Brake pads & rotors

I

I

I

I

MA-25

Automatic transmission fluid &
differential gear oil

I

I

I

I

MA-20

MA-22

Steering gear & linkage, axle &
suspension parts

I

I

MA-26

PS-7

 ,

MA-27

 ,

FSU-6

Tire rotation

NOTE (1)

MA-5

,

MA-24

Exhaust system

I

I

MA-20

In-cabin microfilter

R

R

R

R

ATC-132

Climate controlled seat filter

R

R

SE-196

ASCD vacuum hoses

I

I

I

I

MA-29

RECOMMENDED FLUIDS AND LUBRICANTS

MA-11

C

D

E

F

G

H

I

J

K

M

A

B

MA

RECOMMENDED FLUIDS AND LUBRICANTS

PFP:00000

Fluids and Lubricants

ELS0001W

*1: For further details, see “SAE Viscosity Number”.

*2: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON

TM

  III/ MERCON

TM

 , or equivalent ATF may also be used.

*3: Using automatic transmission fluid other than Genuine Nissan ATF Matic Fluid J will cause deterioration in driveability and
automatic transmission durability, and may damage the automatic transmission, which is not covered by the INFINITI new
vehicle limited warranty.
*4: Available in mainland U.S.A. through your INFINITI dealer.
*5: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0

°

C (32

°

F).

SAE Viscosity Number

ELS0001Z

GASOLINE ENGINE OIL

SAE 5W-30 viscosity oil is preferred for all temperatures. SAE
10W-30 and 10W-40 viscosity oil may be used if the ambient
temperature is above -18

°

C(0

°

F)

Capacity (Approximate)

Recommended Fluids/Lubricants

US measure

Imp measure

Liter

Engine oil
Drain and refill

With oil filter
change

5-7/8 qt

4-7/8 qt

5.6

API Certification Mark*1

API grade SJ or SL, Energy Conserving*1

ILSAC grade GF-II & GF-III*1

Without oil fil-
ter change

5-1/4 qt

4-3/8 qt

5.0

Dry engine (engine overhaul)

7-1/8 qt

5-7/8 qt

6.7

Cooling sys-
tem

With reservoir

10-3/8 qt

8-5/8 qt

9.8

Genuine Nissan Anti-freeze coolant or equiva-
lent

Reservoir

7/8 qt

3/4 qt

0.8

Cooling fan fluid

26.3 fl oz

27.4 fl oz

0.8

Genuine Nissan PSF or equivalent*2

Automatic transmission fluid

 10-7/8 qt

9-1/8  qt

10.3

Genuine Nissan ATF Matic Fluid J *3

Power steering fluid (PSF)

Genuine Nissan PSF or equivalent*2

Brake fluid

Genuine Nissan Brake Fluid*4 or equivalent
DOT 3 (US FMVSS No. 116)

Differential gear oil

3 pt

2-1/2 pt

1.4

API GL-5,Viscosity SAE 80W- 90*5

Multi-purpose grease

NLGI No. 2 (Lithium soap base)

MMA117AA

MA-12

RECOMMENDED FLUIDS AND LUBRICANTS

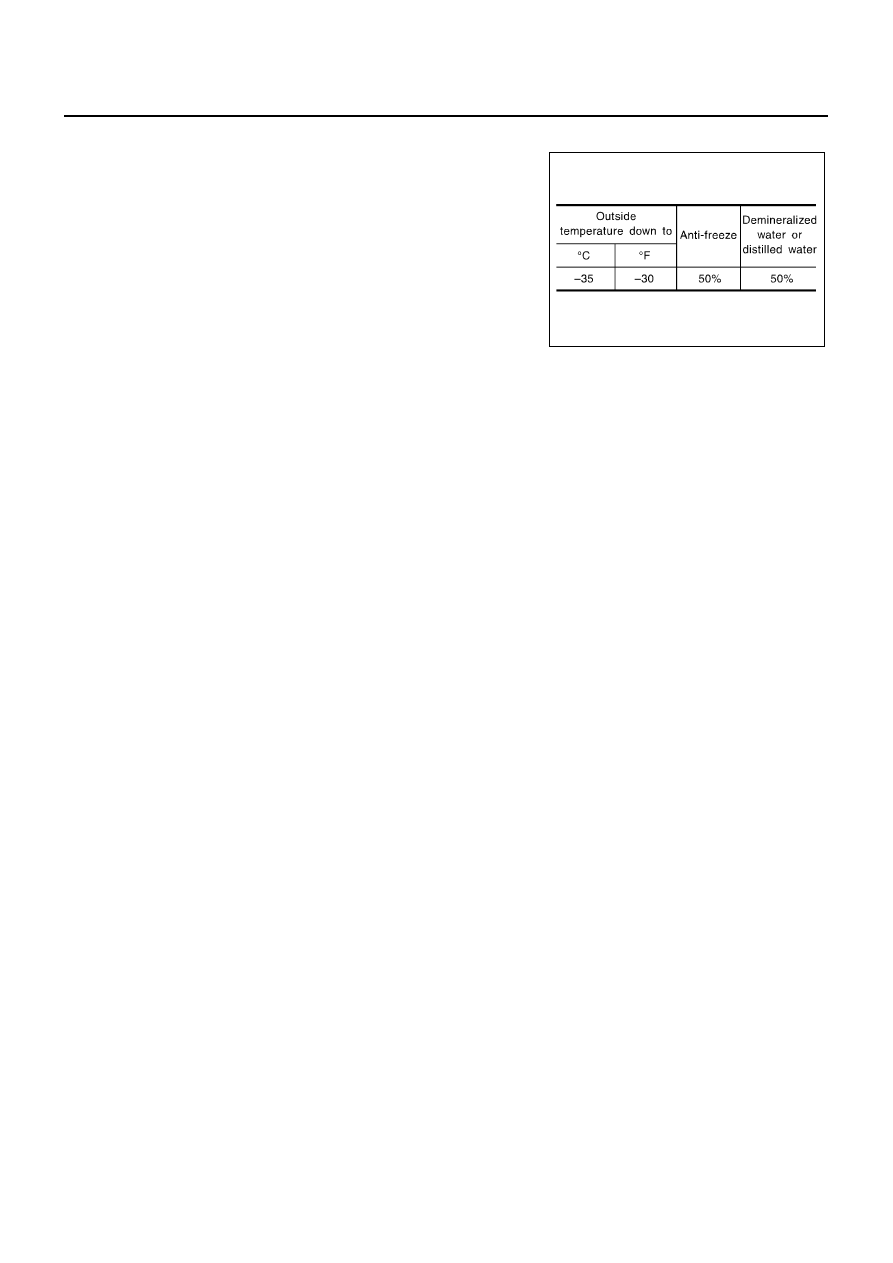

Anti-Freeze Coolant Mixture Ratio

ELS000L2

The engine cooling system is filled at the factory with a high-quality,
year-round, anti-freeze coolant solution. The anti-freeze solution
contains rust and corrosion inhibitors. Therefore, additional cooling
system additives are not necessary.

CAUTION:

When adding or replacing coolant, be sure to use only Genuine
Nissan anti-freeze coolant or equivalent with the proper mixture
ratio of 50% anti-freeze and 50% demineralized water/distilled
water.
Other types of coolant solutions may damage your cooling sys-
tem.

SMA947CA
