LU-1

ENGINE LUBRICATION SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

A

LU

ENGINE LUBRICATION SYSTEM

PRECAUTIONS .......................................................... 2

Precautions for Liquid Gasket  .................................. 2

REMOVAL OF LIQUID GASKET SEALING .......... 2
LIQUID GASKET APPLICATION PROCEDURE

..... 2

PREPARATION ........................................................... 3

Special Service Tools  ............................................... 3
Commercial Service Tool  ......................................... 3

LUBRICATION SYSTEM  ............................................ 4

Lubrication Circuit  .................................................... 4
System Drawing  ....................................................... 5

ENGINE OIL  ............................................................... 6

Inspection ................................................................. 6

ENGINE OIL LEVEL  ............................................. 6
ENGINE OIL APPEARANCE  ................................ 6
ENGINE OIL LEAKAGE ........................................ 6
OIL PRESSURE CHECK  ...................................... 6

Changing Engine Oil  ................................................ 7

OIL FILTER  ................................................................. 8

Removal and Installation  .......................................... 8

REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
INSPECTION AFTER INSTALLATION .................. 8

OIL PUMP  ................................................................... 9

Removal and Installation  .......................................... 9

REMOVAL ............................................................. 9
INSTALLATION ..................................................... 9

Disassembly and Assembly .................................... 10

DISASSEMBLY ................................................... 10
INSPECTION AFTER DISASSEMBLY ................ 10
ASSEMBLY ......................................................... 11

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 12

Standard and Limit .................................................. 12

OIL PRESSURE  .................................................. 12
OIL PUMP  ........................................................... 12
REGULATOR VALVE  .......................................... 12
ENGINE OIL CAPACITY  ..................................... 12

Tightening torque .................................................... 12

LU-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

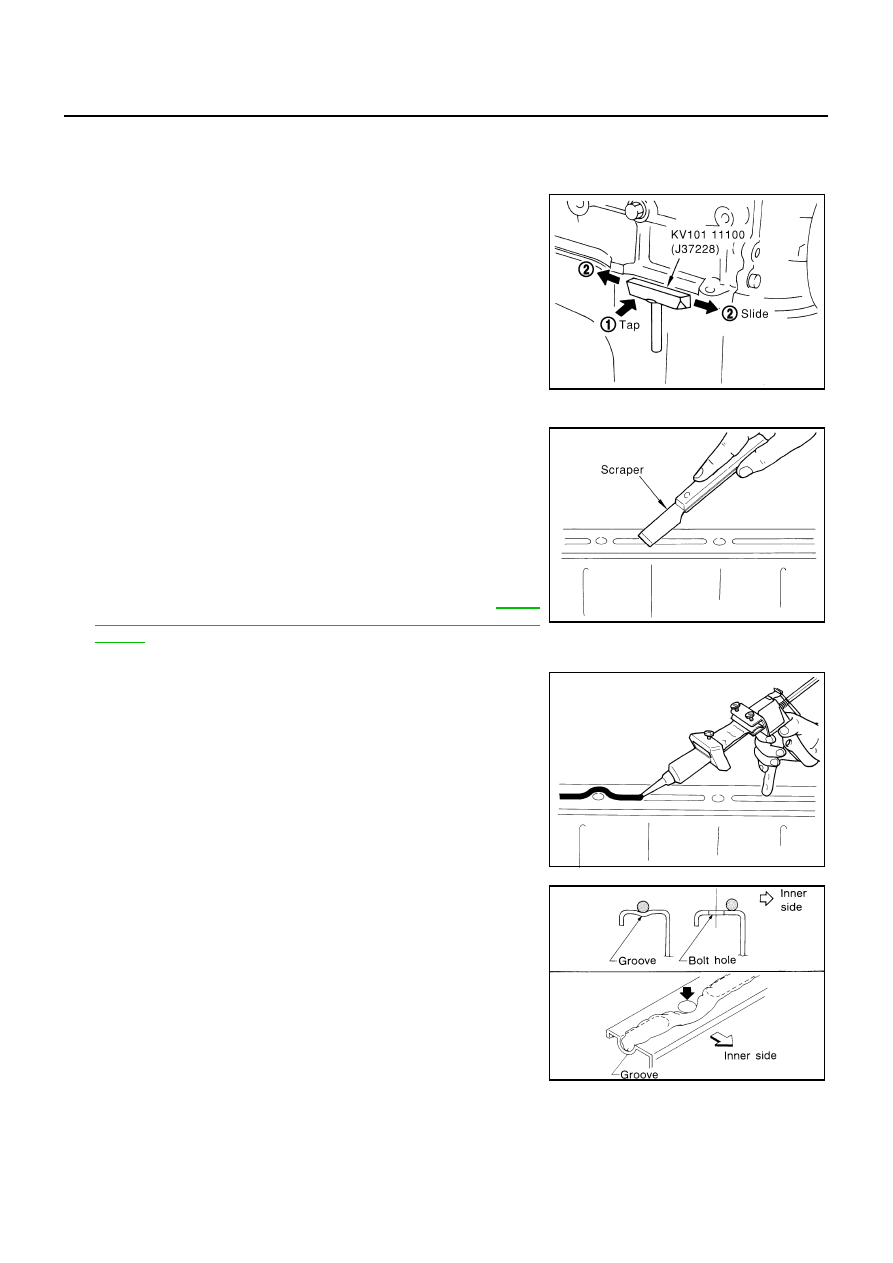

Precautions for Liquid Gasket

EBS0024R

REMOVAL OF LIQUID GASKET SEALING

●

After removing the mounting bolts and nuts, separate the mating
surface using a seal cutter and remove the old liquid gasket
sealing.

CAUTION:

Be careful not to damage the mating surfaces.

●

In areas where the cutter is difficult to use, use a plastic hammer
to lightly tap the areas where the liquid gasket is applied.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating
surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.

●

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts, and bolt
holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach genuine liquid gasket tube to the tube presser.
Use Genuine Thread sealant or equivalent. Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

4.

Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

●

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

●

As for the bolt holes, normally apply the liquid gasket inside
the holes. Occasionally, it should be applied outside the
holes. Make sure to read the text of this manual.

●

Within five minutes of liquid gasket application, install the mat-
ing component.

●

If the liquid gasket protrudes, wipe it off immediately.

●

Do not retighten after the installation.

●

After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe
them.

PBIC0002E

PBIC0003E

EMA0622D

SEM159F

PREPARATION

LU-3

C

D

E

F

G

H

I

J

K

L

M

A

LU

PREPARATION

PFP:00002

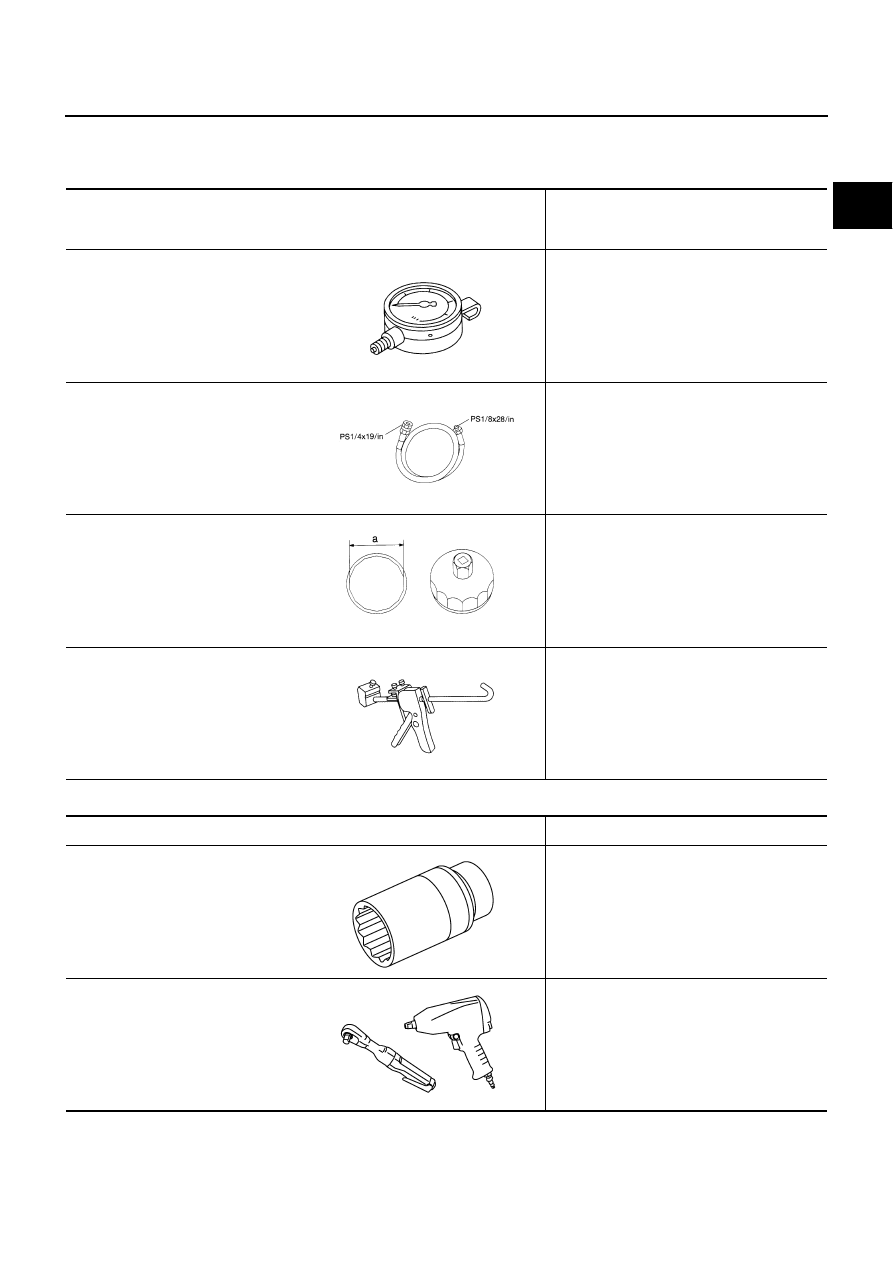

Special Service Tools

EBS0024S

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

EBS003GF

Tool number
(Kent-Moore No.)
Tool name

Description

ST25051001
(J25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm2, 356 psi)

ST25052000
(J25695-2)
Hose

Adapting oil pressure gauge to cylinder block

KV10115801
(J38956)
Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

WS39930000
(         —        )
Tube presser

Pressing the tube of liquid gasket

S-NT050

S-NT559

S-NT375

S-NT052

Tool name

Description

Deep socket

Removing and installing oil pressure switch
Deep socket 26 mm (1.02 in)

Power tool

Loosening bolts and nuts

NT818

PBIC0190E

LU-4

LUBRICATION SYSTEM

LUBRICATION SYSTEM

PFP:15010

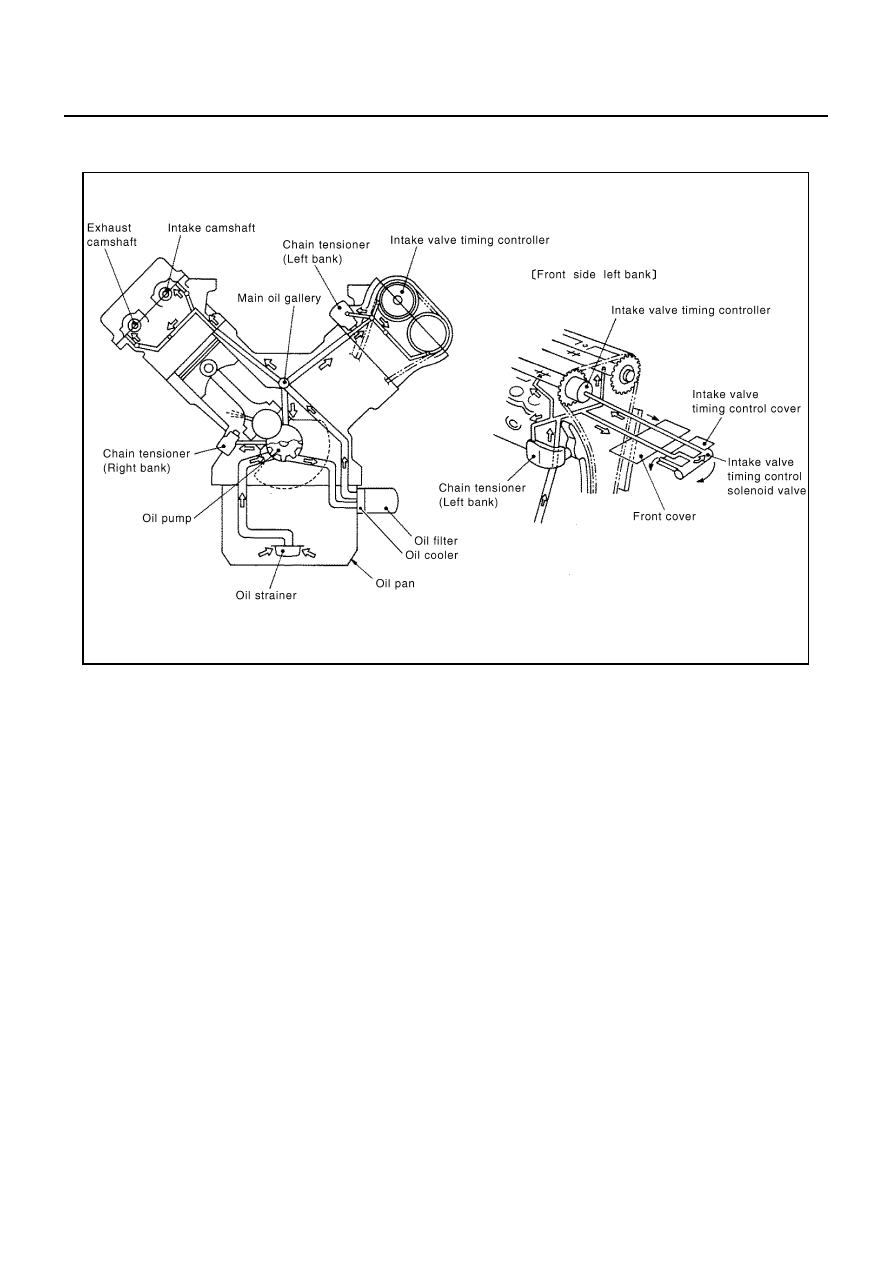

Lubrication Circuit

EBS001KC

PBIC1663E
