Removal and Installation

EKS0017N

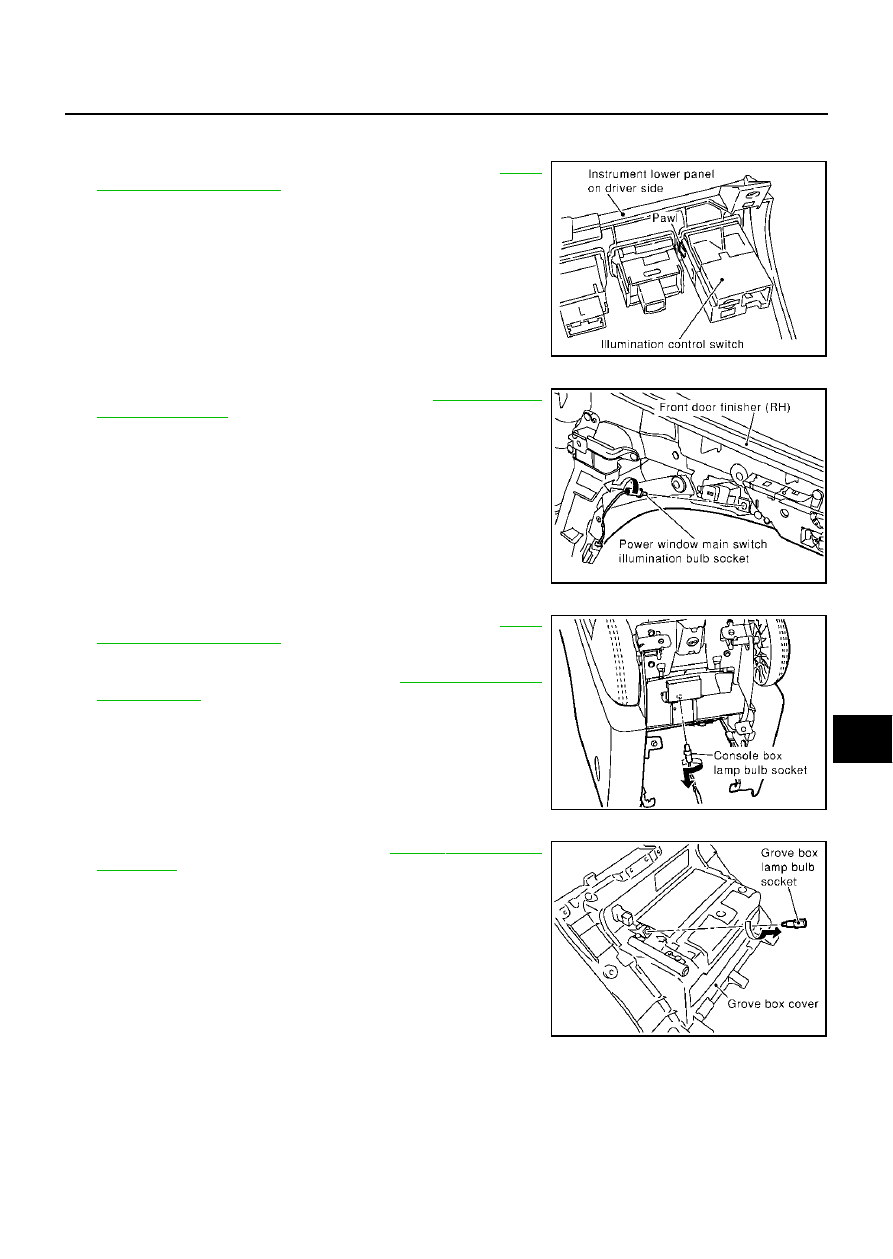

ILLUMINATION CONTROL SWITCH

1.

Remove the lower instrument panel (driver side). Refer to

IP-10,

"Removal and Installation"

  in “INSTRUMENT PANEL (IP)” sec-

tion.

2.

Press the illumination control switch fixing tabs and remove the
unit from the lower instrument panel (driver side).

POWER WINDOW MAIN SWITCH ILLUMINATION

1.

Remove the front door finisher (RH). Refer to

EI-31, "FRONT

DOOR FINISHER"

  in “EXTERIOR & INTERIOR (EI)” section.

2.

Turn the bulb socket counterclockwise and unlock it.

CONSOLE BOX LAMP

1.

Remove the center console box assembly. Refer to

IP-10,

"Removal and Installation"

  in “INSTRUMENT PANEL (IP)” sec-

tion.

2.

Remove the console box finisher. Refer to

IP-17, "Disassembly

and Assembly"

  in “INSTRUMENT PANEL (IP)” section.

3.

Turn the bulb socket and unlock it.

GLOVE BOX LAMP

1.

Remove the glove box cover. Refer to

IP-10, "Removal and

Installation"

  in “INSTRUMENT PANEL (IP)” section.

2.

Turn the bulb socket counterclockwise and unlock it.

SKIA0466E

Power window main switch
illumination

: 12V 1.4W

PKIA0178E

Console box lamp

: 12V 1.4W

PKIA0079E

Glove box lamp

: 12V 1.4W

PKIA0179E

LT-146

ILLUMINATION

Removal and Installation

EKS000XI

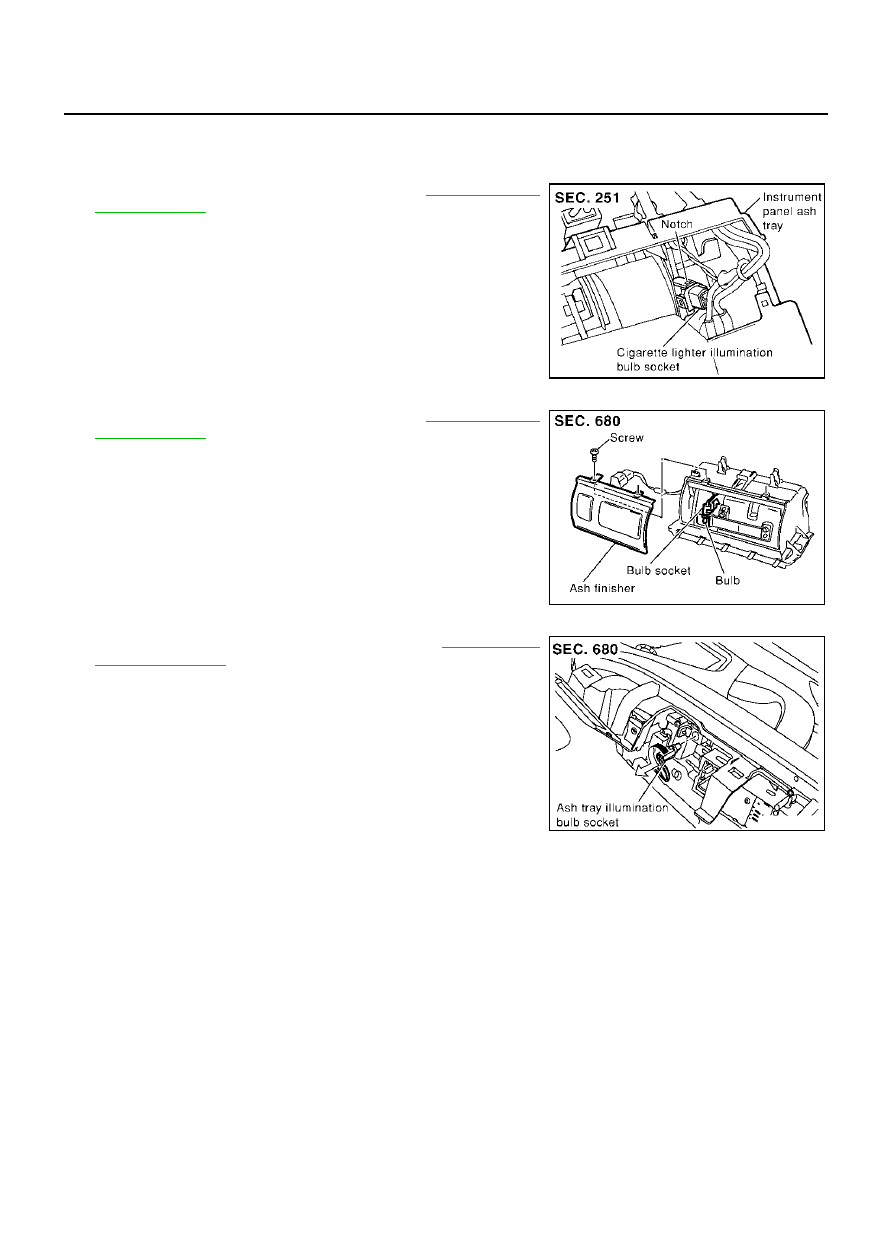

FRONT CIGARETTE LIGHTER ILLUMINATION
Cigarette Lighter Socket Illumination

1.

Remove the instrument panel ashtray. Refer to

IP-10, "Removal

and Installation"

  in “INSTRUMENT PANEL (IP)” section.

2.

Unfold three notches and remove the bulb socket.

Ashtray Illumination

1.

Remove the instrument panel ashtray. Refer to

IP-10, "Removal

and Installation"

  in “INSTRUMENT PANEL (IP)” section.

2.

Remove the ashtray finisher mounting screws and remove the
ashtray finisher.

3.

Turn the bulb socket counterclockwise and unlock it.

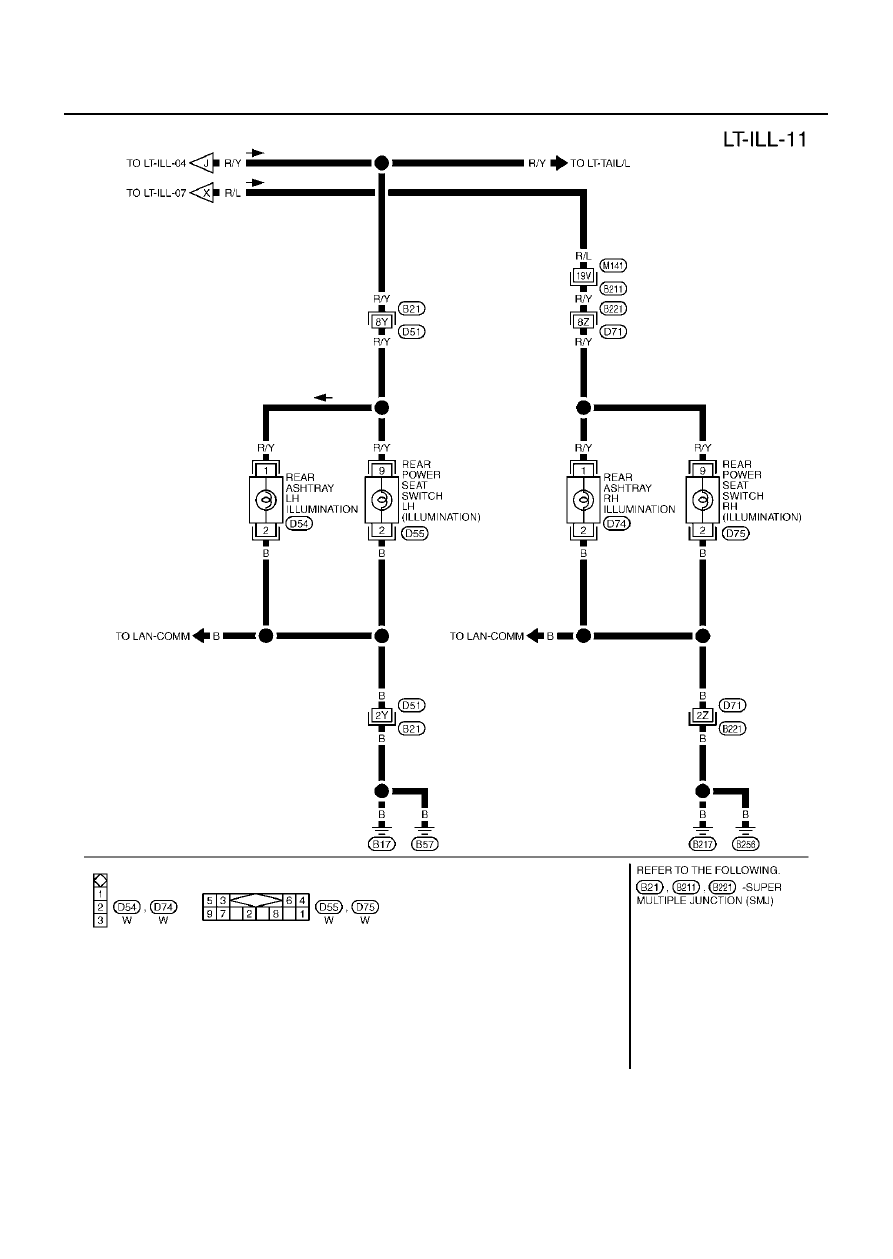

REAR ASHTRAY ILLUMINATION

1.

Remove the rear door armrest finisher. Refer to

EI-32, "REAR

DOOR FINISHER"

  in “EXTERIOR & INTERIOR (EI)” section.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Disconnect the ashtray illumination connector.

Cigarette lighter illumination

: 12V 1.4W

PKIA0180E

Ashtray illumination

: 12V 1.4W

PKIA0181E

Ashtray illumination

: 12V 1.4W

PKIA0083E
