LIGHTING AND TURN SIGNAL SWITCH

LT-67

C

D

E

F

G

H

I

J

L

M

A

B

LT

LIGHTING AND TURN SIGNAL SWITCH

PFP:25540

Removal and Installation

EKS000TG

1.

Remove the steering column cover. Refer to

PS-11, "STEERING

COLUMN"

  in “POWER STEERING SYSTEM (PS)” section.

2.

Remove lighting and turn signal switch mounting screw and
remove the lighting and turn signal switch from the spiral cable.

3.

Disconnect the lighting and turn signal switch connector.

Switch Circuit Inspection

EKS000TH

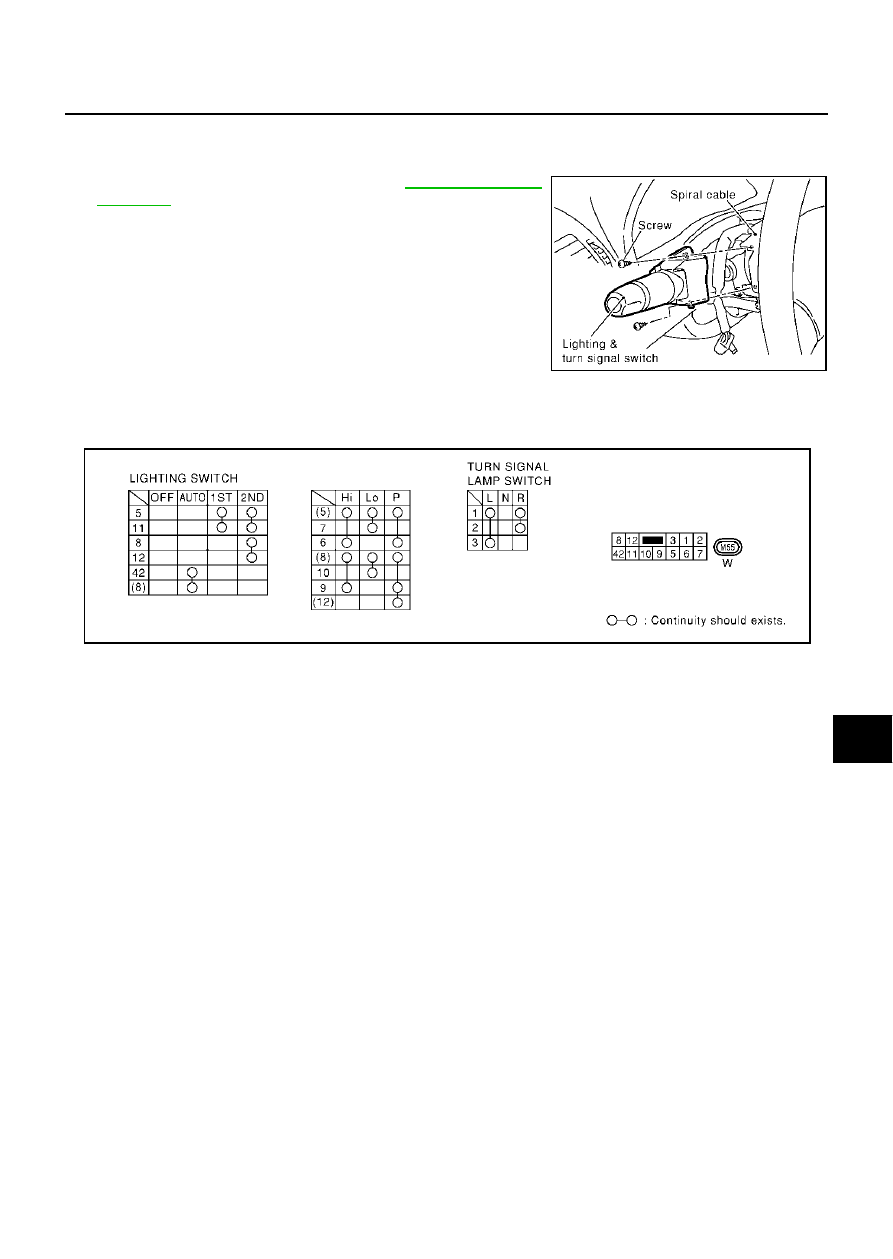

Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each
operation status of the switch.

    Hi: “HIGH BEAM” position, Lo: “LOW BEAM” position, P: “FLASH TO PASS” position

PKIA0185E

SKIA0469E

LT-68

HAZARD SWITCH

HAZARD SWITCH

PFP:25290

Removal and Installation

EKS000TI

Refer to

DI-131, "Disassembly and Assembly for Multifunction

Switch"

  ,

DI-161, "Disassembly and Assembly for Multifunction

Switch"

  in “DRIVER INFORMATION SYSTEM (DI)” section.

PKIA0186E

STOP LAMP

LT-69

C

D

E

F

G

H

I

J

L

M

A

B

LT

STOP LAMP

PFP:26550

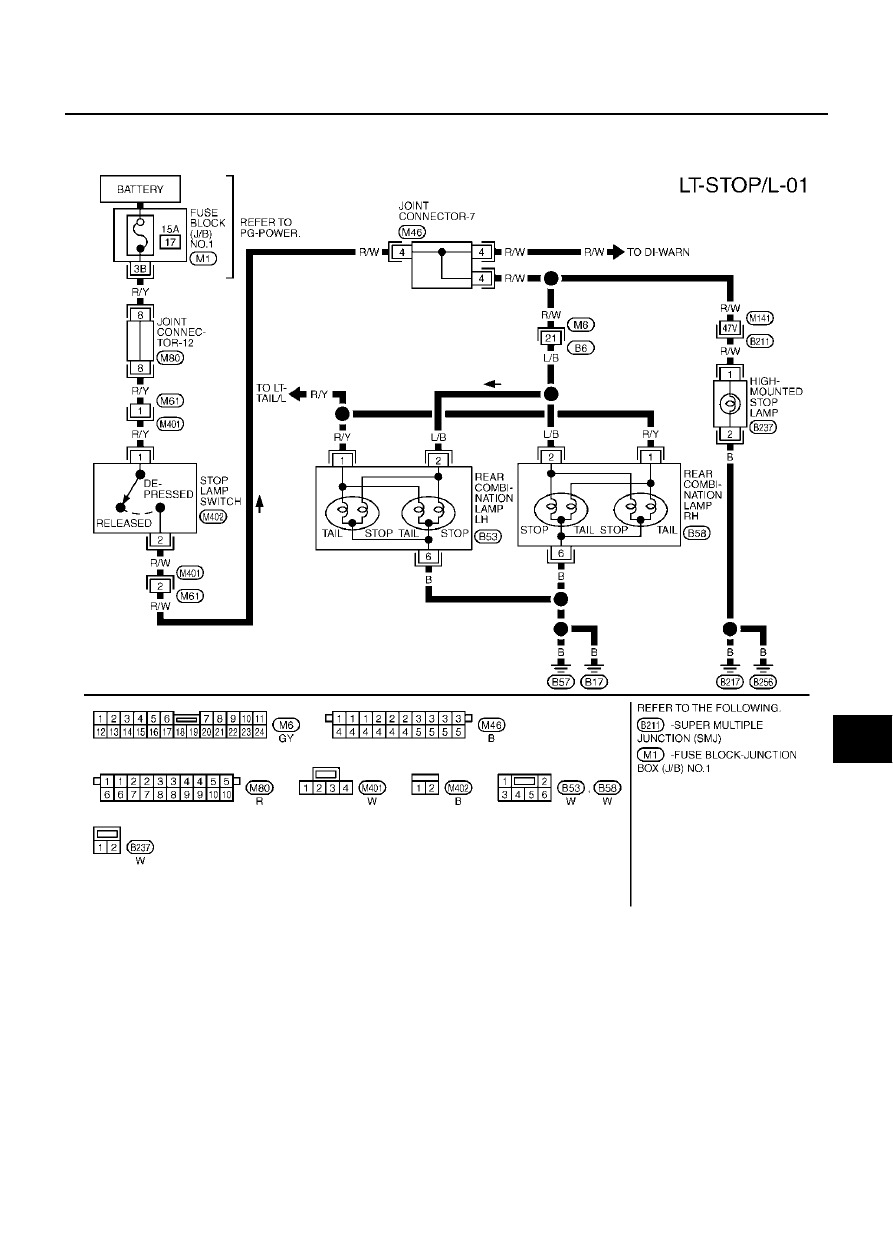

Wiring Diagram — STOP/L —

EKS000V1

TKWM0404E

LT-70

STOP LAMP

Bulb Replacement

EKS0014S

STOP LAMP

Refer to

LT-79, "REAR COMBINATION LAMP"

  in “PARKING, LICENSE PLATE AND TAIL LAMPS”.

HIGH-MOUNTED STOP LAMP

1.

Remove the high-mounted stop lamp. Refer to

LT-70, "HIGH-

MOUNTED STOP LAMP"

  in “Removal and Installation”.

2.

Turn the high-mounted stop lamp bulb socket counterclockwise
and unlock it.

3.

Remove the bulb.

Removal and Installation

EKS000WD

STOP LAMP

Refer to

LT-80, "REAR COMBINATION LAMP"

  in “PARKING, LICENSE PLATE AND TAIL LAMPS”.

HIGH-MOUNTED STOP LAMP

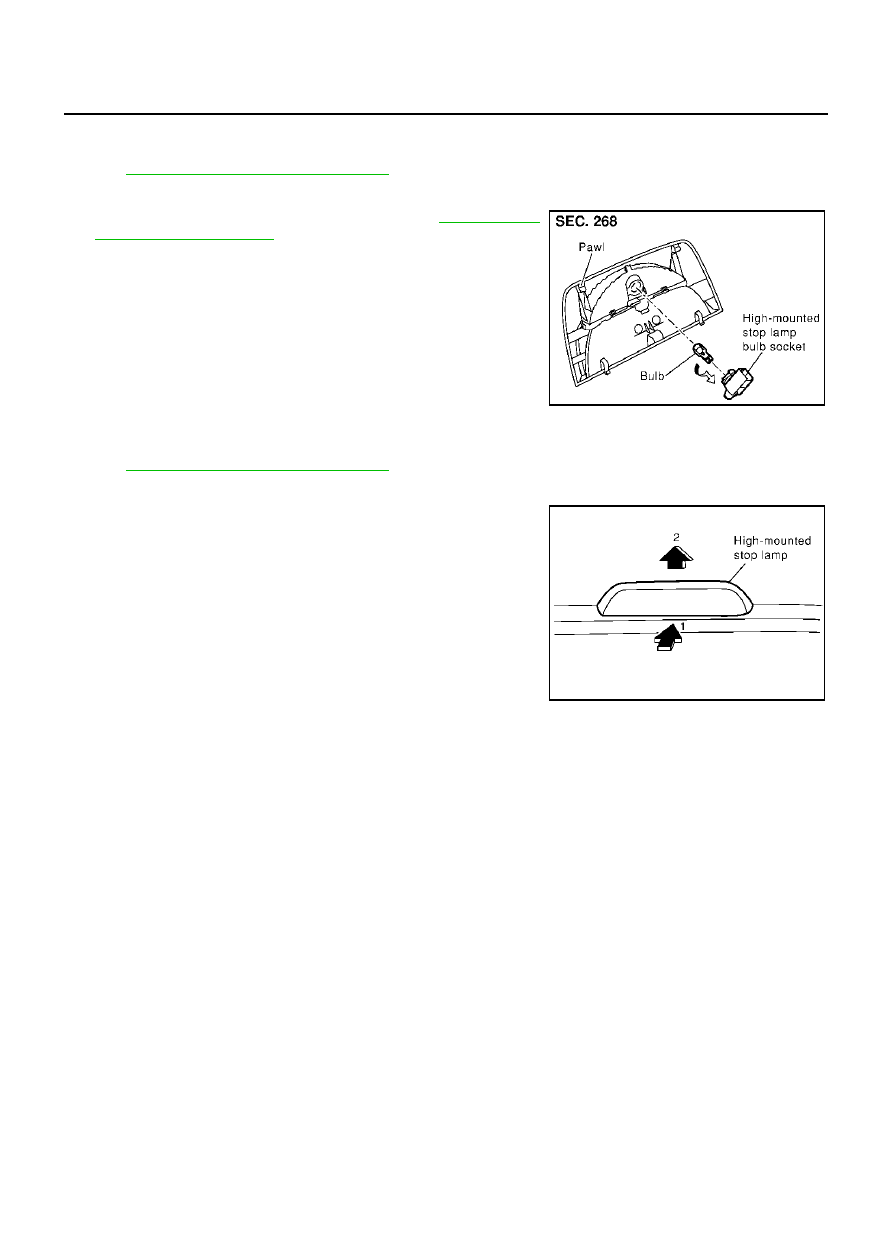

1.

Pull up the high-mounted stop lamp while pressing it toward rear
of the vehicle and remove from the vehicle.

2.

Disconnect the high-mounted stop lamp connector.

High-mounted Stop Lamp

: 12V 18W

PKIA0056E

PKIA0057E
