TURN SIGNAL AND HAZARD WARNING LAMPS

LT-59

C

D

E

F

G

H

I

J

L

M

A

B

LT

Ground is supplied to terminals 2 of each front turn signal lamp through body grounds E42 and E62.
Ground is supplied to terminals 6 of each rear turn signal lamp through body grounds B17and B57.
Ground is supplied to terminals 5 of each door mirror through body grounds M24 and M114.
Ground is supplied to combination meter terminal 62 through body grounds M24 and M114.
With power and ground supplied, the combination flasher unit controls the flashing of the hazard warning
lamps.

MULTI-REMOTE CONTROL SYSTEM OPERATION

Power is supplied at all times

through 15A fuse [No. 22, located in the fuse block (J/B) NO.1]

to combination flasher unit terminal 4.

Ground is supplied to combination flasher unit terminal 6, when the multi-remote control system is triggered
through the BCM.
Refer to

BL-52, "REMOTE KEYLESS ENTRY SYSTEM"

  in “BODY, LOCK & SECURITY SYSTEM (BL)” sec-

tion.
The BCM is energized.
Power is supplied through terminal 8 of the combination flasher unit

to front turn signal lamp LH terminal 1

to rear turn signal lamp LH terminal 5

to door mirror (driver side) terminal 7

to combination meter terminal 45.

Power is supplied through terminal 3 of the combination flasher unit

to front turn signal lamp RH terminal 1

to rear turn signal lamp RH terminal 5

to door mirror (passenger side) terminal 7

to combination meter terminal 46.

Ground is supplied to terminals 2 of each front turn signal lamp through body grounds E42 and E62.
Ground is supplied to terminals 6 of each rear turn signal lamp through body grounds B17and B57.
Ground is supplied to terminals 5 of each door mirror through body grounds M24 and M114.
Ground is supplied to combination meter terminal 62 through body grounds M24 and M114.
With power and ground supplied, the BCM controls the flashing of the hazard warning lamps.

LOW TIRE PRESSURE WARNING CONTROL SYSTEM

When ID is normally registered to each transmitter in the LOW TIRE PRESSURE WARNING CONTROL
UNIT, the hazard warning lamp flashes twice. Refer to

WT-13, "ID Registration Procedure"

    in  “ROAD

WHEELS & TIRES (WT)” section.

LT-60

TURN SIGNAL AND HAZARD WARNING LAMPS

Schematic

EKS000VD

TKWM0029E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-61

C

D

E

F

G

H

I

J

L

M

A

B

LT

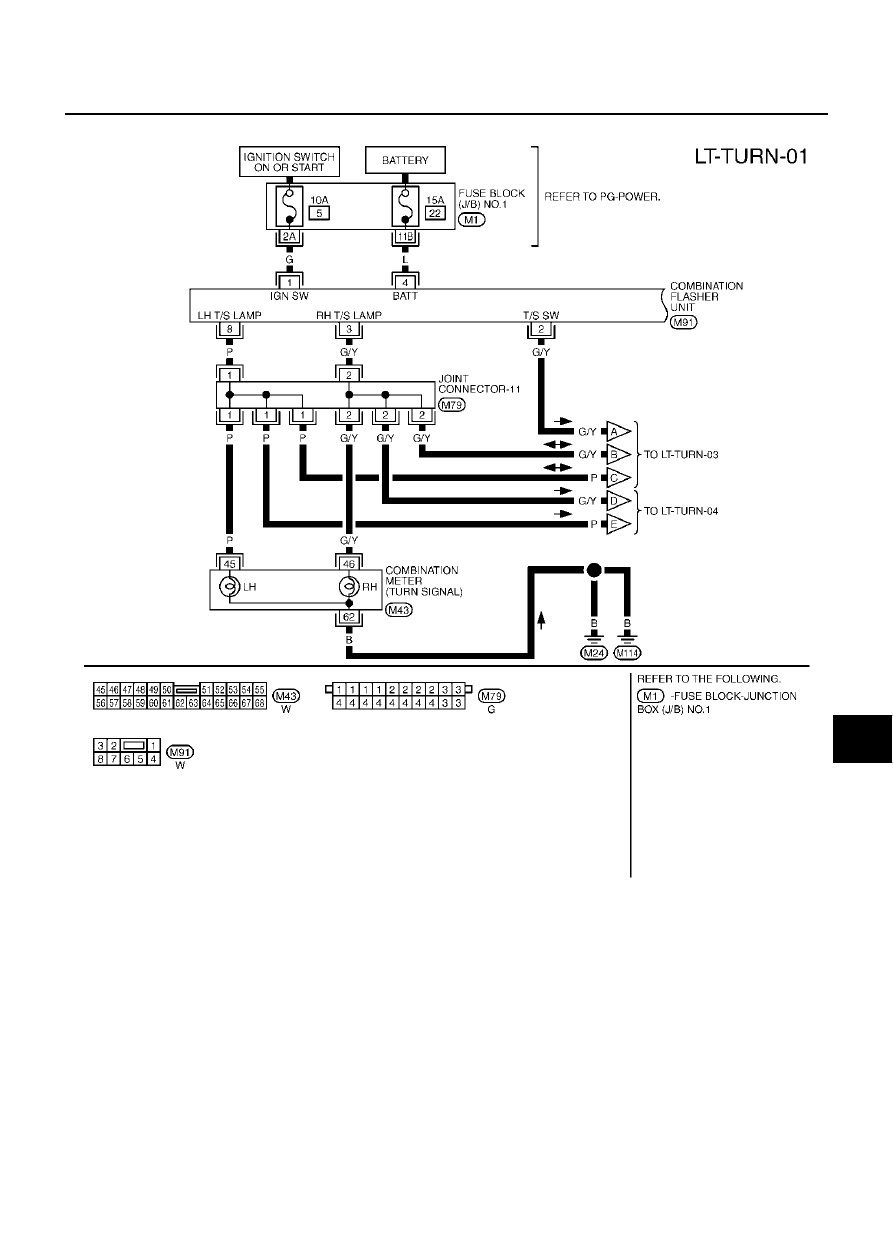

Wiring Diagram — TURN —

EKS000T9

TKWM0406E

LT-62

TURN SIGNAL AND HAZARD WARNING LAMPS

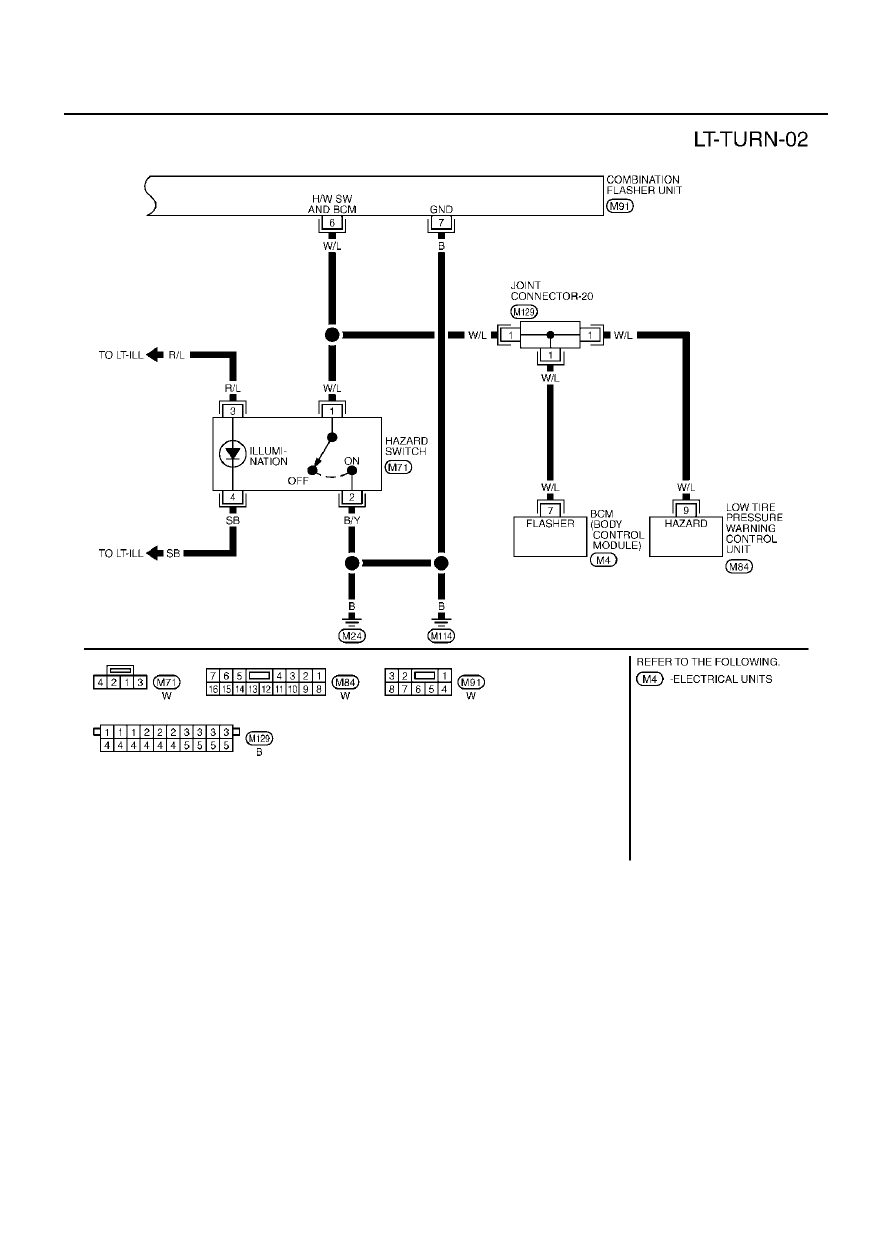

TKWM0407E
