CAN SYSTEM (FOR VDC MODELS)

LAN-25

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

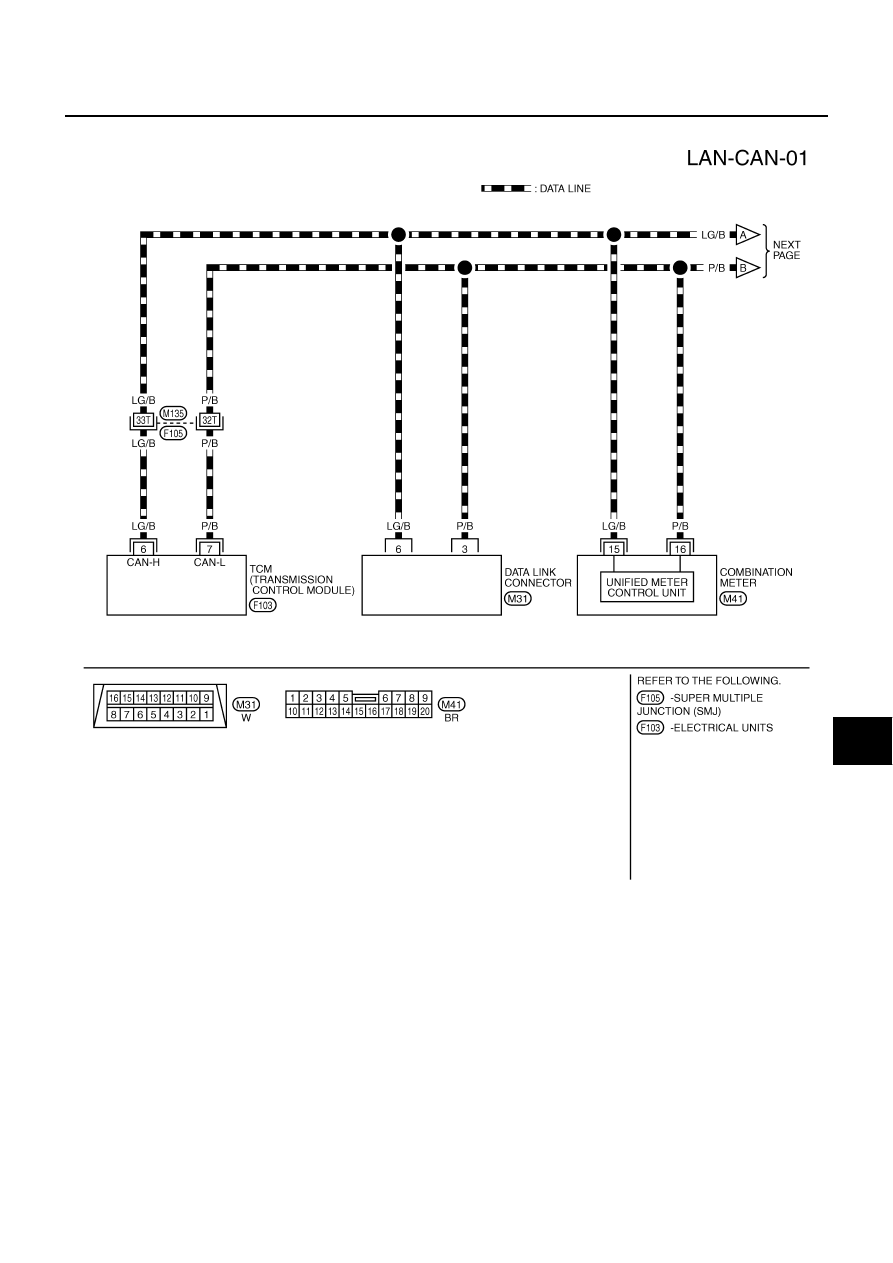

Wiring Diagram — CAN —

EKS003L9

TKWM0438E

LAN-26

[CAN]

CAN SYSTEM (FOR VDC MODELS)

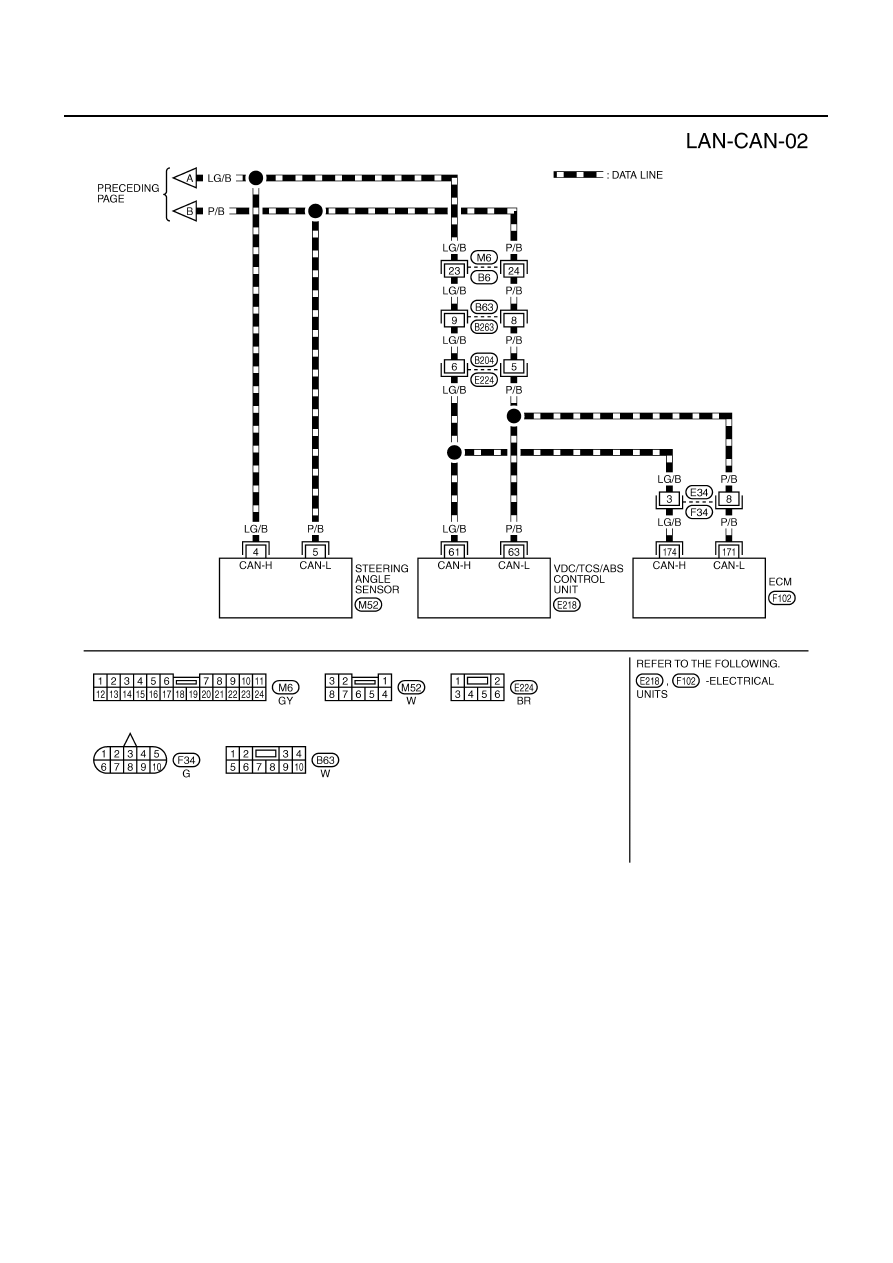

TKWM0259E

CAN SYSTEM (FOR VDC MODELS)

LAN-27

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Work Flow

EKS003LA

1.

Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “A/T”, and “VDC” dis-
played on CONSULT-II. Refer to the following:

EC-141, "DTC U1000, U1001 CAN COMMUNICATION LINE"

 for “ENGINE”

AT-99, "DTC U1000 CAN COMMUNICATION LINE"

 for “A/T”

BRC-58, "Inspection 16 CAN Communications Lines, VDC/TCS/ABS Control Unit and Steering Angle
Sensor System"

 for “VDC”

2.

Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer to

LAN-28, "CHECK SHEET"

 .

3.

Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet
table. Refer to

LAN-28, "CHECK SHEET"

 .

NOTE:
If “NG” is displayed on “CAN COMM” for the diagnosed control unit, replace the control unit.

4.

According to the check sheet results (example), start inspection. Refer to

LAN-29, "CHECK SHEET

RESULTS (EXAMPLE)"

 .

LAN-28

[CAN]

CAN SYSTEM (FOR VDC MODELS)

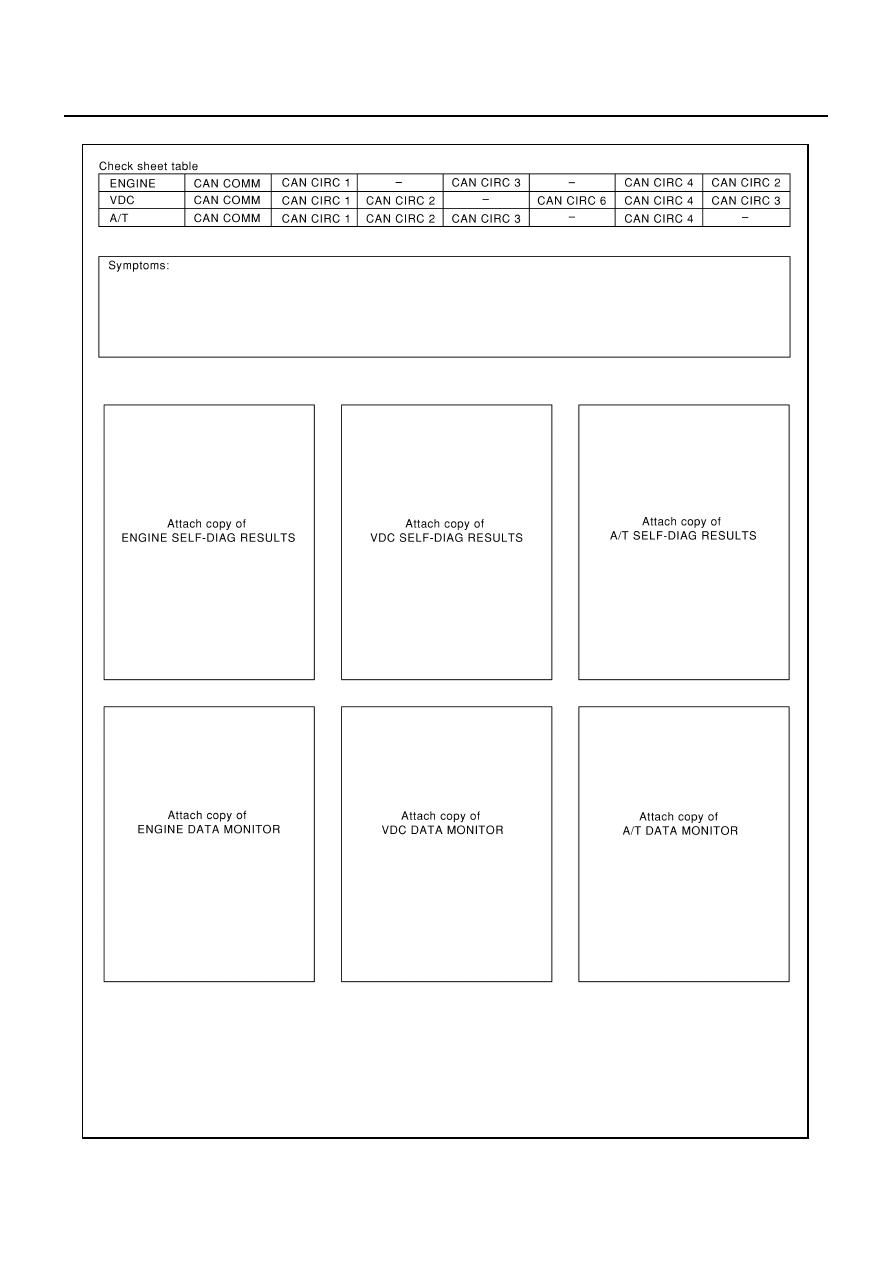

CHECK SHEET

PKIA0295E
