INSTRUMENT PANEL ASSEMBLY

IP-15

C

D

E

F

G

H

J

K

L

M

A

B

IP

CD AUTO CHANGER

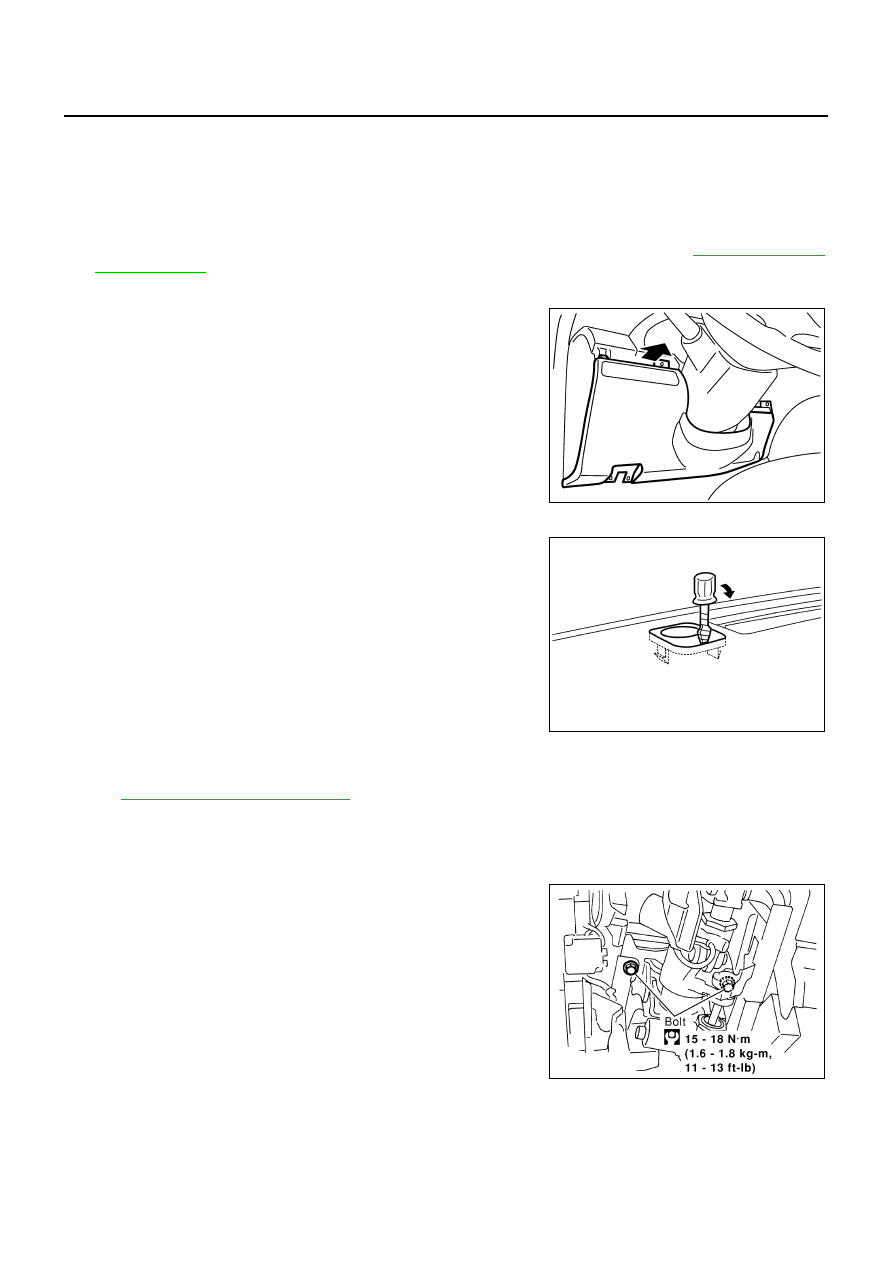

Remove screws with power tool, disconnect connectors, and remove CD auto changer.

NOTE:
To remove CD auto changer alone, slide console backward, open front of console outward, then remove
it.

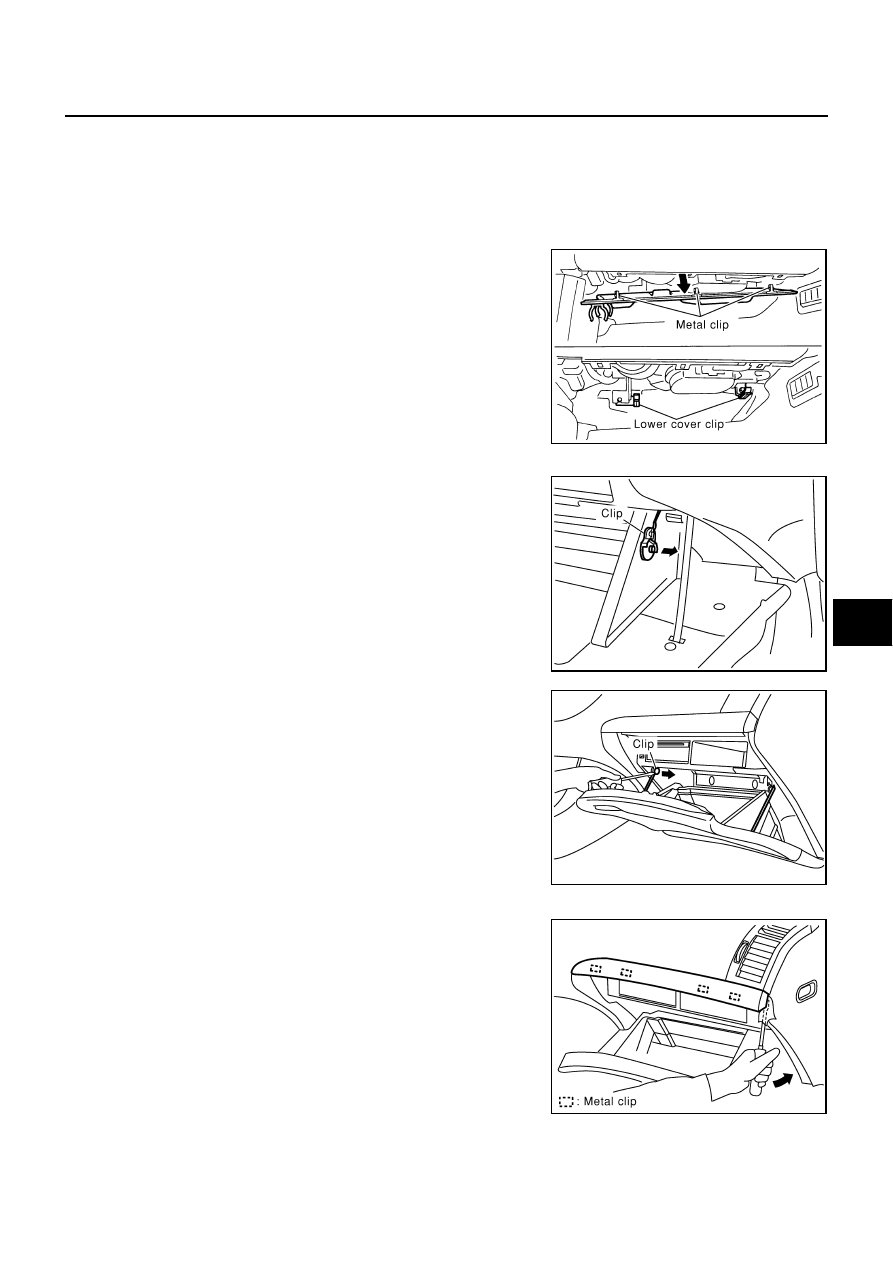

INSTRUMENT LOWER COVER

1.

Push down front of instrument lower cover, and disconnect
metal clips.

2.

Pull instrument lower cover horizontally, and remove it from
lower cover clips.

CAUTION:

Remove connectors of air bag (as connected) from instru-
ment lower cover.

GLOVE BOX ASSEMBLY

1.

Pull clips of dumper to right side of vehicle, and remove it.

2.

Disconnect clips of strap.

3.

Remove glove box pins, and remove glove box.

INSTRUMENT FINISHER

Insert cloth-covered screw driver into gaps between instrument
finisher and instrument panel on left side of instrument finisher,
and disconnect metal clips.

GLOVE BOX COVER

Remove screws with power tool and glove box striker, disconnect connectors, and remove glove box
cover.

SIIA0799E

SIIA0800E

SIIA0801E

SIIA0802E

IP-16

INSTRUMENT PANEL ASSEMBLY

AUDIO UNIT

Remove bolts with power tool, disconnect connectors, and remove audio unit.

INSTRUMENT REINFORCEMENT

Remove four nuts, and remove instrument reinforce.

PASSENGER AIR BAG MODULE

Remove bolts with power tool, and remove front passenger air bag module. Refer to

SRS-44, "Removal

and Installation"

 .

INSTRUMENT LOWER DRIVER PANEL

1.

Remove hood lock opener lever, and screws with power tool.

2.

Pull instrument lower driver panel straight to your side, discon-
nect connectors, and remove instrument lower driver panel.

INSTRUMENT MASK

Insert cloth-covered screw driver into gaps between instrument
mask and instrument panel, lift instrument mask up, and remove
instrument mask.

FRONT PILLAR GARNISH

Pull front pillar garnish straight inside of vehicle, disengage metal clips, and remove front pillar garnish.

Refer to

EI-37, "Removal and Installation"

INSTRUMENT PANEL BRACKET

Remove ignition key lamp, remove screws, and remove instrument panel bracket.

INSTRUMENT PANEL

1.

Remove bolts, and lower steering column.

2.

Remove bolts, nuts and screws securing instrument panel with power tool, and remove instrument panel.

CAUTION:

To install, confirm locating pins on back of instrument panel are completely inserted into holes
on vehicle.

SIIA0803E

SIIA0384J

SIIA0804E

INSTRUMENT PANEL ASSEMBLY

IP-17

C

D

E

F

G

H

J

K

L

M

A

B

IP

Do not leave harness stuck when installing.

Disassembly and Assembly

EIS000DT

CONSOLE BOX ASSEMBLY

Disassembly

1.

Remove console finisher.

2.

Remove console rear cover.

3.

Remove console lid.

4.

Remove center ventilator grille.

5.

Remove console box finisher.

6.

Remove console box.

7.

Remove bracket.

Assembly

Assemble in the reverse order of disassembly.

SIIA0830E

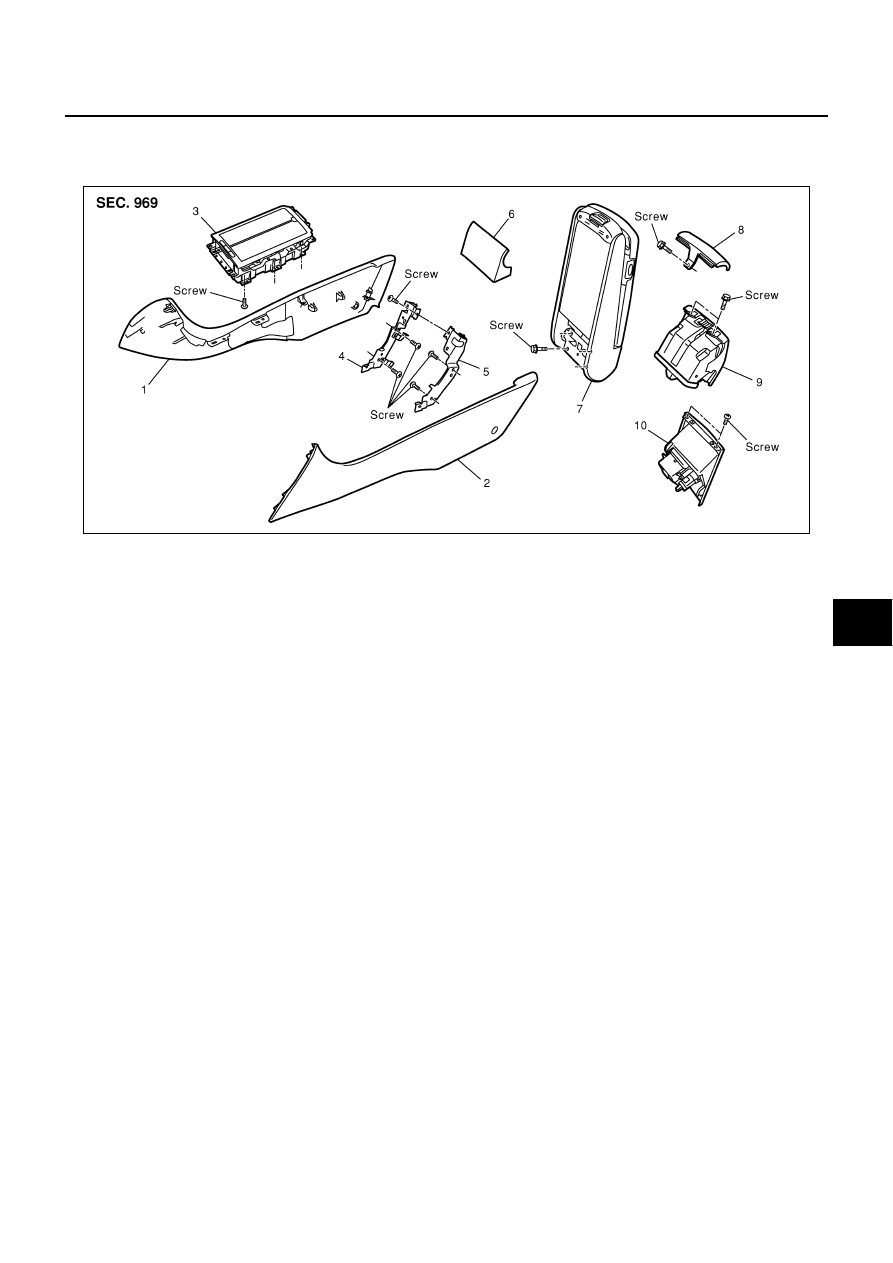

1.

Pad A

2.

Pad B

3.

Console pocket

4.

Console reinforcement (right)

5.

Console reinforcement (left)

6.

Console finisher

7.

Console lid

8.

Console rear cover

9.

Center ventilator grille

10. Console box finisher

IP-18

INSTRUMENT PANEL ASSEMBLY
