INSTRUMENT PANEL ASSEMBLY

IP-11

C

D

E

F

G

H

J

K

L

M

A

B

IP

WORK STEPS

When removing instrument panel and pad, combination meter, display unit or console assembly, take steps in
the order shown by ( ) numbers below.

( ):number indicates step in removal procedures.

1.

Combination meter

2.

Ventilation mask (LH)

3.

Ventilation mask (RH)

4.

Cluster lid C

5.

Display unit

6.

Cluster lid A

7.

Cluster lid D

8.

Steering lock escutcheon

9.

Front defroster grille (LH)

10. Front defroster grille (RH)

11. Instrument panel mask (LH)

12. Instrument panel mask (RH)

13. Steering column cover

14. Ignition key lamp assembly

15. Instrument panel bracket

16. Clock

17. Cluster lid C lower

18. Cluster lid center lower

19. CD auto changer

20. Audio unit

21. Instrument panel bracket

22. Instrument panel and pad assembly

23. Front passenger air bag module

24. Instrument lower driver panel

25. Knee protector lower

26. A/T console finisher

27. Ashtray

28. Cup holder

29. Bolt cap

30. Console box assembly

31. Instrument finisher

32. Glove box cover

33. Glove box striker

34. Glove box assembly

35. Glove box pin

36. Instrument lower cover

Parts

Instrument panel

and pad

Combination meter

 Display unit

Console box

assembly

Steering lock escutcheon

(1)

(1)

Steering column cover

(2)

(2)

Cluster lid D

(3)

(3)

Cluster lid A

(4)

(4)

Combination meter

(5)

(5)

Ventilation mask

(6)

(1)

Cluster lid C

(7)

(2)

Display unit

(8)

(3)

Clock

(9)

Cluster lid center lower

(10)

(1)

A/T finisher

(11)

(2)

Ashtray

(12)

(3)

Cup holder

(13)

(4)

Console box assembly

(14)

(5)

CD auto changer

(15)

Instrument lower cover

(16)

Glove box assembly

(17)

Instrument finisher

(18)

Glove box cover

(19)

Audio unit

(20)

Instrument reinforcement

(21)

Passenger air bag module

(22)

Instrument lower driver panel

(23)

Knee protector lower

(24)

Instrument mask

(25)

Front pillar garnish

(26)

Instrument panel bracket

(27)

Instrument panel and pad assembly

(28)

IP-12

INSTRUMENT PANEL ASSEMBLY

STEERING LOCK ESCUTCHEON

Pull steering lock escutcheon back to your side, and disconnect
metal clips.

CLUSTER LID D

Pull cluster lid D back to your side, disconnect metal clips and
connectors, and remove it.

CLUSTER LID A

1.

Remove screws with power tool.

2.

Pull cluster lid A back to your side, and disconnect metal clips.

3.

Make upper and lower side of cluster lid A narrower, and pull it
back to your side.

4.

Remove it as covering steering wheel.

SIIA0788E

SIIA0787E

SIIA0789E

SIIA0790E

INSTRUMENT PANEL ASSEMBLY

IP-13

C

D

E

F

G

H

J

K

L

M

A

B

IP

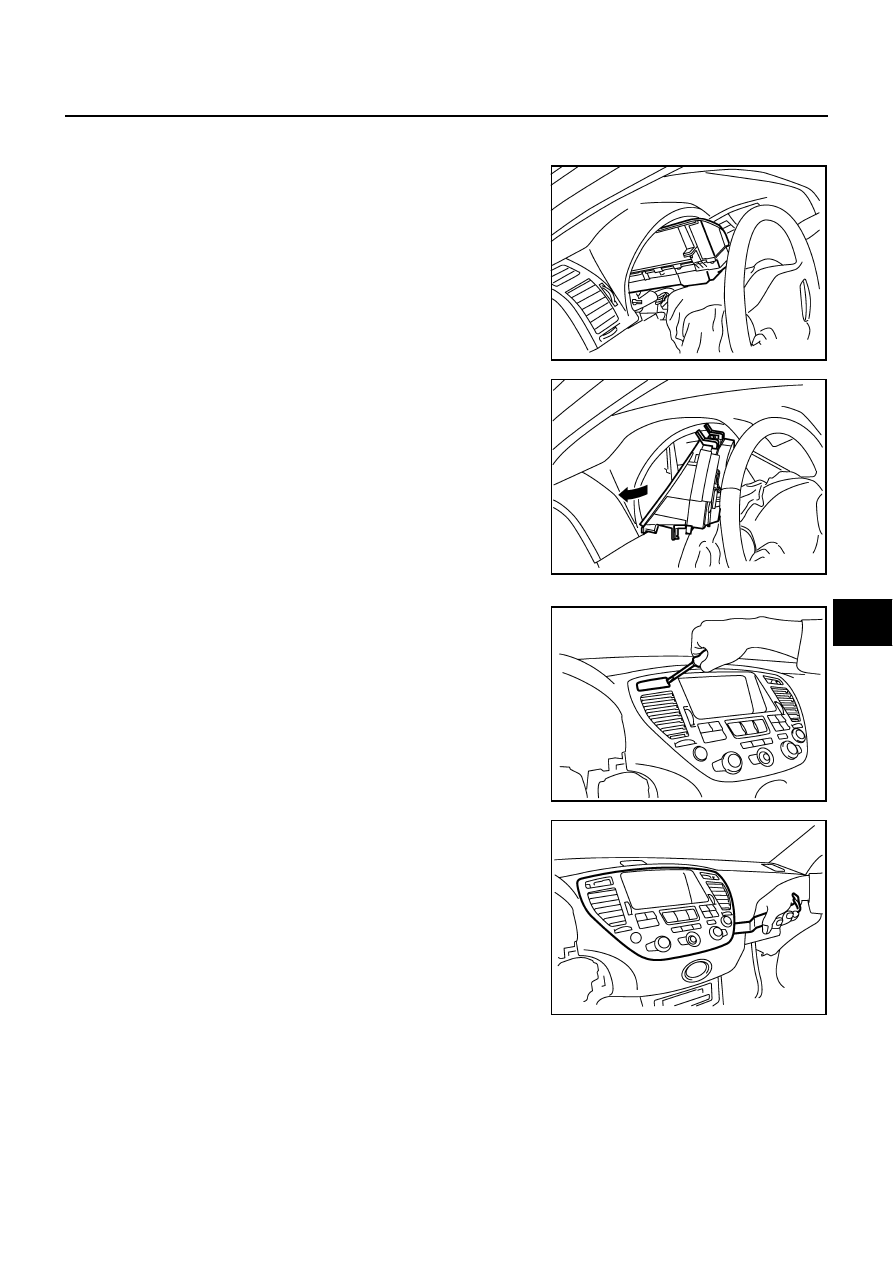

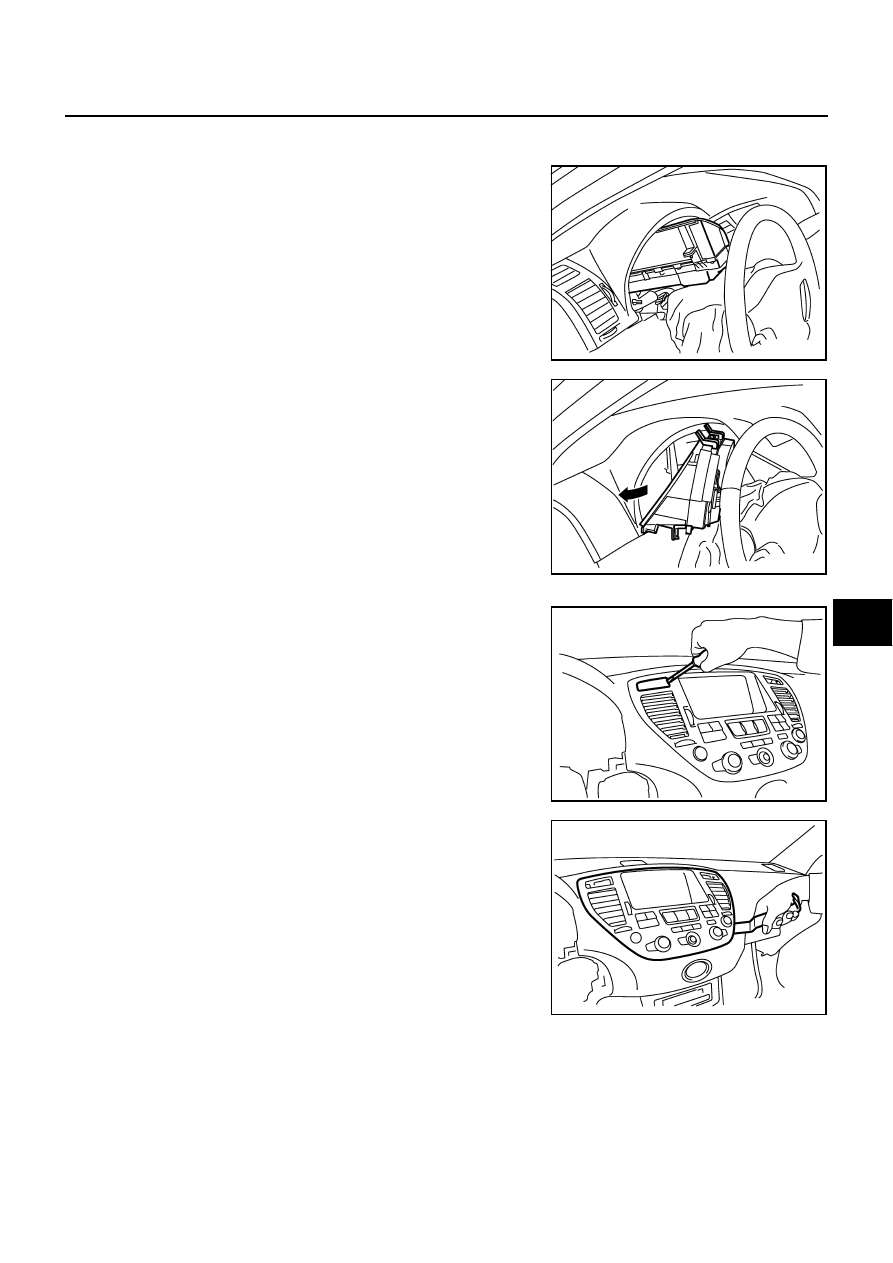

COMBINATION METER

1.

Remove screws with power tool, and disconnect connectors.

2.

Turn to right part of meter come to your side. Push down to front
face of meter up.

CAUTION:

Cover meter with cloth avoid contact with meter bracket
that may cause scratches or damages.

3.

Pull meter to your side, then left side (Confirm the back of meter
faces you).

CLUSTER LID C

1.

Remove ventilation mask, and remove screws with power tool.

2.

Insert a cloth-covered screwdriver, or thin spatula into dip
between instrument panel, pull cluster lid C back to your side,
and disengage metal clips below.

3.

Disconnect connectors, and remove cluster lid C.

CAUTION:

Cover surroundings with cloth to avoid scratches or dam-
ages.

CLOCK

1.

Remove screws, push to frontward clock, and remove clock.

2.

Push tips of cluster lid C lower from back of instrument panel, and remove clock.

SIIA0791E

SIIA0792E

SIIA0793E

SIIA0794E

IP-14

INSTRUMENT PANEL ASSEMBLY

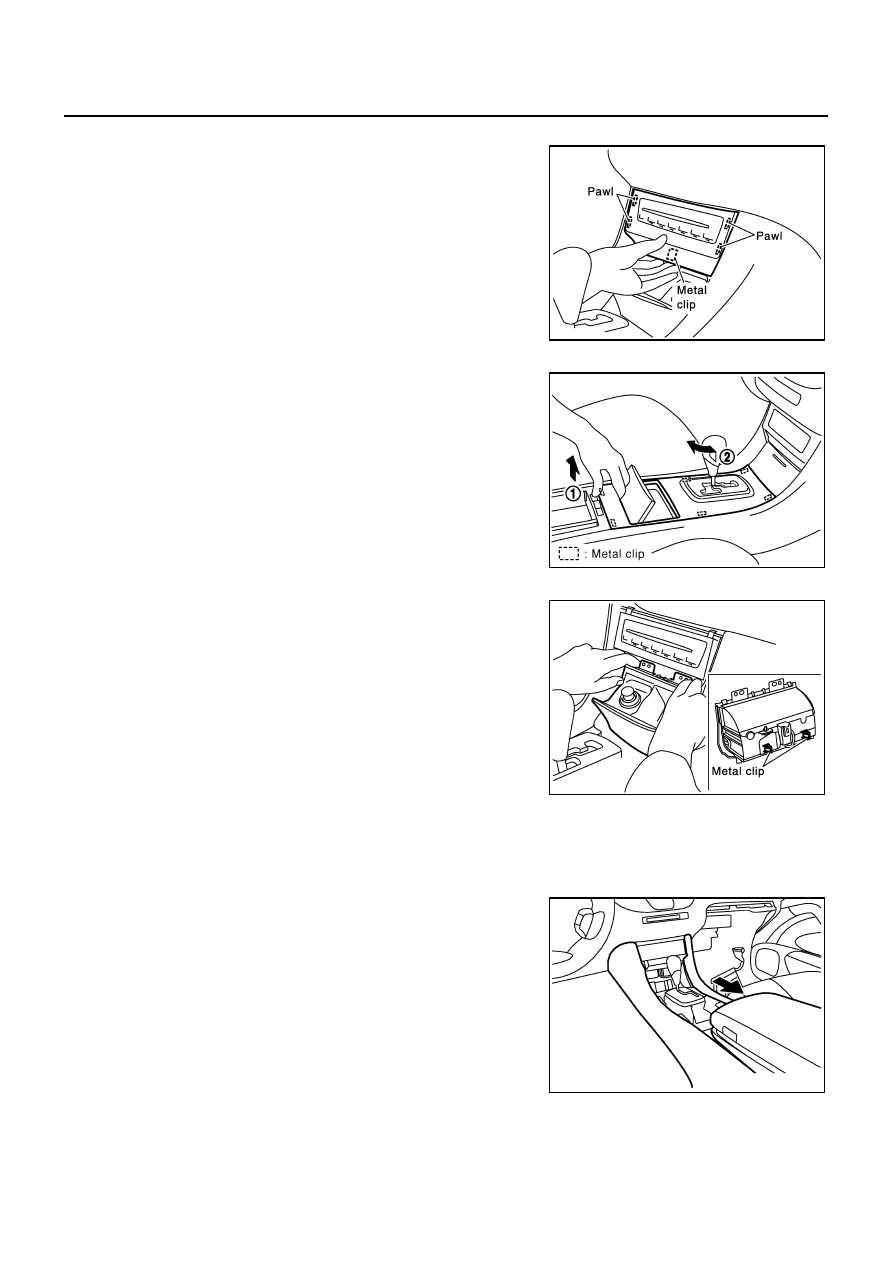

CLUSTER LID CENTER LOWER

Open lid of ashtray. Hold lower part of cluster lid center lower,
and pull it back to your side. Disconnect both right/left pawls and
metal clips, and remove cluster lid center lower.

A/T FINISHER

1.

Open console lid and cup holder lid. Hold rear part of A/T fin-
isher, lift it up, and disconnect metal clips at its rear end.

2.

Hold side of A/T finisher, and disconnect metal clips in front. Pull
it backward, remove it, and disconnect connectors.

ASHTRAY

1.

Remove screws with power tool, pull ashtray back to your side,
and disconnect metal clips.

2.

Disconnect connectors, and remove ashtray.

CUP HOLDER

Remove screws with power tool, lift cup holder up, disconnect metal clips at its rear end, and remove it.

CONSOLE BOX ASSEMBLY

1.

Remove screws.

2.

Pull center console rearward of vehicle, and remove it from
instrument panel and rear cooler duct.

3.

Disconnect connectors, and remove console box assembly.

NOTE:
For easier installation, remove console finisher, console rear cover, center ventilator grille and console
box finisher first.

PIIA3256E

SIIA0796E

PIIA3257E

SIIA0798E
