FRONT SUSPENSION ASSEMBLY

FSU-7

C

D

F

G

H

I

J

K

L

M

A

B

FSU

5.

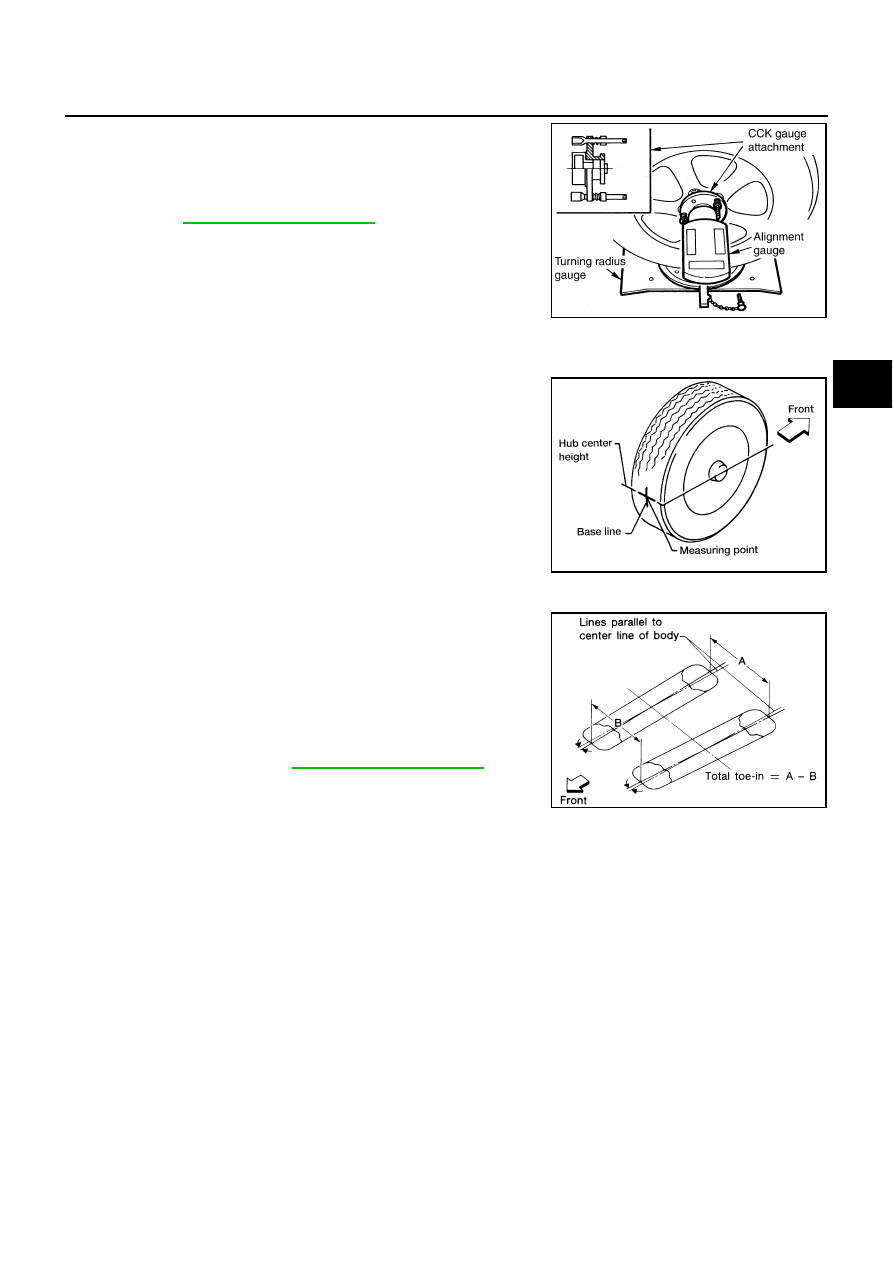

Place the dent of alignment gauge onto the projection of center
plate (special service tool) and tightly contact them to measure.

CAUTION:

If camber, caster, or kingpin inclination angle is outside
the standard, check front suspension parts for wear and
damage, and replace suspect parts if necessary.

King pin inclination angles is reference value, no inspec-
tion is required.

Toe-in Inspection

Measure toe-in using the following procedure.

WARNING:

Always perform the following procedure on a flat surface.

Make sure that no person is in front of vehicle before push-
ing it.

1.

Bounce front of vehicle up and down to stabilize the posture.

2.

Push vehicle straight ahead about 5 m (16ft).

3.

Put a mark on base line of the tread (rear side) of both tires at
the same height of hub center. These are measuring points.

4.

Measure distance “A” (rear side).

5.

Push vehicle slowly ahead to rotate wheels 180 degrees (1/2
turn).

If wheels have rotated more than 180 degrees (1/2 turn), try the
above procedure again from the beginning. Never push vehicle
backward.

6.

Measure distance “B” (front side).

Standard value

Camber, caster, kingpin inclination angles:

Refer to

FSU-16, "SERVICE DATA"

 .

SEIA0241E

AFA050

Standard value

Total toe-in

: Refer to

FSU-16, "SERVICE DATA"

 .

SFA234AC

FSU-8

COIL SPRING AND STRUT

COIL SPRING AND STRUT

PFP:55302

Removal and Installation

EES000TY

REMOVAL

1.

Remove tire with power tool.

2.

Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-

23, "FRONT DISC BRAKE"

 .

CAUTION:

Avoid depressing brake pedal while brake caliper is removed.

3.

Remove mounting nuts of brake hose from strut assembly.

4.

Remove harness of wheel sensor from strut assembly. Refer to

BRC-68, "WHEEL SENSORS"

 .

CAUTION:

Do not pull on wheel sensor harness.

5.

Remove stabilizer connecting rod upper nut, separate strut assembly and stabilizer connecting rod.

6.

Remove steering outer socket and cotter pin at strut assembly, then loosen mounting nut.

7.

Use a ball joint remover (suitable tool) to remove steering outer socket from strut assembly. Be careful not
to damage ball joint boot.

CAUTION:

To prevent damage to threads and to prevent ball joint remover (suitable tool) from coming off,
and temporarily tighten lock nuts.

8.

Remove cotter pin of suspension arm ball joint, then loosen mounting nut.

9.

Use a ball joint remover (suitable tool) to remove strut assembly from suspension arm. Be careful not to
damage ball joint boot.

CAUTION:

To prevent damage to threads and to prevent ball joint remover (suitable tool) from coming off,
and temporarily tighten lock nuts.

10. Turn actuator assembly to the left, and remove it from actuator plate.

11. Remove tower bar and strut mounting insulator bracket then remove strut mounting insulator bracket and

strut assembly from vehicle.

INSTALLATION

Refer to

FSU-5, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

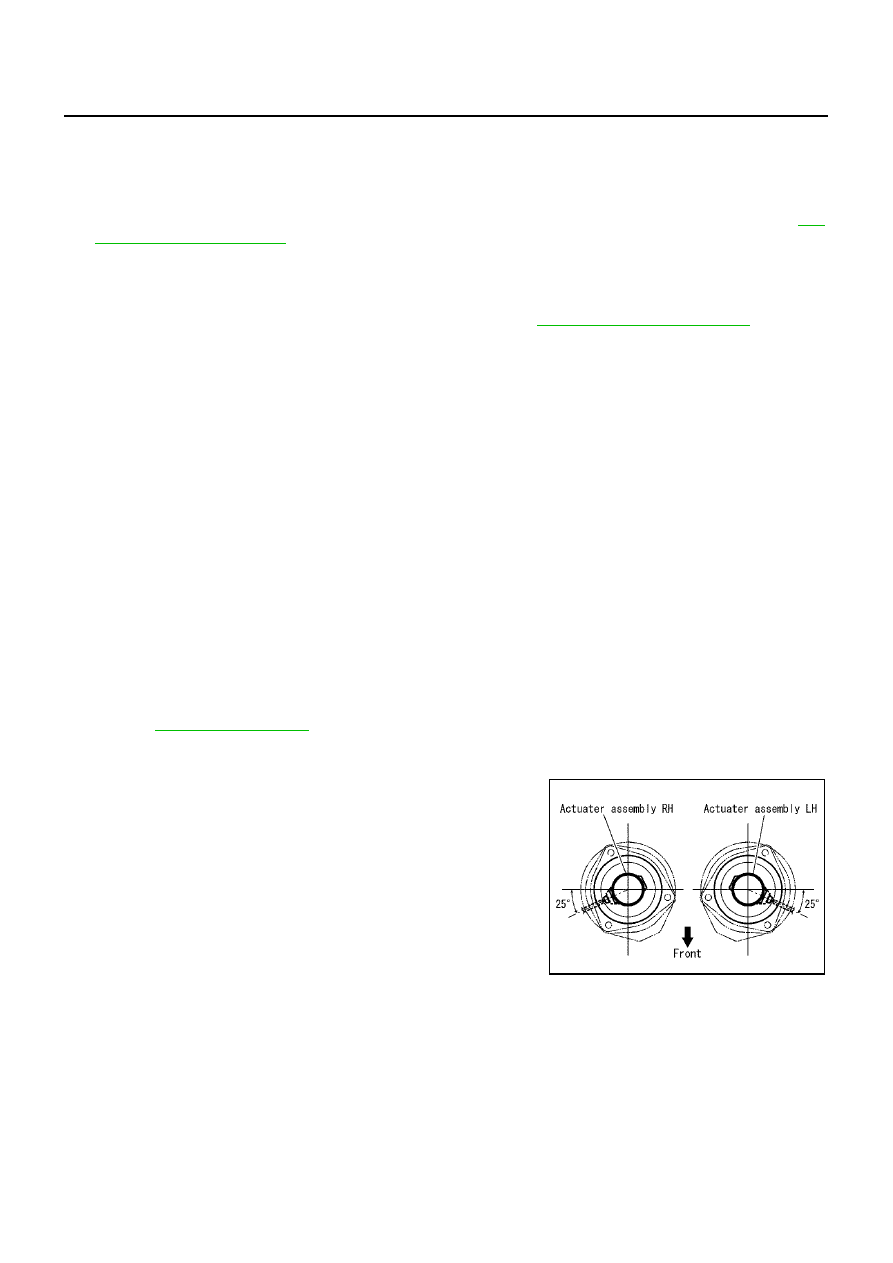

Make sure actuator plate fits tightly into actuator assembly.

Make sure actuator assembly is installed as shown in the figure.

CAUTION:

If actuator assembly is subjected to impact or drop, do not
use it.

SEIA0068E

COIL SPRING AND STRUT

FSU-9

C

D

F

G

H

I

J

K

L

M

A

B

FSU

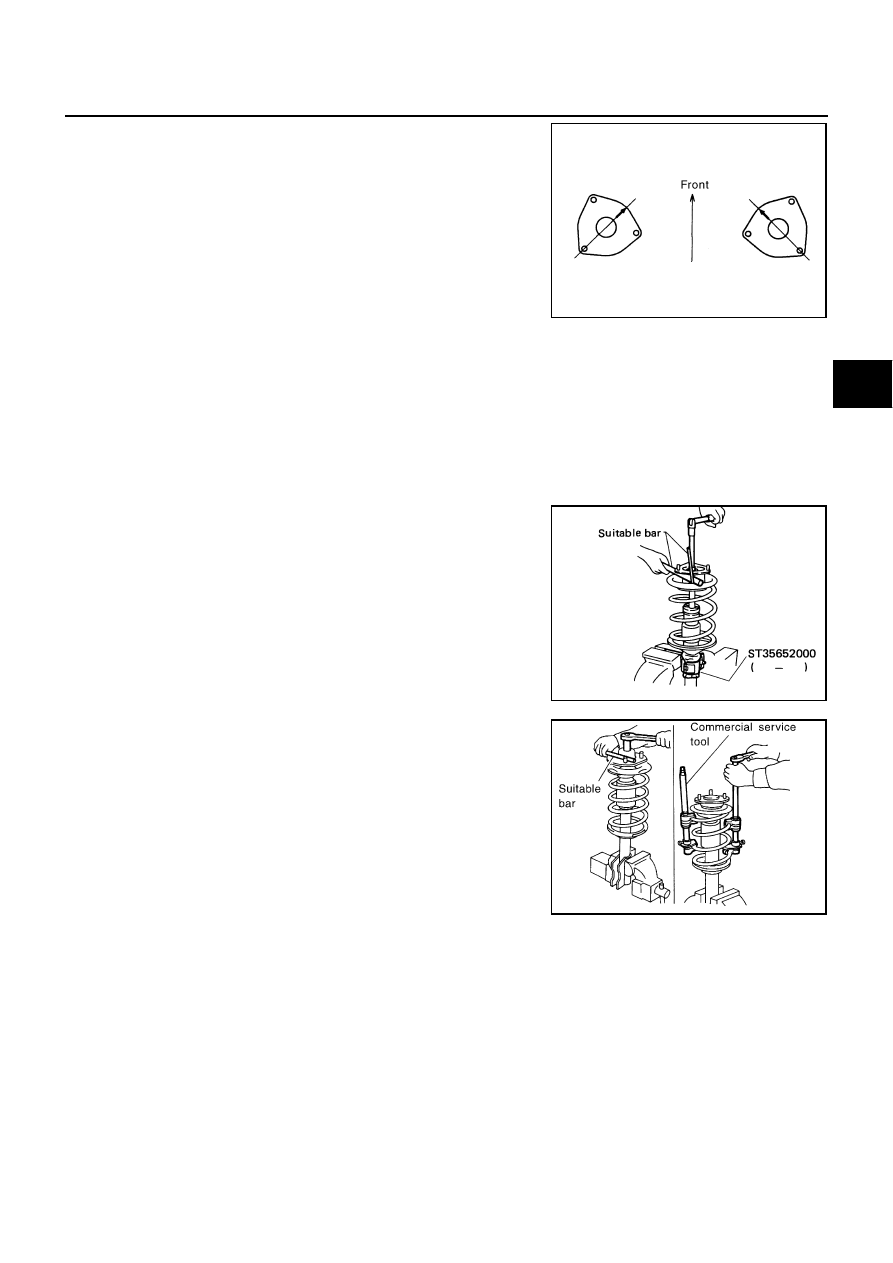

Attach strut mounting insulator bracket as shown in the figure.

Disassembly and Assembly

EES000TZ

DISASSEMBLY

CAUTION:

Make sure piston rod on strut assembly is not damaged when removing components from strut
assembly.

1.

Fix strut mounting insulator and remove actuator fixing nut, then remove actuator plate from strut assem-
bly.

CAUTION:

Be careful not to deform actuator plate and strut mounting insulator.

2.

Install strut attachment (special service tool) to strut assembly
and fix it in a vice.

CAUTION:

When installing strut attachment (special service tool) to
strut assembly, wrap a shop cloth around strut assembly to
protect it from damage.

3.

Using a spring compressor (commercial service tool), compress
coil spring between spring upper seat and spring lower seat (on
strut) until coil spring is free.

CAUTION:

Be sure spring compressor (commercial service tool) is
securely attached to coil spring. Compress coil spring.

4.

After making sure coil spring is free between spring upper seat and spring lower seat of strut assembly.
Remove piston rod lock nut.

5.

Remove strut mounting insulator, strut mounting bearing, spring upper seat, rubber seat, coil spring and
bound bumper from strut assembly.

6.

Gradually release spring compressor (commercial service tool), and remove coil spring.

CAUTION:

Loosen while making sure coil spring attachment position does not move.

7.

Remove strut attachment (special service too) from strut assembly.

SEIA0254E

SFA261B

SSU002

FSU-10

COIL SPRING AND STRUT

INSPECTION AFTER DISASSEMBLY
Strut Inspection

Check strut assembly for deformation, cracks, damage, and replace if necessary.

Check piston rod for damage, uneven wear, distortion, and replace if necessary.

Check welded and sealed areas for oil leakage, and replace if necessary.

Strut Mounting Insulator and Rubber Parts Inspection

Check strut mounting insulator, strut mounting insulator bracket for cracks and rubber parts for wear. Replace
them if necessary.

Coil Spring Inspection

Check coil spring for cracks, wear, damage and replace if necessary.

ASSEMBLY

CAUTION:

Make sure piston rod on strut assembly is not damaged when attaching components to strut assem-
bly.

1.

Install strut attachment (special service tool) to strut assembly
and fix it in a vise.

CAUTION:

When installing strut attachment (special service tool) to
strut assembly, wrap a shop cloth around strut assembly to
protect it from damage.

2.

Compress coil spring using a spring compressor (commercial service tool), and install it onto strut assem-
bly.

CAUTION:

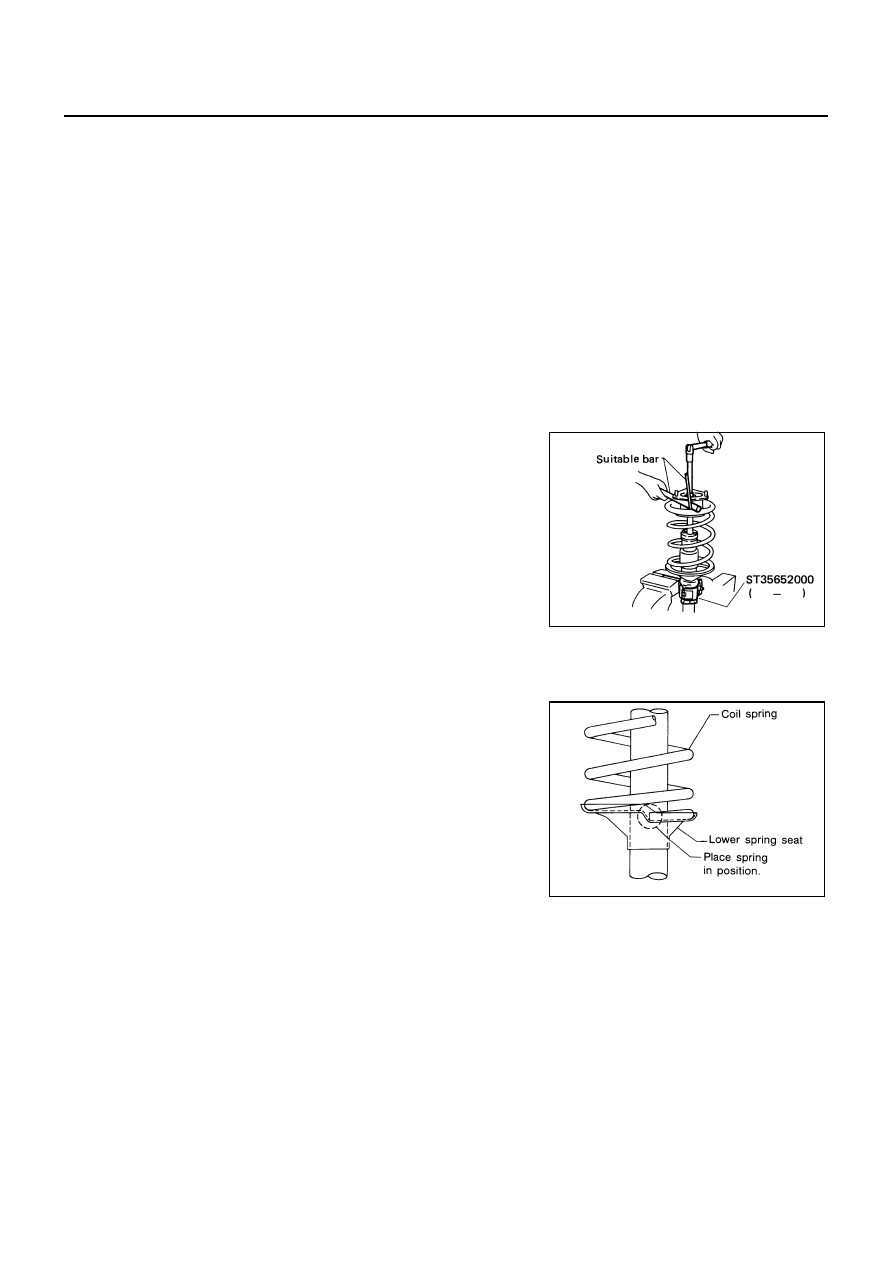

Face tube side of coil spring downward. Align lower end
to spring seat as shown in the figure.

Be sure spring compressor (commercial service tool) is
securely attached to coil spring. Compress coil spring.

3.

Apply soapy water to bound bumper and insert into strut mounting insulator.

CAUTION:

Do not use machine oil.

4.

Install rubber seat, spring upper seat, strut mounting bearing, strut mounting insulator.

SFA261B

SFA149
