IGNITION SIGNAL

EC-645

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

19
21
30
32

W/G
W/R
PU/W
G/R

Ignition signal No. 2
Ignition signal No. 4
Ignition signal No. 6
Ignition signal No. 8

[Engine is running]

Warm-up condition

Idle speed

NOTE:
The pulse cycle changes depending on rpm at idle.

0 - 0.1V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm.

0 - 0.2V

PBIB0044E

PBIB0045E

EC-646

IGNITION SIGNAL

TBWM0169E

IGNITION SIGNAL

EC-647

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

EBS00MNY

1.

CHECK ENGINE START

Turn ignition switch “OFF”, and restart engine.
Is engine running?

Yes or No

Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No

>> GO TO 4.

2.

CHECK OVERALL FUNCTION

 With CONSULT-II

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.

2.

Make sure that each circuit produces a momentary engine
speed drop.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 11.

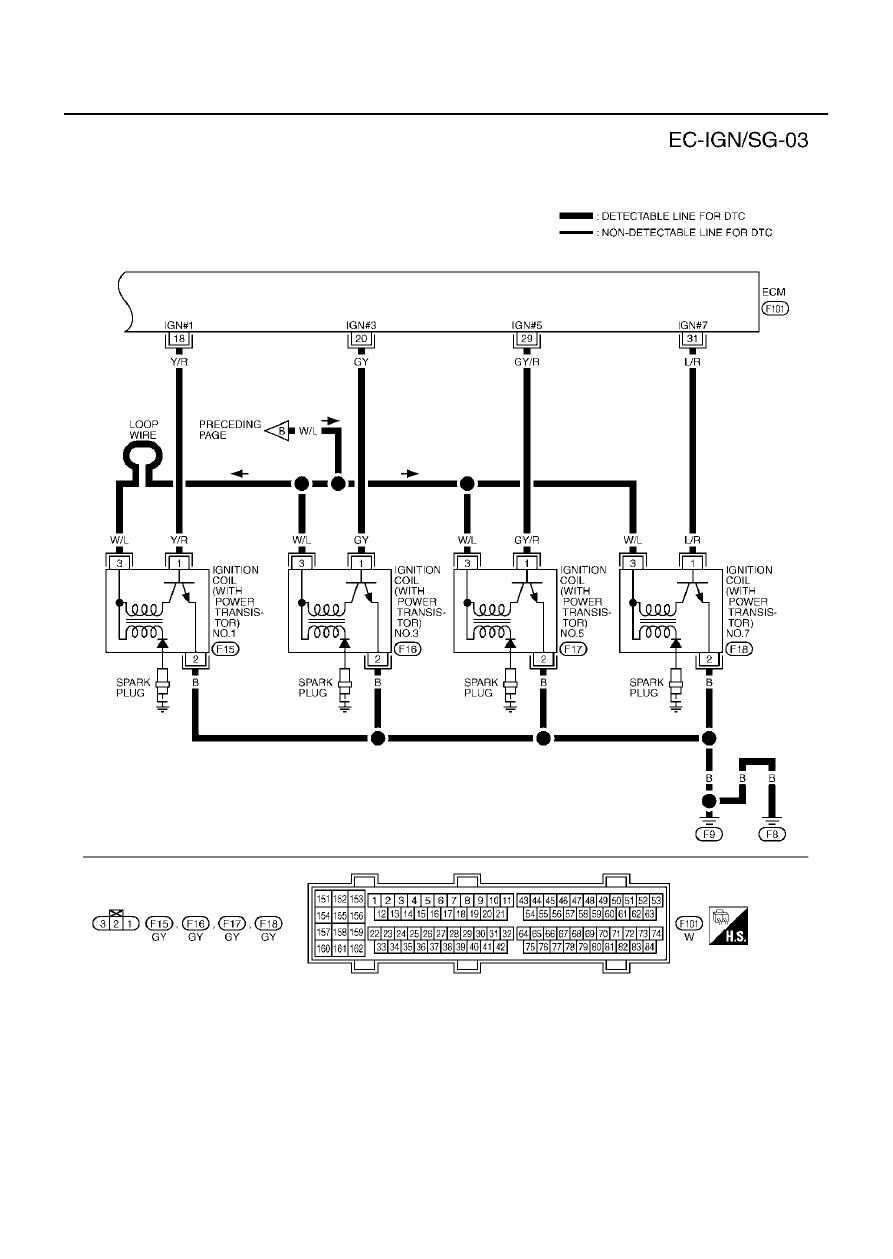

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

18
20
29
31

Y/R
GY
GY/R
L/R

Ignition signal No. 1
Ignition signal No. 3
Ignition signal No. 5
Ignition signal No. 7

[Engine is running]

Warm-up condition

Idle speed

NOTE:
The pulse cycle changes depending on rpm at idle.

0 - 0.1V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm.

0 - 0.2V

PBIB0044E

PBIB0045E

PBIB0133E

EC-648

IGNITION SIGNAL

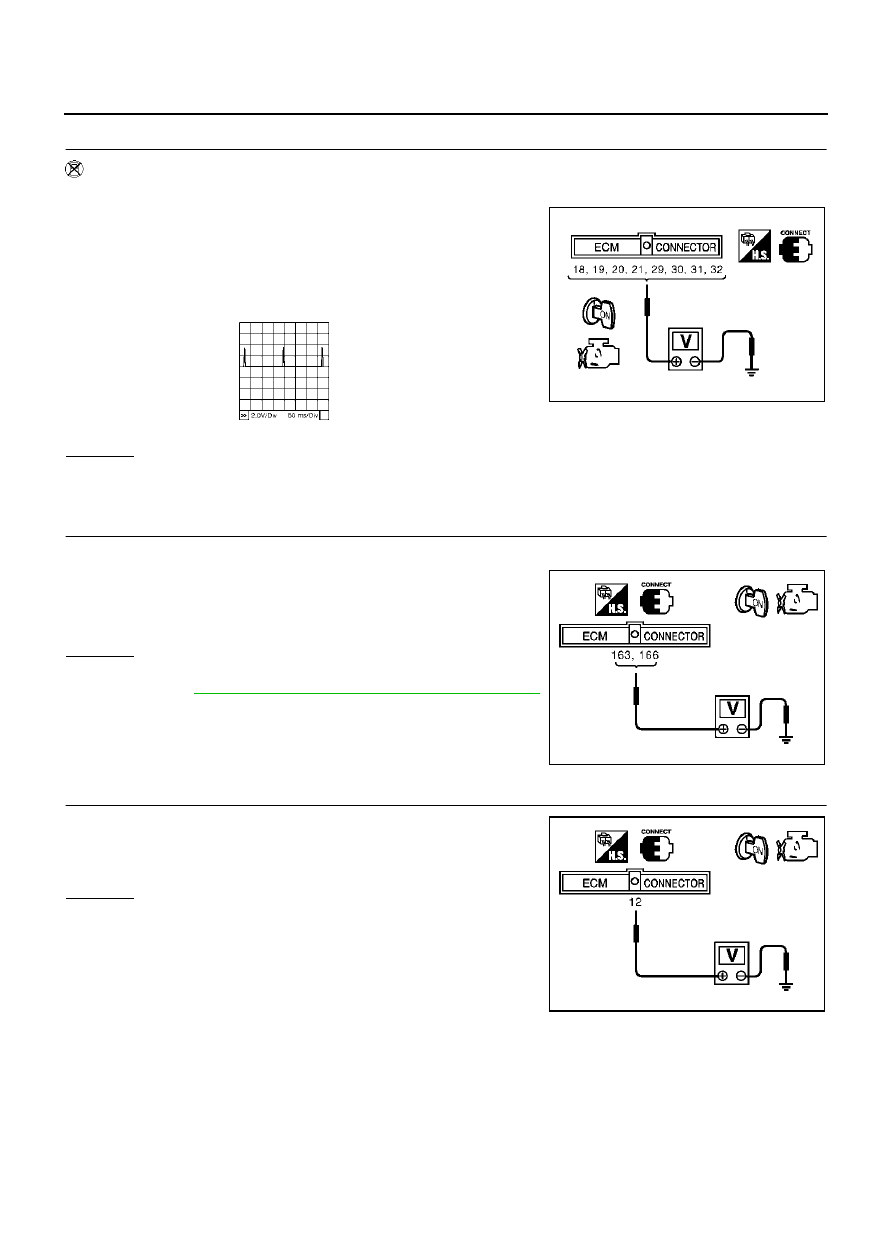

3.

CHECK OVERALL FUNCTION

 Without CONSULT-II

1.

Let engine idle.

2.

Read the voltage signal between ECM terminals 18, 19, 20, 21,
29, 30, 31, 32 and ground with an oscilloscope.

3.

Verify that the oscilloscope screen shows the signal wave as
shown below.

NOTE:
The pulse cycle changes depending on rpm at idle.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 11.

4.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminals 163, 166 and ground
with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> Go to

EC-133, "POWER SUPPLY CIRCUIT FOR ECM"

.

5.

CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II

Check voltage between ECM terminal 12 and ground with CON-
SULT-II or tester.

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 6.

PBIB1152E

PBIB0044E

Voltage: Battery voltage

PBIB0135E

Voltage: Battery voltage

PBIB0136E
